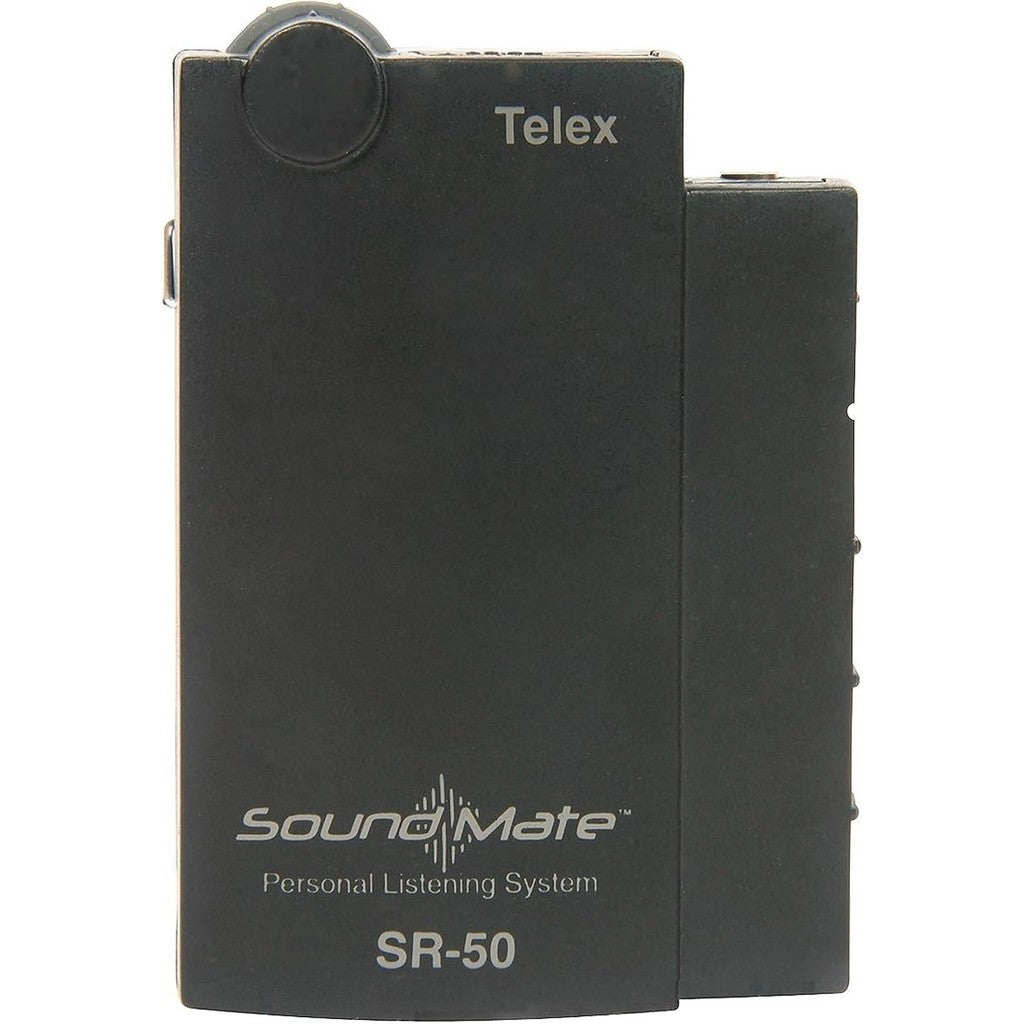

Telex SR-50 SoundMate Single Frequency Personal Reciever (Ch K 75.6)

Telex SR-50 SoundMate Channel K 75.6 MHz Personal Listening Receiver

The Telex SR-50 SoundMate personal listening receiver is a single-channel VHF FM receiver factory-tuned to Channel K at 75.6 MHz. It receives audio from a compatible assistive listening transmitter and delivers it through a connected earphone, headphone, neckloop, or other listening accessory with a 3.5 mm plug.

This fixed-frequency receiver provides straightforward operation for theaters, houses of worship, schools, conference facilities, and other venues using a 75.6 MHz assisted listening system. A raised volume control supports adjustments by touch, while the recessed headphone jack helps protect the listening accessory connection. The detachable belt clip supports comfortable, hands-free use throughout presentations and events.

The SR-50 operates with compatible Telex TW-6, AAT-2, PST-16, ST-200, PST-170, and ST-300 transmitters set to the same frequency. Its earphone cord functions as the omnidirectional receiving antenna, reducing the need for a separate external antenna. Two AA batteries provide extended portable operation, and charging contacts support compatible rechargeable-battery charging equipment.

Key Features

• Channel K Operation: Factory-tuned to 75.6 MHz for compatible fixed-frequency assistive listening systems.
• Single-Channel Design: Eliminates channel programming and simplifies operation for guests, students, and event attendees.
• Raised Volume Control: Combines power and listening-level adjustment in an easy-to-locate thumbwheel control.
• Recessed Headphone Jack: Helps shield the connected earphone plug from bumps and accidental disconnection.
• Flexible Listening Accessories: Accepts mono or stereo earphones, headphones, and compatible neckloops through a 3.5 mm jack.
• Earphone-Cord Antenna: Uses the connected listening accessory cable as an omnidirectional antenna.
• Portable Battery Power: Runs on two AA alkaline, NiMH, or NiCd batteries for mobile listening applications.
• Detachable Belt Clip: Secures the receiver to clothing for convenient hands-free use.

Technical Specifications

• Product Type: Single-channel personal assistive listening receiver
• Model: SR-50
• Catalog Series: 71155
• Frequency Variant: Dash -041
• Channel: K
• Operating Frequency: 75.6 MHz
• RF Frequency Band: 72 to 76 MHz
• Modulation: FM with ±25 kHz deviation
• Temperature Range: 32° to 122°F
• Supply Voltage: 2 to 3V
• Power Requirements: Two AA alkaline, NiMH, or NiCd batteries
• Quiescent Current: 20 mA
• Alkaline Battery Life: Up to 30 hours
• NiMH Battery Life: Up to 20 hours
• NiCd Battery Life: Up to 10 hours
• Audio Frequency Response: Less than 3 dB variation from 100 Hz to 10 kHz
• Sensitivity: 0.5 µV typical and 1 µV maximum at 12 dB SINAD with 25 kHz deviation
• Adjacent-Channel Rejection: More than 35 dB down at ±200 kHz
• Image and Spurious Rejection: More than 50 dB down
• Signal-to-Noise Ratio: More than 60 dB at 1 mV input
• Total Harmonic Distortion: Less than 2%
• Audio Output at 10% Distortion, 8 Ohms: 15 mW at 2V; 80 mW at 3V
• Audio Output at 10% Distortion, 32 Ohms: 10 mW at 2V; 50 mW at 3V
• Antenna: Omnidirectional antenna integrated into the earphone cord
• Controls: Combined volume and power on/off control
• Earphone Connector: 3.5 mm mono or stereo jack
• Visual Indicator: Red power LED
• Charging Contacts: Bottom-mounted contacts
• Compatible Transmitters: Telex TW-6, AAT-2, PST-16, ST-200, PST-170, and ST-300 operating at 75.6 MHz
• Dimensions (H x W x D): 4" x 2.75" x 1"
• Weight: 0.3 lbs including batteries
• Compliance: FCC Part 15
