Teradek 10-2324-G Bolt 6 XT 10K RX Gold Mount Receiver

Teradek Bolt 6 XT 10K RX Gold Mount is a zero-delay video receiver, offering a remarkable wireless range of up to 10,000 feet (3 kilometers) over 5 or 6GHz frequencies. Compatible with both Bolt 6 and Bolt 4K transmitters, it integrates seamlessly into any existing Bolt 4K or Bolt 6 system.

Delivering visually lossless 4Kp60 4:2:2 video via two 12G-SDI outputs, the Teradek Bolt 6 XT 10K RX Gold Mount ensures professional-grade image quality. Its enhanced directional antenna is specifically designed for superior RF performance, minimizing interference by focusing signal reception and benefiting from robust internal shielding.

Its all-in-one enclosure design not only boosts range and reliability in challenging RF environments but it also eliminates the hassle of external antenna cables. This results in a much cleaner setup, expediting deployment from its case onto a c-stand. To maximize range, enable Broadcast Mode on both Bolt 6 XT or LT TX.

Control your setup with ease using the Bolt App, which simplifies device pairing, allows fine-tuned frequency adjustments, and includes a built-in spectrum analyzer for advanced RF diagnostics.

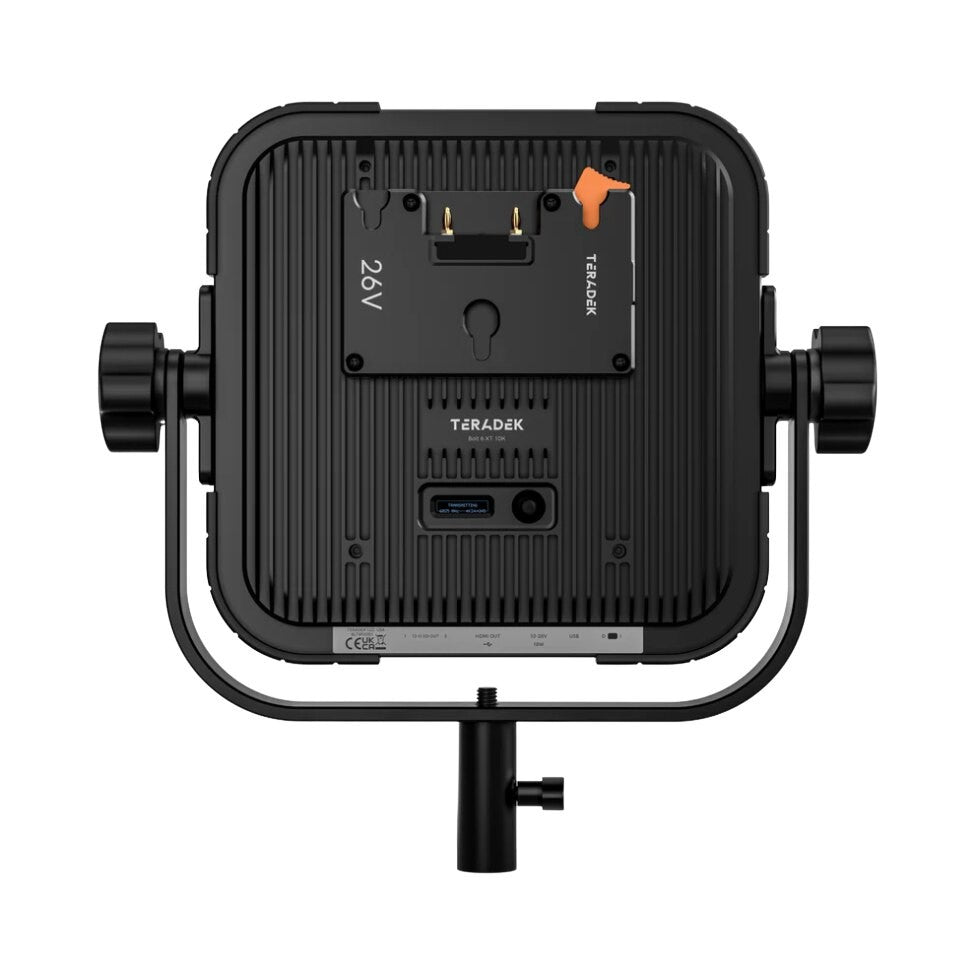

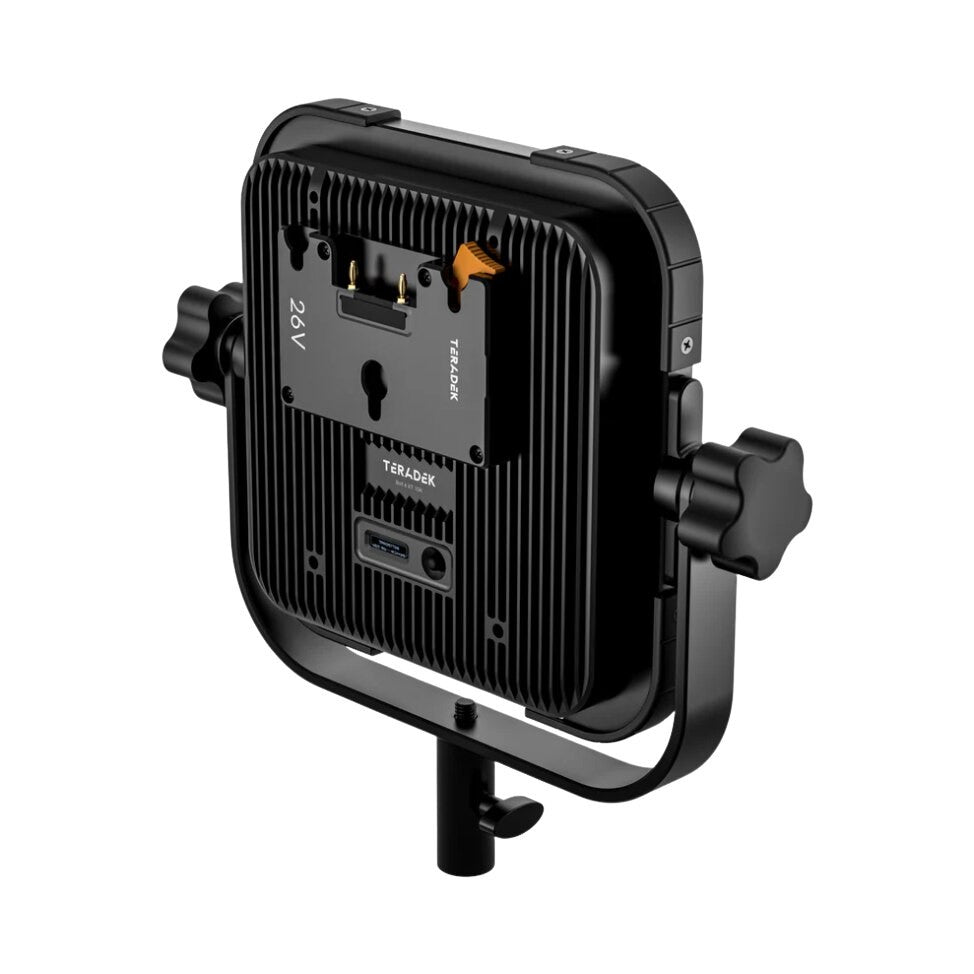

The Gold Mount version of the Bolt 6 XT 10K RX is compatible with 14V and 26V batteries.

Features:

• Super long range (10,000ft/3km) receiver for Bolt 4K and Bolt 6
• Supports up to 4Kp60 10-bit 4:2:2 HDR

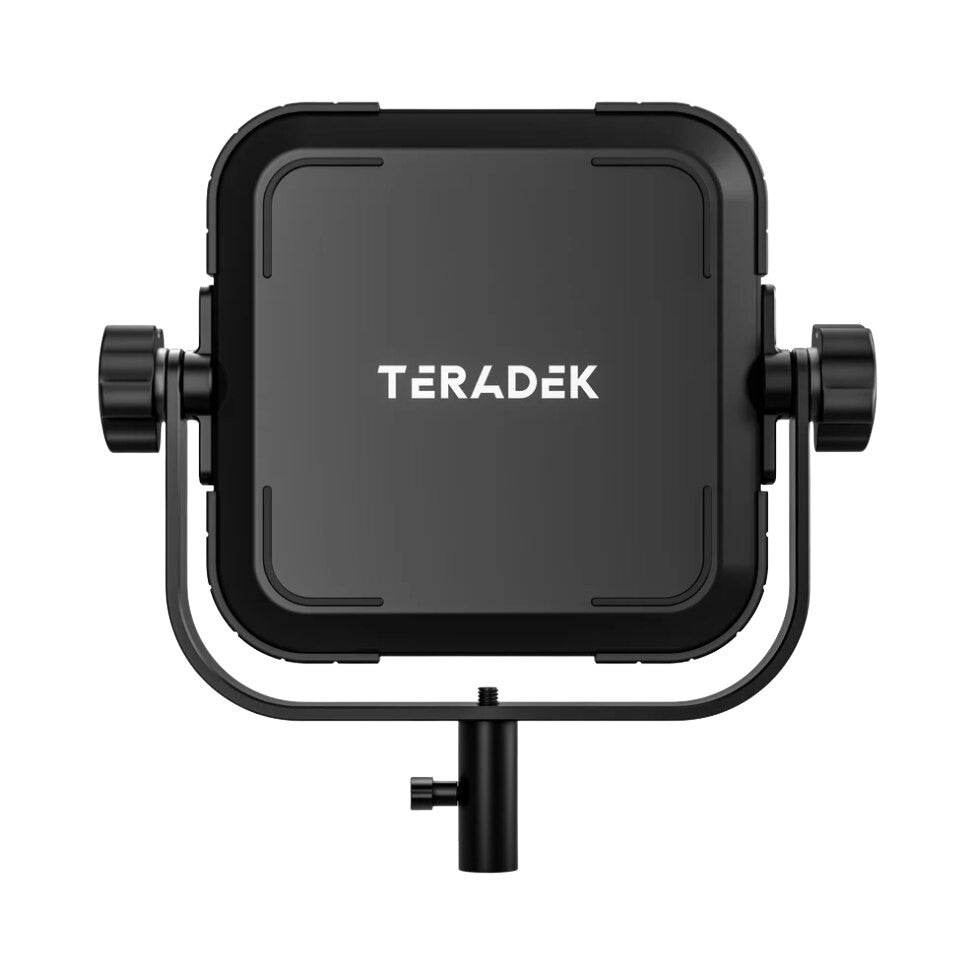

• Fully integrated, directional panel antenna
• Includes Gold or V-Mount battery plate

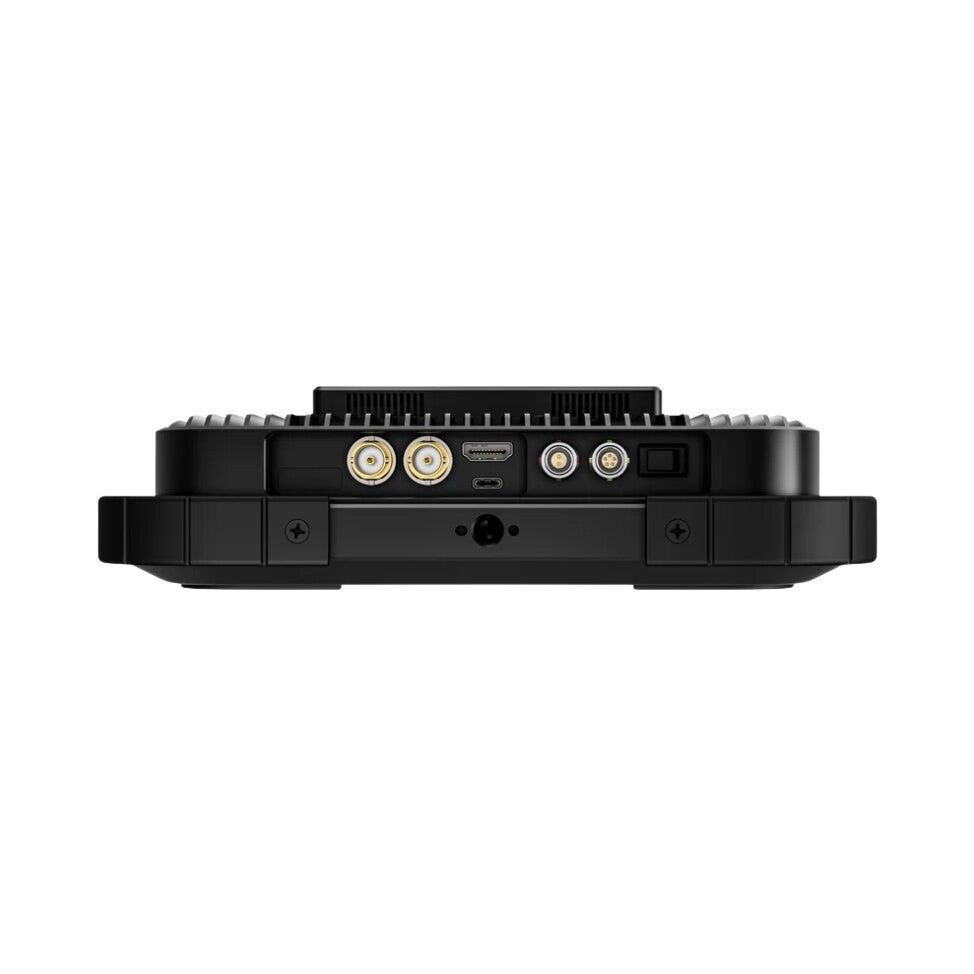

• 2x 12G-SDI and 1x HDMI outputs

Bolt 6 XT 10K RX is a zero-delay video receiver, offering a remarkable wireless range of up to 10,000 feet (3 kilometers) over 5 or 6GHz frequencies. Compatible with both Bolt 6 and Bolt 4K transmitters, it integrates seamlessly into any existing Bolt 4K or Bolt 6 system.

Delivering visually lossless 4Kp60 4:2:2 video via two 12G-SDI outputs, the Bolt 6 XT 10K RX ensures professional-grade image quality. Its enhanced directional antenna is specifically designed for superior RF performance, minimizing interference by focusing signal reception and benefiting from robust internal shielding.

Its all-in-one enclosure design not only boosts range and reliability in challenging RF environments but it also eliminates the hassle of external antenna cables. This results in a much cleaner setup, expediting deployment from its case onto a c-stand. To maximize range, enable Broadcast Mode on both Bolt 6 XT or LT TX.

Control your setup with ease using the Bolt App, which simplifies device pairing, allows fine-tuned frequency adjustments, and includes a built-in spectrum analyzer for advanced RF diagnostics.

The Gold Mount version of the Bolt 6 XT 10K RX is compatible with 14V and 26V batteries.

Features:

• Super long range (10,000ft/3km) receiver for Bolt 4K and Bolt 6
• Supports up to 4Kp60 10-bit 4:2:2 HDR
• Fully integrated, directional panel antenna
• Includes Gold or V-Mount battery plate
• 2x 12G-SDI and 1x HDMI outputs

Technical Specifications

Video Outputs

• 1x 12G-SDI SMPTE 2082-1 standard/75 Ω (BNC x 1) 1x HDMI 2.0 Type-A receptacle

SDI Ancillary Data Support

• Supports timecode and start/stop flags from most camera manufacturers—additional SDI metadata support for Arri and Sony cameras.

Color Sampling

• SDI: YCbCr 4:2:2, 10-bit HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit

Delay Tx To Rx

• <0.001sec (without format conversions)

Output Video Processing

• Yes (deinterlacer, frame rate converter, scaler, 1D/3D LUTs)

Other Tools

• Spectrum Analyzer, Test Pattern Generator

Supported Resolutions

• 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60

  720p50/59.94/60

Video Compression

• Visually lossless

Test Pattern Generator Support

• Yes

Spectrum Analyzer

• Yes

Video Format Conversion Support

• Yes

Color Correction

• 17x17x17 3D LUT (Supports 10-bit color), 1D LUT330.47 x 55.4 x 322.36 mm / 13.011 x 2.18 x 12.69 inch

Audio Format

• 48kHz 24-bit PCM

Audio Output

• Embedded SDI/HDMI Audio Output (2 Channel)

Dimensions

• 13 x 2.2 x 12.7 inch (330 x 55 x 322 mm)

Weight

• 4.44lbs. (2.01 kg)

Construction

• Milled aluminum (chassis), polyurethane antenna cover with rubber shock protection, regulation-compliant PCB

Configuration Interfaces

• OSD with Menu Joystick Navigation

Switches

• On/Off Switch

Mobile App

• Bolt App (iOS and Android)

Desktop App

• Bolt Manager app (OSX and Windows)

Usb Interface Functionality

• Upgrade via USB-C, 5-pin locking connector CCU

Bluetooth Compatibility

• Yes

Antennas

• Integrated directional array panel antenna, 4.9-7.3GHz

Wireless

• DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz

Bluetooth

• 2.4GHz

Rf Channel Selection

• Auto, Manual

Encryption

• AES-256, RSA-1024 key exchange

Rf Power

• 21 dBm EIRP (max power)

Range

• Up to 10000ft [1524m] using broadcast mode with a Bolt 6 MAX TX, Approx. 5000ft. with broadcast disabled

Unicast Multicast

• 750/1500/MAX: Can connect one transmitter to up to 6 receivers MAX (with Broadcast Mode enabled): Can connect one transmitter to unlimited receivers

Noise Rejection

• Coexists with Wi-Fi and 5GHz cordless phones, and operates up to 6 sets in the same location

Power Input

• 2-Pin locking connector 10-28 VDC

Battery

• None, optional Gold or V-mount battery plate

Nominal Power Consumption

• 18 Watts

Operating Temperature

• 0~40 deg-C

What's Included

• 1 x Bolt 6 XT 10K RX, Gold Mount Plate 1 x 10K Yoke Mount (sold as 11-0825) 1 x 2pin Locking Connector to AC Power 1 x USB-A to USB-C cable
