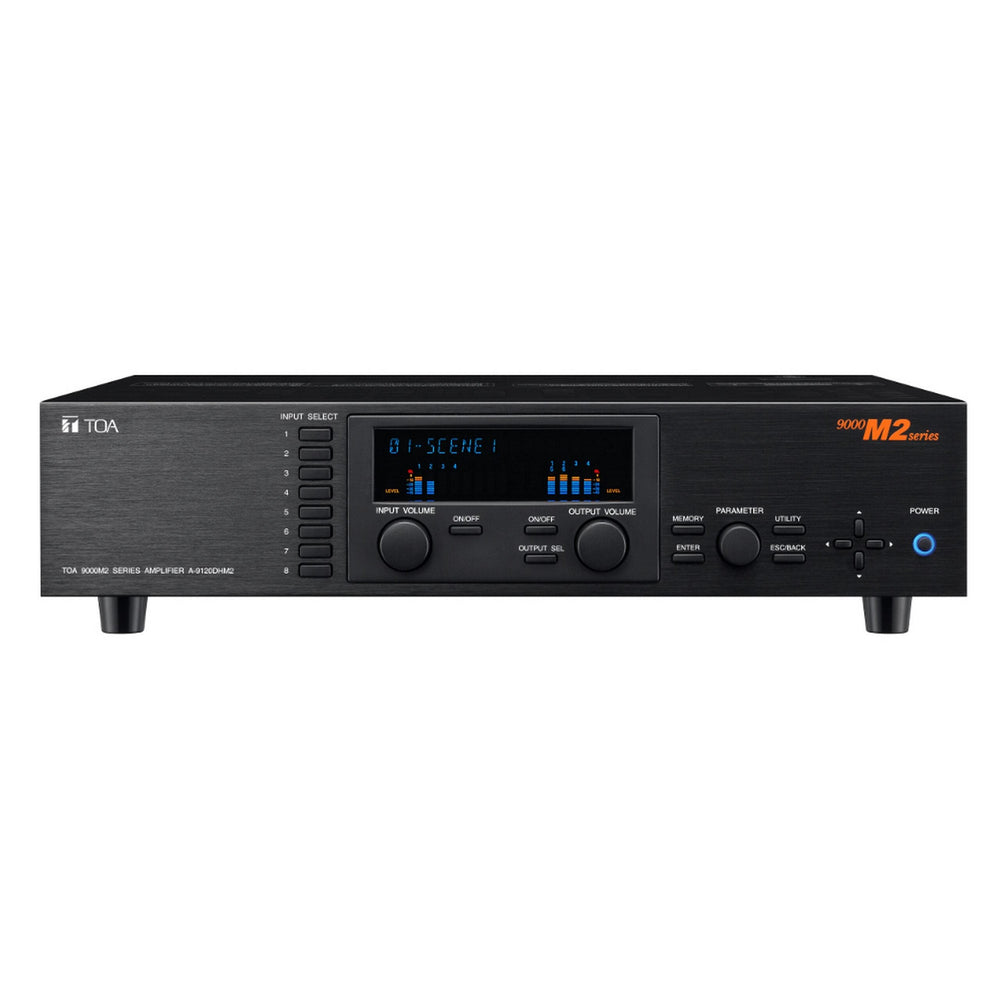

TOA Electronics A-9120DHM2CU 9000M2 Series Mixer/Amplifier

The A-9120DHM2 Amplifier is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used. The most appropriate modules can be selected depending on applications. Since it comes with two 120 W power amplifiers, it can individually perform multi-origin broadcasts. It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set at the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel.

Technical Specifications

Power Source
120 V AC, 60 Hz
Power Consumption
250 W
Rated Output
120 W - 2 channels
Audio Input
Max. 8 channels, modular construction (modules optional)
Power amplifier input 1, 2: 0 dB(*1), 10 k, RCA pin jack
Audio Output
Preamplifier output 1, 2: 0 dB(*1), 300 , unbalanced, RCA pin jack
Speaker output 1, 2: 120 W, 41 - 2, BTL output, removable terminal block (4 pins)
Module Slot
Analog input (slot 1 8): -10 dB(*1), 10 k, unbalanced
Digital input (slot 1 4): 24 bit/48 kHz
MIX output (slot 1 8): -14 dB(*1), 330 (CH 1 prefader output), unbalanced
Digital output (slot 5 7): 24 bit/48 kHz
Power supply (slot 1 8): +24 V, -24 V, +6 V DC
Digital Audio Signal Reference Level
-20 dBFS
Power Bandwidth
20 Hz 20 kHz, 0.008 % THD
Frequency Response
Power amplifier section: 20 Hz 20 kHz, +0, -1 dB
Analog input module to speaker output: 20 Hz 20 kHz, +1, -3 dB
Total Harmonic Distortion
Power amplifier section: 0.0008 % (22 kHz LPF, 1 kHz, rated power)
Analog input module to speaker output: 0.008 % (22 kHz LPF, 1 kHz, rated power)
S/N Ratio
At Input short, 20 Hz 20 kHz, set to ALL FLAT or OFF setting
Output volume min.: 90 dB (preamplifier output)
Output volume max.: 61 dB
(preamplifier output, Input 1 volume: 0 dB, Other Inputs: OFF)
Power amplifier section: 110 dB
Cross Talk
64 dB or more (at 20 kHz)
Tone Control
Bass: -12 dB (at 100 Hz)
Treble: %%p12 dB (at 10 kHz)
Parametric Equalizer
10 bands, Frequency: 20 Hz 20 kHz, 31 points, Variable range: -12 dB, Q: 0.3 5
Speaker Equalizer
10 (setup software has 30 TOA speaker presets)
High-pass Filter
-12 dB/oct, Variable frequency range: 20 Hz 20 kHz, 31 points
Low-pass Filter
-12 dB/oct, Variable frequency range: 20 Hz 20 kHz, 31 points
Compressor
Depth: 1 5
Delay
0 40 ms (1 ms steps), maximum 40 ms (CH 1 + CH 2), mixer mode only
Scene/Event Memory
32
Auxiliary Function
Key lock function
Control Input/Output
RS-232C(*2), D-sub connector (9 P, female)
Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3 V DC,
short-circuit current: 1 mA or less, removable terminal block (14 pins)
Control output: 4 outputs, open collector output, withstand voltage: 27 V DC,
control current: 50 mA, removable terminal block (14 pins)
Remote volume: 2 channels, connect a 10 k/linear taper variable resistor or
input the DC voltage of 0 to +10 V, removable terminal block (14 pins)
Operating Humidity
35 % to 80 %RH (no condensation)
Finish
Panel: Aluminum, hair-line, black
Case: Surface-treated steel plate, black, paint
Dimensions
420 (W) 107.6 (H) - 395 (D) mm (16.54" - 4.24" - 15.55")
Weight
11 kg (24.25 lb)
