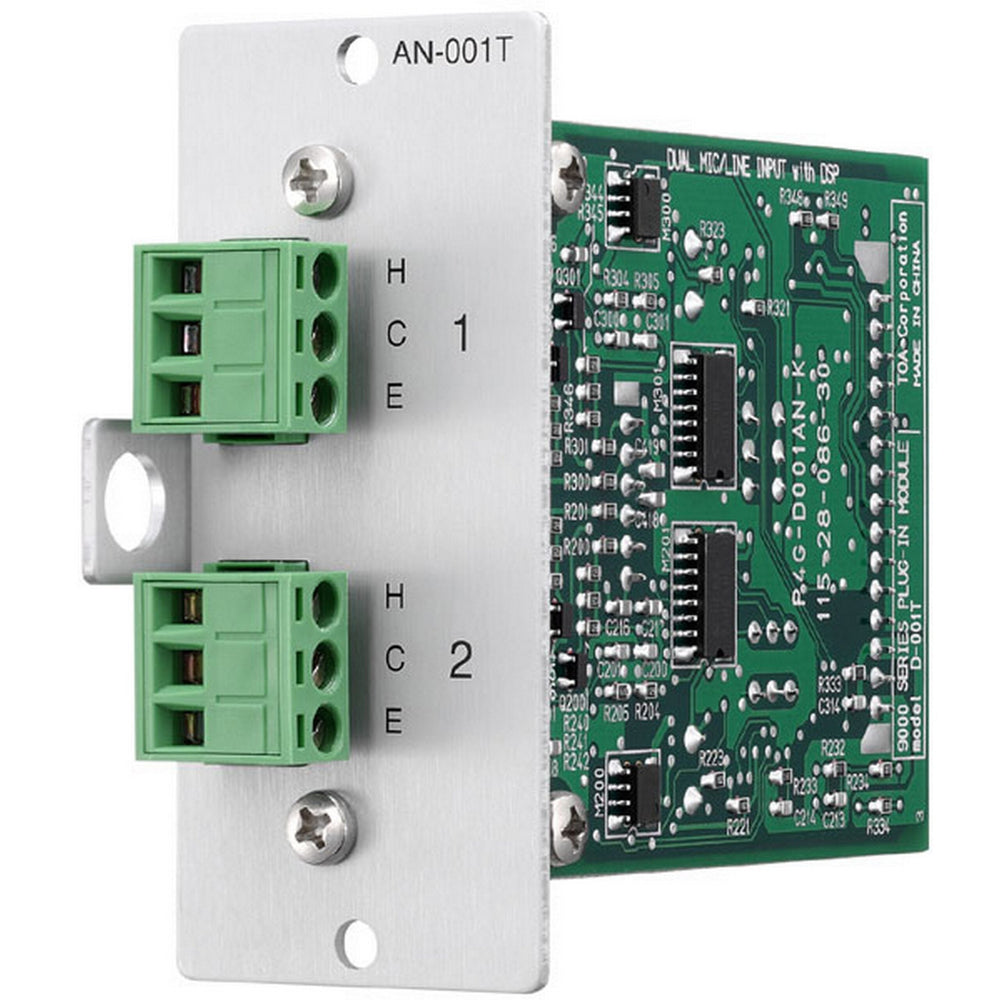

TOA Electronics AN-001T Ambient Noise Controller Module
The AN-001T is a plug-in module of 2-channel ambient noise detector designed for use with the 9000 series amplifiers. It automatically adjusts the output volume in response to the change of ambient noise level. The AN-001T can handle input signals from microphone level (-60 dB) to line level (-10 dB) by controlling the gain in 9 steps. Phantom power (+24 V) can be supplied for condenser microphone use.
Technical Specifications
Power Source
   +24 V DC,  -24 V DC, +6 V DC
   Current Consumption
   20 mA (at  +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
   Input
   Sensor input  (Ambient noise sensor microphone input): 2 channels,
   3 k (when  the phantom power is ON)/10 k (when the phantom power is OFF),
   electronically-balanced,  removable terminal block (3 pins)
   Input Sensitivity
   -60, -54,  -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
   Phantom Power
   +24 V DC
   A/D Converter
   24 bit ADC
   Sampling Frequency
   48 kHz
   Ambient Noise Control Function
   Sensor input  reference level adjustment function
   Maximum  output signal level control: -15 to 0 dB
   Minimum  output signal level control: -18 to -3 dB
   Sample time  setting: 10 s, 15 s, 20 s, 30 s, 1 min, 2 min, 3 min, 5 min
   Gain ratio  setting (Ambient noise: Output signal level)
   Finish
   Panel:  Aluminum, hair-line
   Dimensions
   35 (W) - 78 (H)  - 91.5 (D) mm
   Weight
   82 g
   Accessory
   Removable  terminal plug (3 pins) -2, Module mounting screw -2
   Option
 Ceiling  mount microphone: AN-9001
