Description

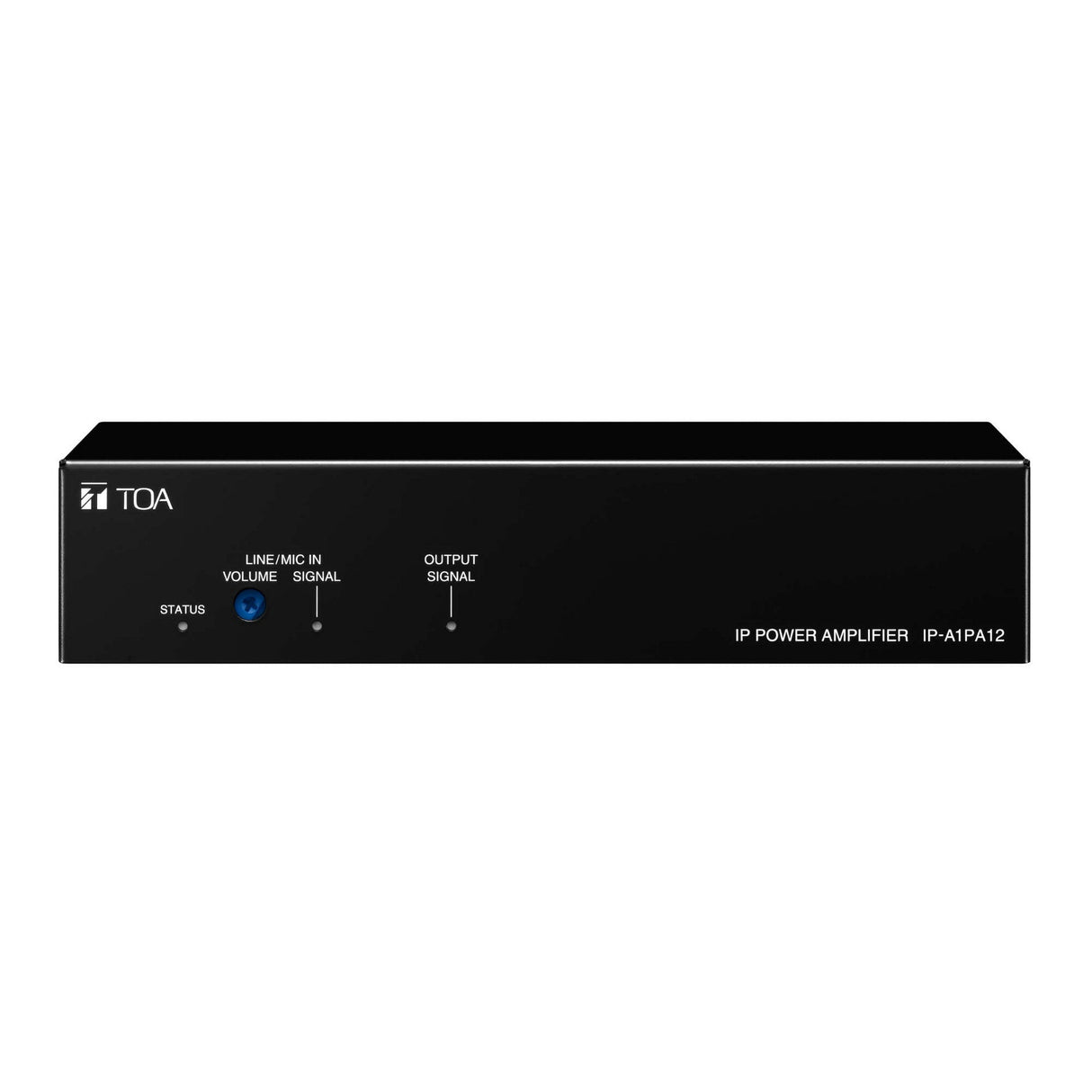

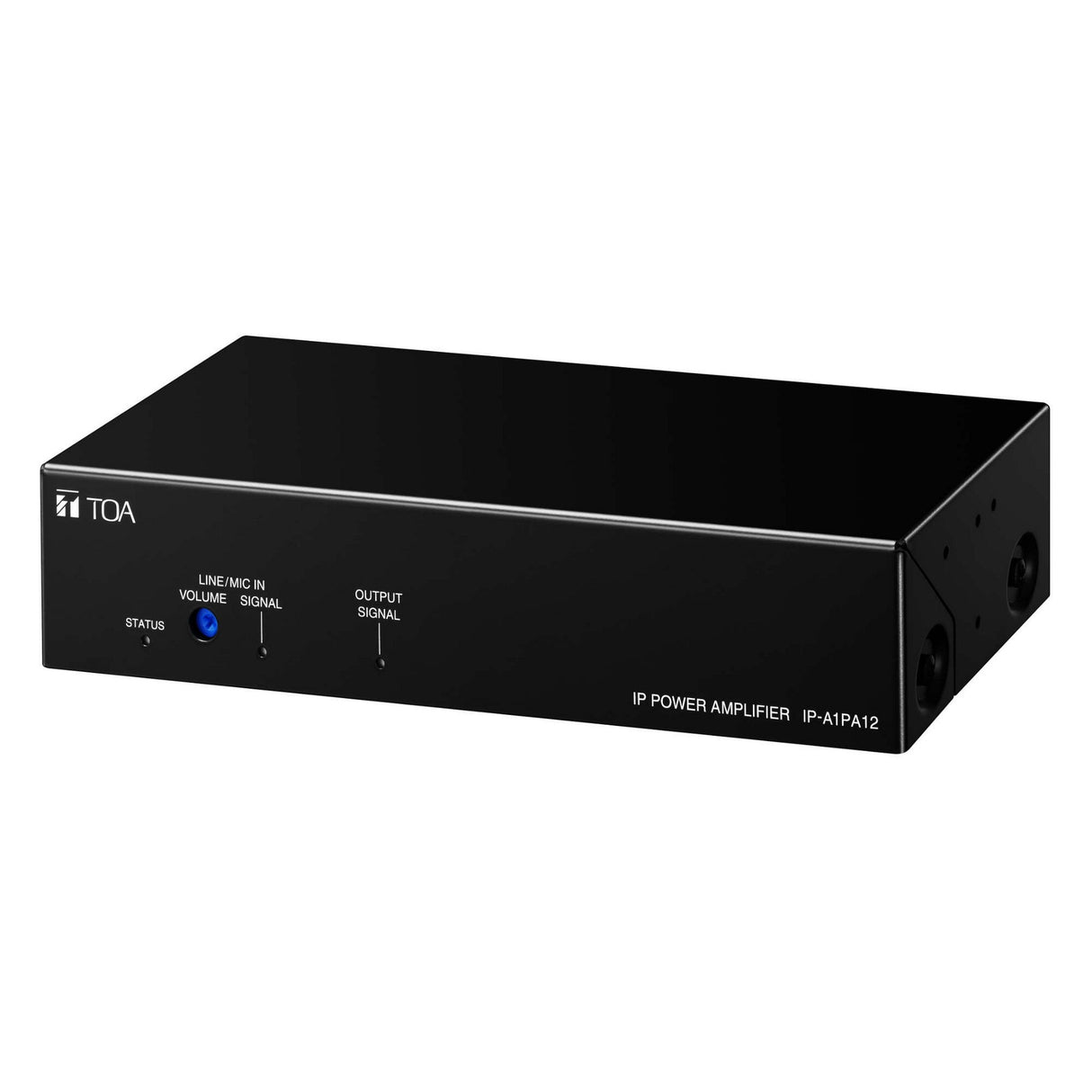

TOA Electronics IP-A1PA12 12W IP Power Amplifier
The TOA Electronics IP-A1PA12 is a compact IP power amplifier built to amplify audio received over a network for paging and public address systems. With a 12 W amplifier and high impedance speaker line outputs, it supports clear distribution to 100V, 70V, and 25V line speakers. It is designed for IP audio deployments that need reliable zone amplification in commercial facilities.
This amplifier supports SIP, ONVIF, and multicast streaming, plus local broadcasting from a LINE or MIC input with selectable phantom power. It also provides internal message playback with storage for up to 20 audio files and triggering via control inputs or remote API (HTTP/HTTPS) commands. PoE+ powering simplifies installation while keeping network audio and amplification in one compact endpoint.
The IP-A1PA12 helps standardize IP paging across buildings while maintaining flexible routing and priority control between broadcast modes. It includes an external amplifier input capability so connected speakers can be switched between the built-in amplifier and an external PA amplifier when required. It is well suited for schools, offices, healthcare, hospitality, and other sites that need network-based announcements and zone audio control.
Key Features
- 12W IP Amplification: Compact 12 W amplifier designed to amplify audio signals received through network.
- 25V 70V 100V Speaker Lines: High impedance speaker line outputs to drive a wide range of line speakers.
- SIP ONVIF Multicast: Supports receiving SIP audio, ONVIF, and multicast for paging and broadcast workflows.
- Internal Audio File Playback: Stores up to 20 audio files for scheduled or triggered playback.
- Remote API Control: Supports remote API (HTTP/HTTPS) commands for control and triggering.
- External Amplifier Input: External amplifier input capability to share speakers between internal and external amplification by switching.
- PoE+ Powered: Powered via PoE+ for simplified network installation.
Technical Specifications
- Power Source: PoE+ (IEEE802.3at Class 4)
- Power Consumption: 25 W (rated output), 6 W (IEC62368-1)
- Amplifier Rated Output: 12 W
- Frequency Response: 100 Hz - 20 kHz
- Audio Codec: Opus, PCMU (G.711u), PCMA (G.711a), G.722
- Network I/F: 100BASE-TX, Auto MDI/MDI-X, RJ45 connector
- Control Input: 2 channels, no-voltage make contact inputs, open voltage 5 V DC, short-circuit current 2 mA or less
- Control Output: 1 channel, open collector output, withstand voltage 30 V DC, control current 150 mA or less

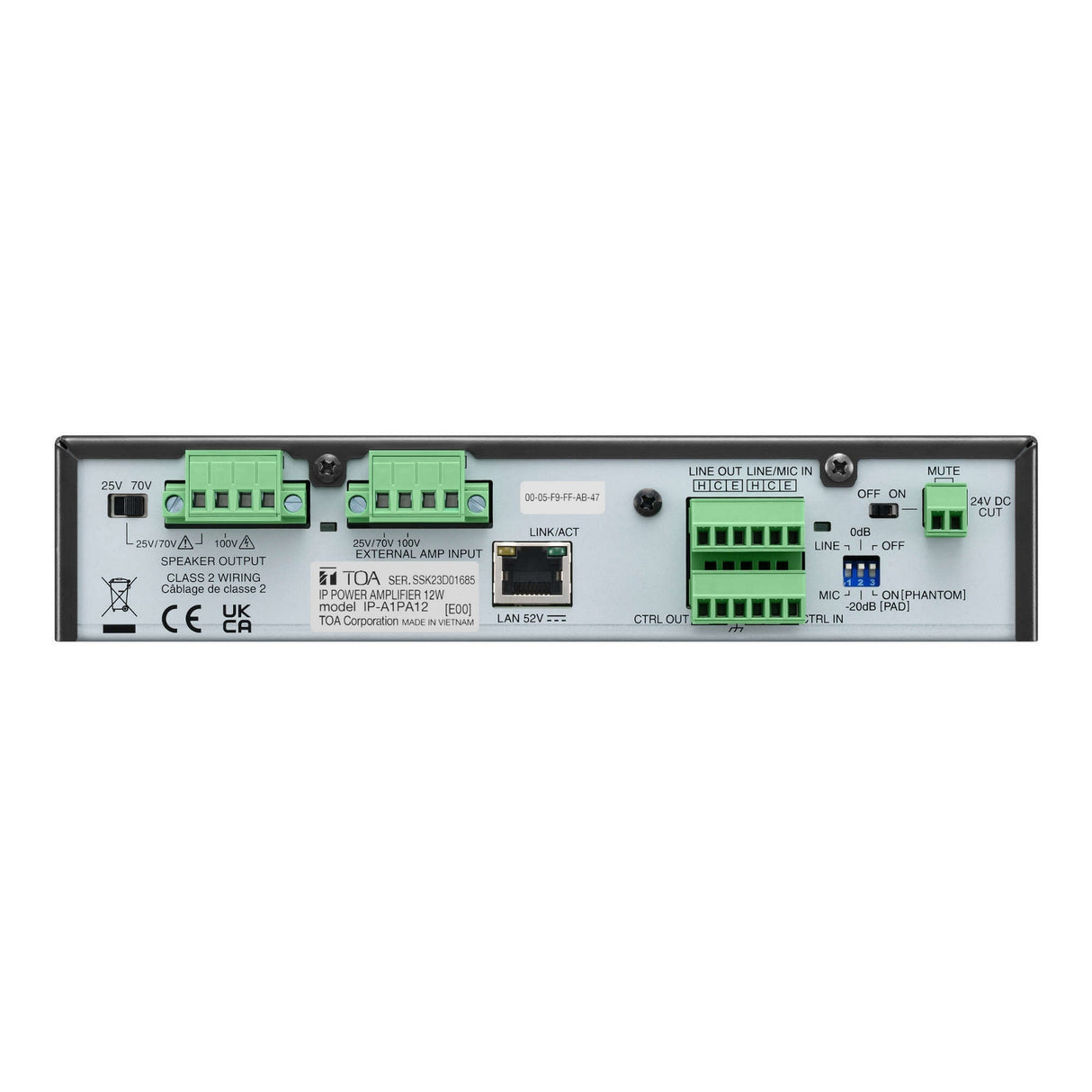

- Speaker Output: High impedance 100 V line (830 ohm), 70 V line (420 ohm), 25 V line (52 ohm)
- Sound Source Files: Max. 20 files (File storage capacity 80 MB total), WAV and MP3 supported
- Operating Temperature: -30 C to +55 C (-22 F to 131 F)
- Operating Humidity: 90 %RH or less (no condensation)
