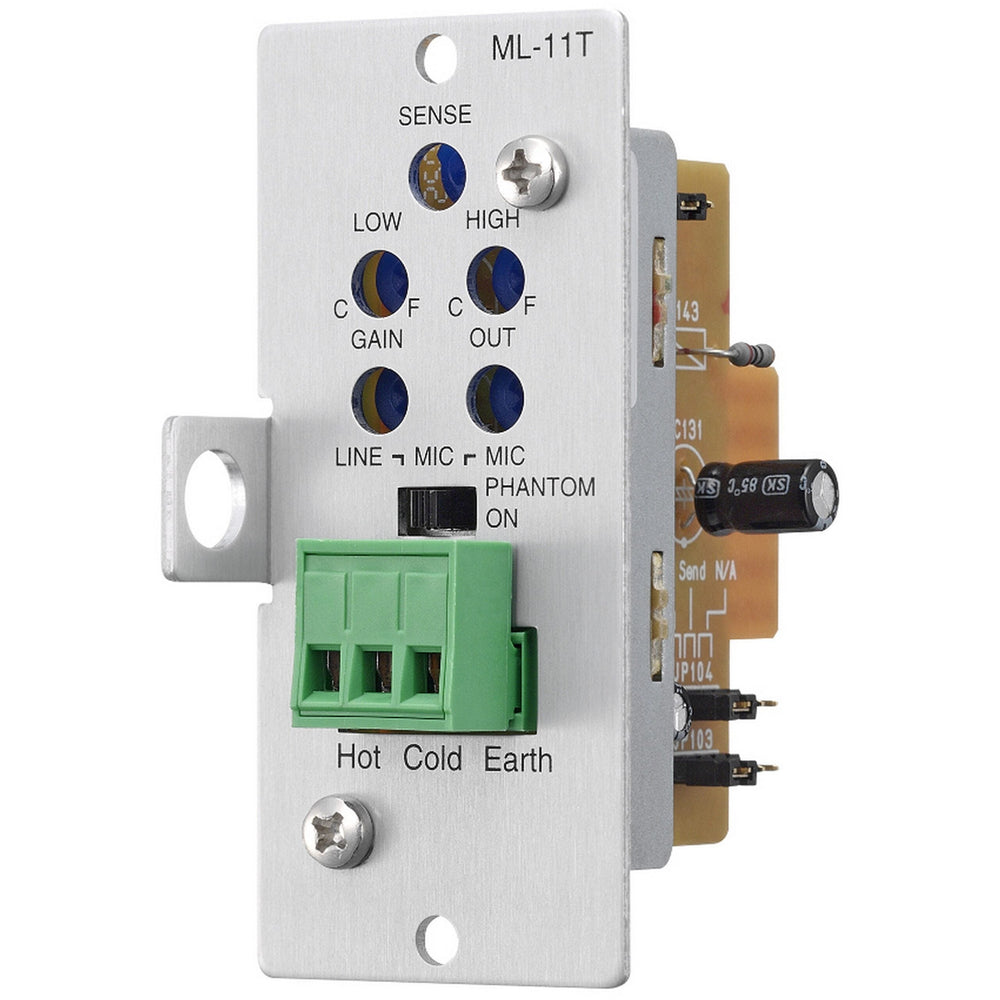

TOA Electronics ML-11T Mic/Line Input Module
The ML-11T is a microphone/line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a balanced microphone/line input with removable terminal block connector, phantom power supply function, and gain and tone controls.
Technical Specifications
Power Source
24 V DC (supplied from the main frame)
Current Consumption
25 mA
Input Sensitivity
-60/-20 dB* (changeable)
Input Impedance
10 k, unbalanced
Frequency Response
20 Hz 20 kHz -1.0 dB
Distortion
0.05 % (1 kHz)
Gain
32 52 dB
Phantom Power
+22 V DC (active or disable selectable)
Connector
Removable terminal block (3P)
Dimensions
35 (W) - 78 (H) - 91.5 (D) mm (1.38 - 3.07" - 3.6")"
Weight
Max. 49 g (0.11 lb)
