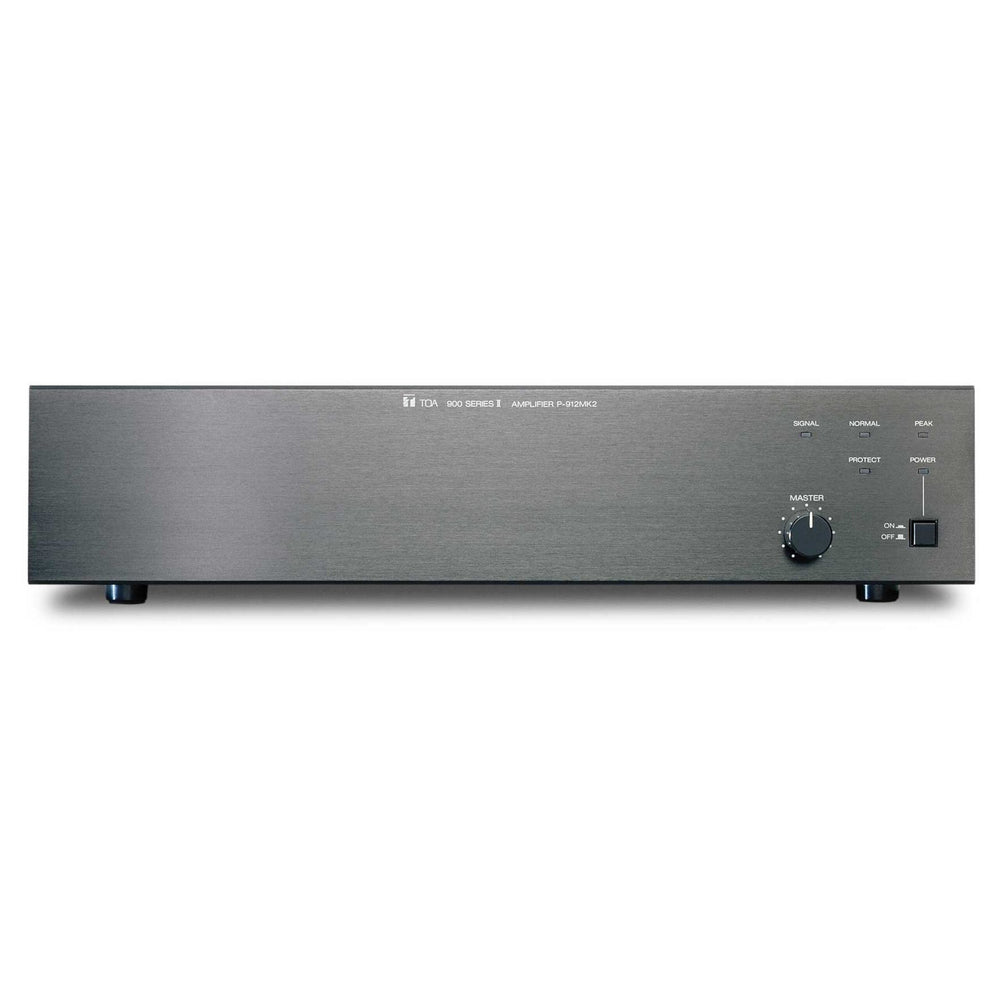

TOA Electronics P-912MK2 UL 120 Watt Single-Channel Power Amplifier
The P-912MK2 Power Amplifier delivers up to 120 watts of output power. The power amplifier has an input port to accept one plug-in module.
Technical Specifications
Type
Power amplifier
Power Requirement
AC mains, 120 V, 60 Hz
Power Consumption
180 W
Output Power
120 W RMS
Power Band Width
(D) 20 20,000 Hz, 0.5% THD
(T) 50 20,000 Hz, 0.5% THD
Frequency Response
(D) 20 20,000 Hz, -1 dB
(T) 20 15,000 Hz, -1 dB, (T) 20 20,000 Hz, +1 dB, -3 dB
T.H.D
0.01% at 1 kHz, rated output
Inputs
One Input Port : Port accepts any input module expect T-01.
Input Sensitivity /Impedance
Input Port : 100 mV or 1000 mV (switchable)/10 k
Direct Input: 100 mV or 1000 mV (switchable)/10 k
Outputs(T)=Transformer (D)=Direct
Main (T) : 8 , 25 and 70 volts, balanced
Main (D) : 4 , unbalanced
Output Regulation(1kHz)
(D) Less than 0.5 dB, no load to full load
(T) Less than 1.0 dB, no load to full load
S/N Ratio(Band Pass 20 ? 20,000 Hz)
Input level switch in 0 dBV (1000 mV) position : 108 dB
Input level switch in -20 dBV (100 mV) position : 90 dB
Controls
1 Input gain control 1 Input level switch
1 Power ON/OFF switch 1 Low-Cut switch
Indicators
1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
Protection
Self-protection, with AC fuse (inside)
Connectors
Input: Card-edge connector and screw-terminal strip
Output: Screw-terminal strip
AC outlet: 3-pin grounding type
AC power cord/plug : SJT, 3-prong type
Finish
Black
Dimensions(WHD)
420(16.54") - 99.1(3.90") - 358(14.09") mm
Weight
10.9 kg (24.03 lb.)
