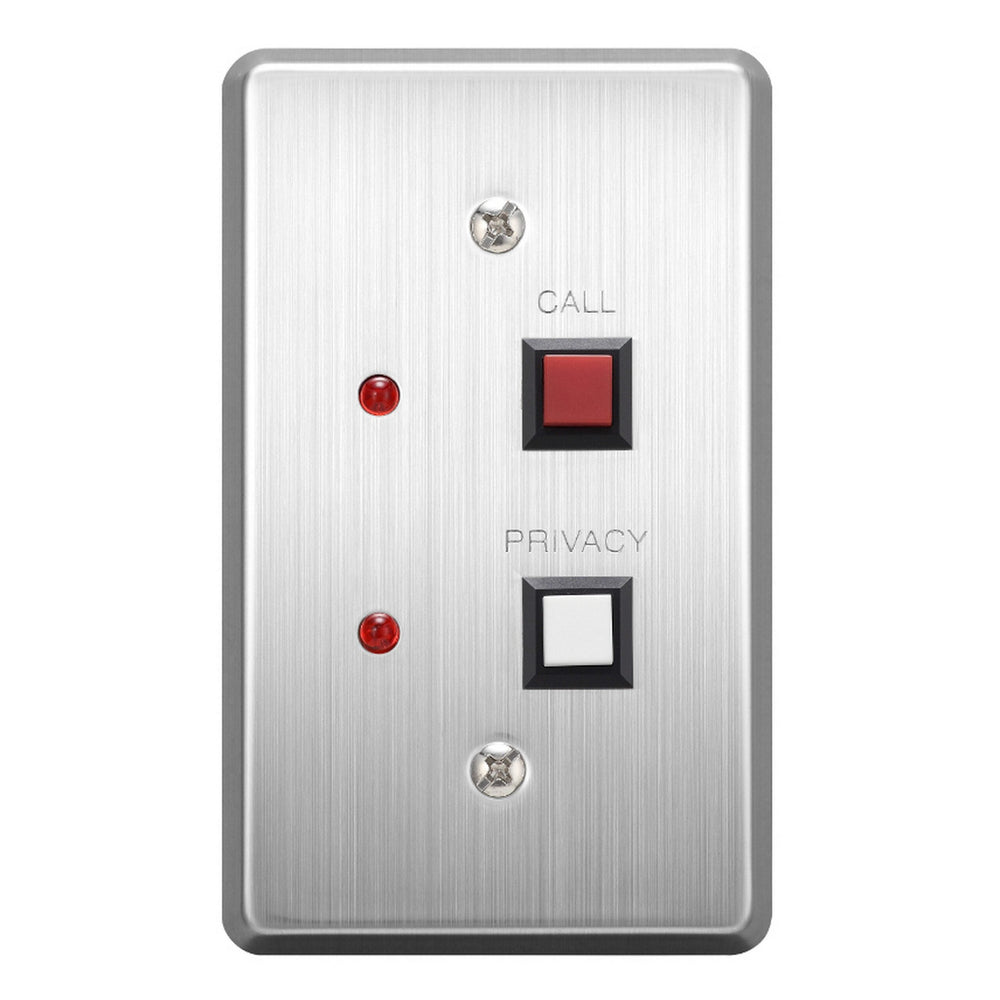

TOA Electronics RS-140 IP Intercom Switch Panel
The RS-140 is a switch panel designed for use with the N-8000RS or N-8010RS 2-Core Shielded Substation Interface Unit. It is equipped with a Call button and a Privacy button, and can be installed in a 1-gang electrical box. By connecting a high impedance speaker to it, hands-free conversation with the master station can be made through its speaker. Also, it can be used in connection with the RS-141 Ip Intercom Option Handset.
Technical Specifications
Call Button
Momentary
Privacy Button
Latching
Indicator
When called: Status indicator (red) flashing
In conversation: Status indicator (red) lit
In privacy: Privacy indicator (red) lit
Wiring
Two-core shielded cable
Transmission Range
0.5 km (546 yd)/φ0.5 mm (AWG24)
0.8 km (874 yd)/φ0.65 mm (AWG22)
1.3 km (1421 yd)/φ0.9 mm (AWG19)
Finish
Plate: Stainless steel, hairline
Call Button: resin, red
Privacy Button: resin, white
Dimensions
70 (W) x 115 (H) x 28.6 (D) mm (2.76 x 4.53” x 1.13”)
Weight
80 g (0.18 lb)
Accessory
Mounting bracket ……1, bracket mounting screw (No.6-32UNC x 18) ……2, Box mounting screw (M4 x 30) ……2, Box mounting screw (No.6-32UNC x 30) ……2
Applicable Box
Flush-mount box: YC-801 (option)
Wall-mount box: YC-802 (option)
