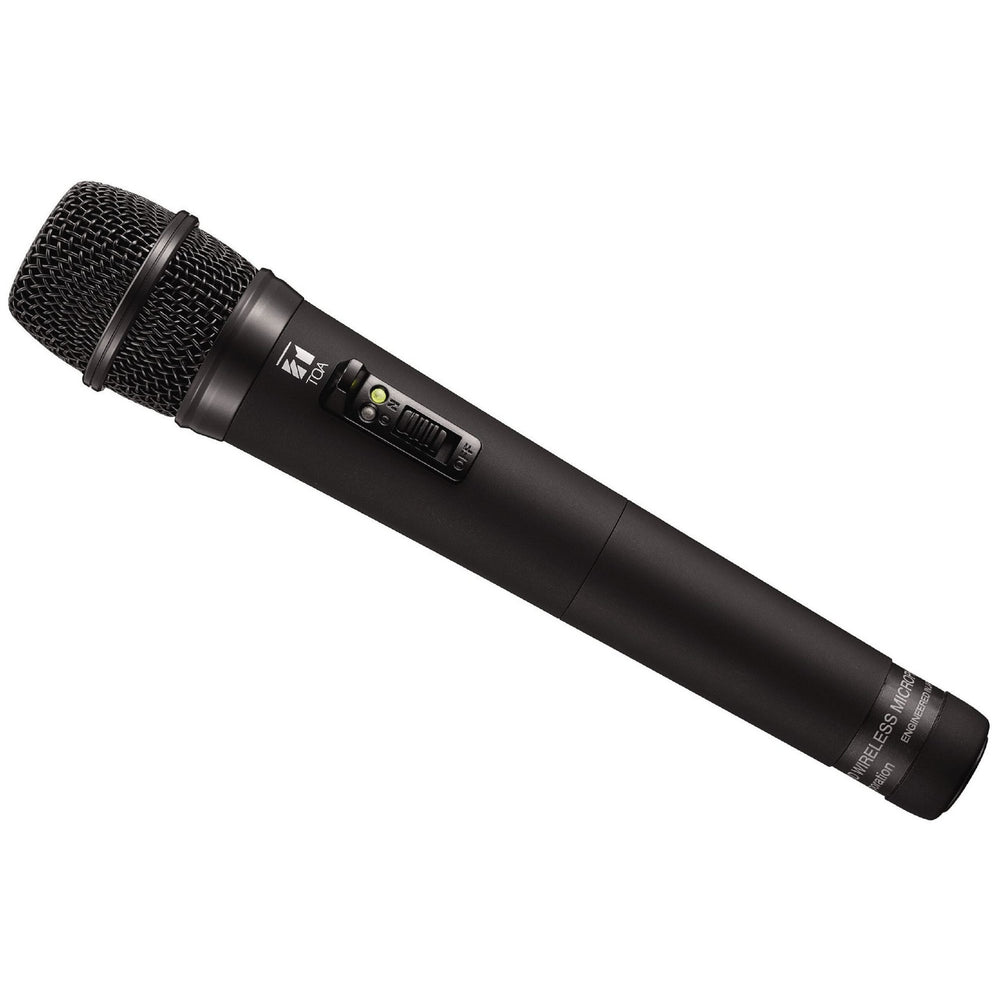

TOA Electronics WM-5225 Handheld Wireless Condenser Microphone
The WM-5225 Wireless Microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.
Technical Specifications
Microphone Element
Electret condenser microphone unit: Unidirectional
Modulation
Frequency modulation
Frequency Range
576 - 932 MHz*, UHF
Channel Selectable
64 channels (the number of channels may differ from country to country)
RF Carrier Power
50 mW or less
Tone Frequency
32.768 kHz
Oscillator
PLL synthesized
Maximum Input Level
126 dB SPL
Maximum Deviation
Ā±40 kHz
Audio Frequency Response
100 Hz - 15 kHz
Dynamic Range
95 dB or more (with WT-5800)
Battery
WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery
Battery Life
Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator
Power/Battery lamps
Antenna
Built-in type
Operating Temperature
-10 to +50 (14 DegreesF to 122 DegreesF) (except battery)
Operating Humidity
30 % to 85 %RH (no condensation)
Finish
Resin, coating
Dimensions
43.6 x 231.5 mm (?1.72" Ć 9.11")
Weight
180 g (0.4 lb) (with battery)
