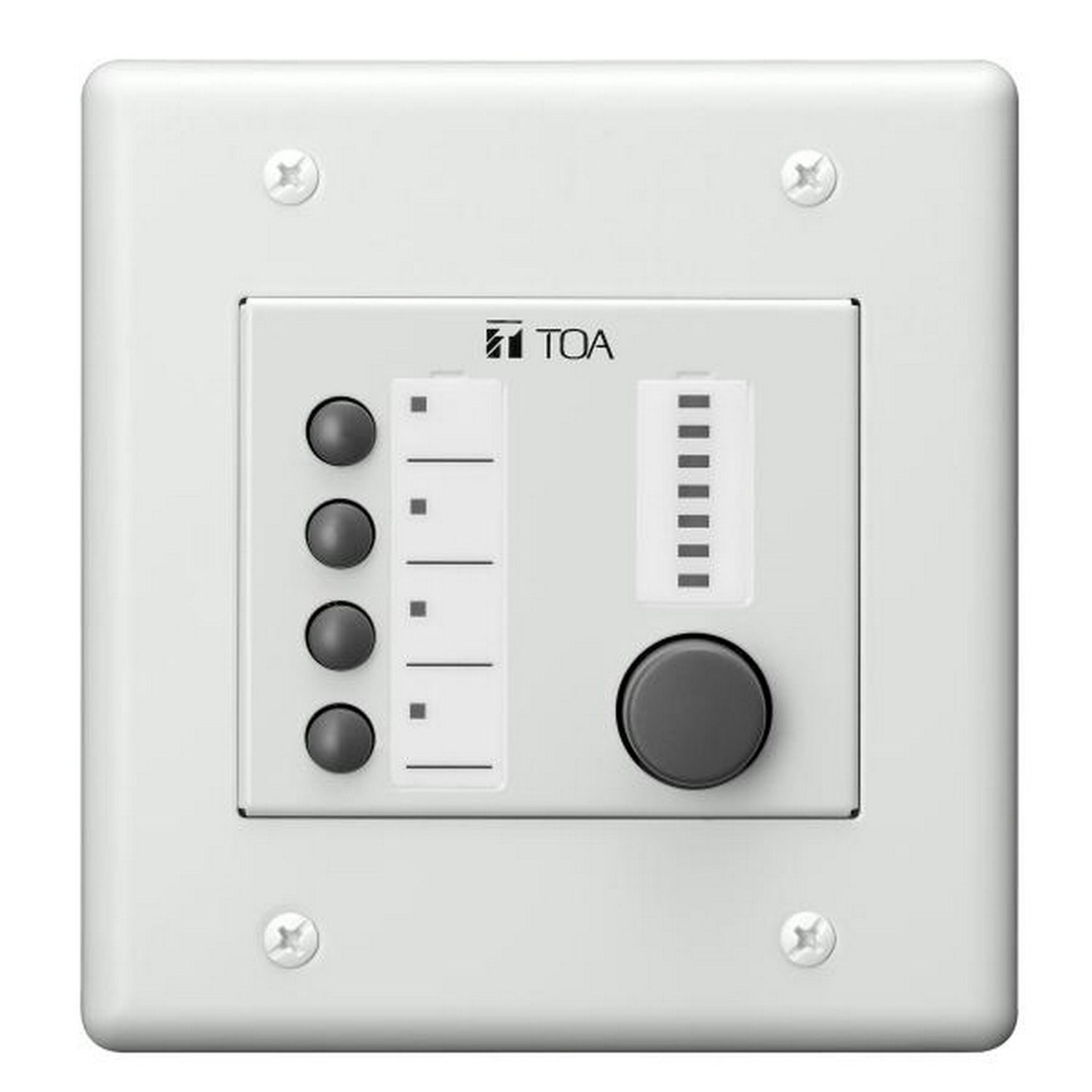

TOA Electronics ZM-9014 Assignable 4-Button Remote Panel with Volume Control
Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9014 is a wall mounted remote control panel having 4 buttons and 1 volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 2-gang electrical box in the wall.
Technical Specifications
Power Source
24 V DC (supplied from RC-001T or M-864D)
Current Consumption
50 mA or less
Terminal
Removable terminal block (10 pins)
Connection Cable
Shielded CPEV cable (paired data line and paired power line) or
Category 5 twisted pair cable for LAN (CAT5-STP)
Operating Section
4 function buttons, 1 volume control
Indicator
4 function indicators (green LEDs), Level indicators (green LEDs)
Operating Humidity
35 % to 80 %RH (no condensation)
Finish
Surface-treated steel plate, white, paint
Dimensions
120 (W) 127 (H) - 58.5 (D) mm (4.72" - 5" - 2.3")
Weight
374 g (0.82 lb)
