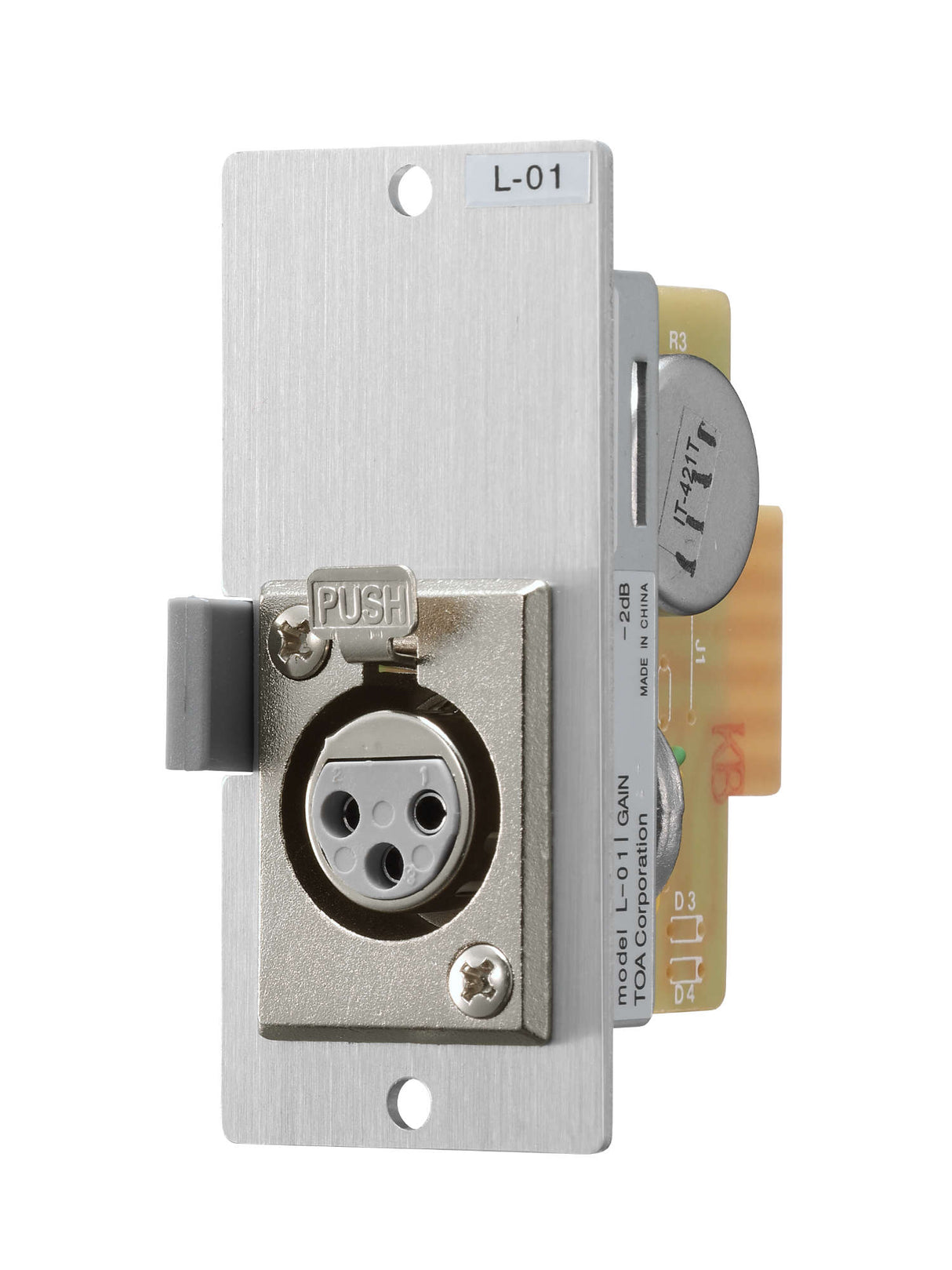

TOA L-01F 600-Ohm Balanced Line Matching Input Module for 900 Series

The TOA L-01F is a plug-in line matching input module that gives a TOA 900 Series mixer/amplifier a true 600-ohm, transformer-isolated balanced line input terminated on a female XLR connector. Transformer isolation is what sets this module apart from an ordinary line input: it galvanically separates the source from the amplifier, breaking ground loops and rejecting the common-mode hum that long cable runs pick up in a commercial building. Where a background music source, a telephone paging interface, an assistive listening transmitter or a legacy broadcast feed expects to see a 600-ohm load, the L-01F provides the correct matching impedance instead of forcing the source into a mismatch.

The module drops into any of the eight input ports on TOA's 900 Series hosts, including the A-903MK2, A-906MK2 and A-912MK2 mixer power amplifiers and the M-900MK2 mixer preamplifier, as well as the six ports on the W-906A and W-912A in-wall mixer power amplifiers. It is equally at home in the two dedicated 900 Series module slots built into TOA's 800D Series digital mixer amplifiers (A-812D, A-824D and A-848D), and in the 9000M2 Series amplifiers, which TOA specifies as accepting existing 900 Series input modules alongside newer 9000 Series cards. Installation is a front-panel swap: pull the blank, seat the L-01F, and the port becomes a balanced 600-ohm line input.

Electrically the L-01F is deliberately simple and clean. Rated input sensitivity is -18 dB for the amplifier's -20 dB rated output, and frequency response runs 20 Hz to 20 kHz within ±1.5 dB, so program material passes through without coloration. Because the input is transformer-isolated rather than electronically balanced, the L-01F is the module to reach for in retrofit and mixed-vintage systems, in buildings with noisy electrical services, and any time a line source has to travel a long distance to the rack. It is a standard specification item for schools, houses of worship, airports, hospitals, factories and retail paging systems built around the TOA 900 Series platform.

Features

• Line matching input module for TOA 900 Series mixer/amplifiers and mixer preamplifiers
• Transformer-isolated 600-ohm balanced input for applications requiring true 600-ohm line matching
• Female XLR connector (XLR-3-31 equivalent) on the module face
• Transformer isolation helps break ground loops and reject common-mode noise on long runs
• Wide, flat 20 Hz - 20 kHz response for full-bandwidth music and speech
• Plugs into 900 Series hosts (A-903MK2, A-906MK2, A-912MK2, M-900MK2, W-906A, W-912A), the two 900 Series module slots on 800D Series amplifiers (A-812D, A-824D, A-848D) and 9000M2 Series amplifiers
• Compact plug-in format installs from the front panel without rewiring the amplifier

Technical Specifications

• Module type: Balanced line matching input module (900 Series)
• Input sensitivity: -18 dB (0 dB = 1 V); rated output -20 dB
• Input impedance: 600 ohms, balanced, transformer-isolated
• Frequency response: 20 Hz - 20 kHz, ±1.5 dB
• Connector: Female XLR (XLR-3-31 equivalent)
• Module dimensions: 35 (W) x 78 (H) x 88 (D) mm / 1.38" x 3.07" x 3.46"
• Module weight: Max. 110 g (0.24 lb)
• Shipping weight: 0.2425 lb
• Shipping carton: 3.54" x 3.74" x 1.57"
• Phantom power: Not provided on this module
• Power supply / current consumption: Not published by TOA for this module

What's Included

• 1x TOA L-01F 600-ohm balanced line matching input module
• No additional accessories are specified by TOA for this module
