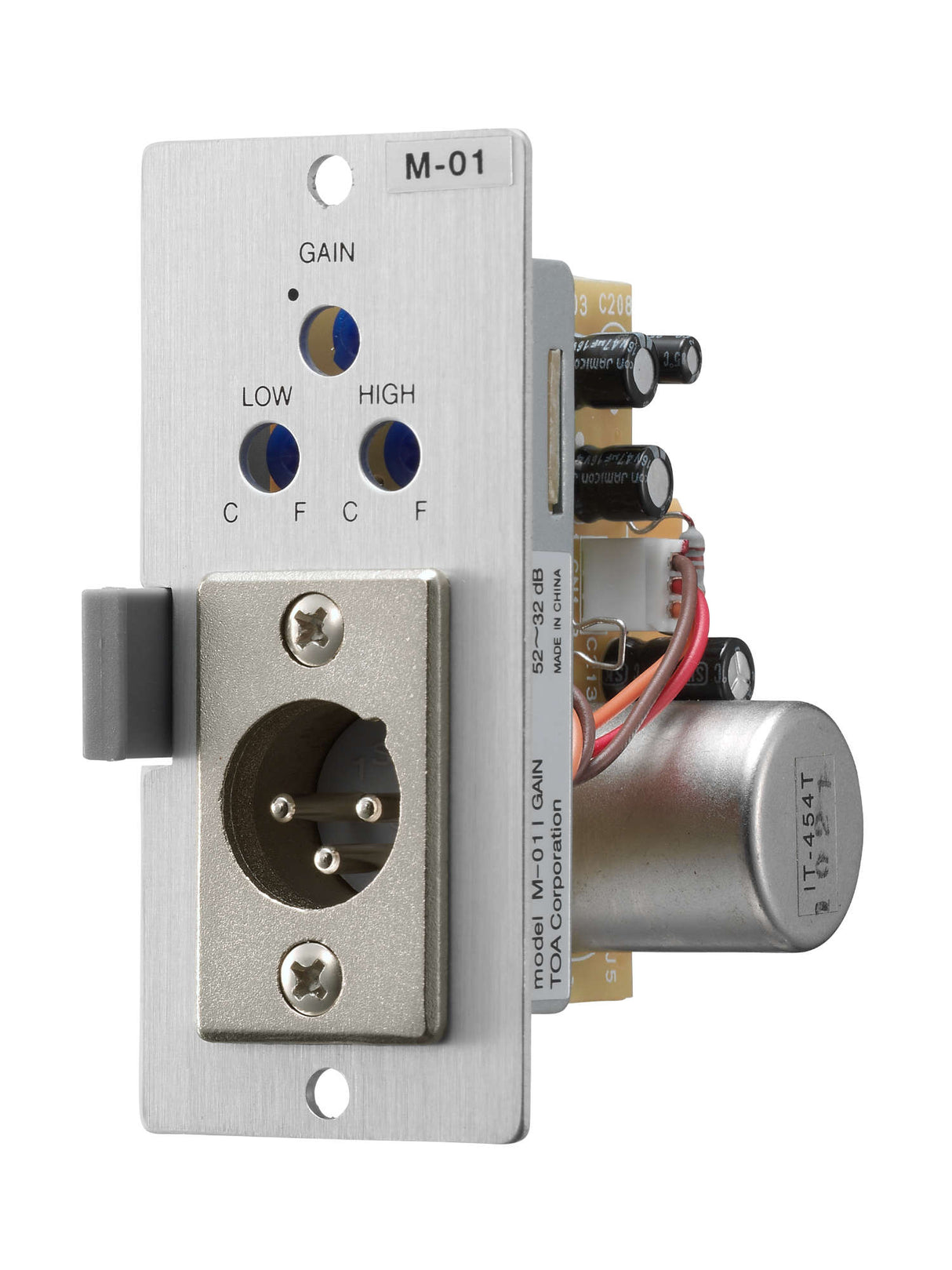

TOA M-01M Male XLR Microphone Preamp Module for 900 Series Amplifiers

Some installations need the microphone preamp to present a male XLR rather than a female one - a tie-line panel wired the other way round, a wall plate feeding the rack, a fixed gooseneck assembly with a female cable end, or an existing loom that nobody wants to re-pin. The TOA M-01M answers that requirement. It is the male-connector counterpart to TOA's standard 900 Series mic preamplifier module, delivering the same transformer-balanced 600-ohm front end, the same switchable +22 V phantom supply for condenser capsules, and the same low- and high-cut tone shaping, all terminated on a male XLR (XLR-3-32 equivalent) jack.

The M-01M gives the installer more setup range than the female version: input sensitivity is rated at -60 dB for -20 dB output but is adjustable across -72 to -52 dB, with 32 to 52 dB of gain on tap. That headroom makes it straightforward to level-match a hot dynamic handheld and a quiet lavalier on adjacent channels of the same amplifier. Response covers 25 Hz to 20 kHz within 2 dB, distortion stays at or below 0.05 percent at 1 kHz, and input-equivalent noise is specified at -126 dB, so the channel stays clean at high gain.

Like the rest of the 900 Series module range, the M-01M is powered from the host frame's 24 V DC rail and installs from the front panel. It fits the eight input ports of the A-903MK2, A-906MK2 and A-912MK2 mixer power amplifiers and the M-900MK2 mixer preamplifier, the W-906A and W-912A in-wall mixer power amplifiers, the pair of 900 Series module slots on the 800D Series digital mixer amplifiers A-812D, A-824D and A-848D, and TOA's 9000M2 Series amplifiers, which are specified to accept existing 900 Series input modules. Order the M-01F instead if the channel needs a female XLR jack.

Features

• Male XLR microphone input module for TOA 900 Series mixer/amplifiers
• Transformer-isolated 600-ohm balanced input for low-impedance microphones
• Male XLR connector (XLR-3-32 equivalent) for tie-lines and looms wired to a female cable end
• Selectable +22 V DC phantom power for condenser microphones
• High-cut and low-cut filters for on-module tone control
• Adjustable input sensitivity, -72 to -52 dB, plus 32 - 52 dB gain range
• Operates on 24 V DC drawn from the host amplifier frame
• Compatible with A-903MK2, A-906MK2, A-912MK2, M-900MK2, W-906A, W-912A, the A-812D / A-824D / A-848D module slots, and 9000M2 Series amplifiers

Technical Specifications

• Module type: Balanced microphone preamplifier input module (900 Series)
• Power supply: 24 V DC (supplied from the main frame)
• Current consumption: 9 mA
• Input sensitivity: -60 dB (0 dB = 1 V), rated output -20 dB; adjustable -72 to -52 dB
• Input impedance: 600 ohms, balanced, transformer-isolated
• Frequency response: 25 Hz - 20 kHz, ±2.0 dB
• Distortion: 0.05% or less (1 kHz, output 0 dB)
• Noise level: -86 dB (20 Hz - 20 kHz BPF); input-equivalent noise -126 dB
• Gain: 32 - 52 dB
• Tone control: 100 Hz, 0 to -10 dB; 10 kHz, 0 to -10 dB
• Phantom power: +22 V DC (active or disabled, selectable)
• Connector: Male XLR (XLR-3-32 equivalent)
• Module dimensions: 35 (W) x 78 (H) x 88 (D) mm / 1.38" x 3.07" x 3.46"
• Module weight: Max. 110 g (0.24 lb)
• Shipping weight: 0.2646 lb
• Shipping carton: 3.54" x 3.74" x 1.57"

What's Included

• 1x TOA M-01M microphone input module with male XLR connector
• No additional accessories are specified by TOA for this module
