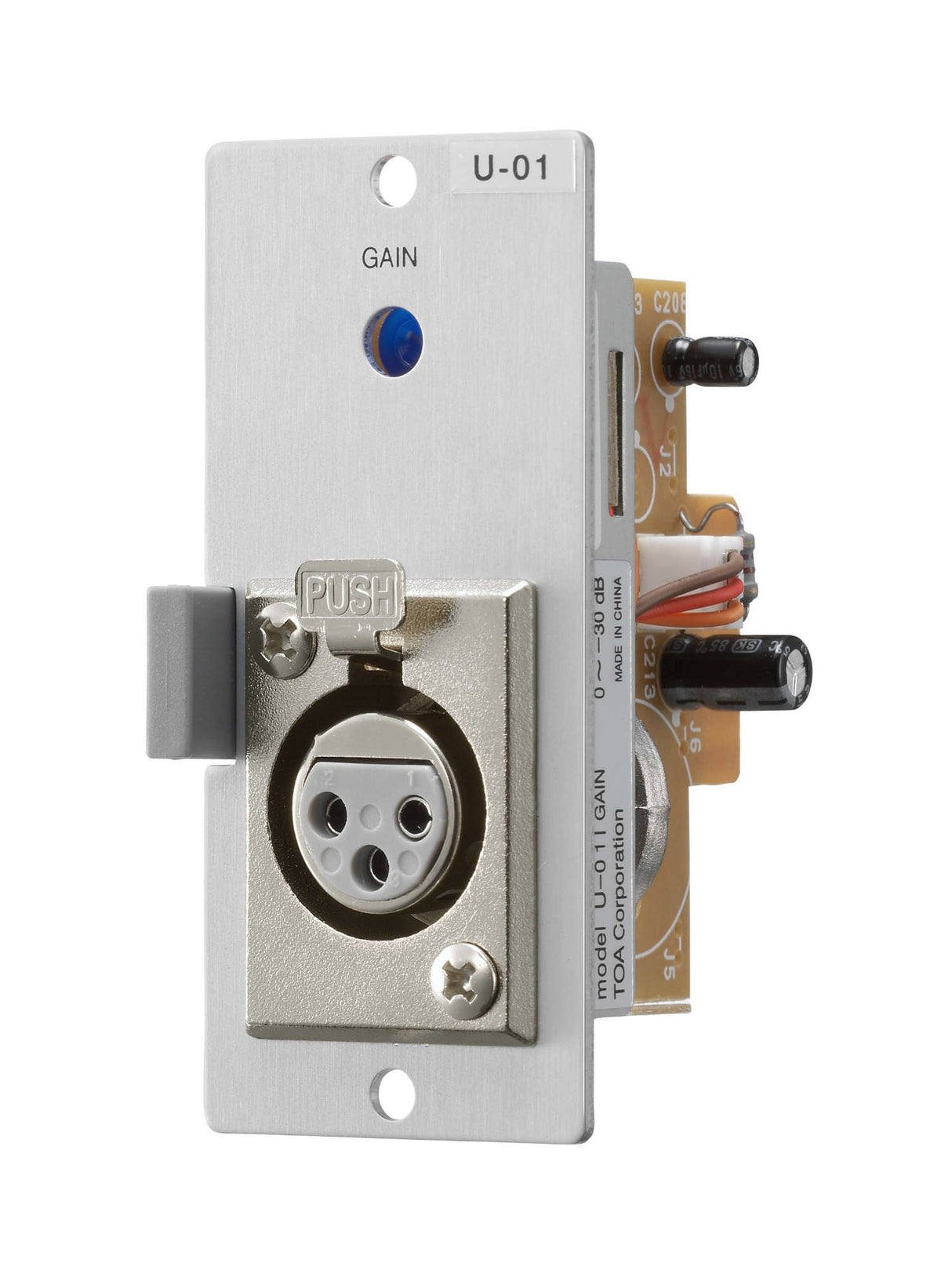

TOA U-01F Unbalanced 220k-Ohm Line Input Module, 900 Series Female XLR

Most of the sources that end up feeding a commercial paging or background music amplifier are unbalanced consumer gear - a streaming box, a media player, a tuner, a computer sound card, a satellite receiver, a jukebox or the output of a small mixer. The TOA U-01F is the 900 Series module built for them. Its 220 k-ohm unbalanced input presents a genuinely high-impedance load that will not drag down a lightly buffered consumer output, and its on-module gain control spans -30 to 0 dB so a hot source can be trimmed down to the amplifier's rated level without clipping the input stage.

TOA rates the U-01F for adjacent sources - runs shorter than roughly 15 feet from the host unit - because an unbalanced connection has no common-mode rejection to fall back on over distance. Within that range it is the cleanest and least expensive way to bring a line source into the rack: frequency response is 20 Hz to 20 kHz within 1 dB, distortion is 0.05 percent or less at 1 kHz, and noise sits at a very quiet -106 dB. Input sensitivity is rated at -20 dB and is adjustable from -20 dB up to +10 dB. For longer runs or noisy electrical environments, specify the transformer-isolated L-01F instead.

The module terminates in a female XLR jack and installs from the front panel of any TOA 900 Series host: the eight input ports on the A-903MK2, A-906MK2 and A-912MK2 mixer power amplifiers and the M-900MK2 mixer preamplifier, the W-906A and W-912A in-wall mixer power amplifiers, the two dedicated 900 Series module slots on the 800D Series digital mixer amplifiers A-812D, A-824D and A-848D, and TOA's 9000M2 Series amplifiers, which accept existing 900 Series input modules. It draws just 4 mA from the frame's 24 V DC rail, and at a maximum 75 g it is the lightest module in the group.

Features

• Unbalanced line input module for TOA 900 Series mixer/amplifiers
• High 220 k-ohm input impedance suits tuners, media players, CD decks, computer sound cards, jukeboxes, mixers and satellite receivers
• On-module gain control, -30 to 0 dB, for trimming hot consumer sources
• Adjustable input sensitivity from -20 dB to +10 dB
• Very low -106 dB noise level and flat 20 Hz - 20 kHz response
• Intended for adjacent sources located less than about 15 ft from the host unit
• Female XLR connector; draws only 4 mA from the host frame's 24 V DC rail
• Works in A-903MK2, A-906MK2, A-912MK2, M-900MK2, W-906A, W-912A, the 900 Series module slots on the A-812D / A-824D / A-848D, and 9000M2 Series amplifiers

Technical Specifications

• Module type: Unbalanced line input module (900 Series)
• Power supply: 24 V DC (supplied from the main frame)
• Current consumption: 4 mA
• Input sensitivity: -20 dB (0 dB = 1 V), rated output -20 dB; adjustable -20 to +10 dB
• Input impedance: 220 k-ohms, unbalanced
• Frequency response: 20 Hz - 20 kHz, ±1.0 dB
• Distortion: 0.05% or less (1 kHz, output 0 dB)
• Noise level: -106 dB (20 Hz - 20 kHz BPF)
• Gain: -30 to 0 dB
• Connector: Female XLR (XLR-3-31 equivalent)
• Module dimensions: 35 (W) x 78 (H) x 88 (D) mm / 1.38" x 3.07" x 3.46"
• Module weight: Max. 75 g (0.17 lb)
• Shipping weight: 0.2205 lb
• Shipping carton: 3.54" x 3.74" x 1.57"
• Phantom power: Not provided on this module

What's Included

• 1x TOA U-01F unbalanced line input module
• No additional accessories are specified by TOA for this module
