TRENDnet TEG-S80g 8-Port Gigabit GREENnet Mini Switch

TRENDnet TEG-S80g 8-Port Gigabit GREENnet Mini Switch

The TRENDnet TEG-S80g 8-Port Gigabit GREENnet Mini Switch is an unmanaged Ethernet switch that expands a wired network with eight Gigabit ports and 16 Gbps of switching capacity. The current V5 hardware combines plug-and-play operation, energy-saving GREENnet technology, and a compact metal enclosure for straightforward desktop or wall-mounted network expansion.

Designed for offices, workstations, surveillance systems, entertainment setups, and small-business networks, the TEG-S80g connects computers, network storage, printers, cameras, media devices, and other Ethernet equipment without software configuration. All eight ports support Gigabit connectivity, while Auto-MDIX allows any port to accommodate compatible network or uplink connections without requiring a dedicated uplink port.

The fanless architecture eliminates operating noise and removes a mechanical cooling component, making the switch practical for desks, conference spaces, studios, and other noise-sensitive locations. Store-and-forward switching, a 4K MAC address table, 9KB jumbo frame support, and an 11.9 Mpps forwarding rate support efficient network traffic. The current V5 version is also identified by TRENDnet as NDAA and TAA compliant for the United States and Canada.

Key Features

• Eight Gigabit Ports: Expands a wired network with eight 10/100/1000 Mbps Ethernet connections.
• 16 Gbps Switching Capacity: Provides full-duplex switching bandwidth for simultaneous network traffic.
• Unmanaged Operation: Works without configuration or network-management software for straightforward deployment.
• GREENnet Technology: Automatically manages energy use based on network activity and connected devices.
• Fanless Metal Housing: Combines durable construction with silent operation for noise-sensitive installations.
• 9KB Jumbo Frames: Supports larger Ethernet frames for compatible high-throughput network applications.
• Desktop or Wall Installation: Compact housing supports flexible placement in offices, AV systems, and network installations.
• Auto-MDIX Ports: Allows any Gigabit port to accommodate compatible network connections without a dedicated uplink port.

Technical Specifications

• Brand: TRENDnet
• Model: TEG-S80g
• Current Hardware Version: V5
• Product Type: Unmanaged Gigabit Ethernet Switch
• Network Ports: 8 x Gigabit Ethernet
• Management: Unmanaged
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az
• Ethernet Data Rate: 10 Mbps half duplex, 20 Mbps full duplex
• Fast Ethernet Data Rate: 100 Mbps half duplex, 200 Mbps full duplex
• Gigabit Data Rate: 2000 Mbps full duplex
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps with 64-byte packets
• Forwarding Mode: Store and Forward
• RAM Buffer: 192KB
• MAC Address Table: 4K entries
• Jumbo Frame Support: Up to 9KB
• Port Configuration: Auto-MDIX
• Status Indicators: LED port indicators
• Housing: Metal

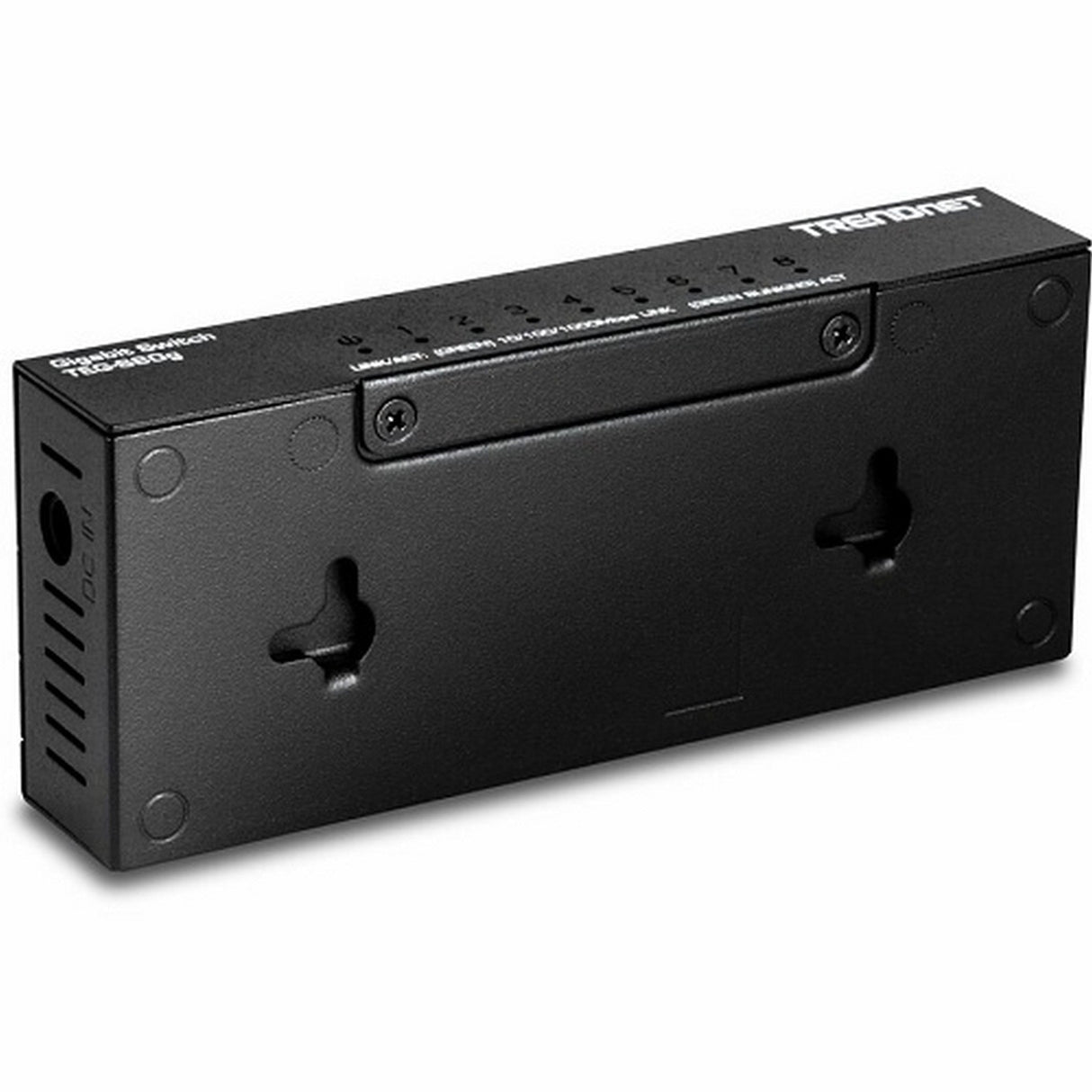

• Mounting: Desktop or wall mount
• Cooling: Fanless
• Power Input: 100-240V AC, 50/60 Hz
• Power Adapter Output: 5V DC, 1A
• Maximum Power Consumption: 3.2W
• MTBF: 104,375 hours
• Operating Temperature: 32°F to 104°F
• Operating Humidity: Maximum 90%, non-condensing

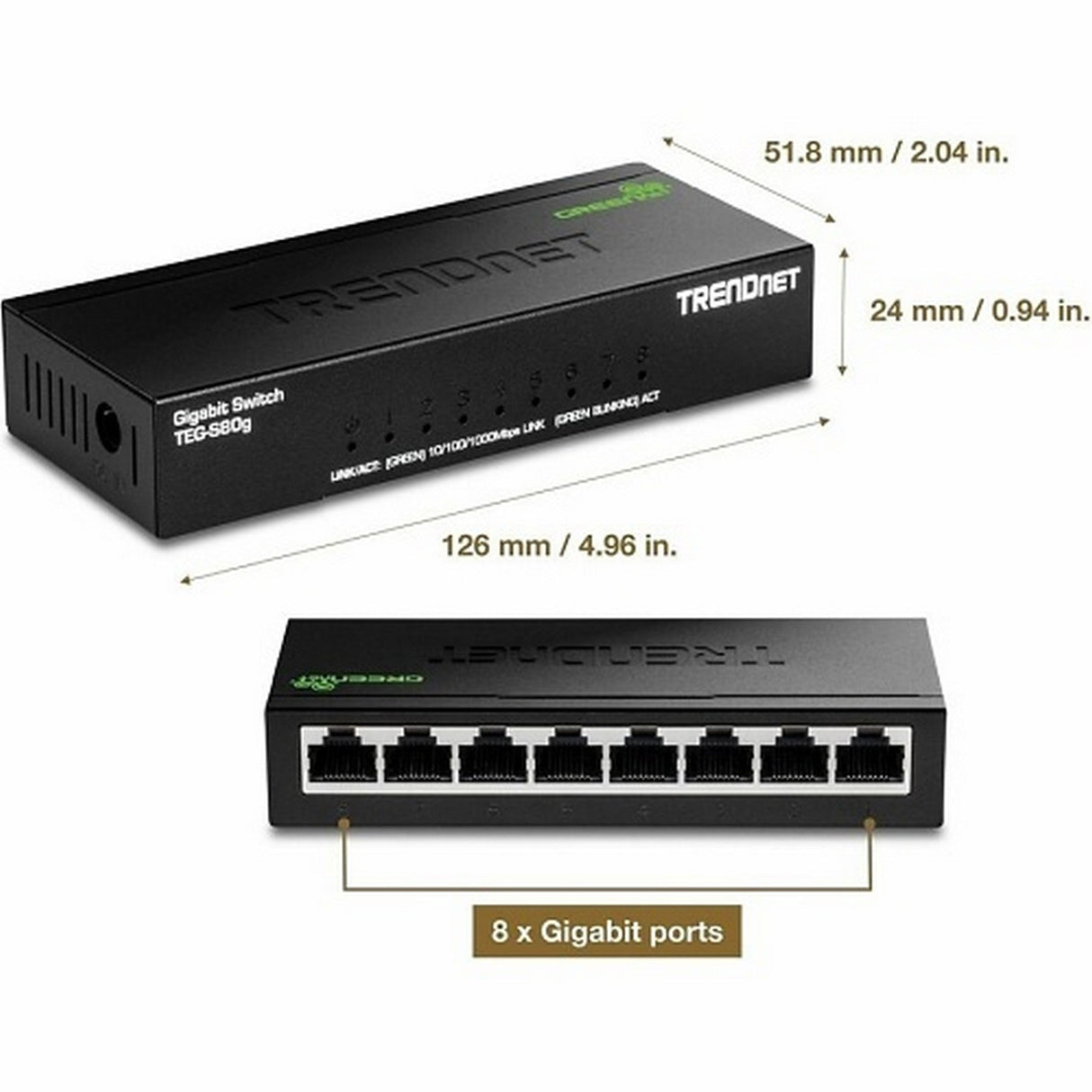

• Dimensions: 5" x 2" x 0.9"
• Weight: 0.4 lb
• Certifications: CE, FCC, LVD
• Compliance: NDAA and TAA compliant in the United States and Canada
• Warranty: Lifetime
• UPC: 710931610154

What's In the Box

• TRENDnet TEG-S80g
• Quick Installation Guide
• 5V, 1A Power Adapter
