TRENDnet TPE-117GI Gigabit 60W PoE Plus Plus Injector

TRENDnet TPE-117GI Gigabit 60W PoE++ Injector

The TRENDnet TPE-117GI Gigabit 60W PoE++ Injector adds power delivery to a standard non-PoE Gigabit Ethernet connection. The current V4 hardware supports IEEE 802.3af, 802.3at, and 802.3bt devices, automatically supplying up to 15.4W PoE, 30W PoE+, or 60W PoE++ power through one network cable.

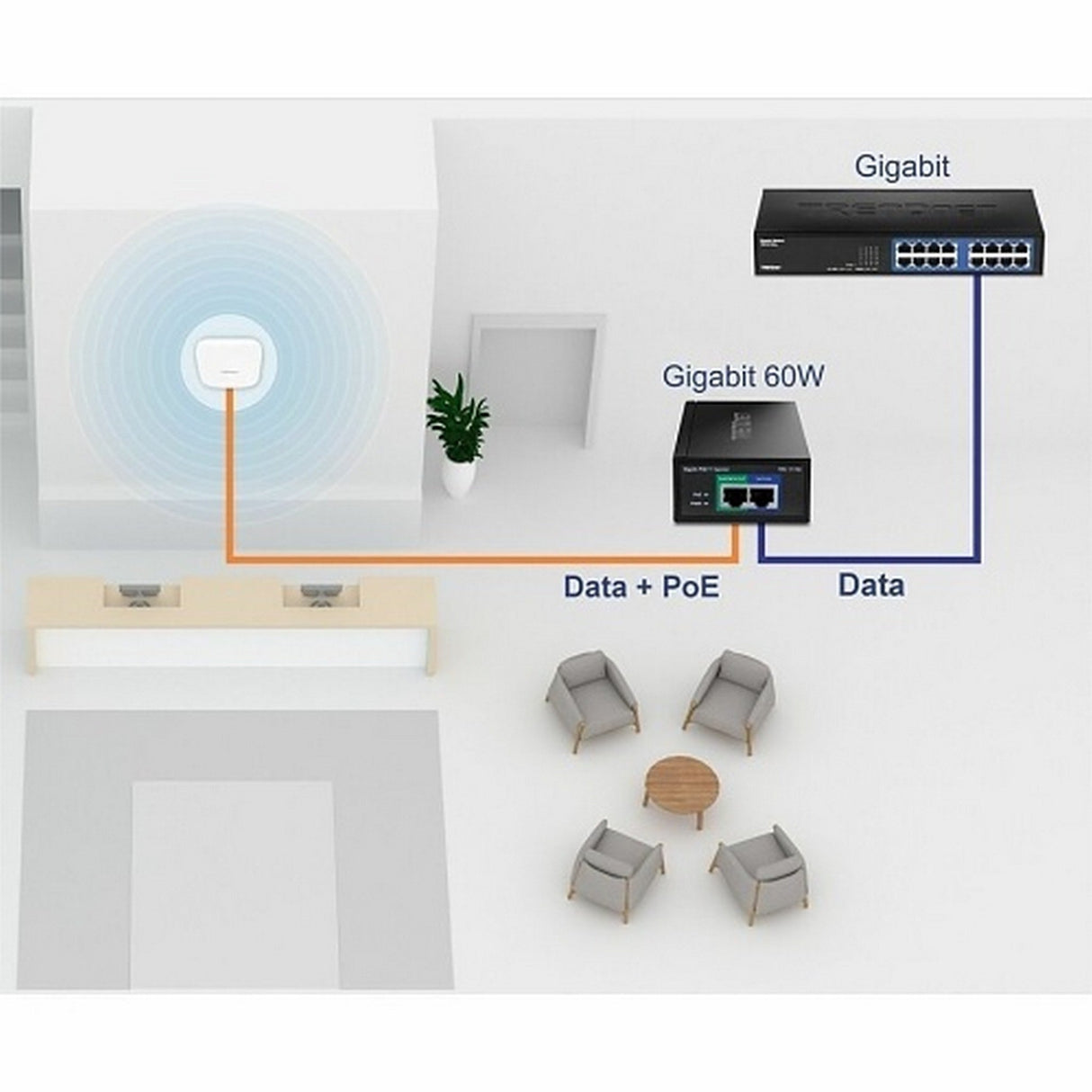

This Gigabit PoE++ injector is designed for access points, IP cameras, and other compatible network devices located where separate electrical power may be inconvenient. It supports data-and-power transmission at distances up to 328 feet, while plug-and-play operation eliminates configuration requirements. A wall-mountable metal housing gives installers additional flexibility for equipment rooms, network closets, and distributed security installations.

The TPE-117GI provides one Gigabit data input and one Gigabit PoE++ output, along with LED indicators for PoE and network connectivity. Auto-sensing power delivery maintains backward compatibility with lower-power PoE standards. The current manufacturer specification also confirms NDAA compliance, CE, FCC, and ETL certifications, a 60W PoE budget, and a three-year warranty.

Key Features

• 60W PoE++ Output: Delivers up to 60W to compatible IEEE 802.3bt powered devices.
• Backward PoE Compatibility: Supports 15.4W PoE and 30W PoE+ devices in addition to 60W PoE++ equipment.
• Gigabit Networking: Includes separate Gigabit data input and Gigabit PoE++ output ports.

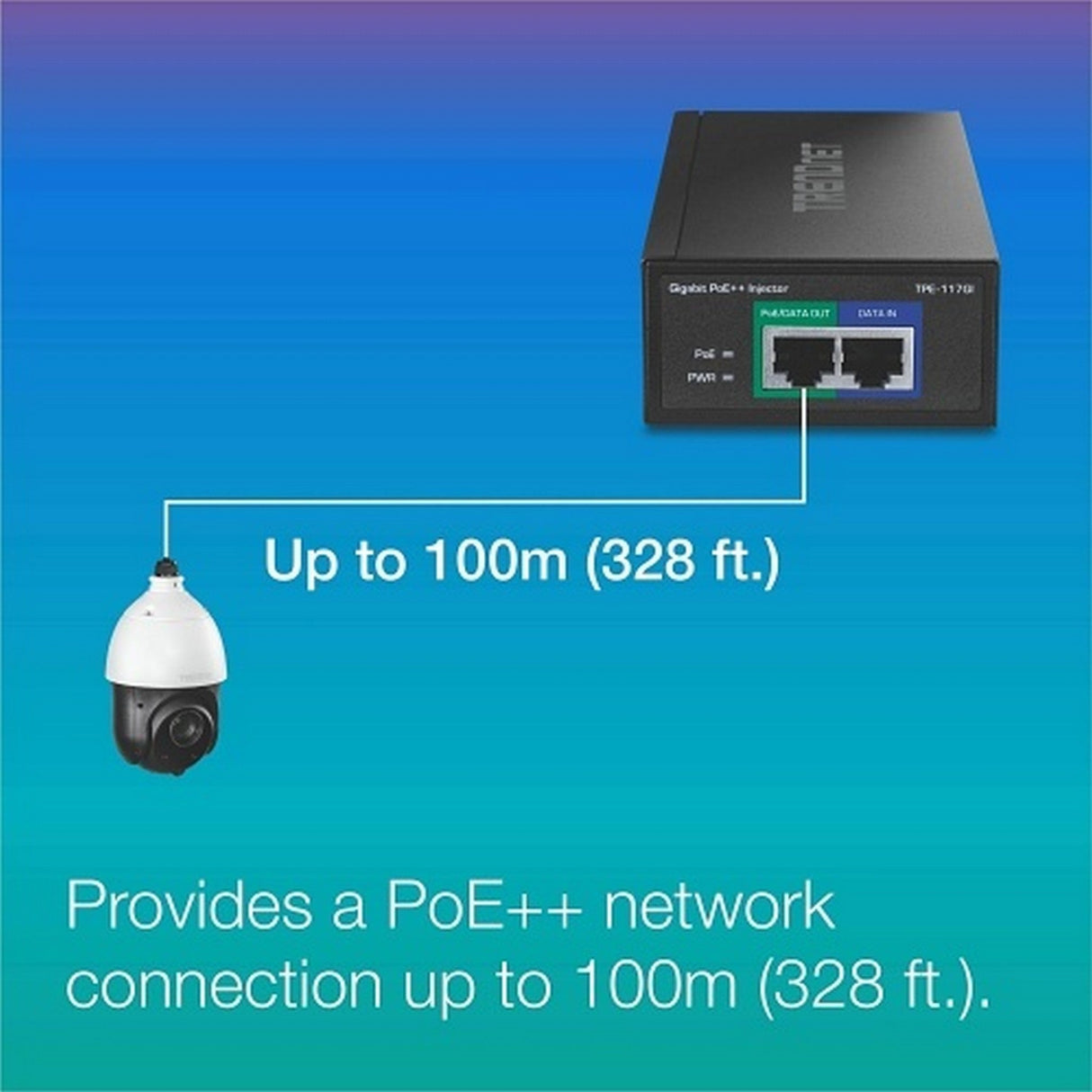

• 328-Foot Transmission: Extends compatible data and PoE connectivity up to 328 feet over Ethernet cabling.
• Auto-Sensing Power: Automatically determines the appropriate power level for compatible connected devices.
• Plug-and-Play Operation: Requires no software configuration for basic installation and operation.

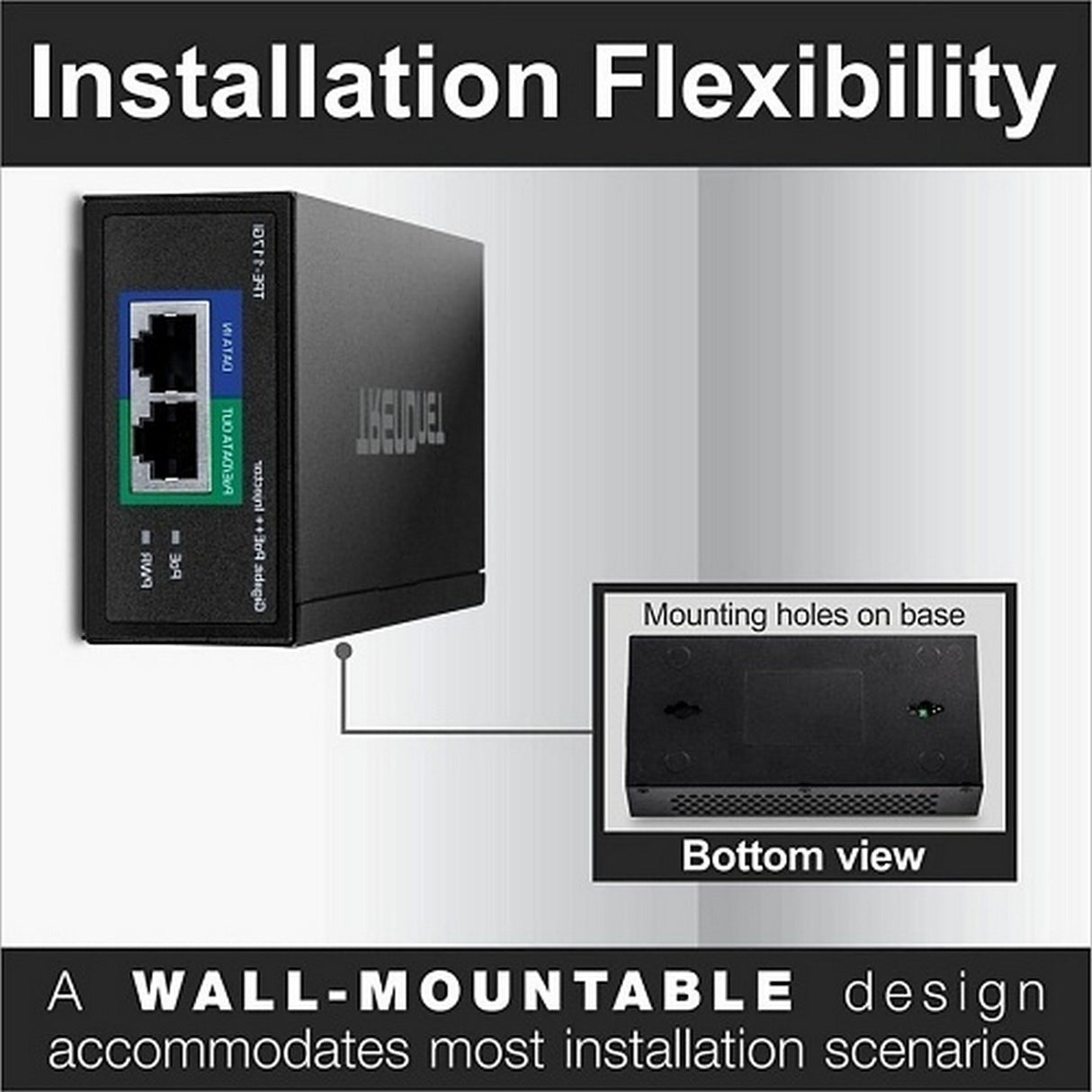

• Wall-Mountable Metal Housing: Supports secure installation in professional network and surveillance environments.

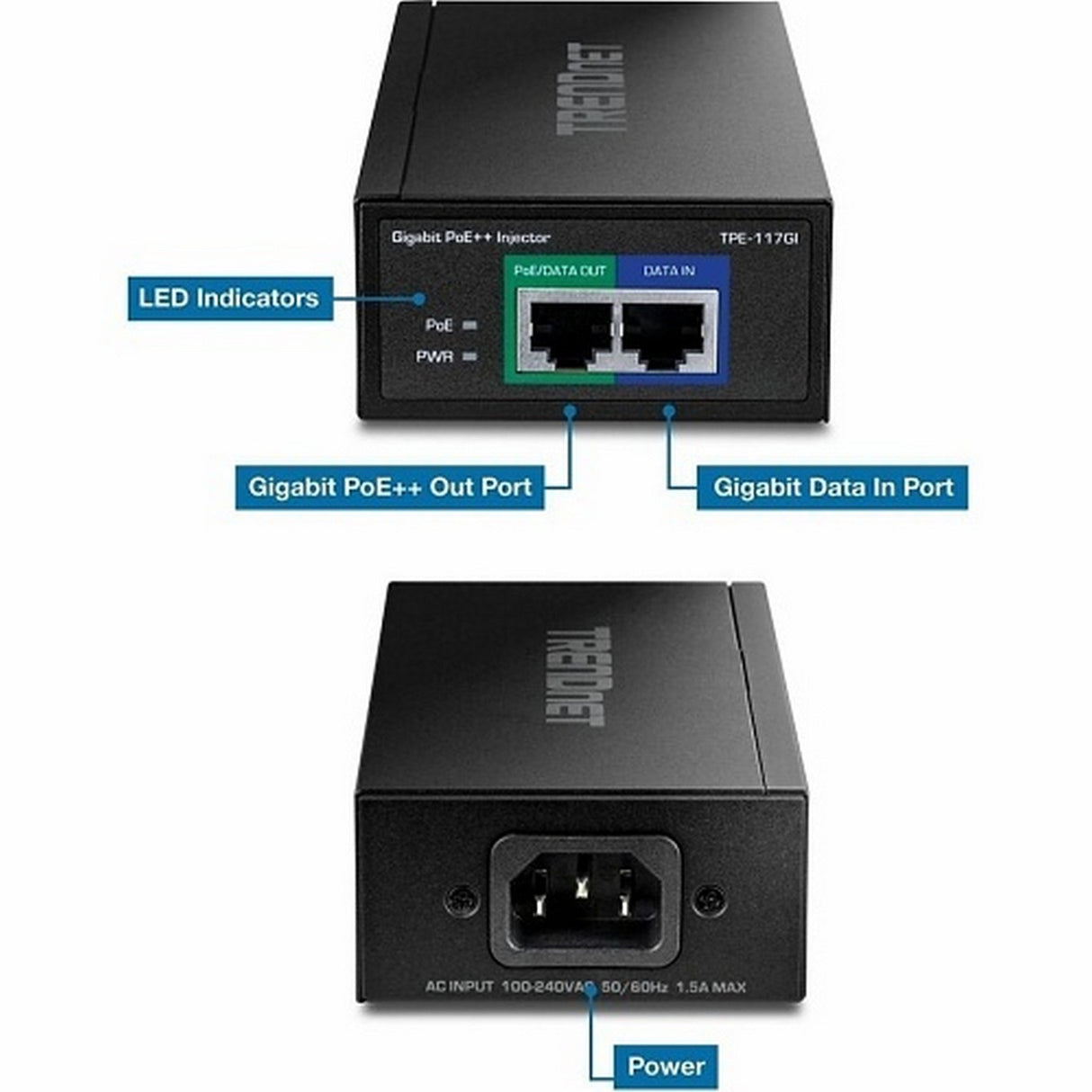

• LED Status Indicators: Provides visual indication of PoE and network connectivity.

Technical Specifications

• Brand: TRENDnet
• Model: TPE-117GI
• Current Hardware Version: V4
• Product Type: Gigabit 60W PoE++ Injector
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Data Input: 1 x Gigabit Ethernet port
• PoE Output: 1 x Gigabit PoE++ port
• PoE Output Levels: PoE 15.4W, PoE+ 30W, PoE++ 60W
• Maximum PoE Budget: 60W
• Maximum PoE Distance: 328 ft
• Power Consumption: Maximum 5W without a powered device
• Installation: Wall-mountable
• Housing: Metal
• Status Indicators: PoE and network connectivity LEDs
• Operating Temperature: 32°F to 104°F
• Operating Humidity: Maximum 90%, non-condensing
• Certifications: CE, FCC, ETL
• Compliance: NDAA compliant
• Dimensions: 6" x 2.9" x 1.4"
• Weight: 1 lb
• Warranty: 3 years
• UPC: 710931160949

What's In the Box

• TRENDnet TPE-117GI
• Quick Installation Guide
• Power Cord
