Triad-Orbit Precision SM-PM1 Drop-Pipe Mount Adapter Plate

Triad-Orbit Precision SM-PM1 Drop-Pipe Mount Adapter Plate

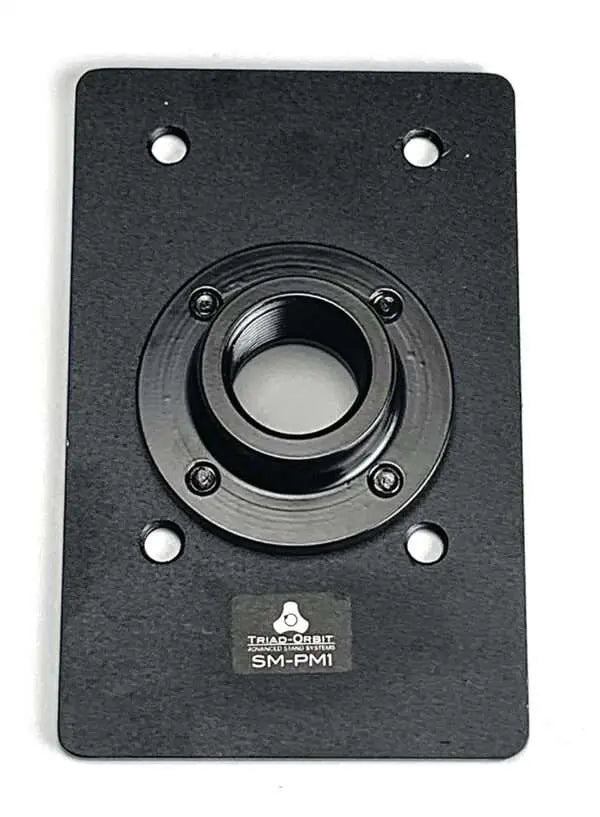

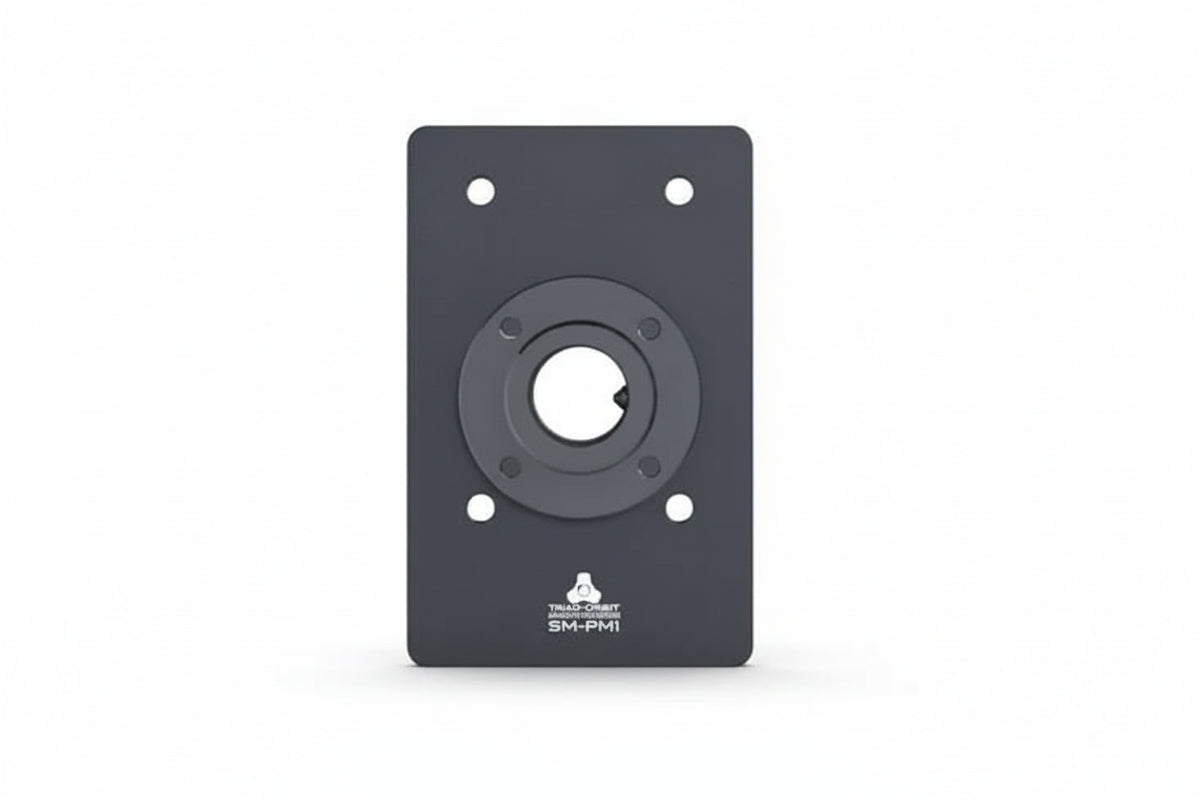

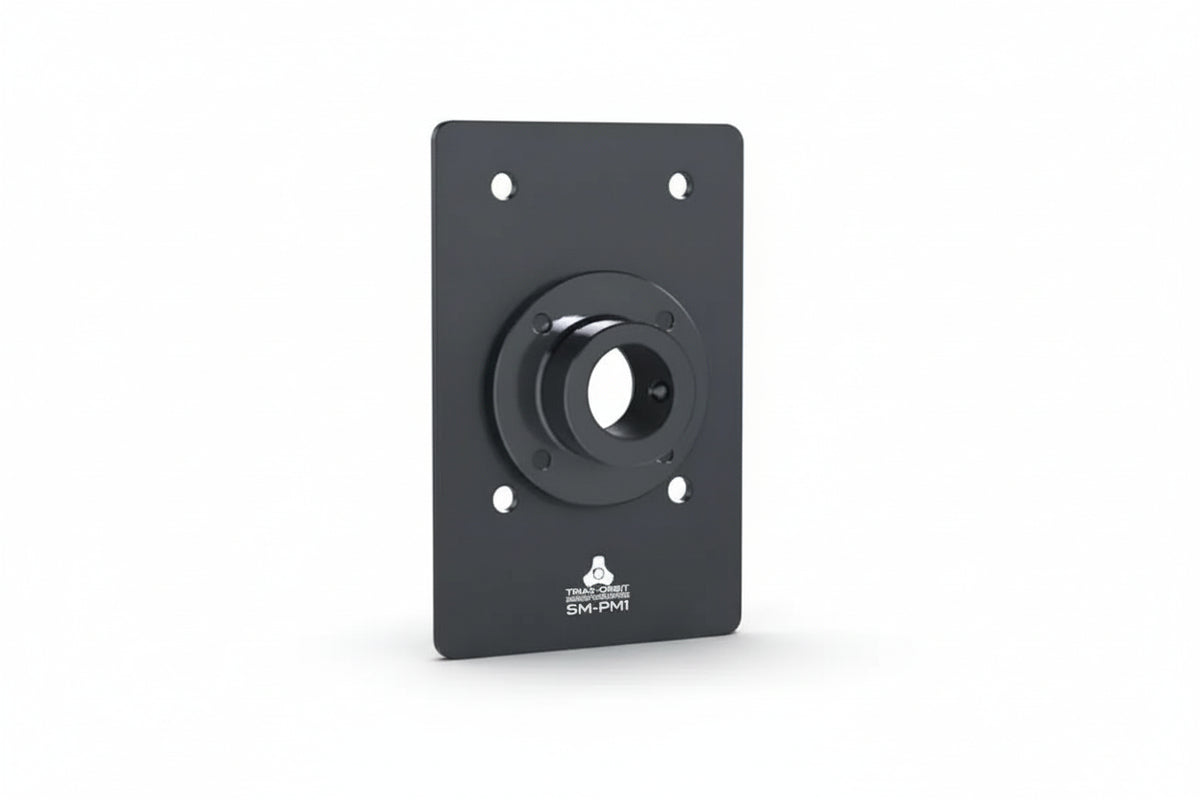

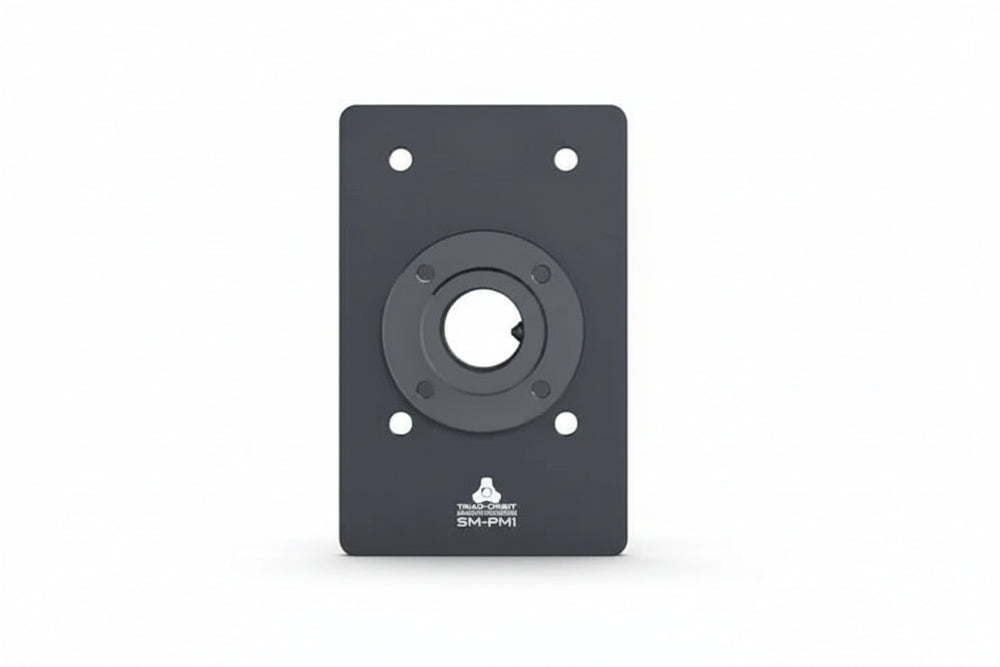

The Triad-Orbit Precision SM-PM1 Drop-Pipe Mount Adapter Plate integrates standard 3/4" NPS straight-thread pipe into Precision speaker mounting installations. Designed for extended ceiling drops and wall-mounted extensions, the adapter creates a mechanical connection between drop pipe and compatible SM1 or UM1 mounting components.

Installers can use the SM-PM1 when a speaker must be suspended below a ceiling or projected farther from a wall than a direct mounting plate allows. Two SM-PM1 adapters are required for a complete pipe-mounted installation: one connects at the wall or ceiling side, while the second connects to the speaker-mount assembly.

The SM-PM1 slides into the Precision SM-WM1 wall and ceiling mounting plate and can thread into an SM-SW1 speaker swivel or SM-UM1 assembly. Its compact metal adapter plate measures approximately 3.4" x 5.3" with a 1" overall depth and weighs approximately 0.6 lb, providing a purpose-built interface for professional speaker mounting systems.

Key Features

• Drop-Pipe Integration: Connects standard 3/4" NPS straight-thread pipe to compatible Precision speaker mounting hardware.
• Extended Mounting: Supports long-drop ceiling installations and speaker positioning away from walls.

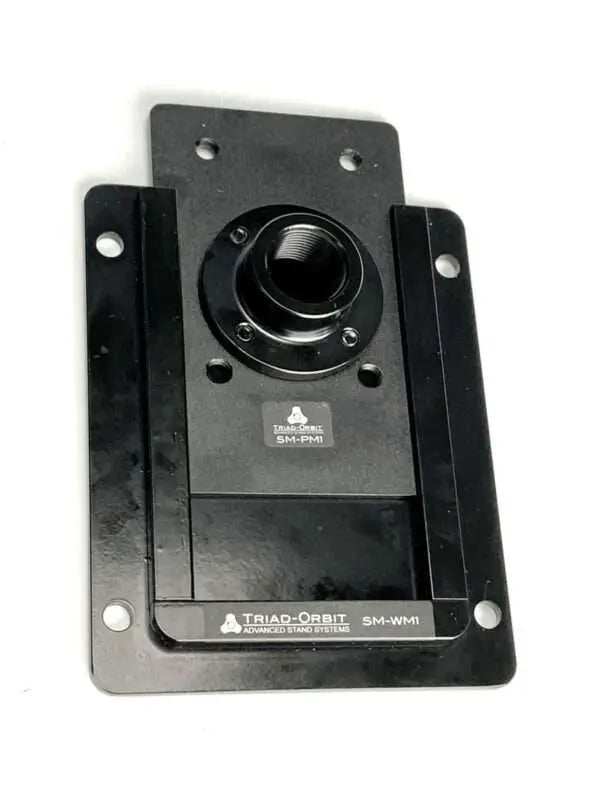

• SM-WM1 Compatibility: Slides into the Precision SM-WM1 wall and ceiling mounting plate.

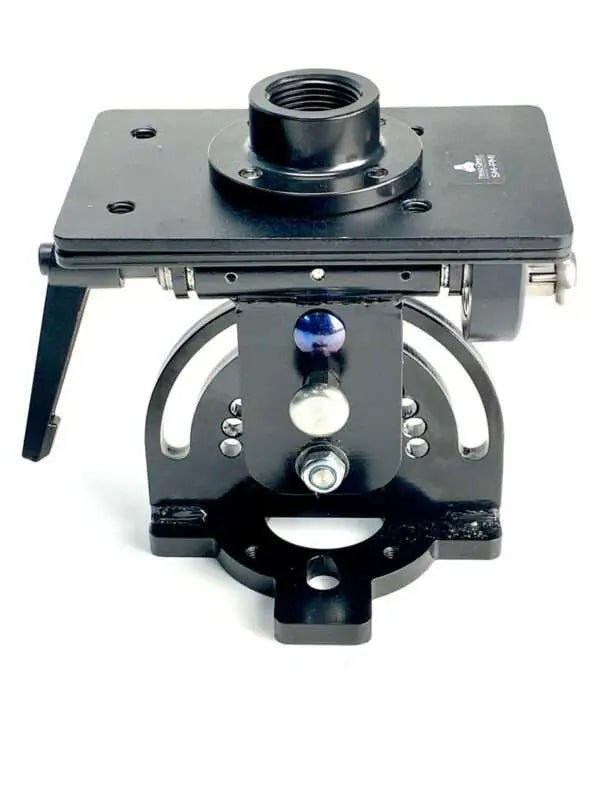

• Swivel Connection: Screws into the SM-SW1 speaker swivel for pipe-mounted speaker positioning.
• UM1 Integration: Supports connection to the SM-UM1 mounting system.
• Two-Adapter Configuration: Uses two SM-PM1 plates for a complete drop-pipe installation.
• Compact Hardware: Provides a dedicated mechanical interface without adding unnecessary bulk to the mounting assembly.

Technical Specifications

• Model: SM-PM1
• Product Type: Drop-Pipe Mount Adapter Plate
• Pipe Thread: 3/4" NPS, straight/non-tapered
• Compatible Mounting Plate: SM-WM1
• Compatible Speaker Mounts: SM-SW1 and SM-UM1
• Required Quantity for Pipe Mounting: 2
• Plate Width: 3.4"
• Plate Height: 5.3"
• Overall Depth: 1"
• Weight: 0.6 lb
