Description

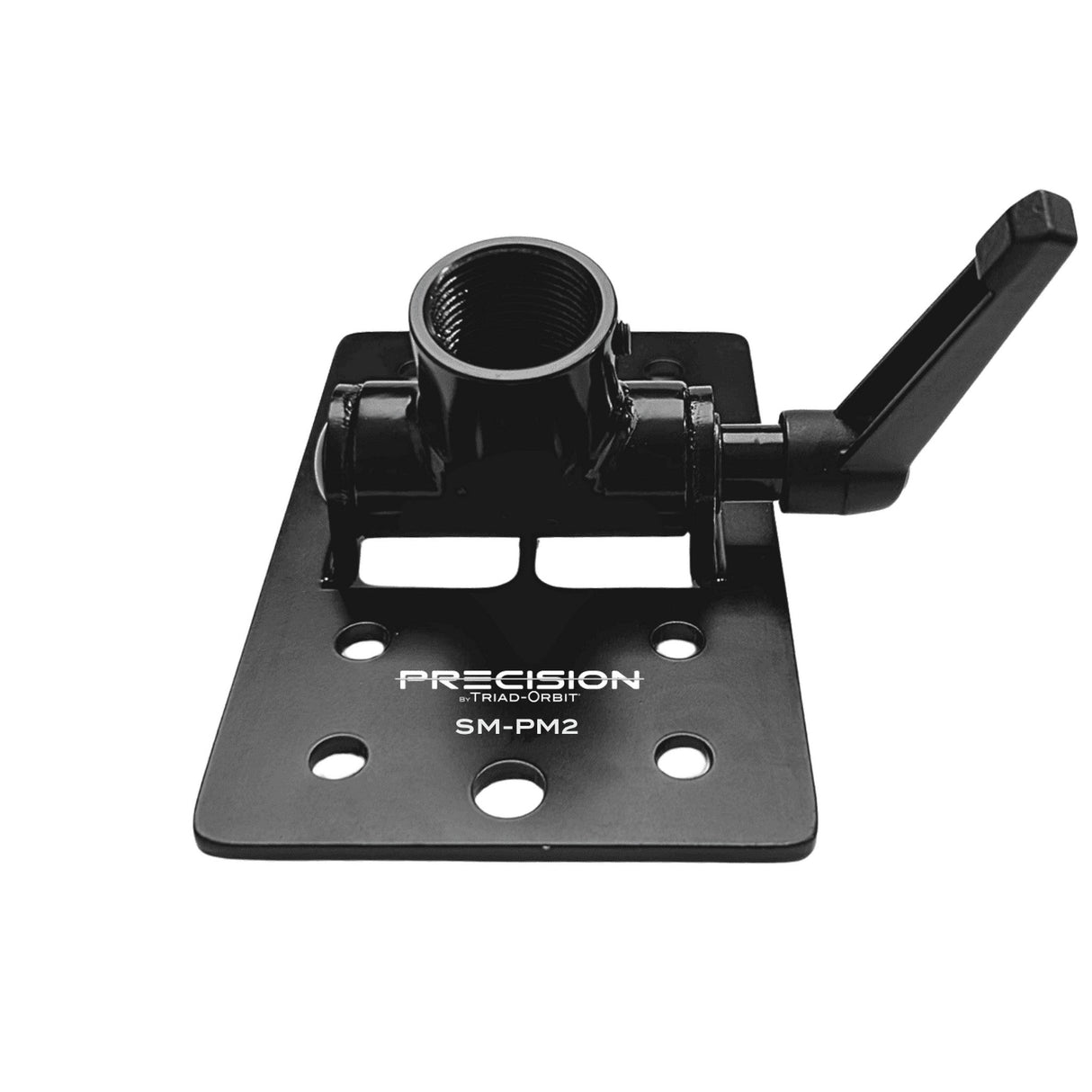

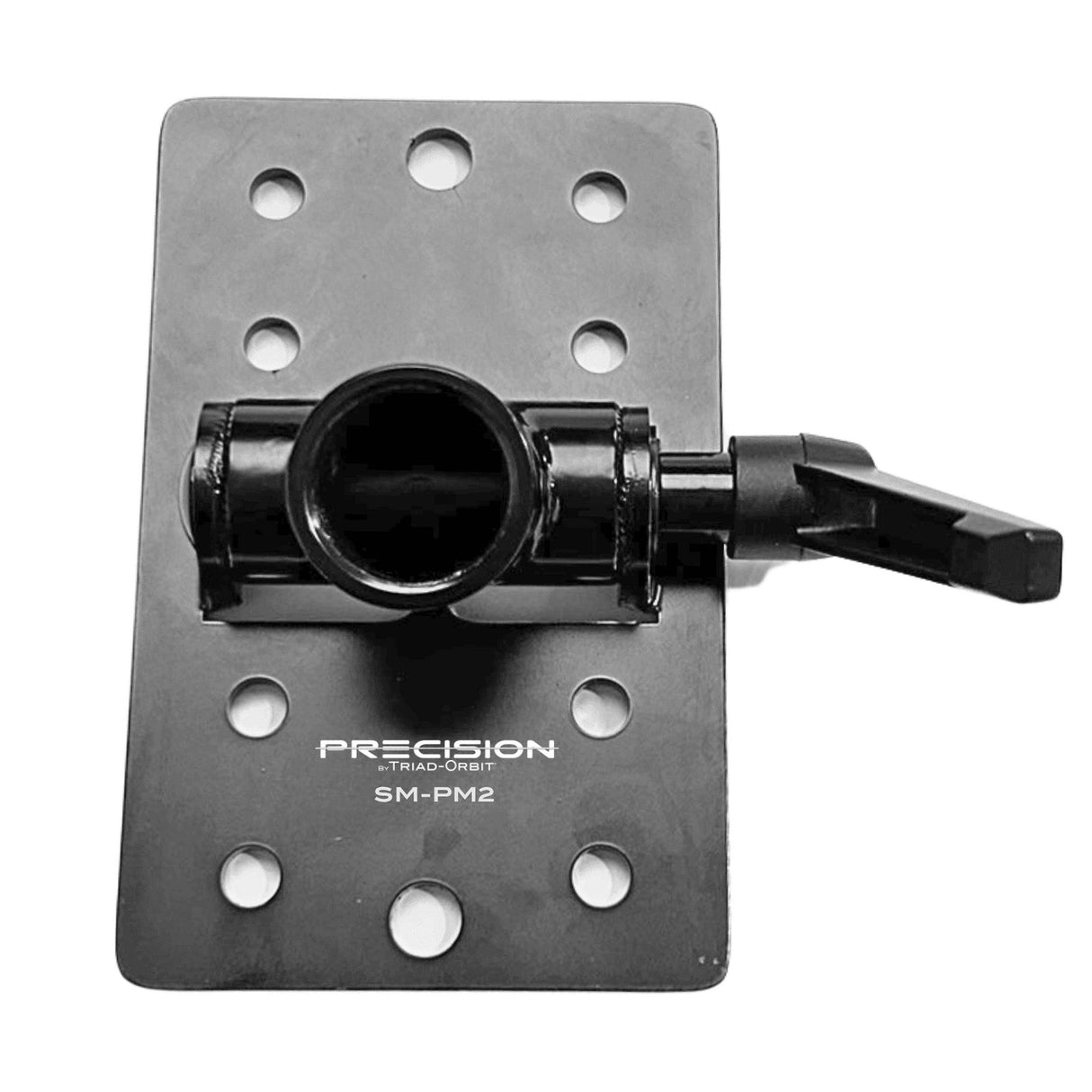

Triad-Orbit Precision SM-PM2 Hinged Pipe Mount Adapter Plate
The Triad-Orbit Precision SM-PM2 Hinged Pipe Mount Adapter Plate creates a vertical speaker drop from vaulted or sloped ceilings. Its hinged mechanism compensates for the ceiling angle, establishing a 90-degree vertical orientation for compatible Triad-Orbit pipe adapters and speaker mounting hardware in professional audio installations.
Designed for recording studios, immersive audio rooms, theaters, and installed sound systems, the SM-PM2 simplifies speaker suspension where a standard fixed plate cannot maintain a straight drop. Installers can adjust the hinged assembly to accommodate the mounting surface, then secure its position using the integrated locking lever.
The adapter accepts standard 3/4"-14 NPS straight, non-tapered pipe thread. It supports installation with the Precision SM-PM1 Pipe Mount Adapter and compatible SM-SW1 or SM-UM1 speaker mounts. A multi-hole mounting plate provides several attachment positions for securely integrating the assembly with an appropriate structural surface.
Key Features
- Hinged Ceiling Adapter: Compensates for vaulted and sloped ceiling angles during suspended speaker installations.
- Vertical Drop Alignment: Establishes a 90-degree vertical pipe orientation regardless of the ceiling slope.
- Adjustable Locking Lever: Secures the hinge after installers set the required mounting angle.
- Standard Pipe Compatibility: Accepts 3/4"-14 NPS straight, non-tapered pipe thread.
- Modular Speaker Mounting: Integrates with compatible Triad-Orbit pipe adapters and speaker swivel systems.
- Multiple Attachment Points: Provides several mounting holes for flexible placement on a suitable structural surface.
- Professional Installation Design: Supports suspended loudspeaker placement in studios, theaters, and immersive audio environments.
Technical Specifications
- Product Type: Hinged pipe mount adapter plate
- Model: SM-PM2
- Mounting Application: Vaulted and sloped ceilings
- Pipe Orientation: 90-degree vertical drop
- Pipe Thread: 3/4"-14 NPS straight, non-tapered
- Adjustment Mechanism: Hinged plate with locking lever
- Overall Dimensions: 3.39" W x 5.31" H x 2.07" D
- Pipe Interface Diameter: 1.22"
- Mounting Hole Diameters: 0.32" and 0.39"
- Horizontal Hole Spacing: 1.94"
- Vertical Hole Spacing: 3.11"
- Compatible Components: Precision SM-PM1, SM-SW1, and SM-UM1
