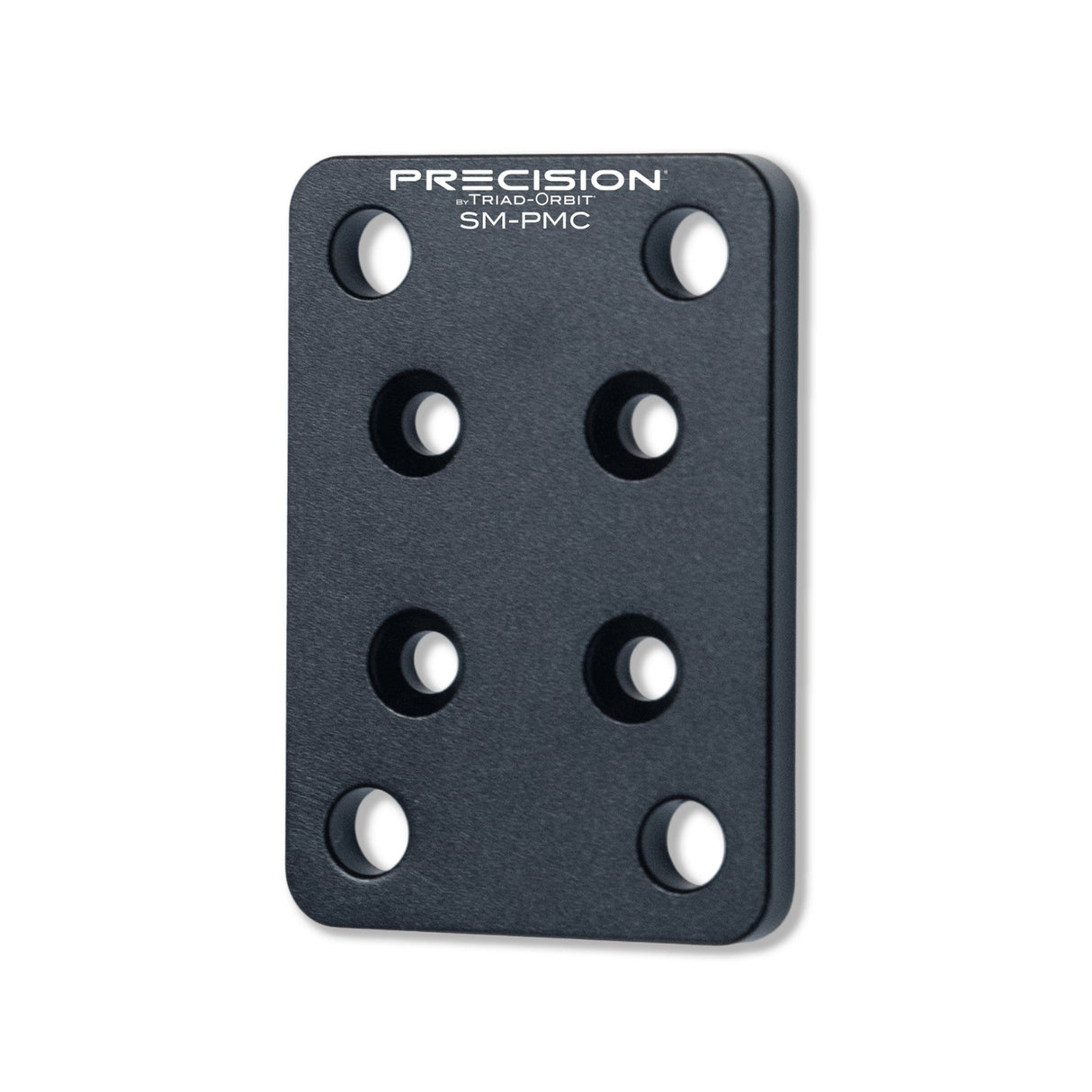

Triad-Orbit Precision SM-PMC PMC ci Series Speaker Adapter Plate
The Triad-Orbit Precision SM-PMC Speaker Adapter Plate connects compatible PMC ci Series flush-mount loudspeakers to the Precision SM-UM1 Universal Speaker Mounting Swivel. Designed specifically for the PMC ci30 and ci45, the plate provides the mechanical interface needed to integrate these speakers with the Precision mounting system.
The SM-PMC is suited to professional monitoring installations where PMC ci30 or ci45 loudspeakers require adjustable mounting rather than direct installation. Its dedicated hole pattern matches the supported speakers while the central mounting pattern interfaces with the SM-UM1, helping installers create a purpose-built mounting assembly without adapting generic hardware.
The compact plate measures approximately 2.6" wide by 1.8" high. Four 0.29" outer mounting holes and four 0.20" inner mounting holes provide separate attachment patterns, with documented horizontal and vertical spacing for accurate installation. This model is a speaker-specific adapter plate rather than a complete mounting swivel.
Key Features
- PMC ci Series Compatibility: Designed specifically for PMC ci30 and ci45 flush-mount loudspeakers.
- SM-UM1 Integration: Adapts compatible PMC speakers for use with the Precision SM-UM1 Universal Speaker Mounting Swivel.
- Dedicated Mounting Pattern: Provides speaker-specific attachment points for a precise mechanical interface.
- Compact Plate Design: Measures approximately 2.6" wide by 1.8" high for unobtrusive installation behind the speaker.
- Multiple Mounting Holes: Includes four outer and four inner mounting holes for the required attachment interfaces.
- Professional Speaker Installation: Supports fixed-location monitoring and installed-audio applications using compatible Precision mounting hardware.
Technical Specifications
- Model: SM-PMC
- Product Type: Speaker Mounting Adapter Plate
- Compatible Speakers: PMC ci30 and PMC ci45
- Compatible Speaker Mount: SM-UM1 Universal Speaker Mounting Swivel
- Plate Width: 2.6"
- Plate Height: 1.8"
- Outer Mounting Holes: 4 x 0.29" diameter
- Inner Mounting Holes: 4 x 0.20" diameter
- Outer Horizontal Hole Spacing: 1.9"
- Outer Vertical Hole Spacing: 1.1"
- Inner Horizontal Hole Spacing: 0.8"
- Inner Vertical Hole Spacing: 0.8"
