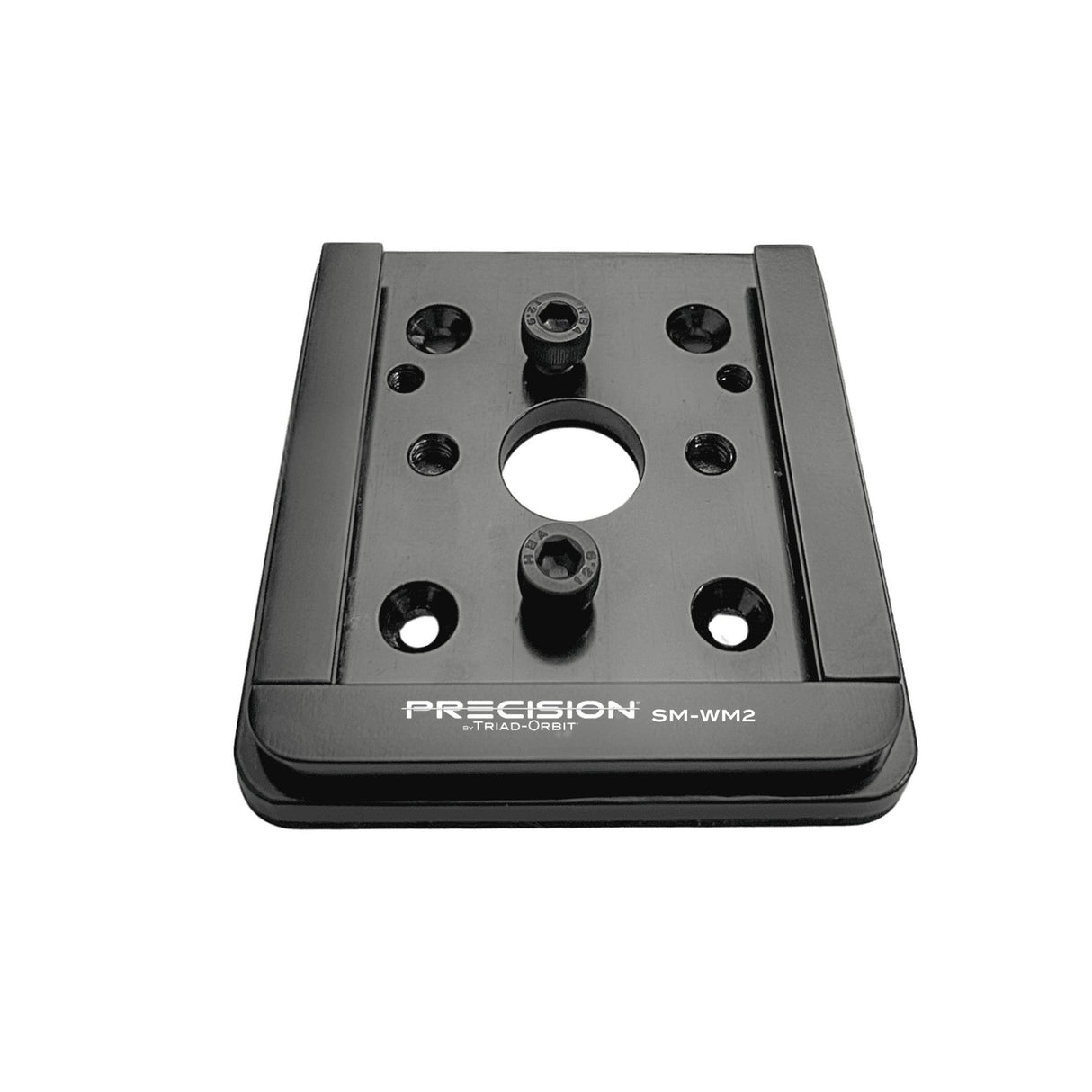

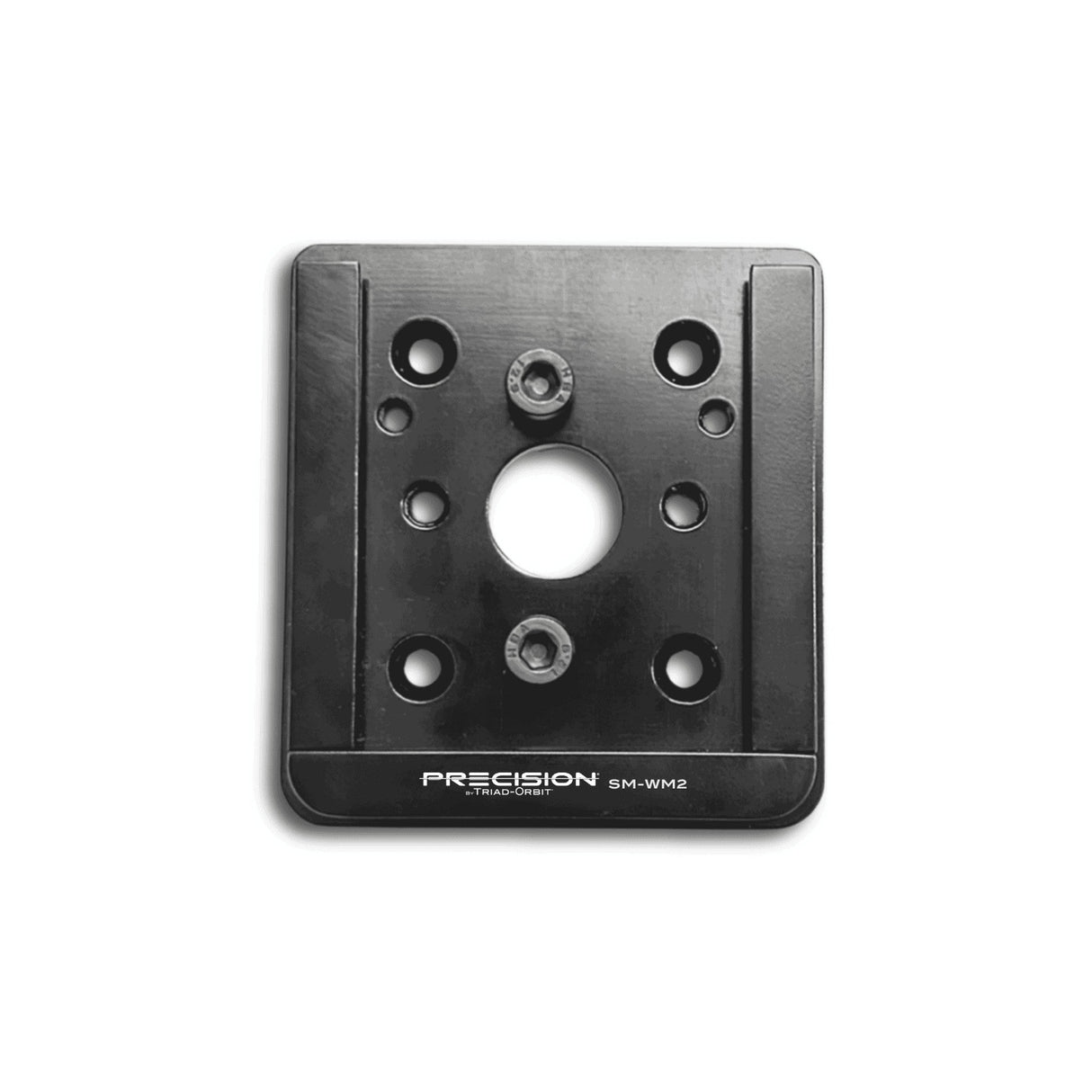

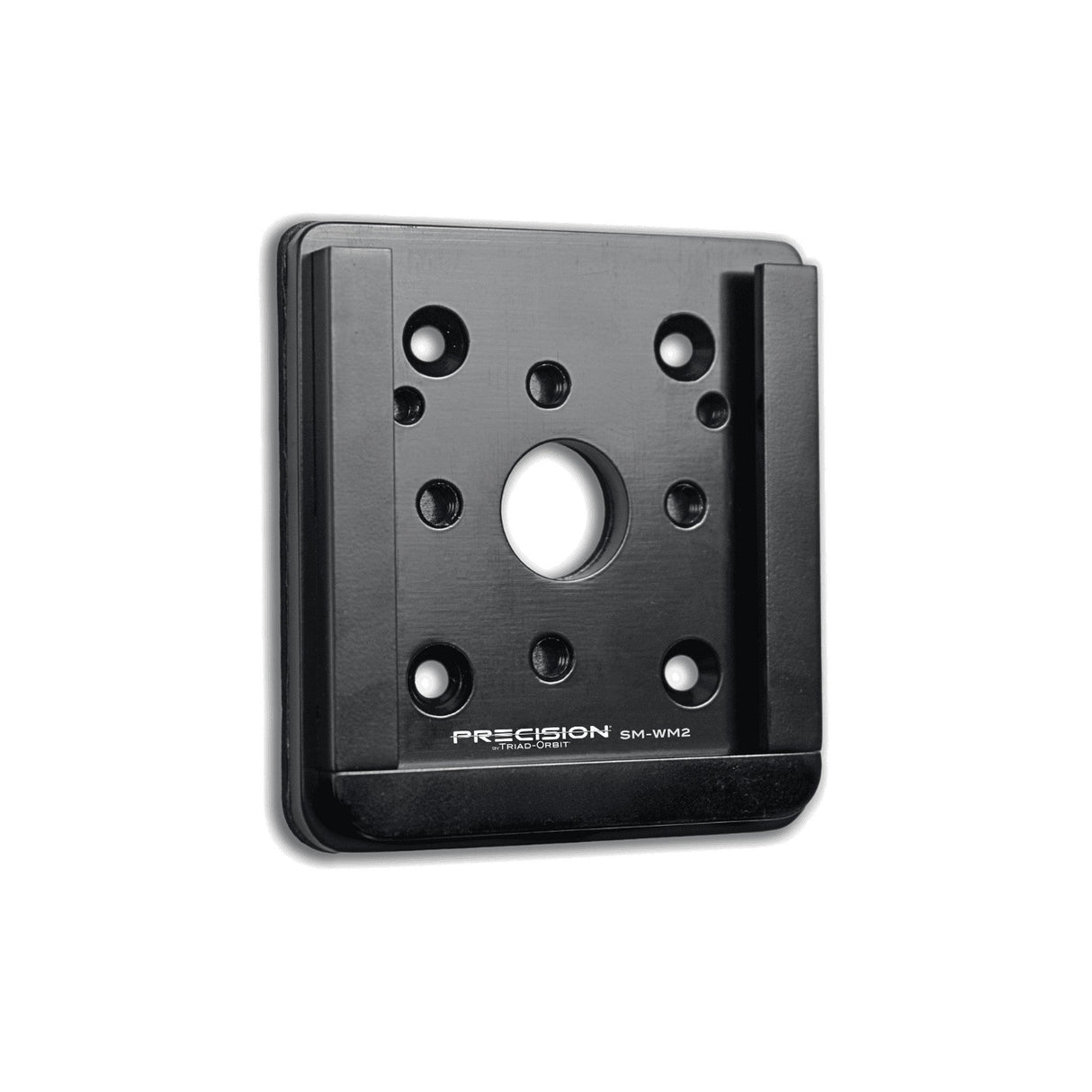

Triad-Orbit Precision SM-WM2 Wall and Ceiling Speaker Mounting Plate
The Triad-Orbit Precision SM-WM2 wall and ceiling speaker mounting plate provides a secure slide-in connection for the SM-UM2 speaker swivel. Its medium-sized design lets installers prepare the speaker and swivel assembly before hanging it, supporting safer placement, more accurate alignment, and a more efficient professional installation workflow.
Designed for recording studios, immersive audio rooms, home theaters, and commercial sound installations, the SM-WM2 gives integrators a practical way to mount compatible speakers from a wall or ceiling. The slide-in architecture reduces the need to manage a complete speaker assembly while simultaneously fastening it to the mounting surface.
The plate measures approximately 4.04" wide, 4.25" high, and 0.55" deep. Multiple mounting points, including M6 and M8 provisions, offer installation flexibility, while the central opening supports cable-routing or installation access. Compatibility is specifically established for the Triad-Orbit Precision SM-UM2 speaker mounting swivel.
Key Features
- Wall or Ceiling Installation: Supports flexible speaker placement across professional listening and production environments.
- Slide-In Mounting Design: Accepts the compatible speaker swivel assembly after preparation at floor or workbench level.
- SM-UM2 Compatibility: Designed specifically for use with the Triad-Orbit Precision SM-UM2 speaker swivel.
- Safer Installation Workflow: Allows installers to assemble the speaker and swivel before hanging the system.
- Accurate Speaker Placement: Simplifies positioning by separating surface mounting from final speaker attachment.
- Multiple Mounting Points: Includes varied hole sizes and locations for installation flexibility.
- Compact Form Factor: Provides a low-profile mounting interface for medium-sized speaker installations.
Technical Specifications
- Product Type: Wall and ceiling speaker mounting plate
- Model: SM-WM2
- Mounting Style: Slide-in wall or ceiling mount
- Compatible Speaker Swivel: Triad-Orbit Precision SM-UM2
- Dimensions: 4.04" W x 4.25" H x 0.55" D
- Central Opening Diameter: 0.98"
- Upper Opening Diameter: 0.26"
- Threaded Mounting Provisions: M6 and M8
- Recommended Applications: Recording studios, immersive audio rooms, home theaters, and commercial speaker installations
