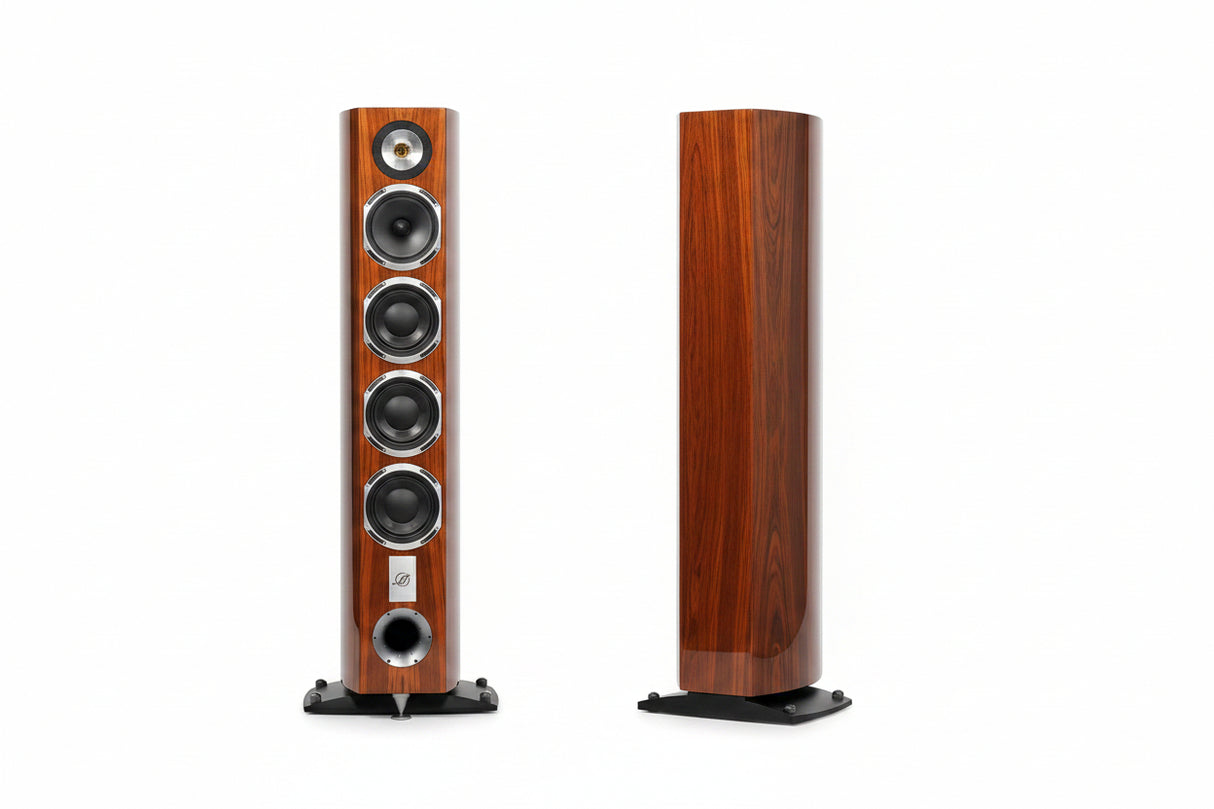

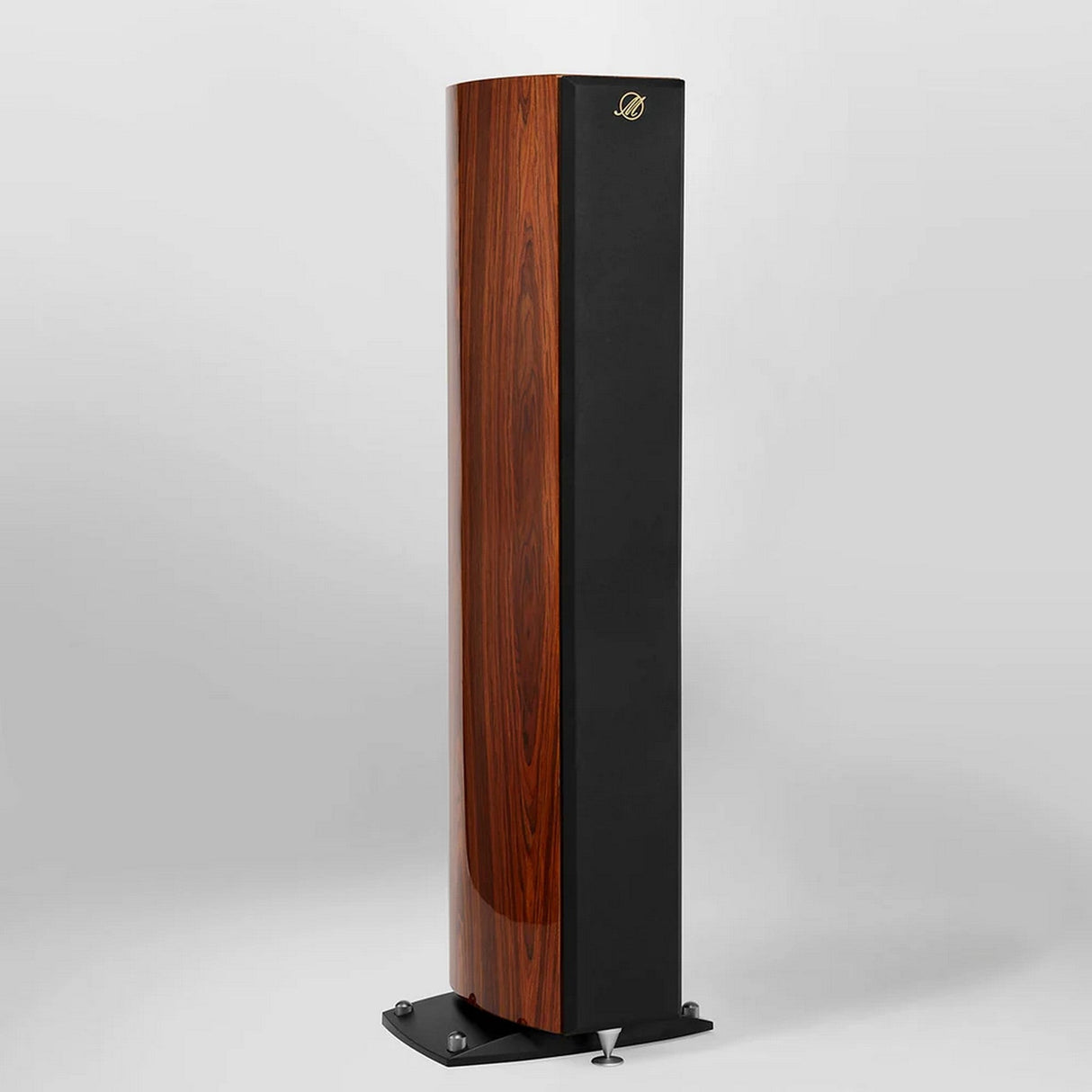

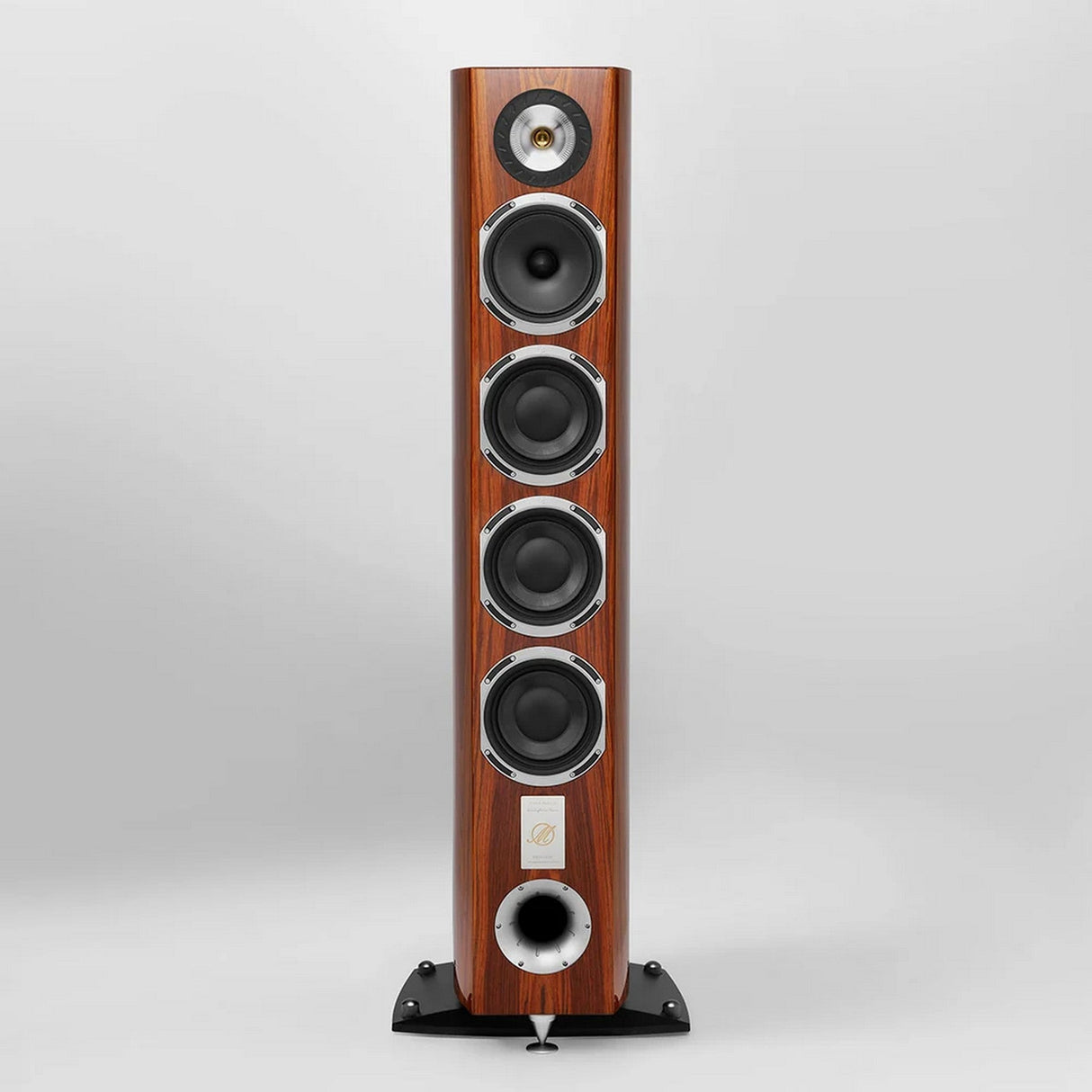

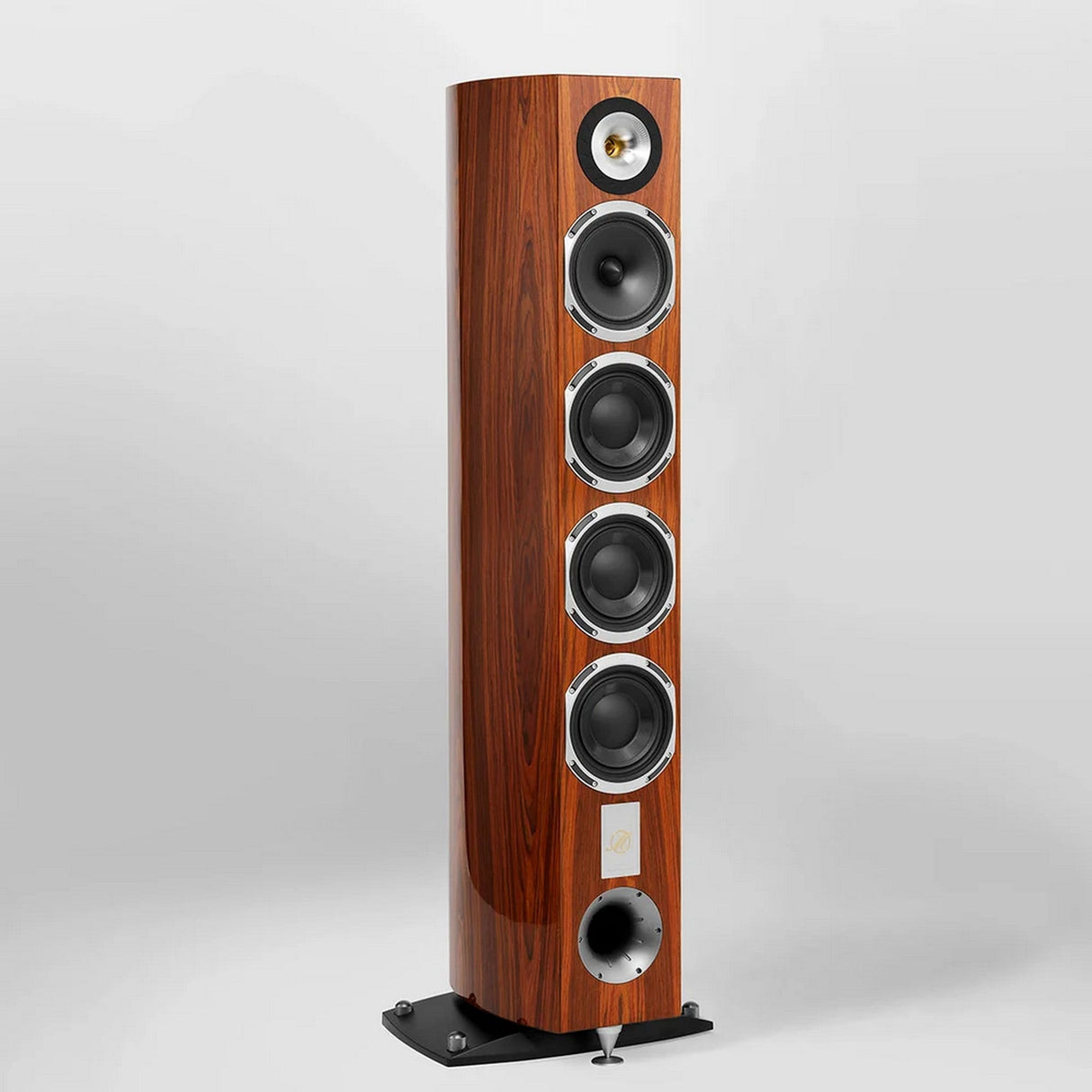

Triangle Magellan Quatuor 40th Golden Oak Floorstanding Speaker, Pair

Triangle Magellan Quatuor 40th Golden Oak Floorstanding Speaker Pair

The Triangle Magellan Quatuor 40th Golden Oak floorstanding speaker pair is a flagship 3-way passive Hi-Fi system built for listening rooms larger than approximately 323 sq ft. Each speaker combines dual magnesium horn tweeters, a 6.5" natural-paper midrange driver, three 6.5" fiberglass-sandwich woofers, and front bass-reflex loading.

Designed for premium two-channel listening and large-room Hi-Fi systems, the Quatuor 40th uses Triangle's DPS2 Dynamic Pulse System with a second tweeter positioned at the rear of the cabinet. This front-and-rear high-frequency arrangement broadens energy distribution, while the dedicated paper-cone midrange and three SVA woofer diaphragms divide vocal, instrumental, and low-frequency reproduction among purpose-built drivers.

The Golden Oak finish combines selected wood veneer with multiple lacquer coats over a curved, multilayer high-density fiberboard enclosure. Each cabinet uses six drivers, an 8-ohm nominal impedance, dual terminal blocks, and a 33 Hz to 30 kHz bandwidth. Triangle specifies 260W power handling and recommends amplification from 80W to 500W at 8 ohms.

Key Features

• Six-Driver 3-Way Design: Combines dedicated high-, mid-, and low-frequency transducers for full-range stereo reproduction.
• DPS2 Tweeter Configuration: Front and rear 1" magnesium dome horn tweeters distribute high-frequency energy in both directions.
• Natural-Paper Midrange: A 6.5" paper-cone driver with fabric surround handles the critical vocal and midrange frequencies.
• Triple SVA Woofers: Three 6.5" fiberglass-sandwich woofers provide extended low-frequency output down to 33 Hz.
• High Power Capability: Supports 260W continuous power handling with recommended amplifiers from 80W to 500W at 8 ohms.
• Front Bass-Reflex Port: Vented cabinet construction extends bass response while supporting flexible large-room placement.
• Dual Terminal Block: Four pure-copper terminals support compatible speaker connections and independent crossover sections.
• Golden Oak Finish: Selected wood veneer and multiple lacquer coats create the specified Golden Oak appearance.

Technical Specifications

• Brand: Triangle
• Model: Magellan Quatuor 40th
• Finish: Golden Oak
• Product Type: High-fidelity passive floorstanding speaker pair
• Recommended Room Size: Greater than approximately 323 sq ft
• Enclosure Type: Front-ported bass reflex
• Crossover: 3-way
• Total Drivers Per Speaker: 6
• Tweeters: 2 x TZ2900PMMG 1" magnesium dome horn tweeters
• Midrange: 1 x T16GMF100-V2 6.5" natural-paper cone driver with fabric surround
• Woofers: 3 x T16GMMT15GC1 6.5" fiberglass-sandwich cone woofers
• Frequency Response: 33 Hz to 30 kHz, +/-3 dB
• Sensitivity: 91 dB/W/m
• Nominal Impedance: 8 ohms
• Minimum Impedance: 3.4 ohms
• Power Handling: 260W
• Recommended Amplifier Power: 80W to 500W at 8 ohms
• Crossover Frequencies: 350 Hz and 2.5 kHz
• Terminal Configuration: Double terminal block with four pure-copper terminals
• Cabinet Construction: Curved multilayer high-density fiberboard enclosure
• Speaker Dimensions Without Pedestal: 9.8" W x 50.4" H x 13.4" D
• Speaker Dimensions With Pedestal: 16.7" W x 52.8" H x 14.6" D
• Box Dimensions Per Speaker: 21.5" W x 56.3" H x 17.9" D
• Net Weight Per Speaker: 103.6 lb
• Gross Weight Per Speaker: 128.3 lb
• Country of Manufacture: France

What's In the Box

• 2 Triangle Magellan Quatuor 40th Golden Oak Floorstanding Speakers
• 1 SPEC Spike Per Speaker
• 8 Metal Spikes Per Speaker
• 8 Counter Spikes Per Speaker
• 1 Certificate of Authenticity Per Speaker
• 1 Microfiber Maintenance Fabric Per Speaker
• 2 Pairs of Handling Gloves Per Speaker
• 1 Magnetic Protection Grille Per Speaker
