Turing Video SS-KG1-B4A-3Y SiteShield Axis 4-Camera Base System
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Condition: New
Description

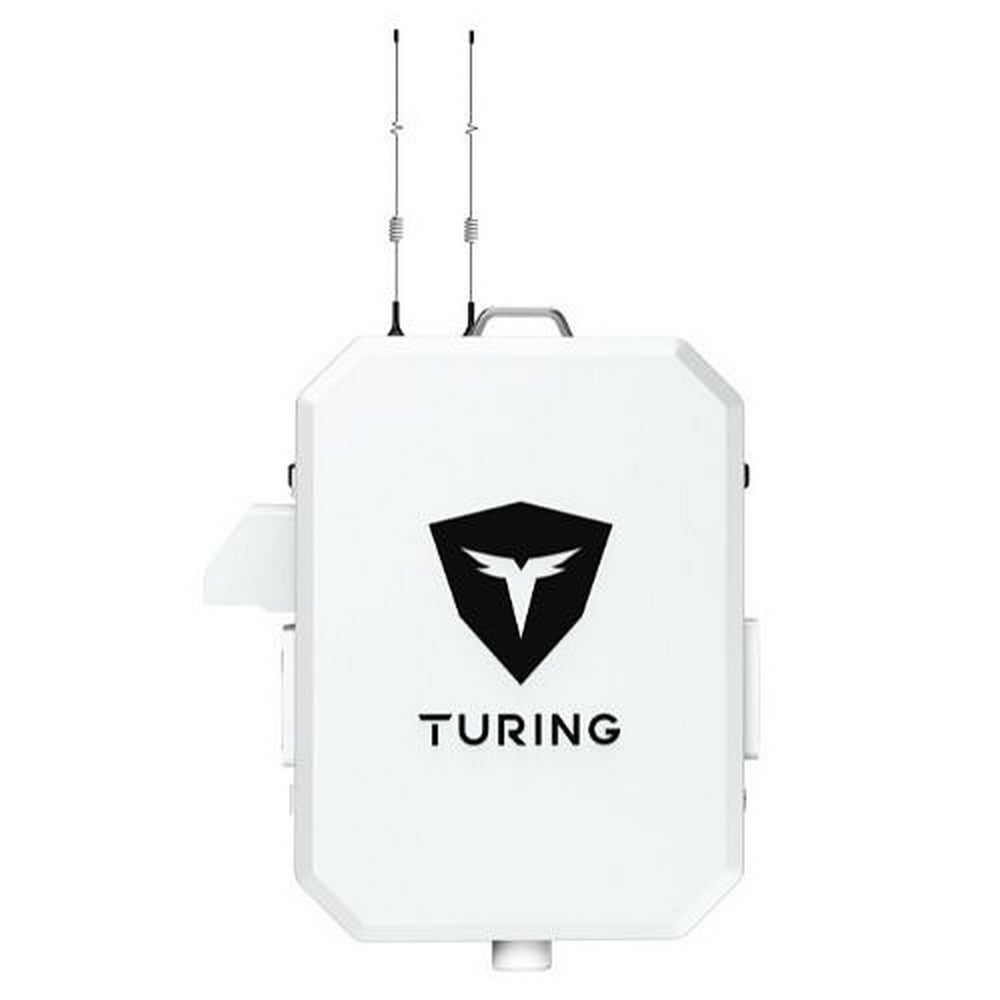

Turing Video SS-KG1-B4A-3Y SiteShield Axis 4-Camera Base System
The Turing Video SS-KG1-B4A-3Y SiteShield Axis 4-Camera Base System provides the outdoor infrastructure and licensing needed to deploy up to four compatible Axis cameras. The preassembled solution combines a NEMA 3R enclosure, 4G cellular router, PoE network switch, environmental controls, camera mounting adapters, and four three-year Axis camera licenses.
This configuration suits construction sites, parking facilities, remote properties, utilities, and other surveillance locations where conventional wired network service may be impractical. The integrated cellular router supports remote connectivity, while the PoE switch provides the network foundation for compatible IP cameras. Physical cameras are sold separately, giving integrators flexibility to choose supported Axis models for the required field of view and application.
The SS-KG1-B4A-3Y supports up to four Axis camera channels and includes three-year Turing licensing for all four channels. Thermostat-controlled heating and ventilation help protect the installed electronics in outdoor environments, while integrated strobe functionality supports visible deterrence. Cloud-enabled management and cloud-storage eligibility further support centralized monitoring across distributed surveillance deployments.
Key Features
- Four-Camera Axis Platform: Supports up to four compatible Axis camera channels within a remote SiteShield deployment.
- Three-Year Camera Licensing: Includes four TV-ACAI3Y licenses covering the supported Axis camera channels.
- 4G Cellular Connectivity: Integrated cellular networking supports surveillance sites without a conventional wired internet connection.
- PoE Network Switching: Built-in PoE infrastructure connects compatible IP cameras to the SiteShield system.
- NEMA 3R Enclosure: Protects the networking and control components in outdoor surveillance applications.
- Environmental Controls: Thermostat-controlled heater and fan equipment helps manage enclosure temperature.
- Flexible Axis Mounting: Included side-mount and bottom-mount adapters support compatible Axis camera installations.
- Cloud Management: Supports cloud-enabled, cloud-managed operation and eligible cloud storage workflows.
Technical Specifications
- Brand: Turing Video
- Model: SS-KG1-B4A-3Y
- Product Family: SiteShield
- Product Type: Axis outdoor surveillance base system
- Maximum Camera Channels: 4
- Physical Cameras Included: No
- Camera License Quantity: 4
- Camera License: TV-ACAI3Y
- License Term: 3 years
- SiteShield Management License: SHLD-MGMT-4S-3Y
- Management License Term: 3 years
- Enclosure Rating: NEMA 3R
- Cellular Connectivity: 4G
- Router Model: RUT956A00A00
- Network Switch: PoE switch
- PoE Switch Model: IPS31064P
- Environmental Controls: Thermostat-controlled heater and fan
- Strobe Function: Integrated
- Cloud Capabilities: Cloud enabled and cloud managed
- Cloud Storage Eligible: Yes
What's In the Box
- SiteShield NEMA 3R enclosure system with thermostat-controlled heater, fan, and strobe functionality
- 4G router, model RUT956A00A00
- PoE switch, model IPS31064P
- 2 x TP-SDC
- 2 x TA-AXSIDEBR Axis side-mount adapters
- 2 x TA-AXBOTMBR Axis bottom-mount adapters
- 4 x TV-ACAI3Y three-year Axis camera licenses
- SHLD-MGMT-4S-3Y three-year SiteShield management license for four cameras
