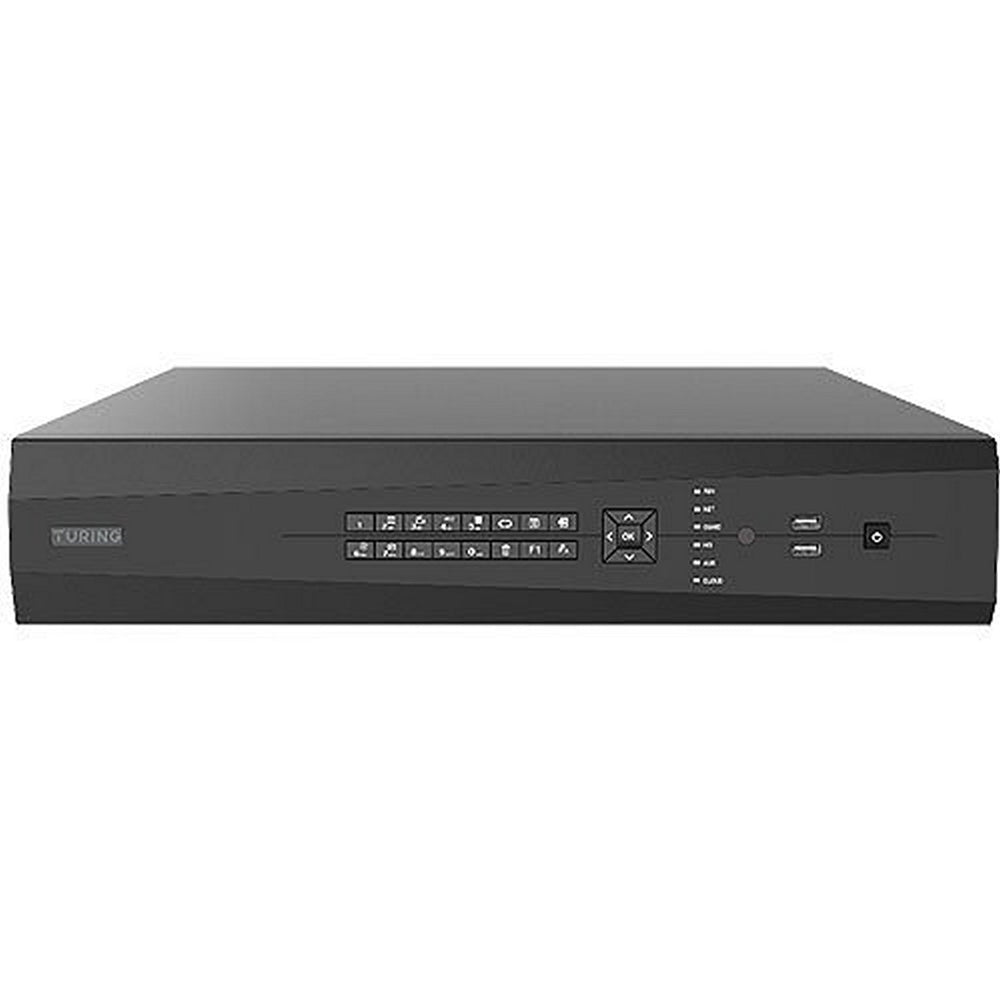

Turing Video TR-MR64R-B 64-Channel Performance NVR with Vision Bridge

Turing Video TR-MR64R-B 64-Channel Performance NVR with Vision Bridge

The Turing Video TR-MR64R-B 64-Channel Performance NVR is a SMART Series network video recorder built for large IP surveillance systems. It records up to 64 camera channels, provides eight SATA drive interfaces, supports up to 12MP recording, and includes Turing Vision Bridge hardware for cloud-connected video management.

This enterprise NVR fits commercial security deployments that need a 64-channel surveillance recorder with scalable local storage and remote management. Eight SATA interfaces support up to 10TB per disk, while RAID configurations help integrators organize storage for demanding installations. Dual Gigabit Ethernet interfaces and 384 Mbps incoming bandwidth support high-camera-count recording environments.

The recorder works with Turing SMART Series cameras and supports compatible third-party IP cameras through ONVIF Profiles S, G, and T. Independent HDMI and VGA monitoring outputs, alarm integration, serial control, two-way audio, and multiple network protocols support professional system design. The TR-MR64R-B is also NDAA compliant for qualifying security installations.

Key Features

• 64-Channel IP Recording: Connects and records up to 64 compatible network cameras for large surveillance deployments.
• Turing Vision Cloud Ready: Includes Bridge hardware for integration with the Turing Vision cloud video management platform.
• Eight SATA Interfaces: Supports up to eight hard drives with capacities up to 10TB per disk.
• RAID Storage Support: Provides RAID 0, 1, 5, 6, and 10 configurations for flexible storage management.
• 384 Mbps Network Bandwidth: Handles up to 384 Mbps incoming and 384 Mbps outgoing network traffic.
• High-Resolution Recording: Supports recording resolutions up to 12MP and HDMI monitoring output up to 4K at 30 Hz.
• Independent Display Connectivity: Provides two HDMI outputs and one VGA output for flexible monitoring configurations.
• Third-Party Camera Compatibility: Supports ONVIF Profiles S, G, and T alongside recommended Turing SMART Series cameras.

Technical Specifications

Video and Audio

• IP Video Input: Up to 64 channels
• Two-Way Audio Input: 1-channel RCA
• Recording Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF
• HDMI Outputs: 2
• HDMI Output Resolutions: 3840 x 2160 at 30 Hz, 1920 x 1080p at 60 or 50 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
• HDMI Audio: Not supported
• VGA Outputs: 1
• VGA Output Resolutions: 1920 x 1080p at 60 or 50 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
• Audio Output: 1-channel RCA
• Synchronous Playback: 16 channels
• Screen Modes: 3, 4, 5, 7, 9, 10, 12, 16, 32

Decoding

• Decoding Formats: Ultra 265, H.265, H.264
• Live View and Playback Resolutions: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF
• Decoding Capability: 2 x 12MP at 30 fps, 4 x 4K at 30 fps, 8 x 4MP at 30 fps, 9 x 4MP at 25 fps, 16 x 1080p at 30 fps, 32 x 960p at 25 fps, 36 x 720p at 30 fps, or 64 x D1

Storage

• SATA Interfaces: 8
• Maximum Capacity: Up to 10TB per disk
• eSATA: 1 interface
• RAID Support: RAID 0, 1, 5, 6, 10
• Hard Drives: Not included

Network

• Incoming Bandwidth: 384 Mbps
• Outgoing Bandwidth: 384 Mbps
• Remote Users: 128
• Network Protocols: P2P, UPnP, NTP, DHCP, PPPoE
• Ethernet Interfaces: 2 x RJ45 10/100/1000M self-adaptive Ethernet

External Interfaces

• Front USB: 2 x USB 2.0
• Rear USB: 1 x USB 3.0
• Serial Interfaces: 1 x RS-485, 1 x RS-232
• Alarm Inputs: 16 channels
• Alarm Outputs: 4 channels

General

• Power Supply: 100 to 240V AC
• Power Consumption: 25W maximum without HDD
• Operating Temperature: 14 to 131 degrees F
• Operating Humidity: 90% RH maximum, non-condensing
• Dimensions: 17.4 x 16.8 x 3.5 inches
• Net Weight: 12.6 lb maximum
• Recommended Cameras: Turing SMART Series
• ONVIF Support: Profiles S, G, and T
• NDAA Compliant: Yes

What's In the Box

• Turing Video TR-MR64R-B SMART Series 64-Channel Performance NVR
• Turing Vision Bridge hardware
