Description

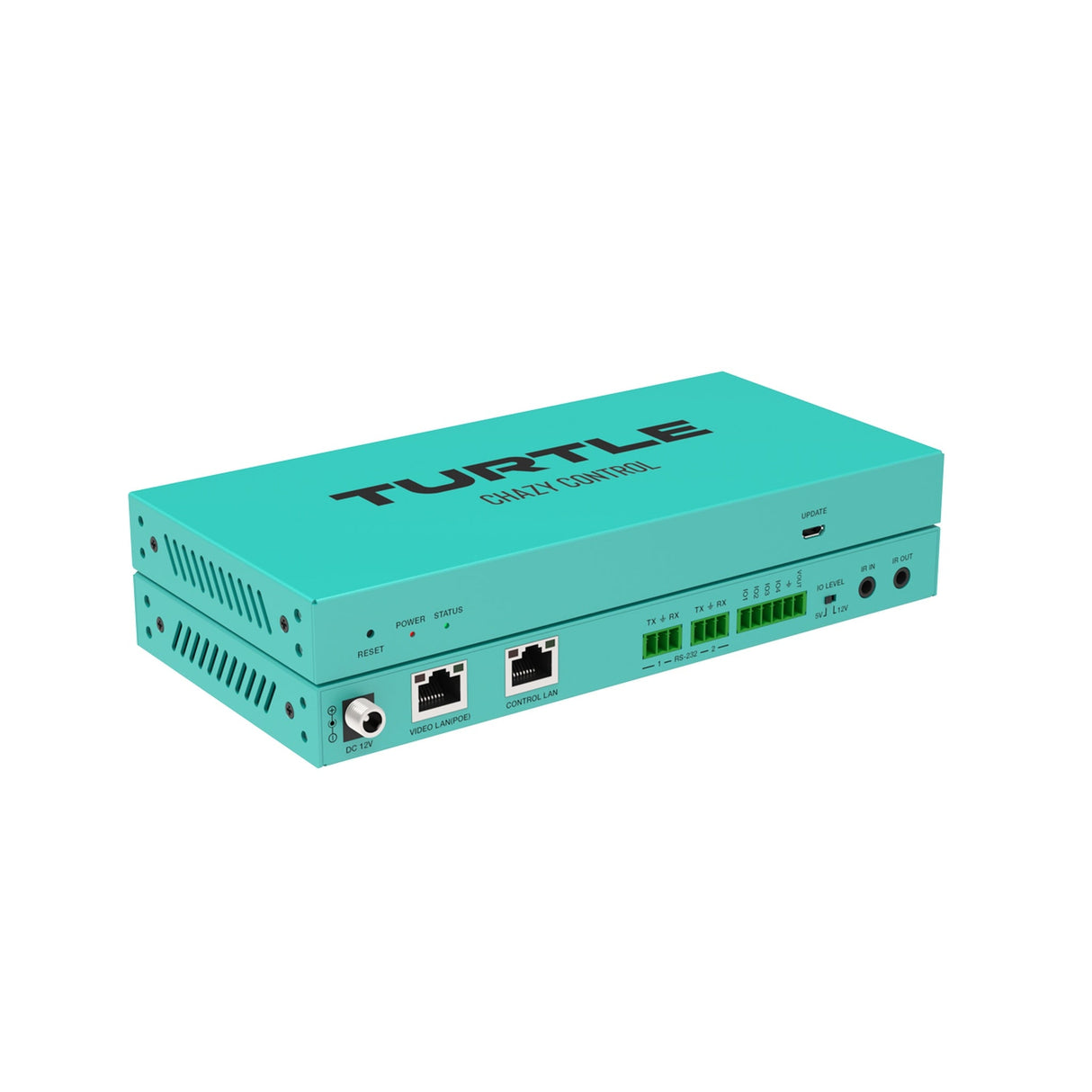

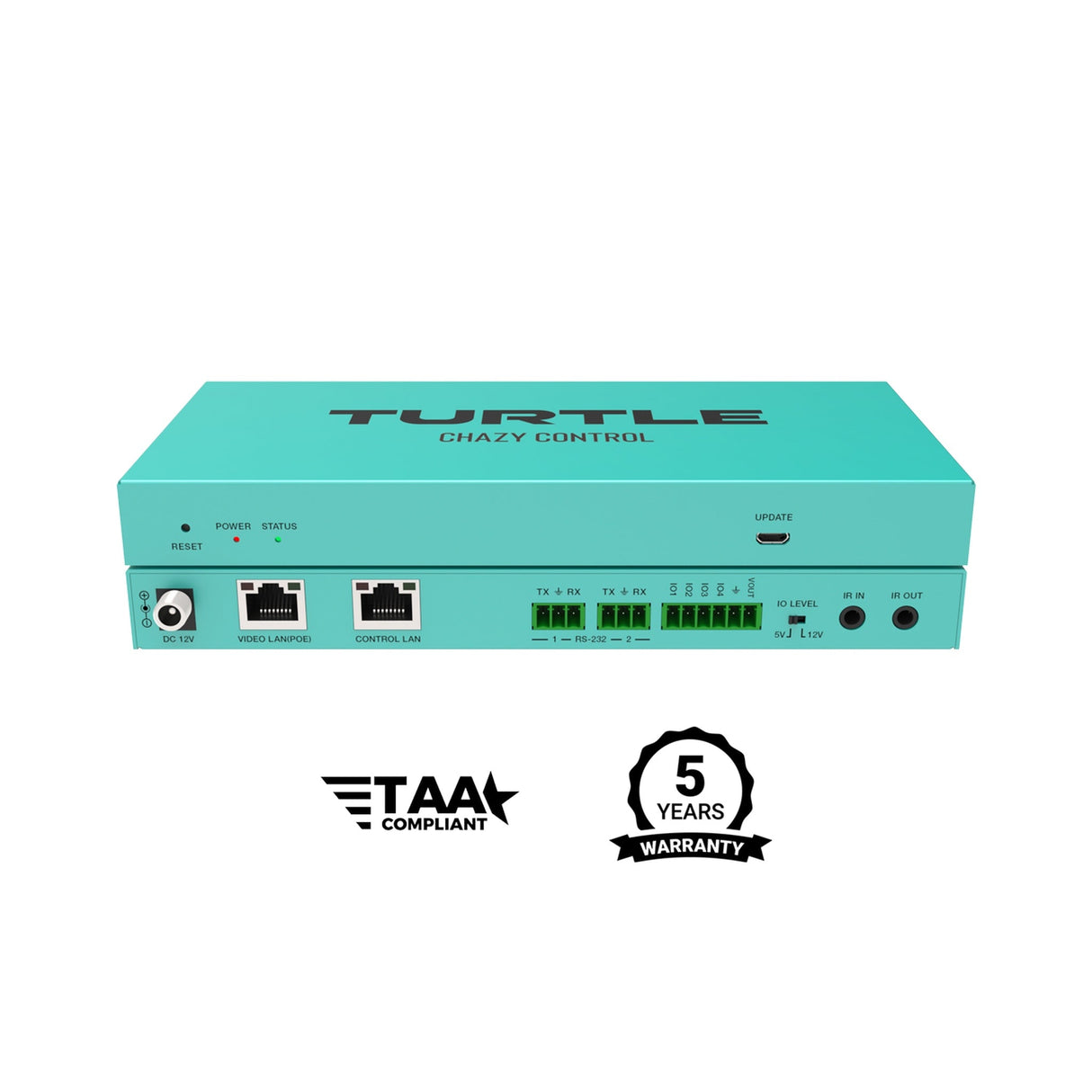

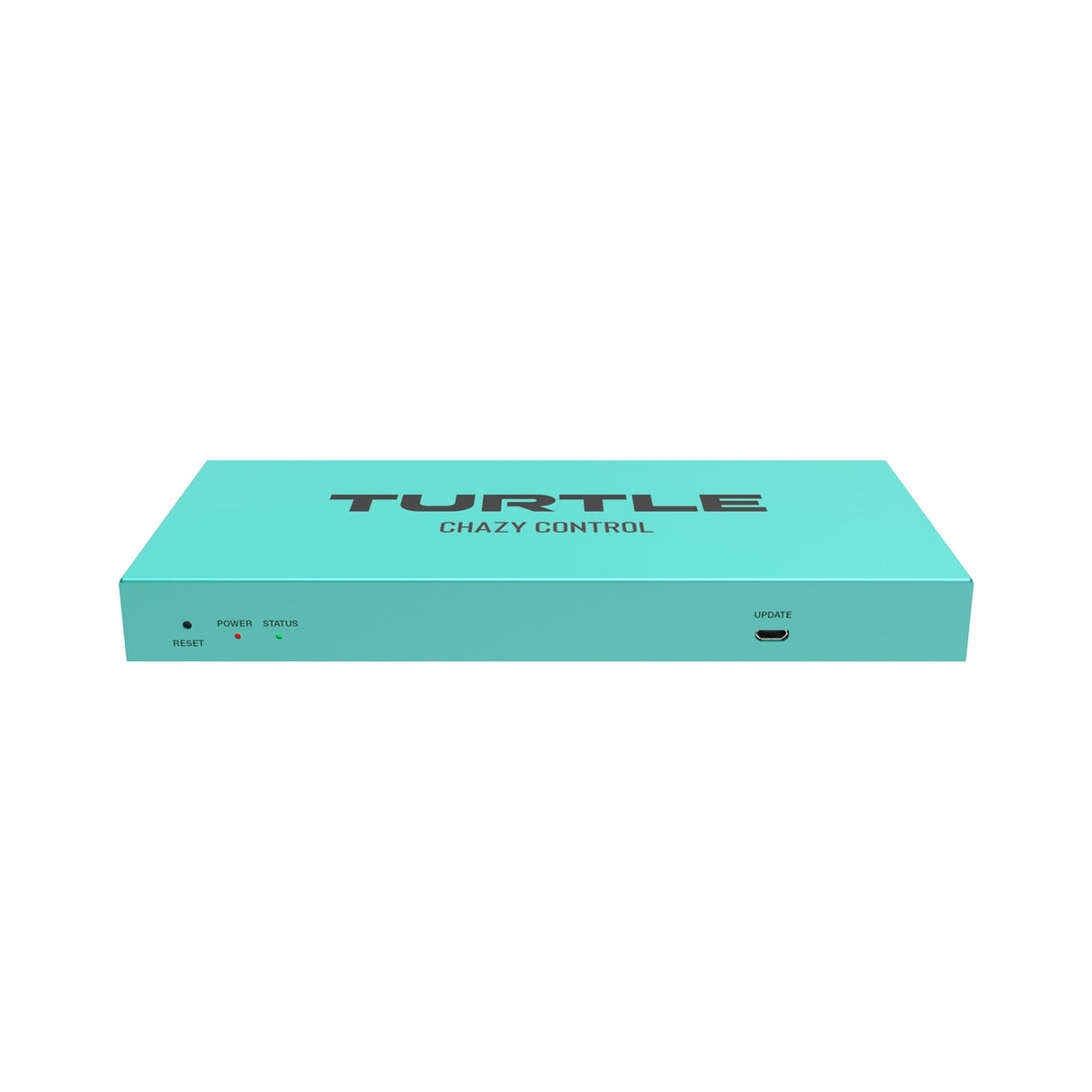

Turtle AV Chazy Control AV-Over-IP Management Box
The Turtle AV Chazy Control is a hardware based AV over IP management system designed to provide full configuration, routing, and control for the Chazy 4K platform. With a built in Dante Controller and browser based interface, it enables complete system management without requiring a PC or external software. This makes it ideal for commercial AV installations, signage networks, and enterprise scale video distribution systems.
The unit includes dual network ports that separate AV traffic from control traffic, improving overall system stability and network organization. Users can configure video walls up to 9x9, manage multicast routing, and perform drag and drop signal assignments directly through its WebGUI. Advanced security features such as HTTPS, SSH, and AES 256 bit encryption ensure safe operation in secure environments.
Designed for long term reliability, the Chazy Control incorporates IR, RS 232, GPIO, and digital I/O interfaces along with support for major third party control ecosystems including Q SYS, Crestron, and Extron. Its compact, fanless metal housing and PoE capability make it easy to install in racks, control rooms, or remote equipment locations.
Key Features
- Integrated Dante Controller: Hardware level Dante control without the need for external software.
- Dual LAN Ports: Separate video LAN and control LAN for cleaner network segmentation.
- Web Based System Management: Drag and drop WebGUI for routing, multicast, and video wall configuration.
- Secure Operation: HTTPS, SSH, and AES 256 encryption for protected AV system deployment.
- Multiple Control Interfaces: IR, RS 232, GPIO, digital I O and integration support for Q SYS, Crestron, and Extron.
- Flexible Powering: Supports PoE or DC power for installation versatility.
- Fanless Metal Housing: Durable and quiet design suitable for continuous operation.
Technical Specifications
- Network Bandwidth: 1 Gbps and 100 Mbps supported.
- Ports: 2 x LAN (one with PoE), IR IN 3.5 mm, IR OUT 3.5 mm, Digital I O 6 pin, 2 x RS 232 (3 pin), Micro USB for firmware updates.
- ESD Protection: IEC 61000 4 2, plus or minus 8 kV air discharge, plus or minus 4 kV contact discharge.
- Housing: Metal enclosure with durable finish.
- Dimensions: 8.03 in x 3.88 in x 0.85 in.
- Weight: 1.12 lbs.
- Power Supply: AC 100 to 240V adapter or PoE (IEEE 802.3af).
- Power Consumption: Approximately 2 W.
- Operating Conditions: 32 to 104 F, 20 to 90 percent relative humidity non condensing.
