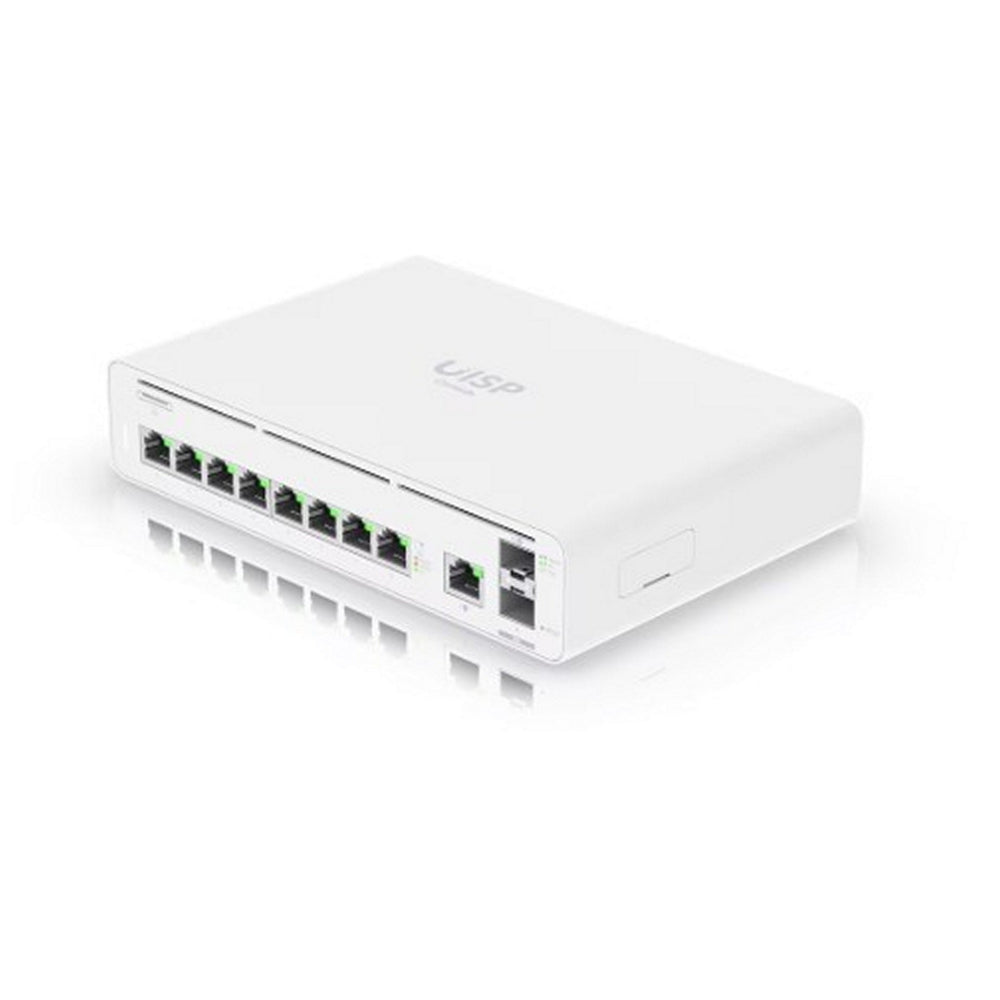

Ubiquiti UISP Console - High-Performance Network Management Gateway
The Ubiquiti UISP Console is a versatile, high-performance device designed to manage your ISP network efficiently. Featuring a quad-core ARM Cortex-A57 processor, 4 GB of DDR4 memory, and both onboard SSD and eMMC storage, it delivers fast and reliable network performance. The console includes eight GbE RJ45 LAN ports and one 1/10G SFP+ WAN port, making it perfect for demanding network environments. It's equipped with advanced ESD/EMP protection, ensuring reliable performance even in challenging conditions.
Key Features:
- 8 GbE LAN ports and 1/10G SFP+ WAN port
- Quad-core ARM Cortex-A57 processor at 1.7 GHz
- 4 GB DDR4 memory and 128 GB SSD storage
- External AC/DC adapter and DC input for power redundancy
- Bluetooth and in-band Ethernet management interface
Technical Specifications:
Dimensions: 8.3" x 5.5" x 1.7" (210.4 x 140.2 x 43.7 mm)
Weight: 3.2 lb (1.5 kg)
Enclosure Materials: SGCC steel, polycarbonate
Processor: Quad-core ARM Cortex-A57, 1.7 GHz
Memory: 4 GB DDR4
Onboard Flash Storage: 16 GB eMMC
Onboard Storage: 128 GB SSD
Card Slot: 1 x microSD
Networking Interfaces: 8 x GbE RJ45 LAN, 1 x 1/10G SFP+ port, 1 x GbE RJ45 WAN, 1 x 1/10G SFP+ WAN port
Management Interface: Ethernet In-band, Bluetooth
Power Method: External AC/DC adapter, Power TransPort DC input 27V DC, 1.5A
Power Supply: 24V DC, 2.5A (included)
Supported Voltage Range: 24—28V DC
Max. Power Consumption: 30W
ESD/EMP Protection: Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature: -10 to 50° C (14 to 122° F)
Ambient Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC
LEDs: System status, speed/link/activity for RJ45 and SFP+ data ports
Package Contents:
- 1 x UISP Console
- 1 x Power Adapter
- 1 x Power TransPort DC Input Cable
- 1 x Mounting Kit
