Universal Audio Volt 2 Studio Pack USB Audio Interface, 2-In/2-out

Universal Audio Volt 2 Studio Pack USB Audio Interface, 2-In/2-out

Introducing Volt Studio Packs: The Ultimate Recording Solution
Experience the power of big studio sound with Volt Studio Packs. Equipped with Universal Audio’s Volt 2 USB audio interface, studio headphones, condenser mic, audio software, and cables, creating professional-grade recordings has never been more accessible.

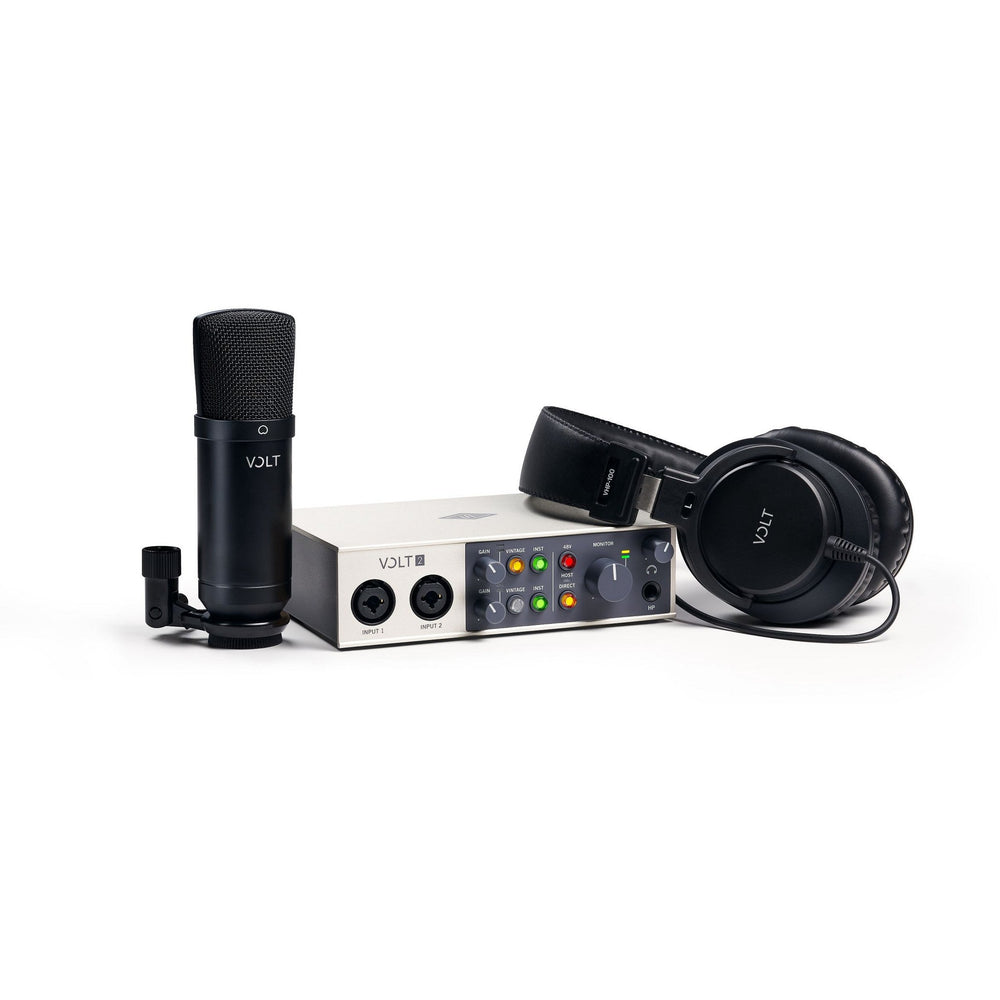

Complete Your Studio with Everything You Need
Outfit your studio with a Volt 2, closed-back headphones, high-quality cables, and a condenser microphone. You'll be able to record your vocals and instruments with professional-grade sound and without latency issues.

Create Music Productions, Livestreams, and Podcasts with Ease
Volt Studio Packs allow you to produce music on your Mac, PC, iPad, or iPhone. The audio and music software included in the pack, such as Ableton, Melodyne, UJAM's Virtual Drummer, Marshall, and Ampeg, provides you with an essential suite of tools to facilitate your creative journey.

Ready to Record? Let's Get Started.
With Volt Studio Packs, you don't have to worry about buying expensive equipment or setting up complicated systems. Simply plug in your included mic and headphones, power-up Volt 2 and start creating professional recordings in no time.

Capture Legendary Vocals with Vintage Mic Preamp Mode
The built-in tube emulation circuitry in Volt interfaces provides you with the rich sound of the iconic Universal Audio 610 tube preamp, used by renowned artists such as Ray Charles, Van Halen, and Arcade Fire. Get the legendary sound, without the hefty price tag.

Key Features

• Volt Studio Packs offer a comprehensive set of tools for recording music, live streams, or podcasts with a professional studio sound.
• The Volt 2 USB audio interface included in the pack is a desktop 2-in/2-out USB 2.0 interface with high-quality 24-bit/192 kHz audio conversion.
• The audio interface also features a Vintage Mic Preamp mode, adding a classic touch to your recordings.
• The pack includes a studio condenser microphone designed for professional vocal and instrument recording, ensuring high-quality sound capture.
• Closed-back headphones are provided for accurate mixing and monitoring, allowing you to hear every detail of your recordings.
• The Volt Studio Packs also come with an essential suite of audio and music software, including popular tools like Ableton, Melodyne, UJAM’s Virtual Drummer, Marshall, Ampeg, and more.
• To ensure connectivity, the pack includes standard XLR and USB-C to USB-A cables, allowing you to easily connect your equipment to various devices.
• With the Volt Studio Packs, achieving professional recordings has never been easier, as all the necessary tools are conveniently bundled together.
• Whether you're a musician, streamer, or podcaster, the Volt Studio Packs provide everything you need to create high-quality audio content.
• Invest in the Volt Studio Packs and elevate your recordings with their powerful combination of hardware and software.

Technical Specifications

I/O Complement
Volt 2
Two
Monitor Outputs
Two (one stereo pair)
Headphone Outputs
One stereo (two stereo on Volt 476P)
USB
One USB 2.0 port (USB Type-C connector)
MIDI
In, out (two 5-pin DIN connectors)
A/D - D/A Conversion
Supported Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample
24
ANALOG I/O
Mic, Line, Instrument Input(s)
Compression Ratio
Attack / Release times (approximate)
Attack 2 ms / Release 300 ms
Attack 1.5 ms / Release 700 ms
Attack 30 µs / Release 35 ms
6:1
Microphone Input(s)
Frequency Response
20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (A-weighted)
112 dB
Total Harmonic Distortion + Noise
(1 kHz @ -1 dBFS)
-103 dB (0.0007 %)
Equivalent Input Noise (150 Ohms, A-weighted)
-127 dBu
Maximum Input Level
9 dBu
Input Impedance
3 Kilohms
Available Gain
55 dB
Phantom Power
+48V (switchable)
Connector Type
XLR Female, pin 2 positive
Instrument Input(s)
Frequency Response
20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A-weighted)
111 dB
Total Harmonic Distortion + Noise
(1 kHz @ -1 dBFS)
-84 dB (0.006 %)
Maximum Input Level
12.5 dBu
Input Impedance
1 Megohms
Gain Range
55 dB
Connector Type
¼” TS unbalanced
Line Input(s)
Frequency Response
20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A-weighted)
111 dB
Total Harmonic Distortion + Noise
(1 kHz @ -1 dBFS)
-102 dB (0.0008 %)
Maximum Input Level
22 dBu
Input Impedance
15 Kilohms
Gain Range
55 dB
Connector Type
¼” TRS balanced or TS unbalanced
Monitor & Line Outputs*
Frequency Response
20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (A-weighted)
110 dB
Total Harmonic Distortion + Noise
(1 kHz @ -1 dBFS)
-102.5 dB (0.00075%)
Maximum Output Level
15 dBu
Output Impedance
100 Ohms
Connector Type
¼” TRS balanced or TS unbalanced
*Monitor outputs are DC-coupled. Line outputs (Volt 4, 476, 476P) are not DC-coupled.
Stereo Headphone Outputs (DC-Coupled)
Frequency Response
20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (100K load, A-weighted)
110 dB
Total Harmonic Distortion + Noise
(1 kHz @ -1 dBFS, 300 Ohms)
-100 dB (0.001%)
Connector Type
¼” TRS Stereo
ELECTRICAL
External DC Power Input
Barrel, female, 5.5mm OD, 2.1mm ID,
IEC 60130-10 Type A
Power Supply, Electrical Requirements
+5VDC, Center Positive (+)
Power Consumption
Volt 2
4.2W maximum, 2.5W typical
ENVIRONMENTAL
Ambient Temperature Range
32 Degrees to 104 Degrees F (0 Degrees to 40 Degrees C)
MECHANICAL
Width x Depth x Height
6.9 x 5.1 x 2.1 in (17,4 x 13,0 x 5,3 cm)
Shipping Box
Width x Depth x Height
9.0 x 6.9 x 3.7 in (22,8 x 17,5 x 9,4 cm)
Shipping Weight (with box & accessories)
2.6 lbs (1.2 kg)
Package Contents
Volt Audio Interface Unit
USB Type-A to Type-C cable
