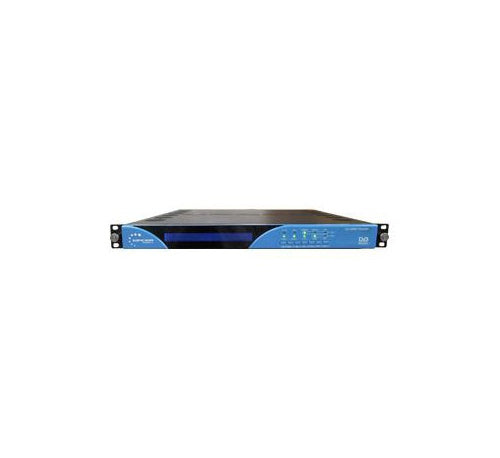

Upcom Technologies UC-IRD-TSX DVB-S/S2 MPEG2/4 SD/HD Transcoder
Upcom Technologies UC-IRD-TSX DVB-S/S2 MPEG2/4 SD/HD Transcoder
Free Shipping
Upcom Technologies UC-IRD-TSX DVB-S/S2 MPEG2/4 SD/HD Transcoder
Upcom Technologies' line of high-quality Advanced HD/SD Integrated Receivers, such as the UC-IRD-TSX, has been designed as a feature rich and flexible platform to be used on contribution, distribution and mobile broadcast environment. Most advanced features found as optional on other receivers come as standard on Upcomās line.
Key Features
- DVB-S/S2, ASI and IP Receiver
- SD/HD MPEG-2 and H.264/MPEG-4 AVC Decoder
- Digital Audio Pass Through (AC3 pass through)
- 2X DVB-CI Slots, BISS-1 and BISS-E Decryption
- Compatible with: CONAX, CRYPTOWORKS, IRDETO, NDS, MEDIAGUARD, SECA, VIACCESS and more
- TELETEXT VBI, EBU, DVB AND CC support
- Internal Re-Multiplexer allows program filtering or aggregation
- SD MPEG-2 output in ASI or Baseband in SDI or Composite
Technical Specifications
RF Inputs
DVB-S/S2, 950 - 2150MHz, QPSK/8PSK
ASI Inputs
DVB-ASI, EN50083-9
Video Ouputs
SD-SDI SMPTE 259M, 270 Mb/s (10bit), HD-SDI SMPTE 292M, 1.485 Gbit/s (10bit), Composite (NTSC, PAL, and SECAM)
Analog Audio
Balanced XLR 2 pairs of stereo audio outputs
Decoding
MPEG-2, MPEG 4/H.264 AVC Part 10, HD/SD, CI & BISS
Encoding
MPEG-2 SD
Operating Temperature
32 to 113F
Storage Temperature
-13 to 131F
Shock and Vibration
Equal to mobile van
Humidity
10 to 75%
AC Power
85VAC to 265VAC, 50/60Hz, 20W
Dimensions
19" W x 2" H x 13" D
Weight
9lbs
