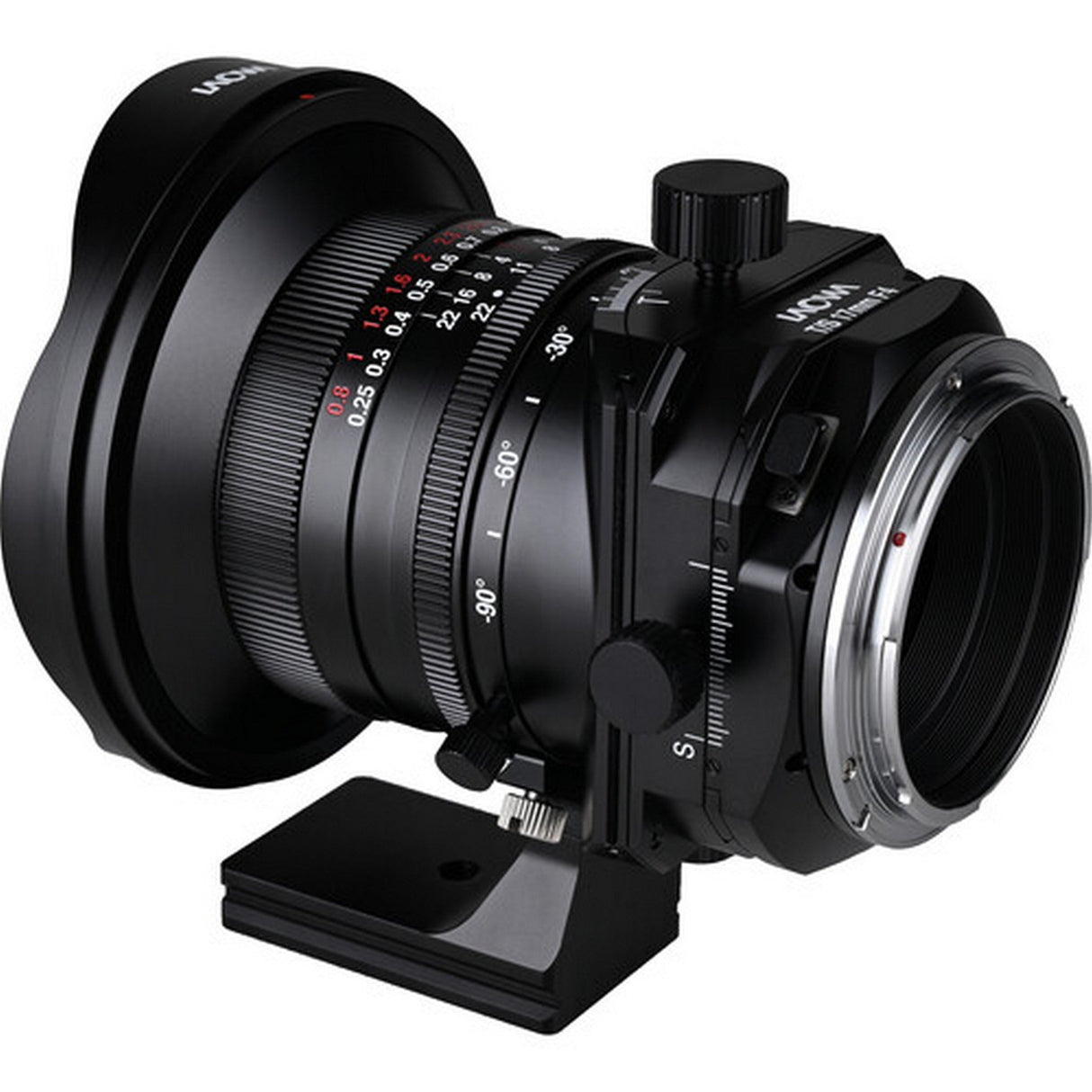

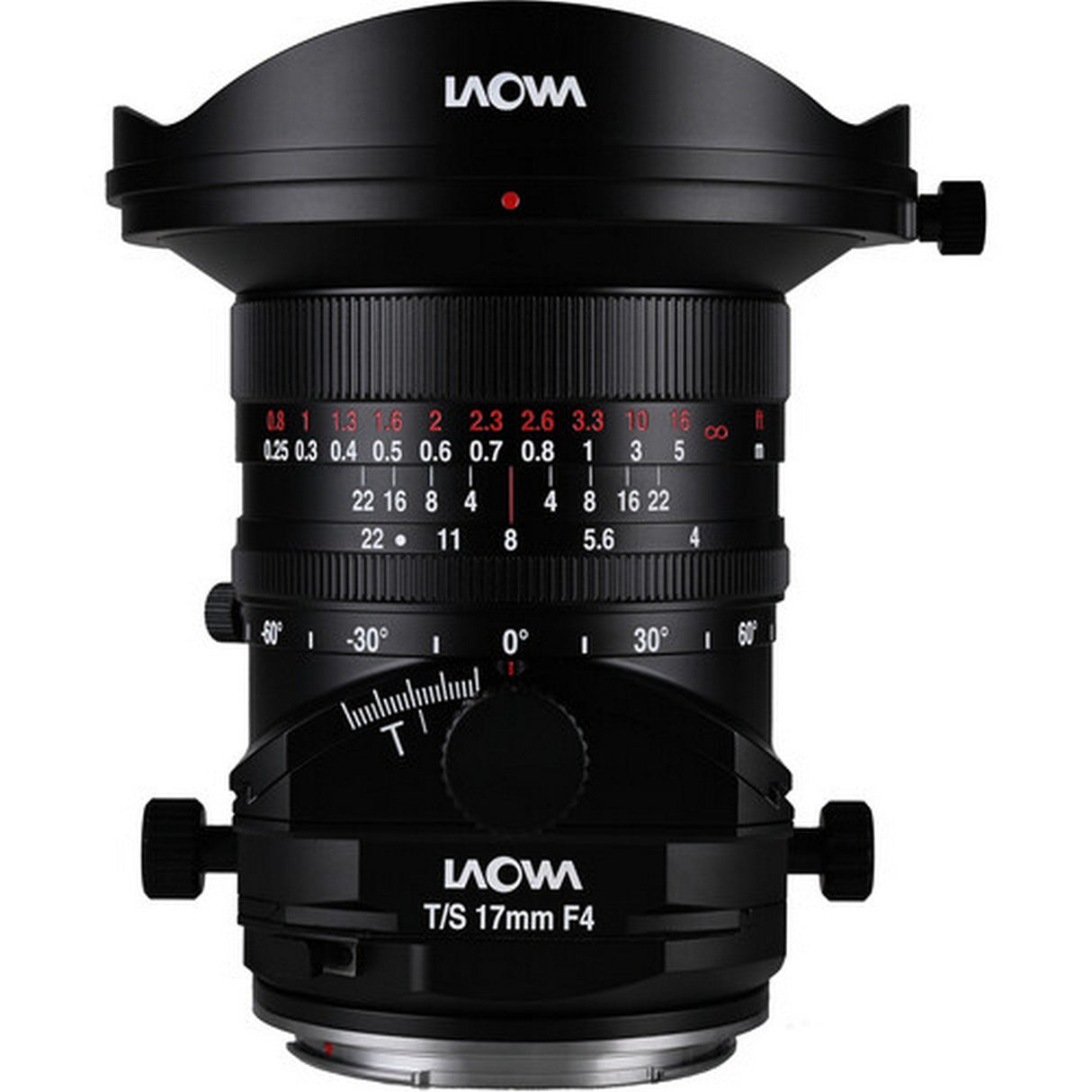

Venus Optics Laowa 17mm f/4 Zero-D Medium Format Shift/Tilt-Shift Lens

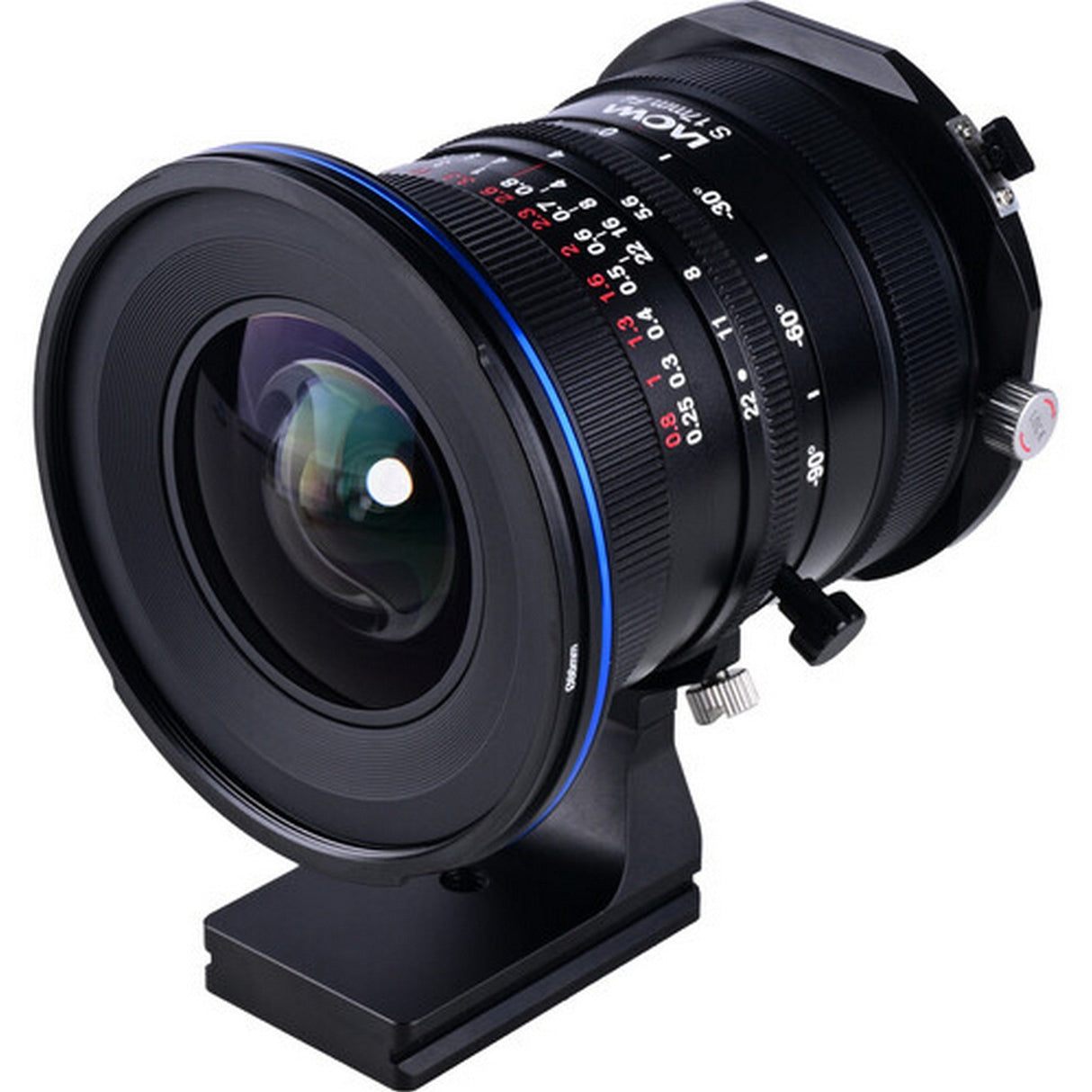

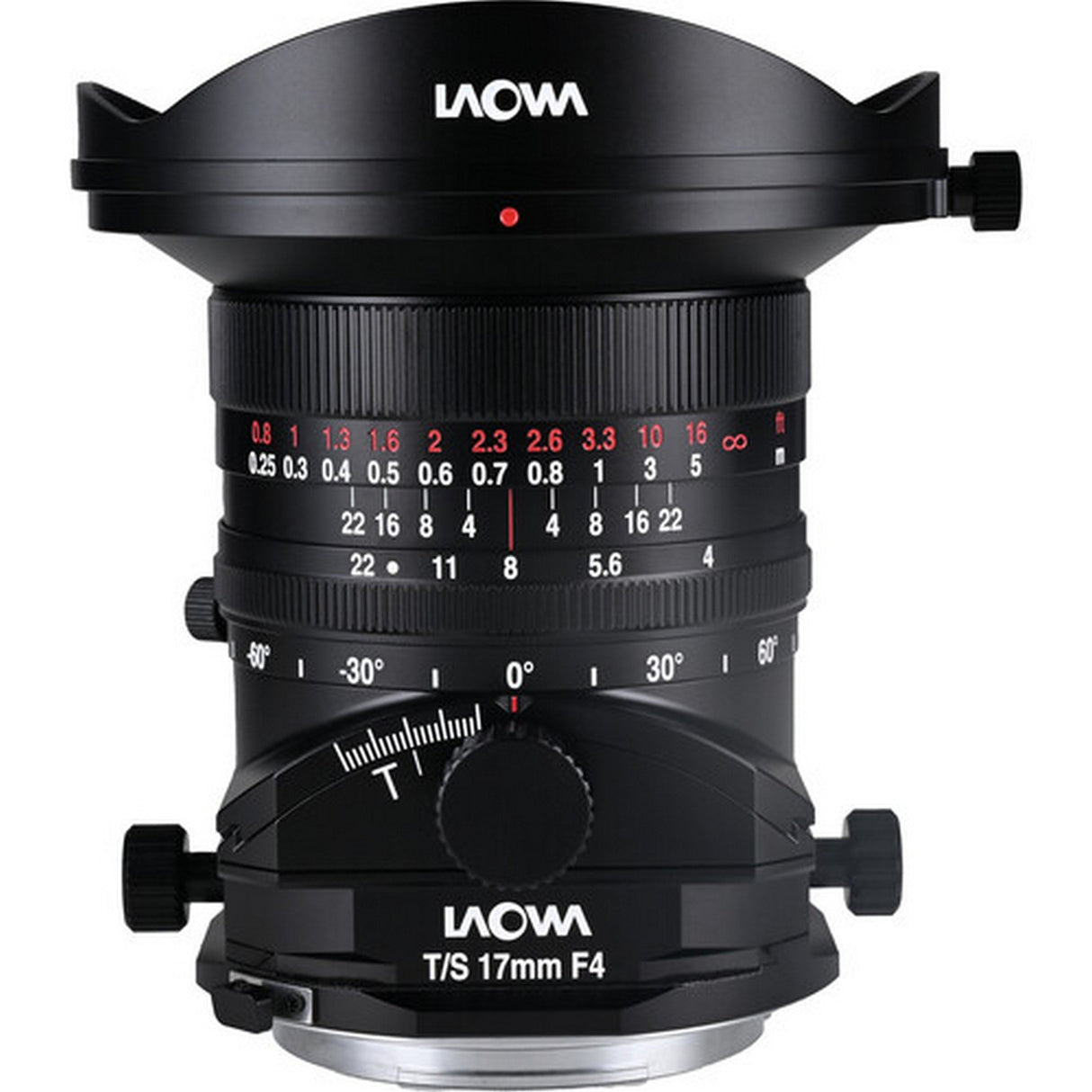

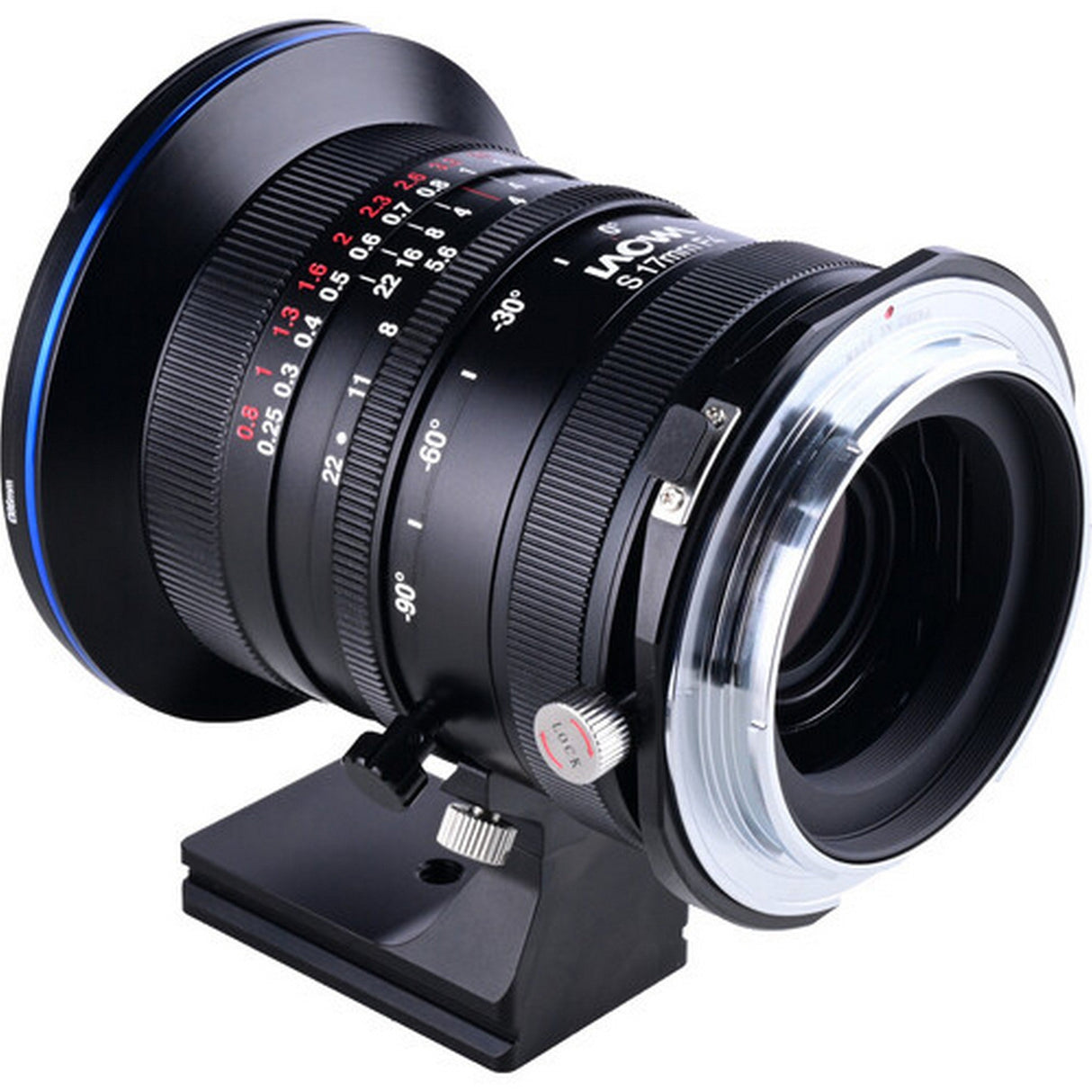

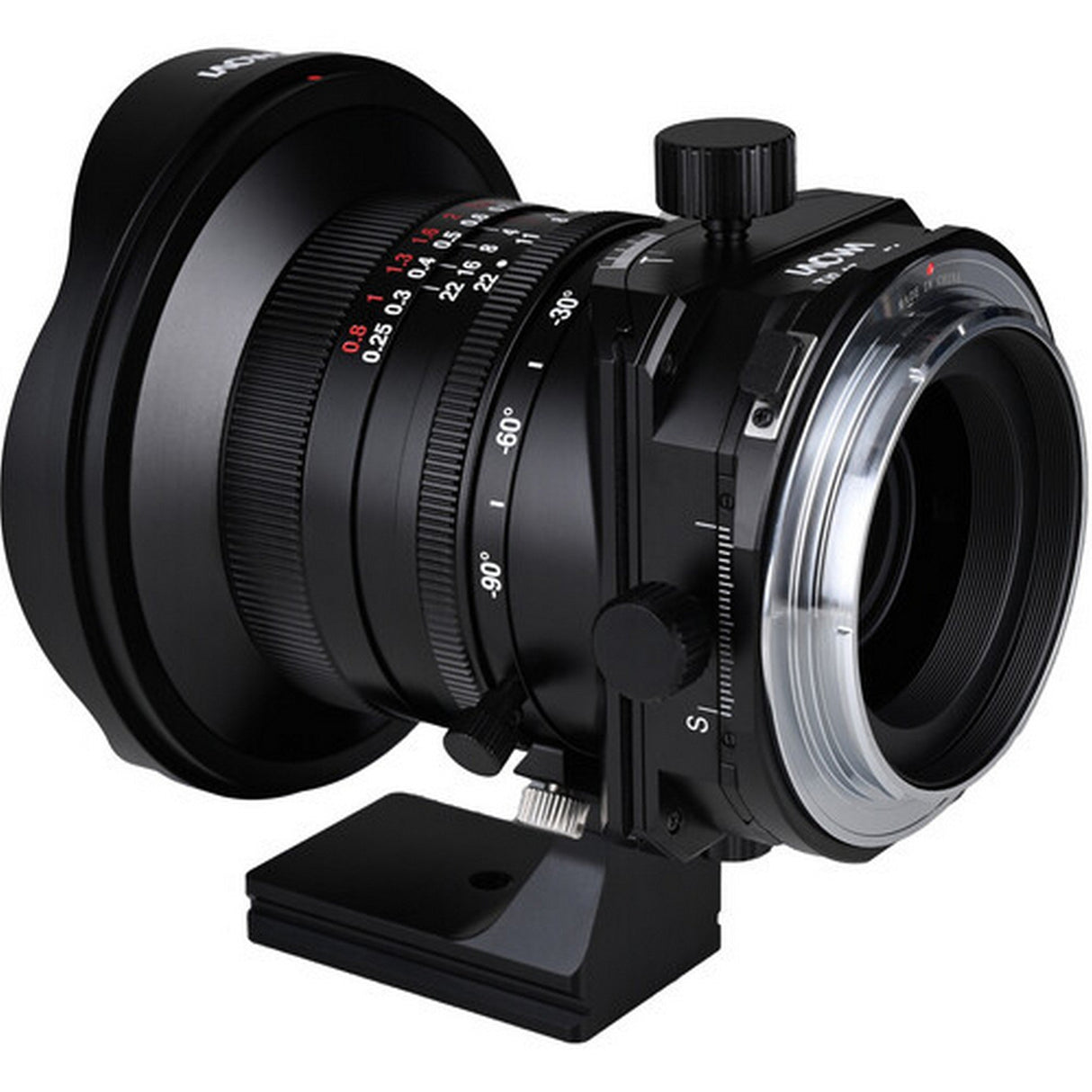

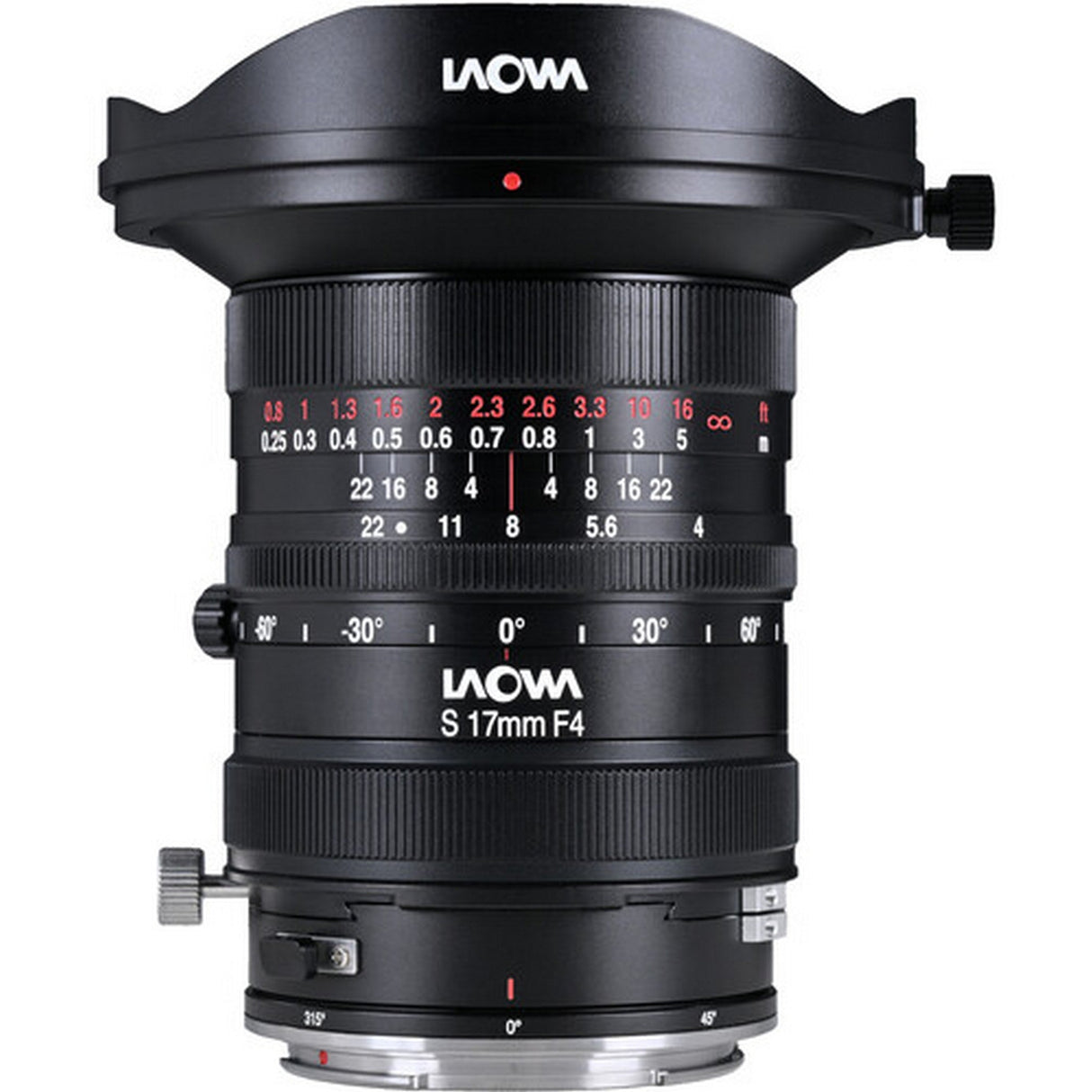

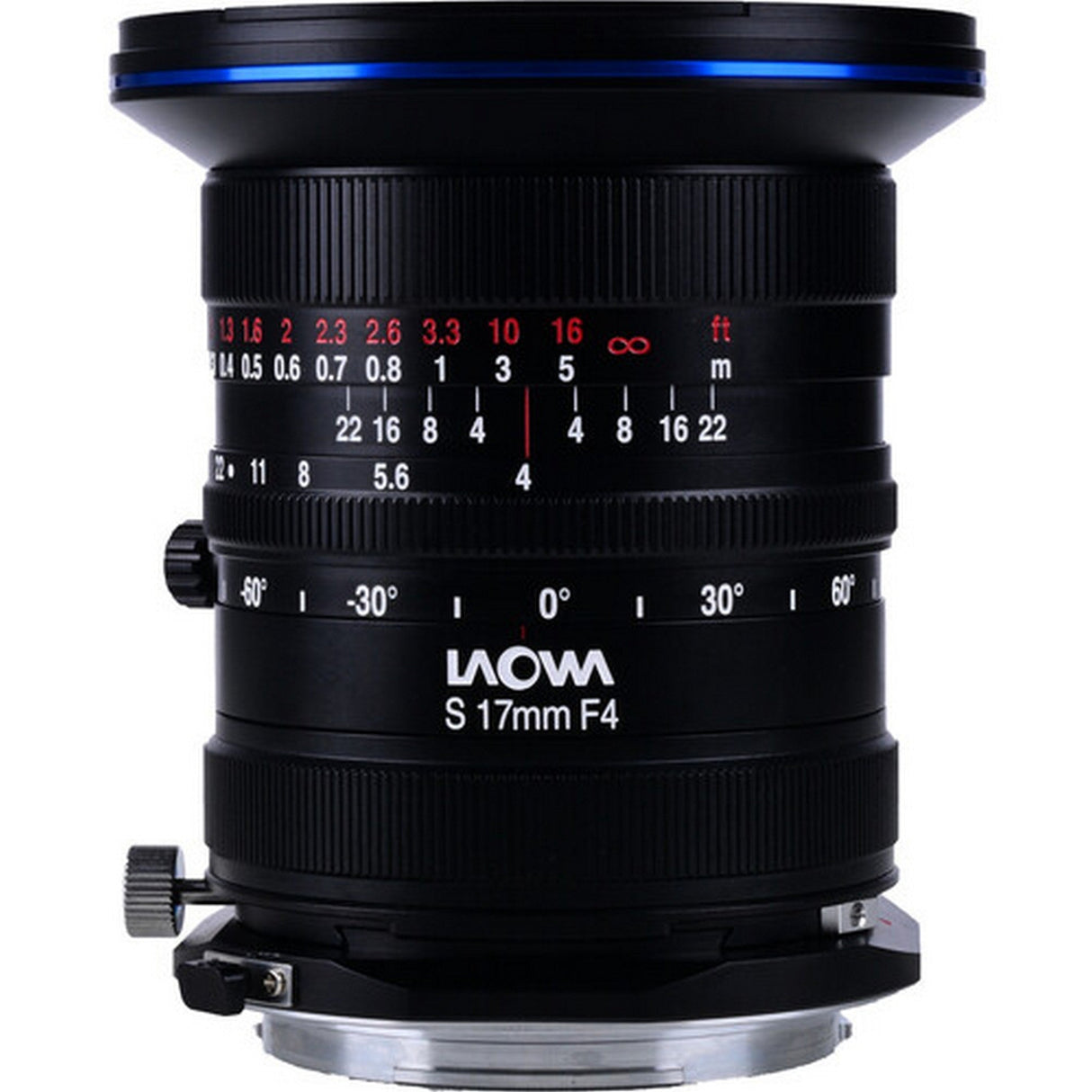

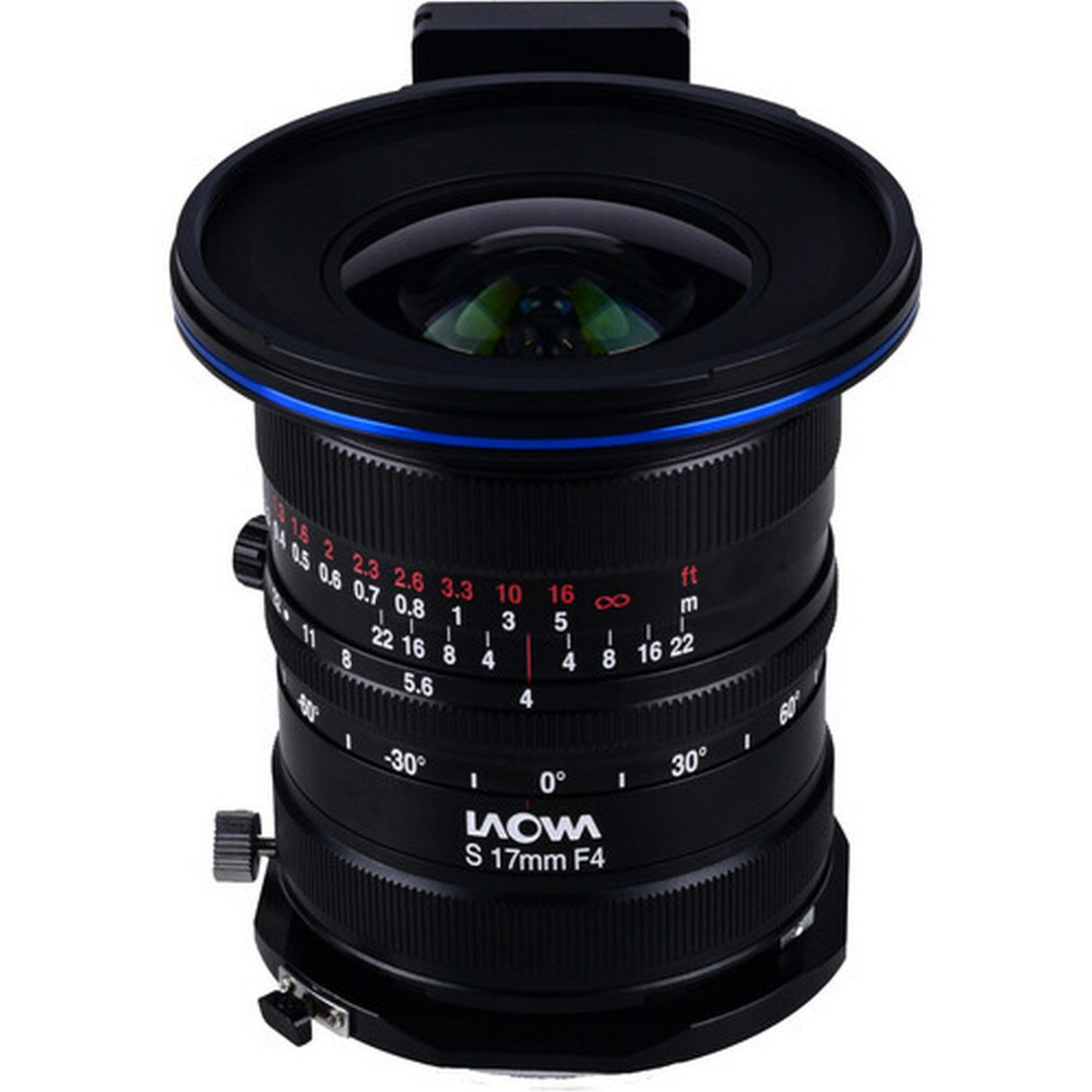

The Venus Optics Laowa 17mm f/4 Zero-D Medium Format Shift/Tilt-Shift Lens is an ultra-wide perspective-control prime offered for FUJIFILM G and Hasselblad X cameras. Choose the Shift version for ±8mm correction or the Tilt-Shift version for ±8mm shift plus ±10° tilt to control perspective and the focus plane in-camera.

This manual-focus lens gives architectural, interior, real estate, and landscape photographers a broad 104° angle of view. The shift mechanism helps correct converging vertical lines without tilting the camera, while the Tilt-Shift model supports extended depth of field, selective focus, and miniature-style effects. A 9.8-inch minimum focusing distance also enables dramatic foreground compositions.

The Zero-D optical system uses 18 elements in 12 groups, including four extra-low dispersion, five ultra-high refraction, and two aspherical elements. A 14-blade diaphragm, 86mm filter thread, 360° rotating mechanism with 15° click stops, Frog-Eye front coating, and integrated Arca-compatible support prepare the lens for precise professional workflows.

Key Features

• Two Control Options: Select the Shift version for perspective correction or the Tilt-Shift version for perspective and focus-plane control.

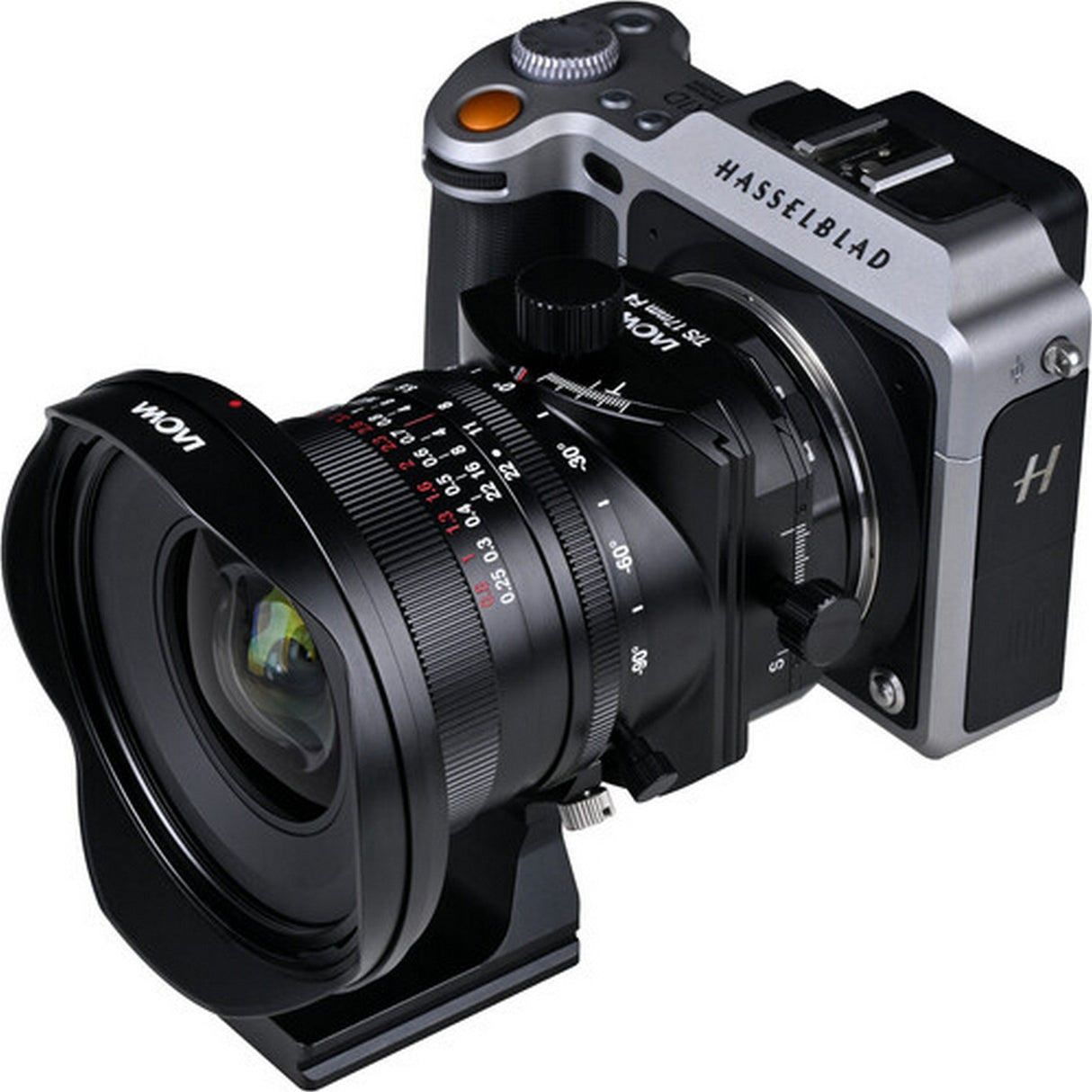

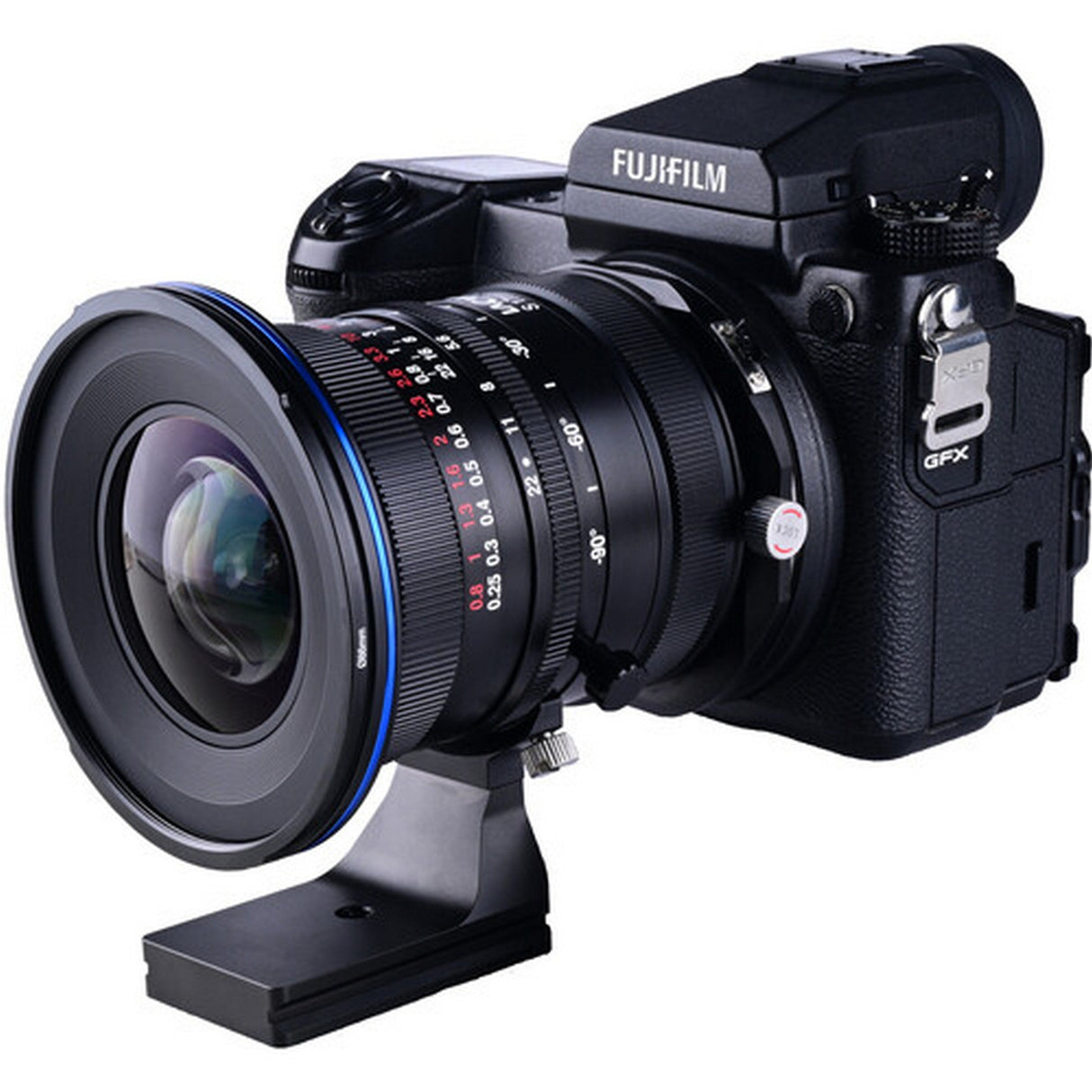

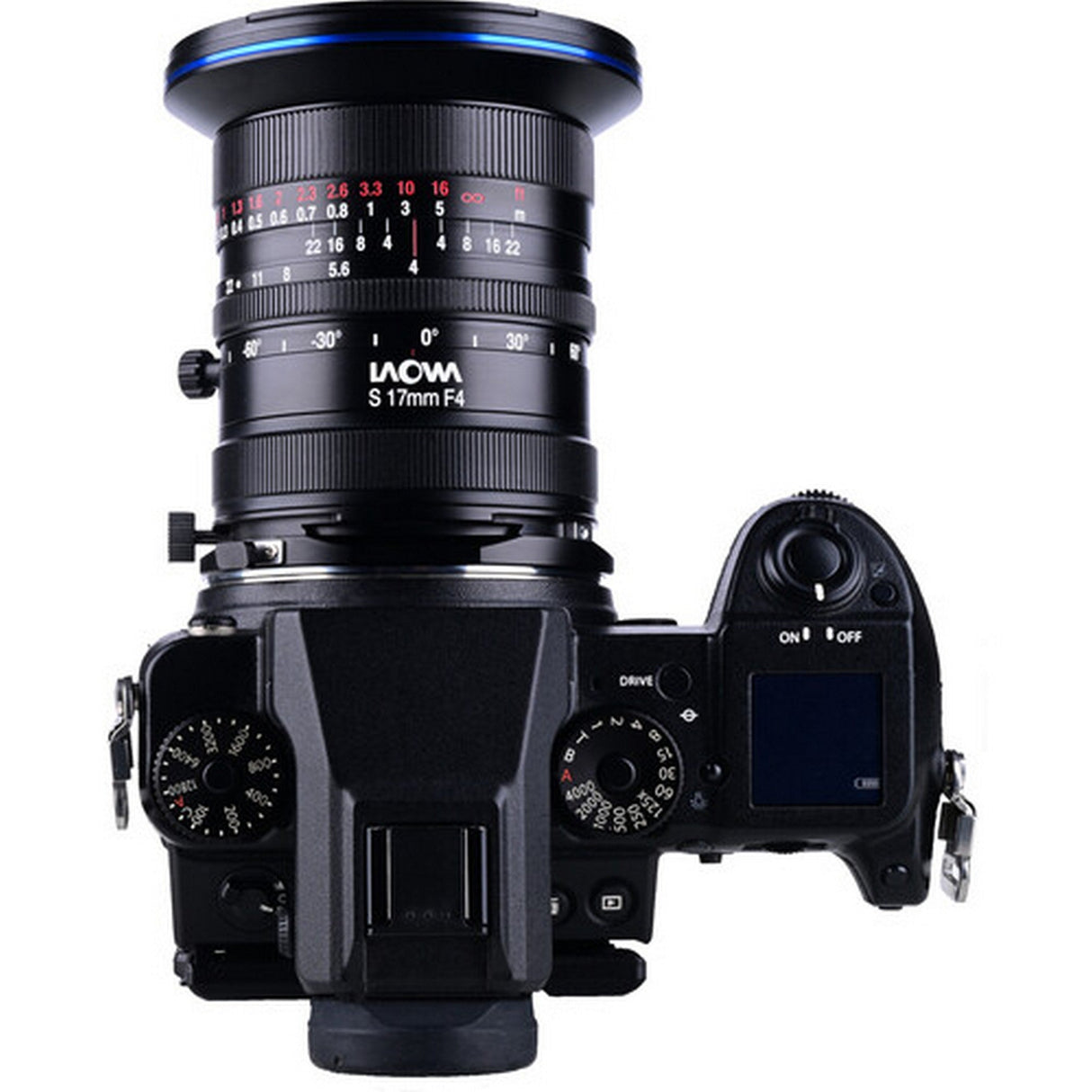

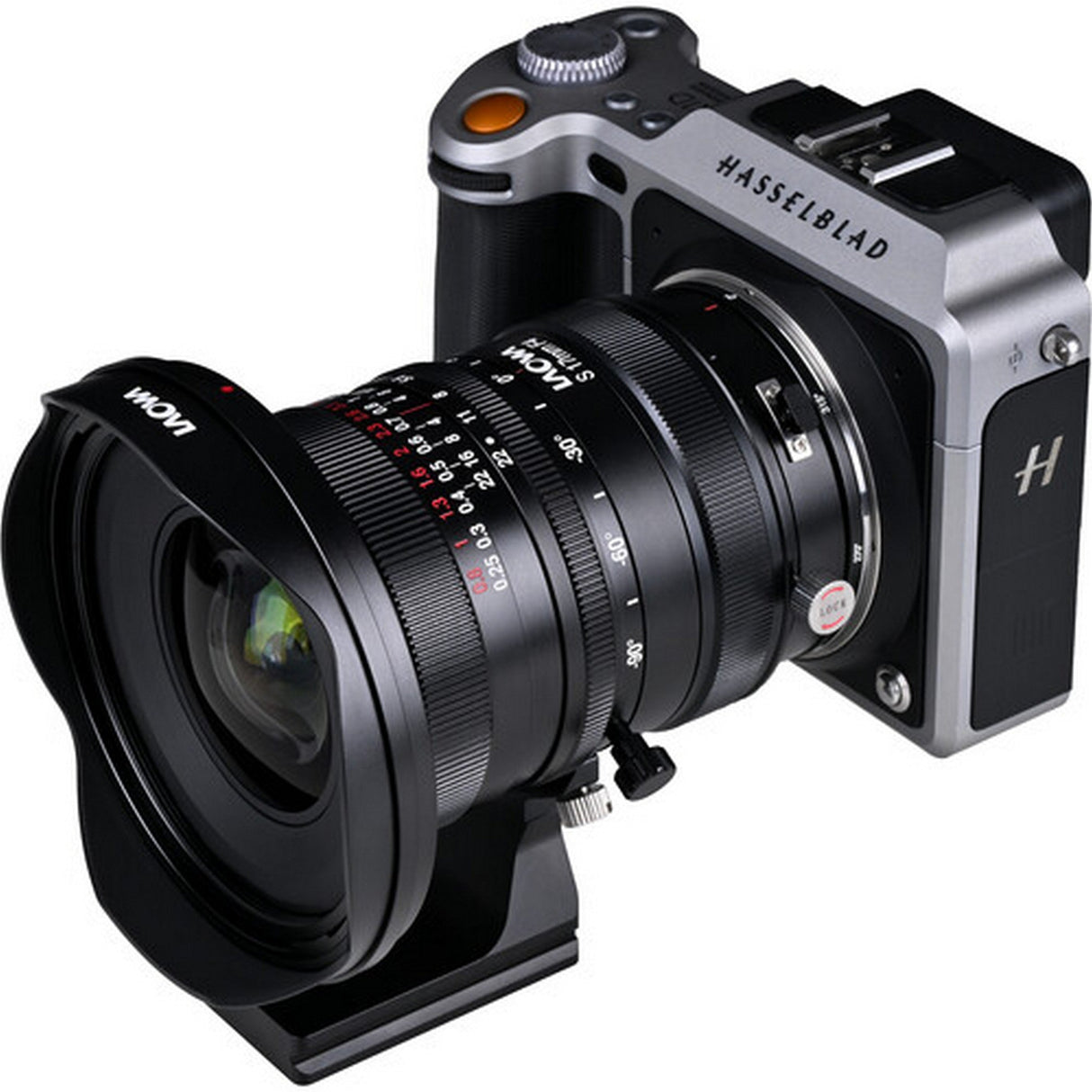

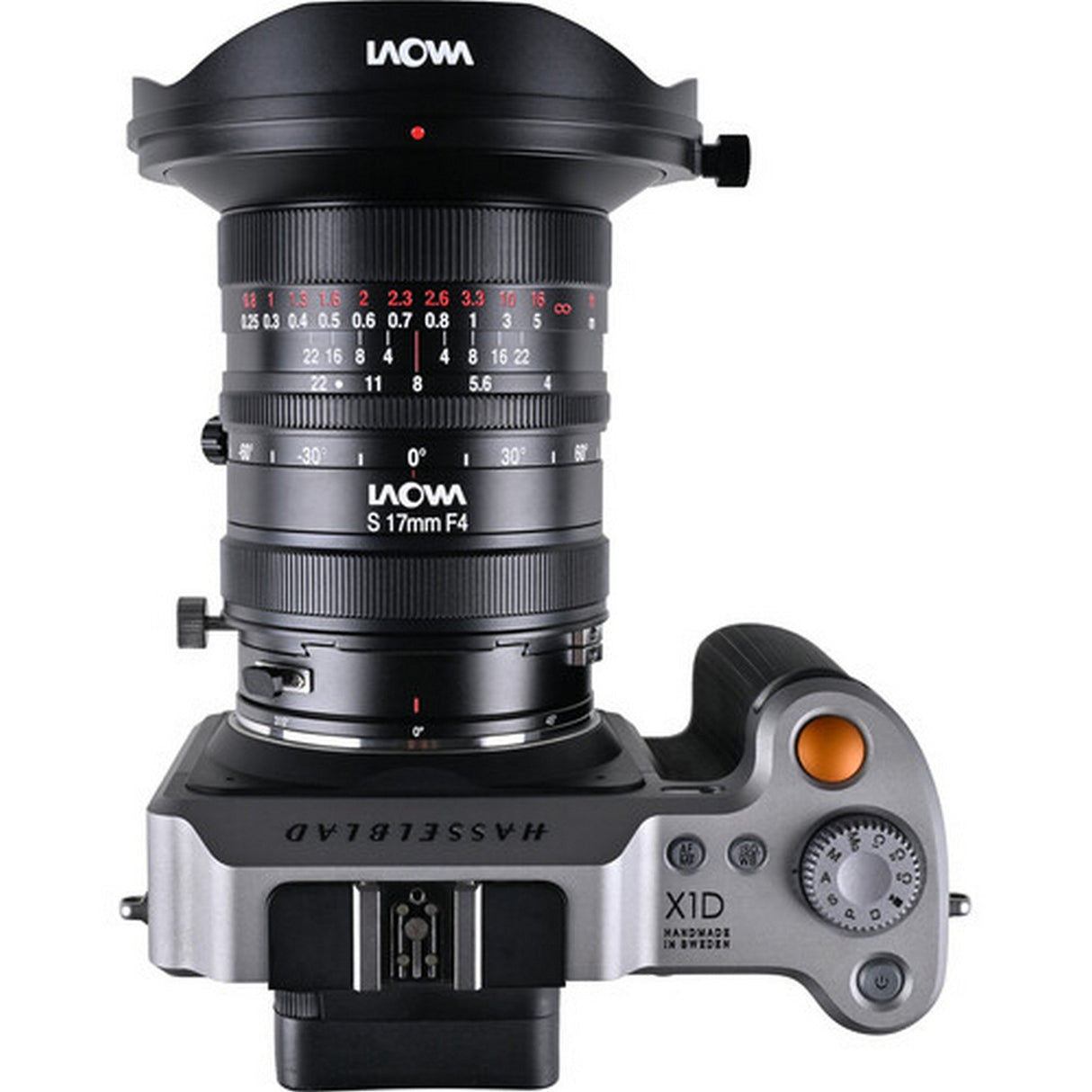

• Medium-Format Mounts: Available for FUJIFILM G and Hasselblad X mirrorless camera systems.

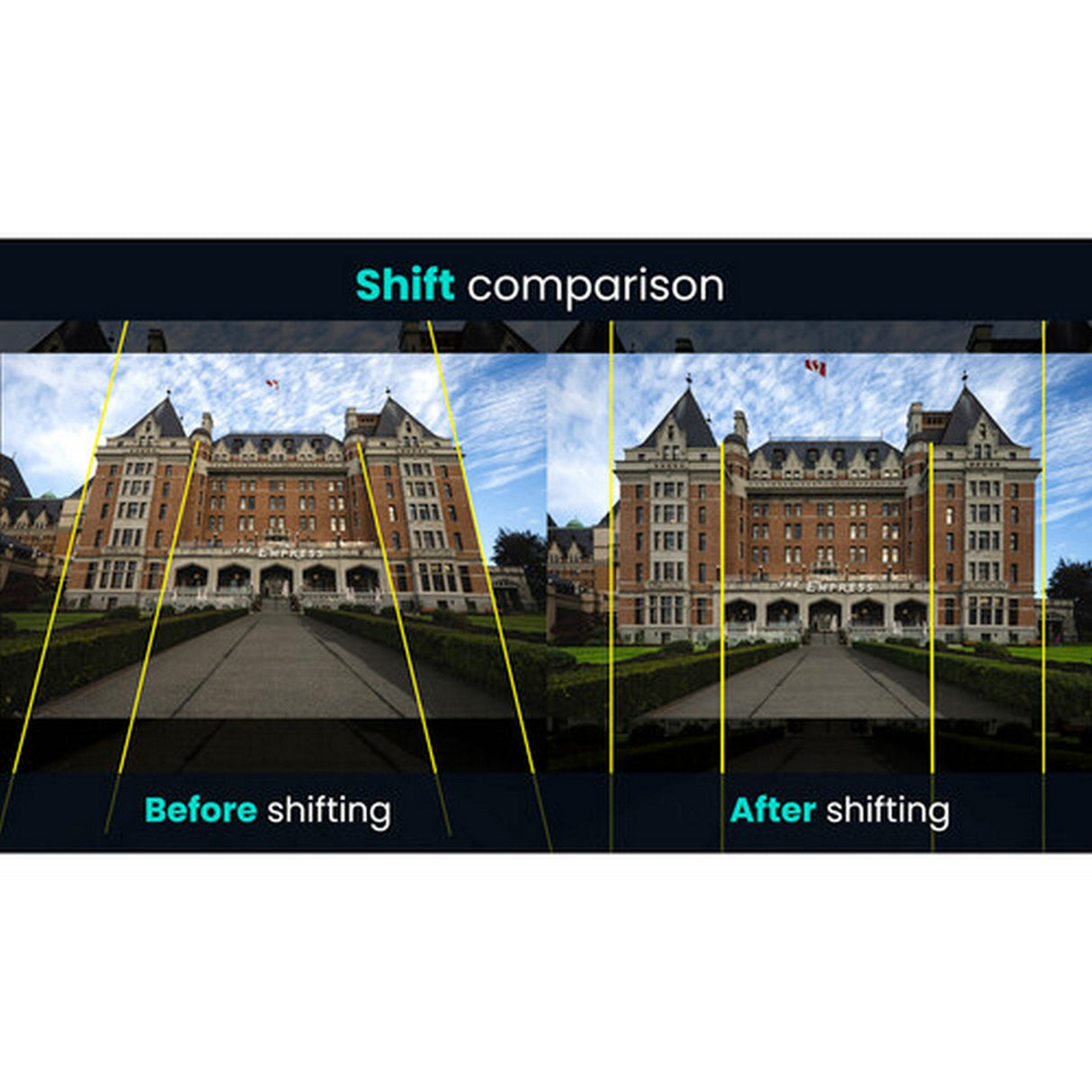

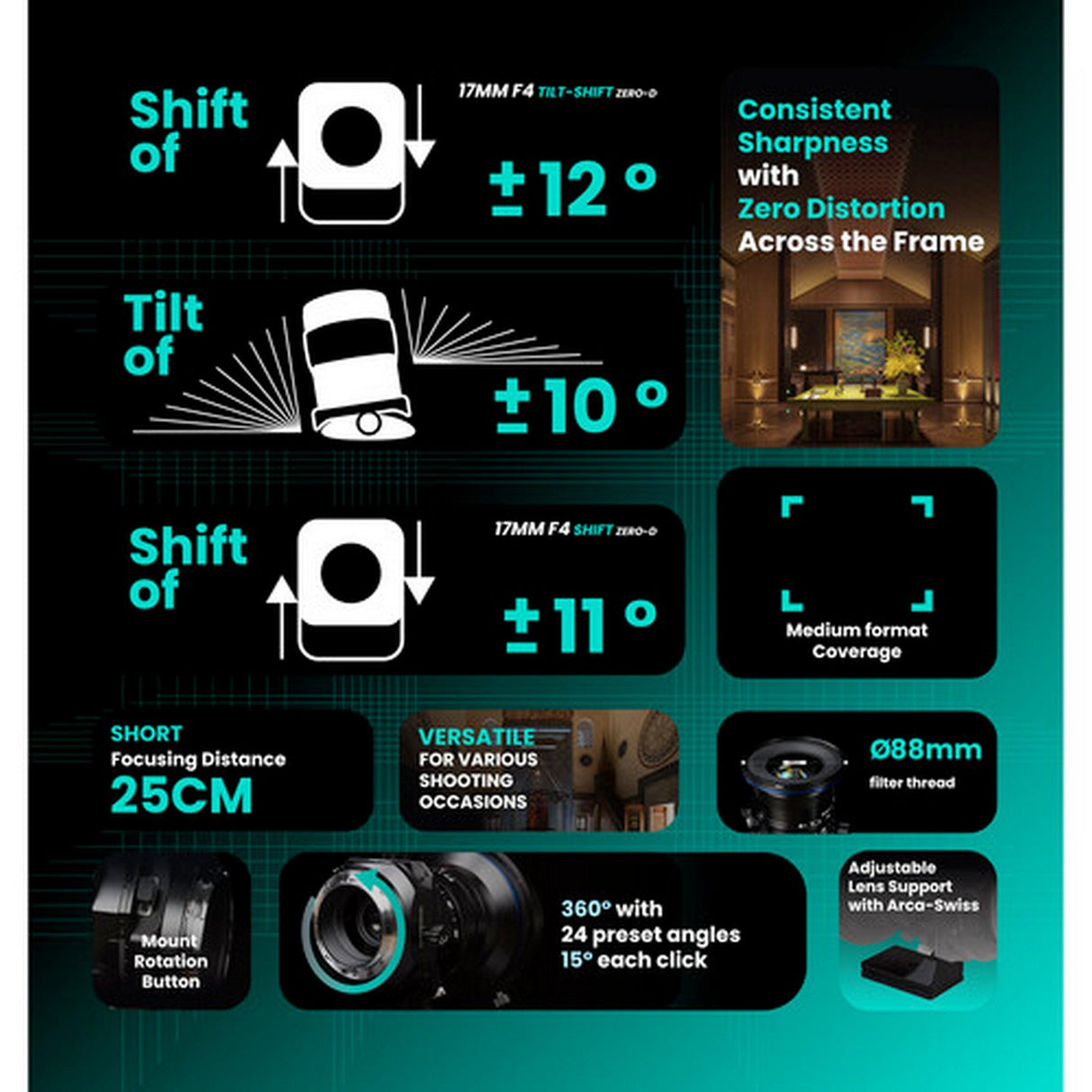

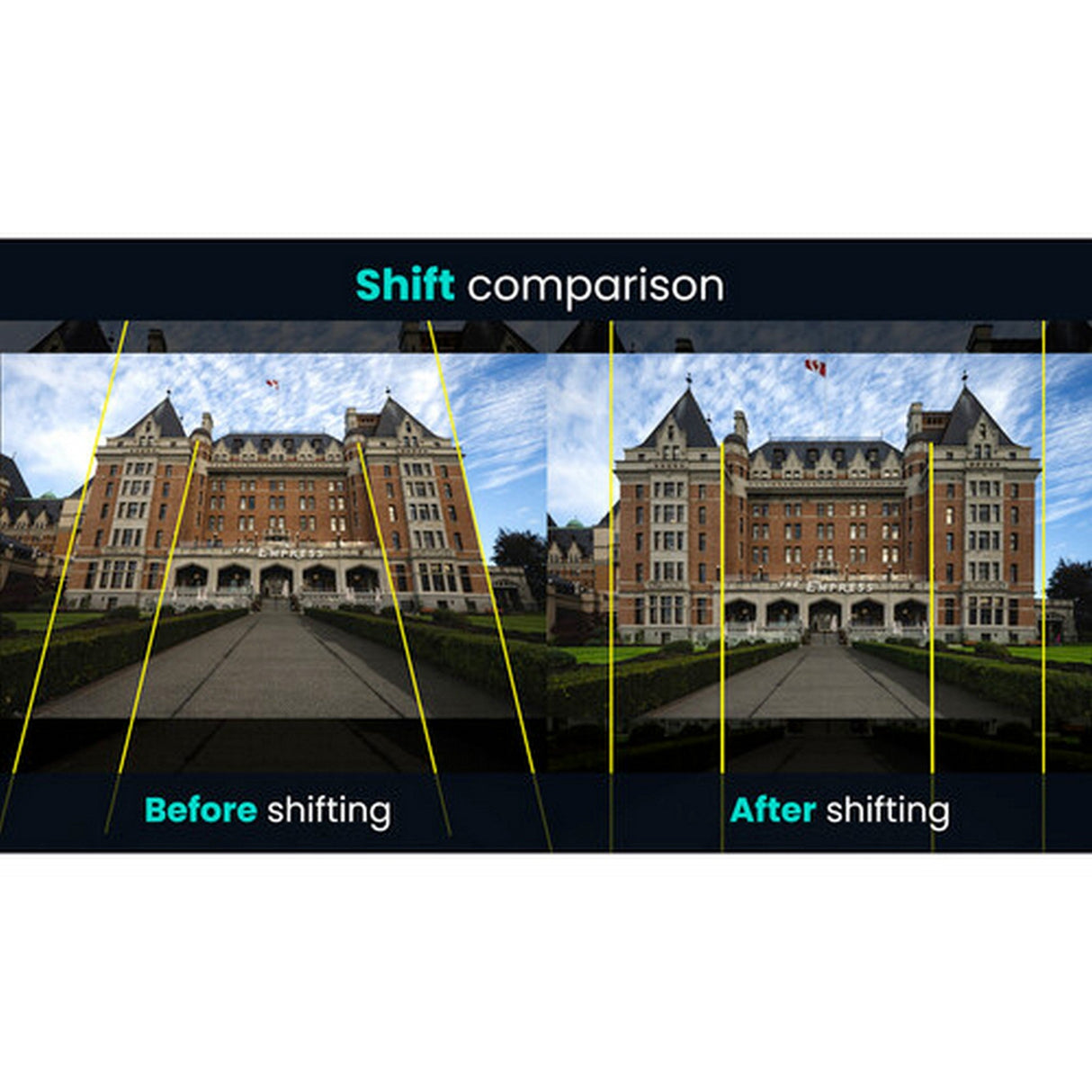

• ±8mm Shift Movement: Reframes the composition while keeping the camera level to reduce converging architectural lines.

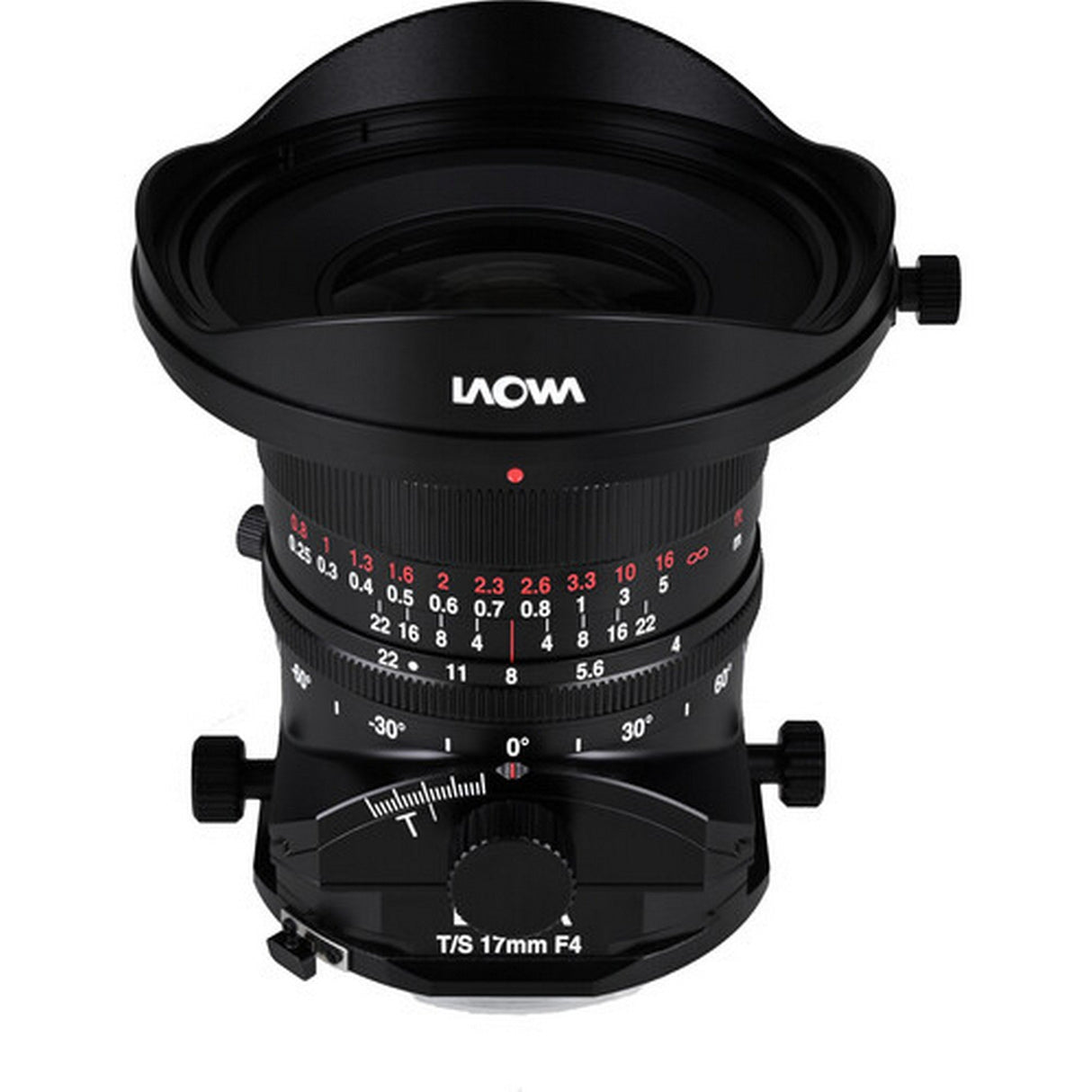

• ±10° Tilt Adjustment: Tilt-Shift versions reposition the focus plane for increased depth or controlled selective-focus effects.
• Zero-D Optical Design: Minimizes barrel distortion to preserve straight lines in architecture, interiors, and real estate images.
• 104° Angle of View: Captures expansive scenes and confined interiors with an ultra-wide 17mm perspective.

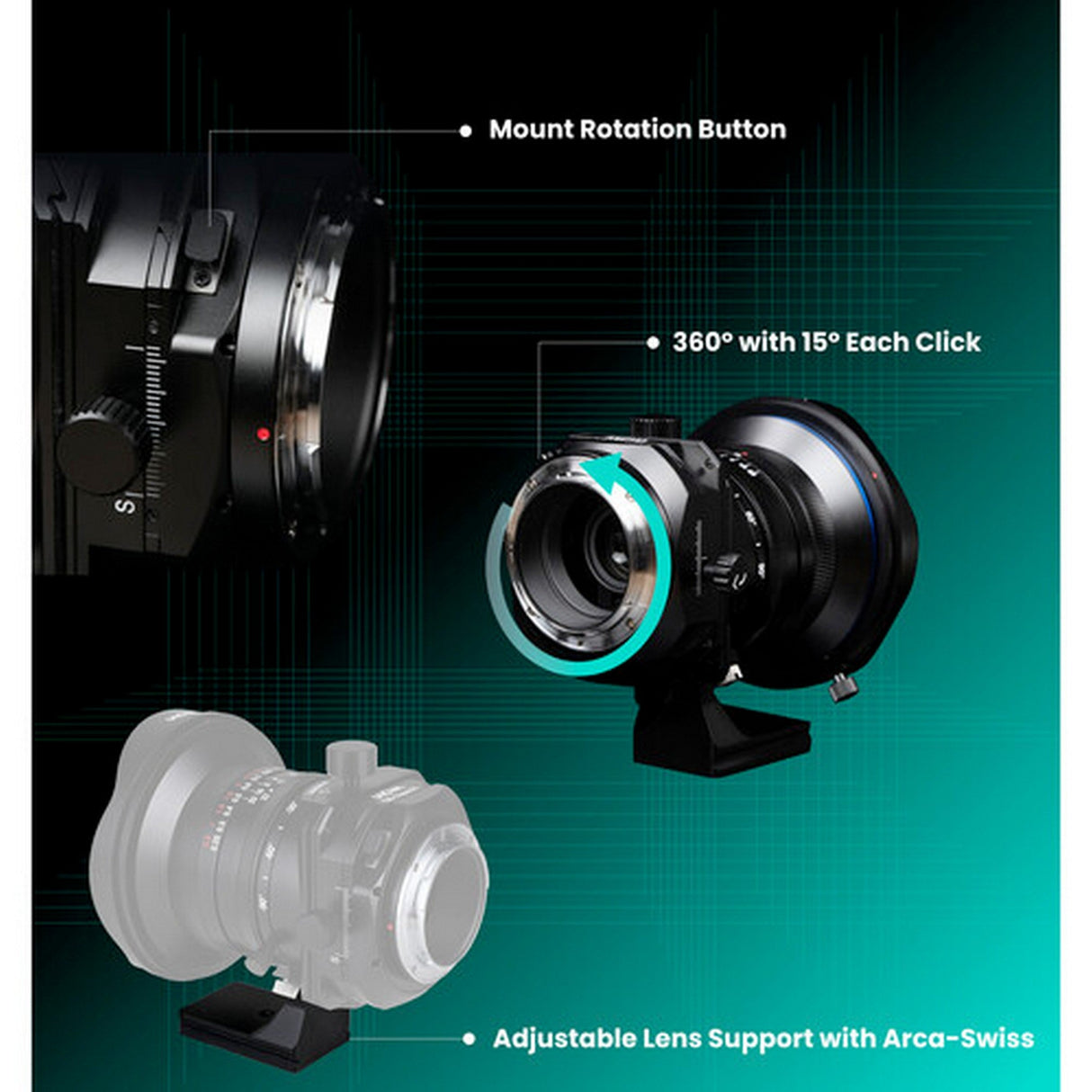

• 360° Rotation: Positions the movement axis in 15° click-stop increments for vertical, horizontal, or diagonal adjustments.
• Professional Lens Support: An integrated Arca-compatible support improves balance and stability during tripod-based photography.

Technical Specifications

• Product Type: Medium-format perspective-control prime lens
• Available Versions: Shift and Tilt-Shift
• Available Mounts: FUJIFILM G and Hasselblad X
• Focal Length: 17mm
• Maximum Aperture: f/4
• Minimum Aperture: f/22
• Angle of View: 104°
• Shift Movement: ±8mm
• Tilt Movement: ±10° on Tilt-Shift versions
• Mount Rotation: 360° with 15° click stops
• Minimum Focusing Distance: 9.8"
• Maximum Magnification: 0.131x

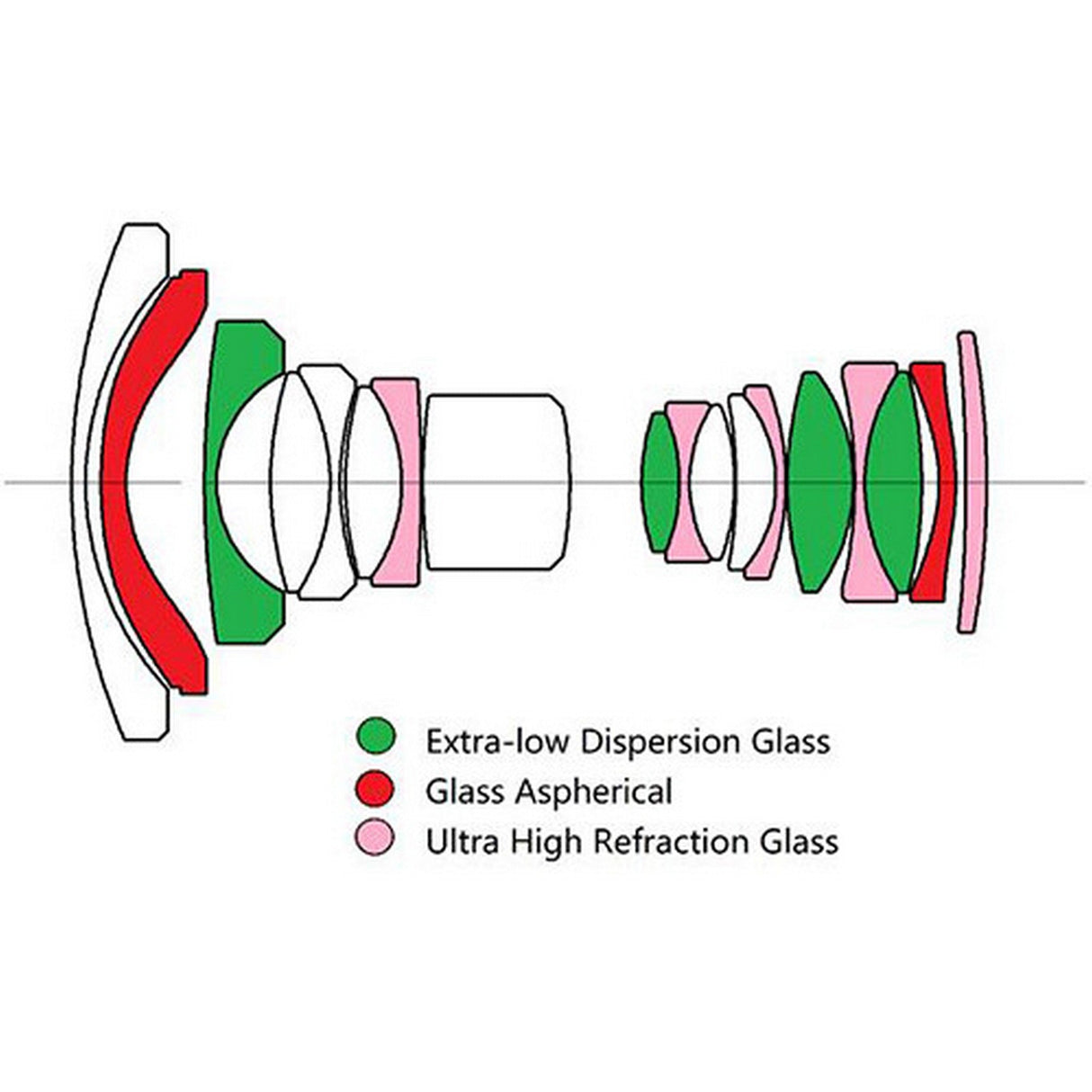

• Optical Design: 18 elements in 12 groups
• Special Optical Elements: 4 extra-low dispersion, 5 ultra-high refraction, and 2 aspherical elements
• Aperture Blades: 14
• Focus Type: Manual focus
• Filter Size: 86mm front filter thread
• Front Element Coating: Frog-Eye water- and dust-repellent coating
• Tripod Support: Integrated fixed and rotating Arca-compatible collar
• Dimensions: 3.7" diameter x 4.4" length
• Shift Version Weight: 1.7 lb
• Tilt-Shift Version Weight: 1.8 lb

Shift Version Variants

• FUJIFILM G Model: VE1740S-GFX
• Hasselblad X Model: VE1740S-XCD
• Movement: ±8mm shift

Tilt-Shift Version Variants

• FUJIFILM G Model: VE1740TS-GFX
• Hasselblad X Model: VE1740TS-XCD
• Movement: ±8mm shift and ±10° tilt

What's In the Box

• Venus Optics Laowa 17mm f/4 Zero-D lens in the selected mount and version
• Front lens cap
• Rear lens cap

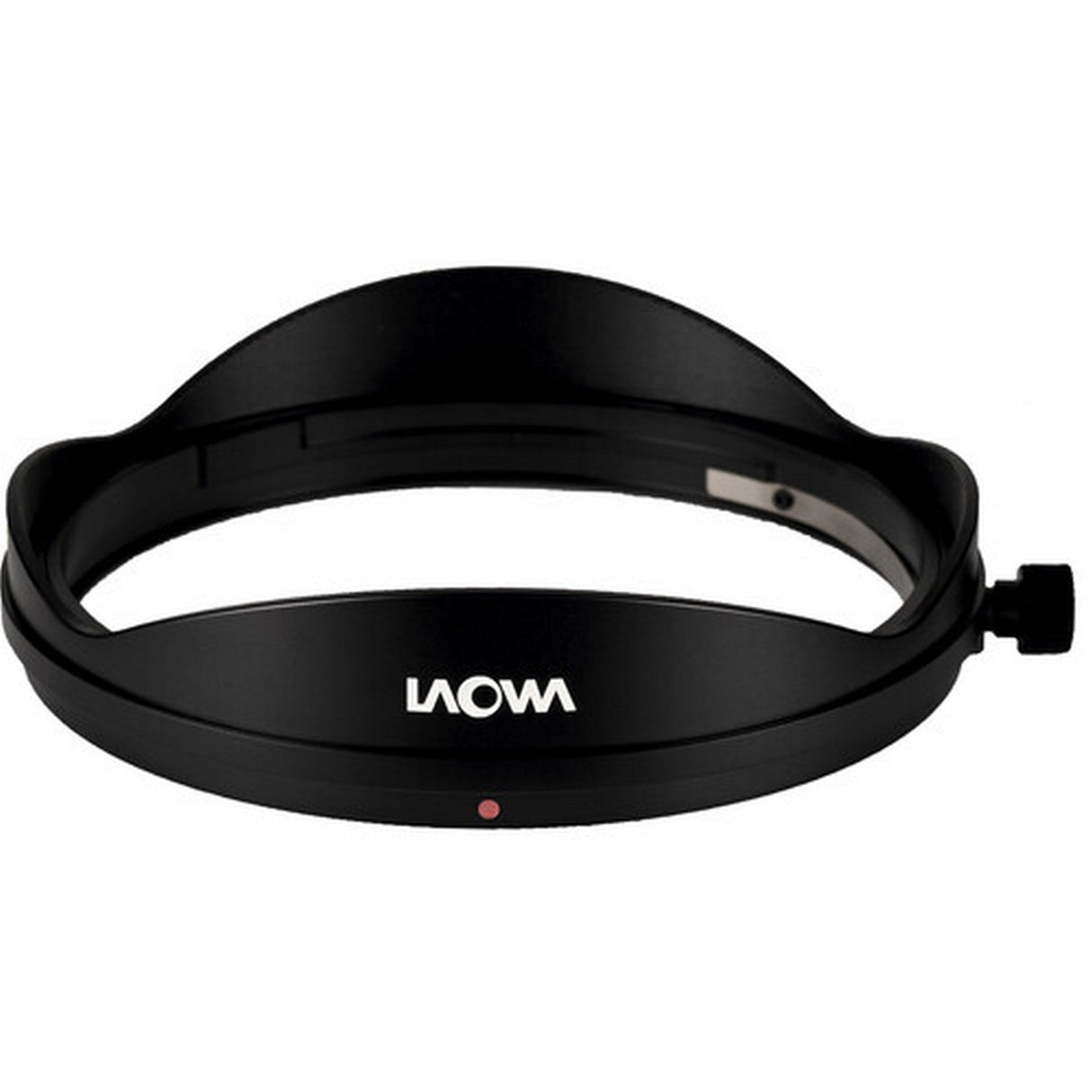

• Lens hood
