Venus Optics Laowa 17mm f/4 Zero-D Shift/Tilt-Shift Lens - Sony E / 11mm Shift

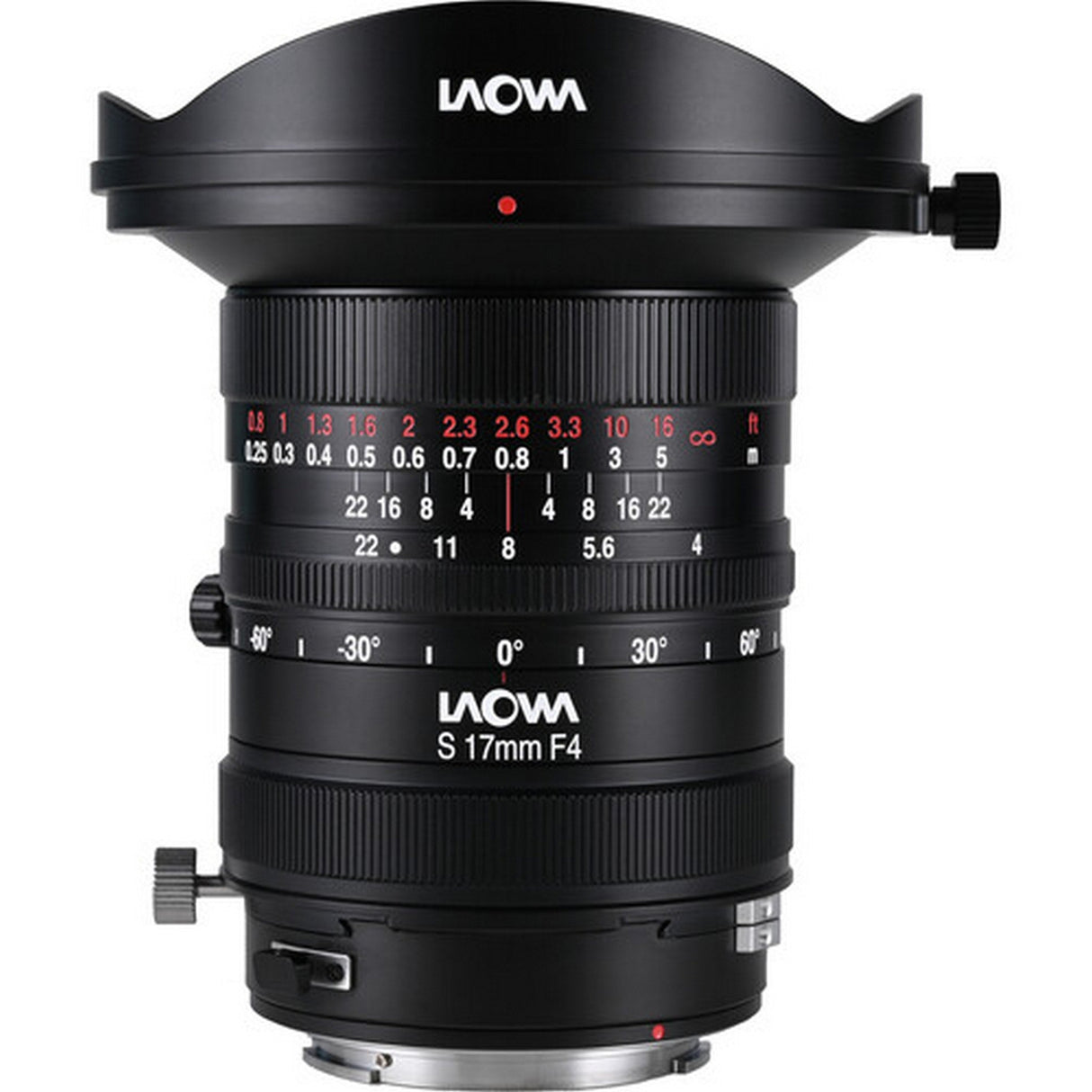

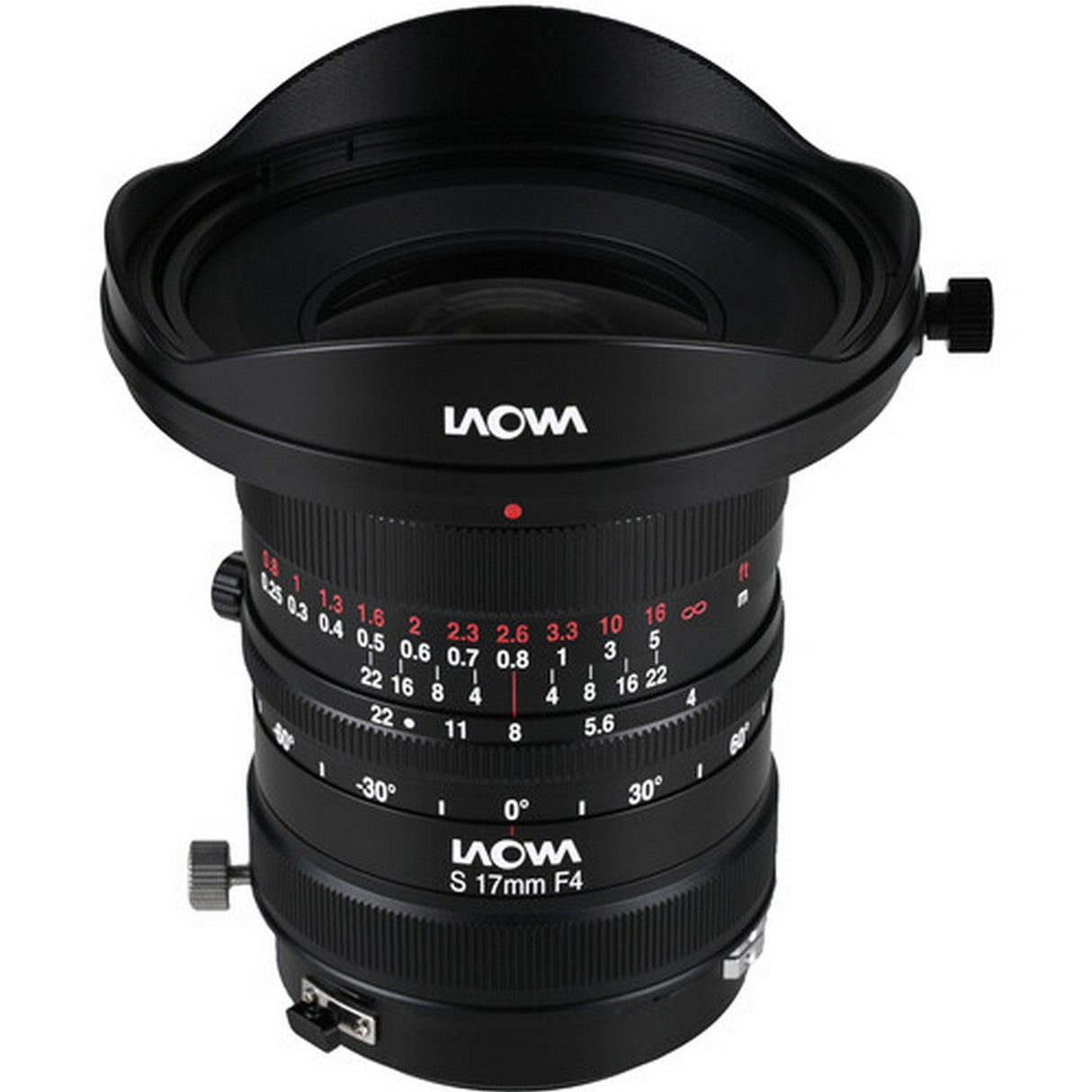

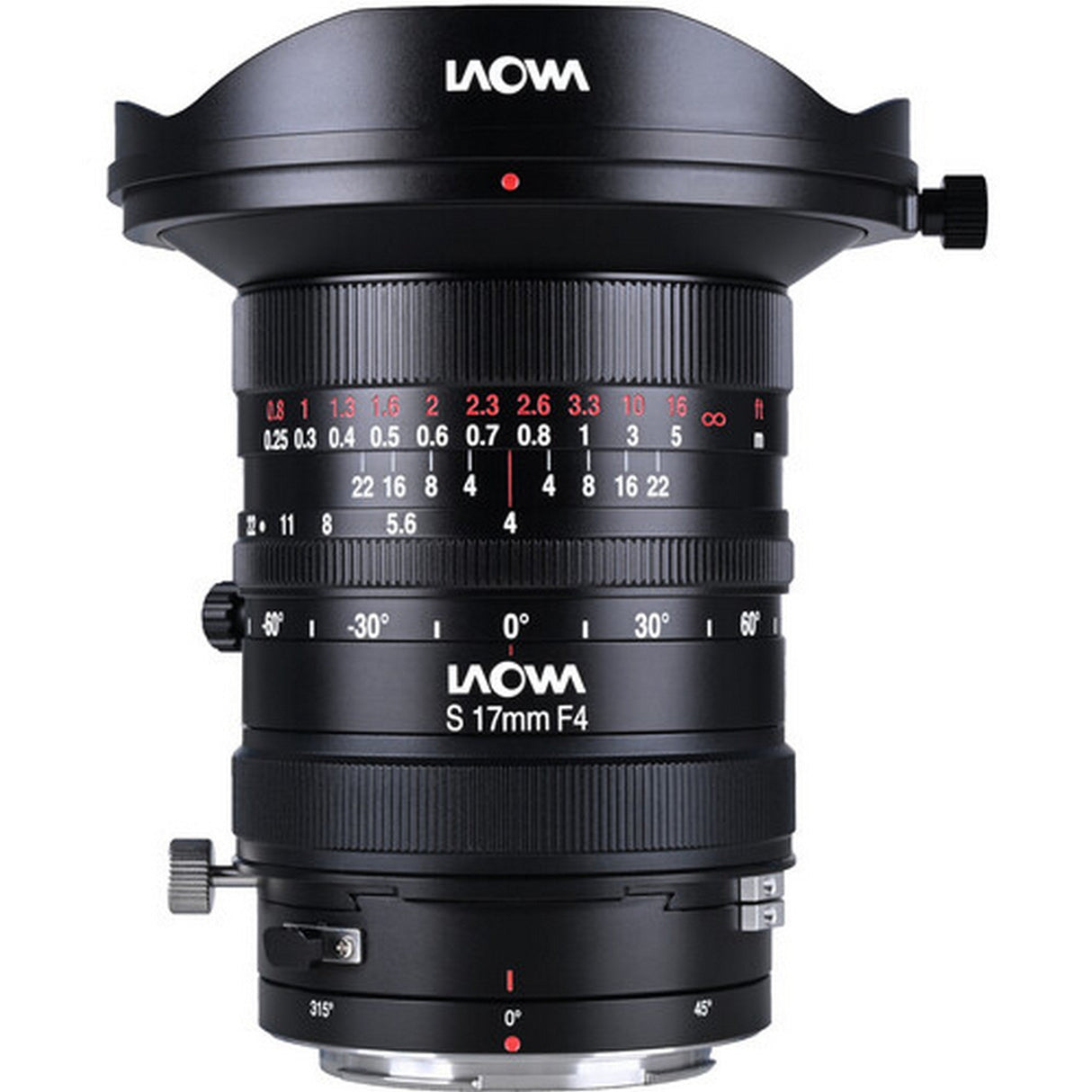

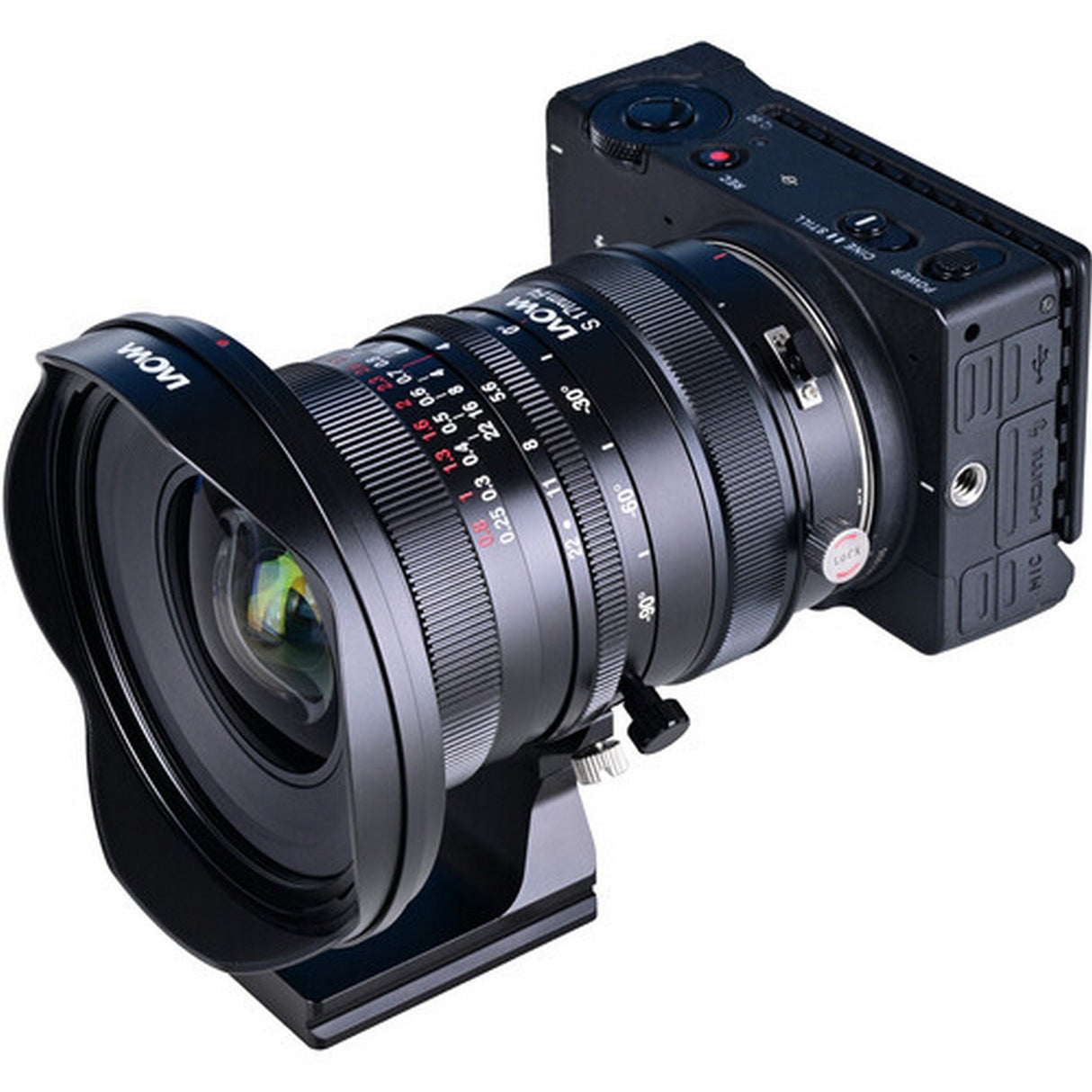

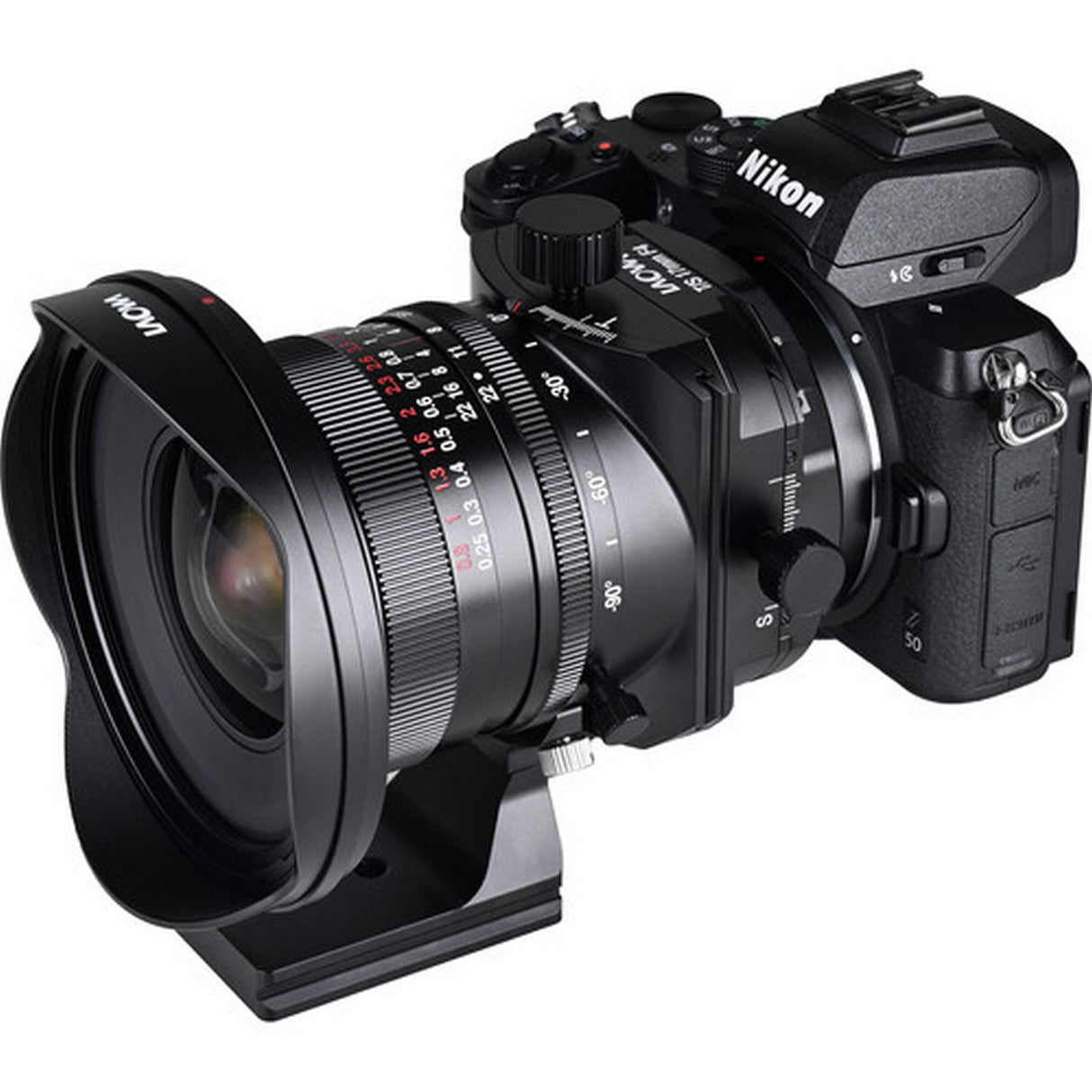

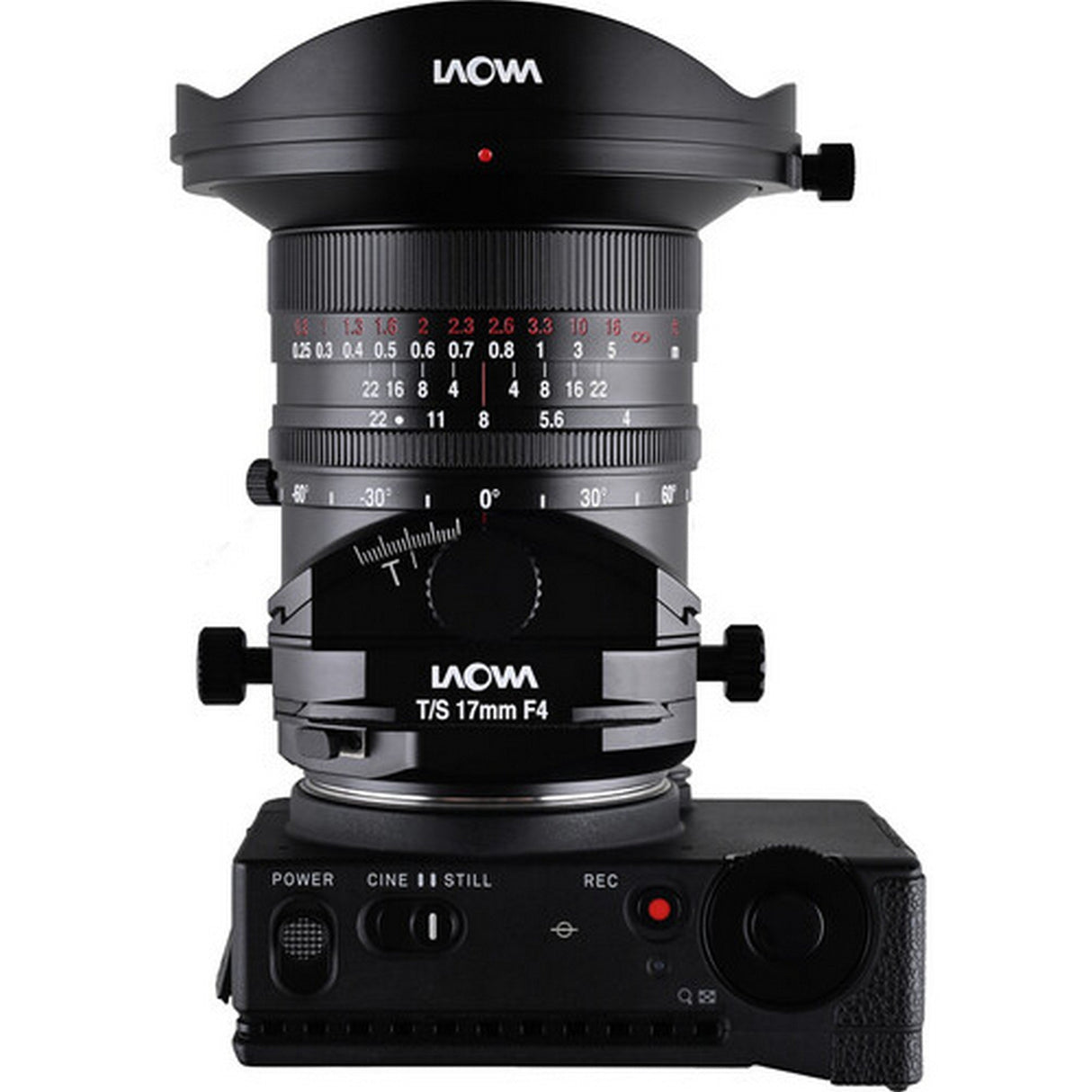

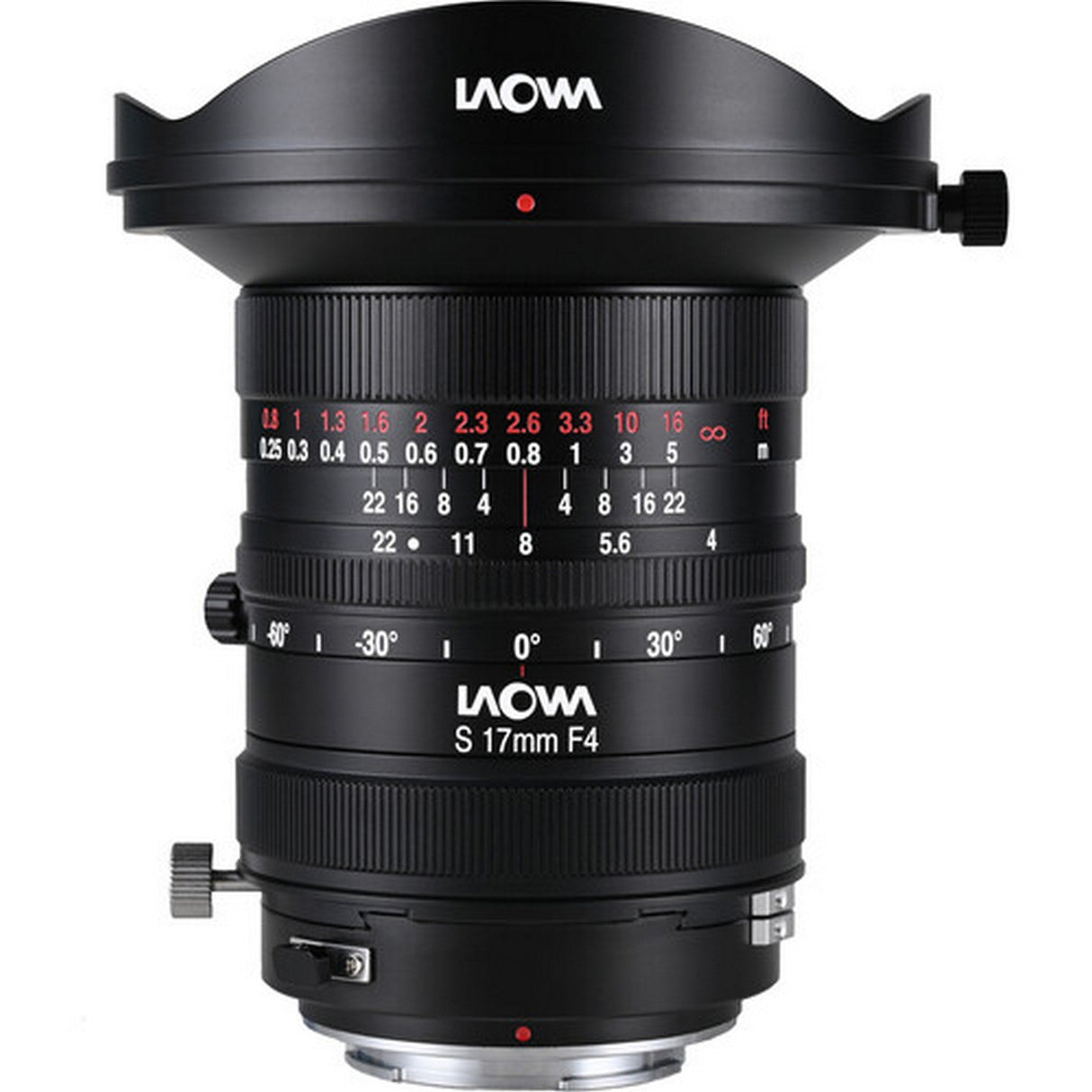

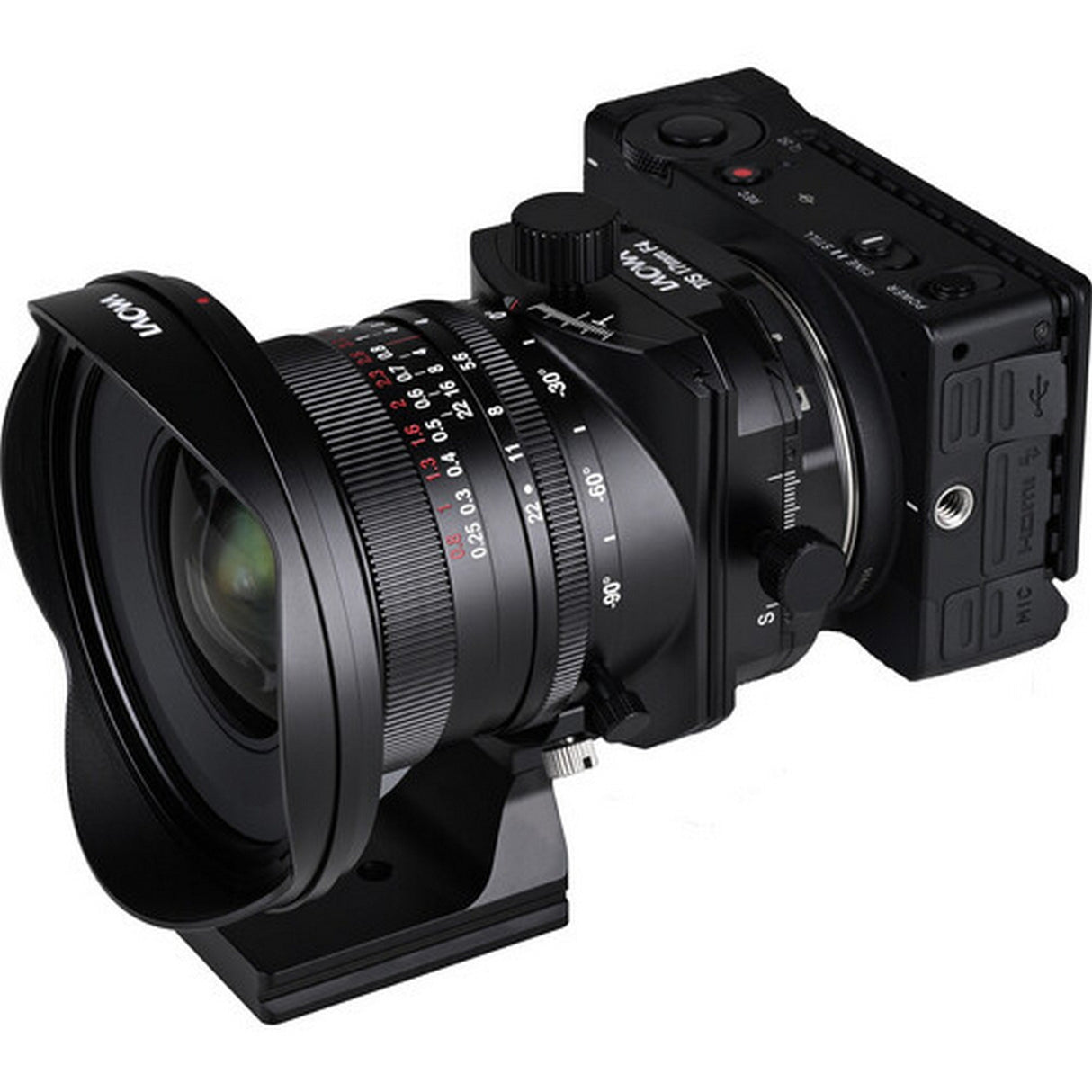

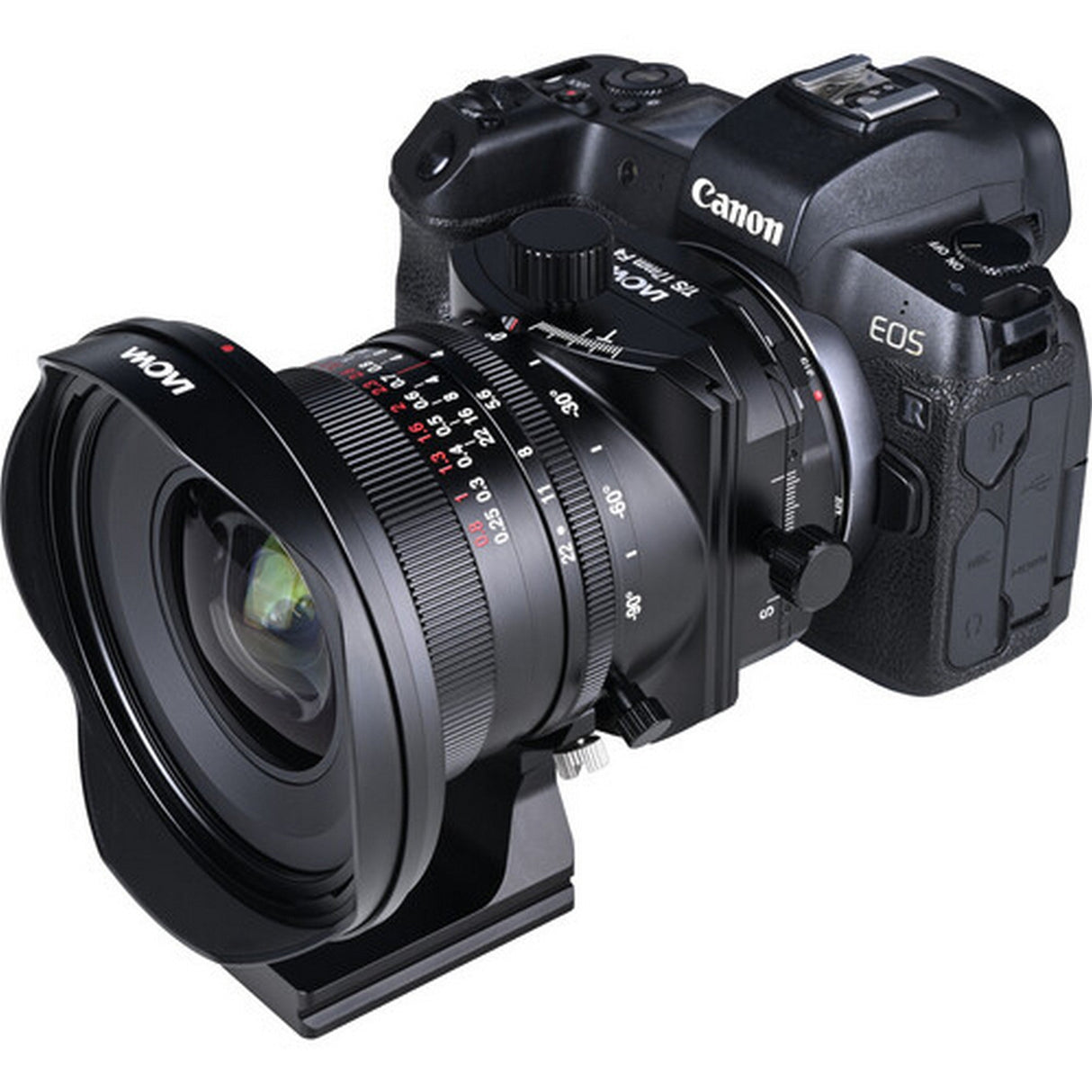

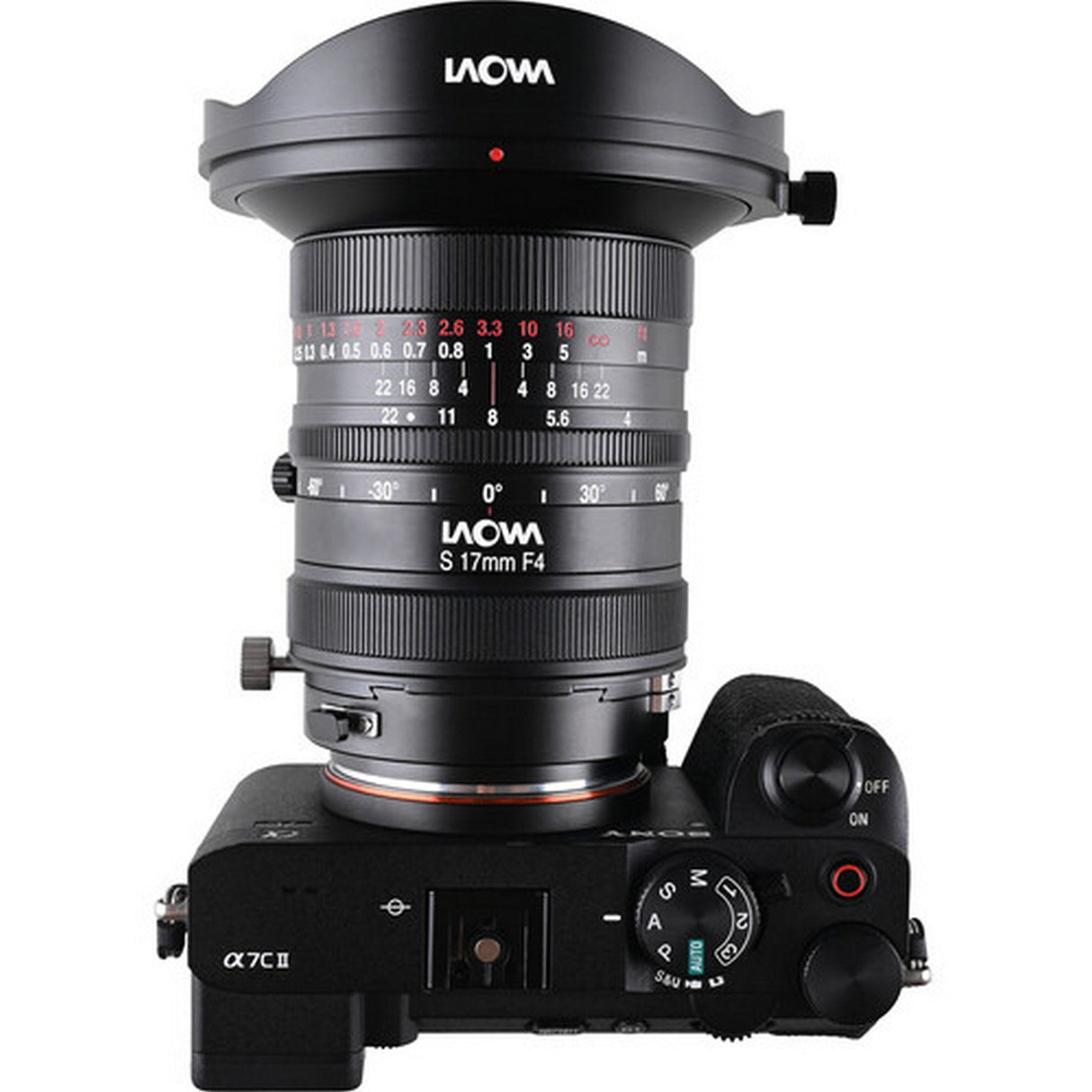

Venus Optics Laowa 17mm f/4 Zero-D Shift/Tilt-Shift Lens

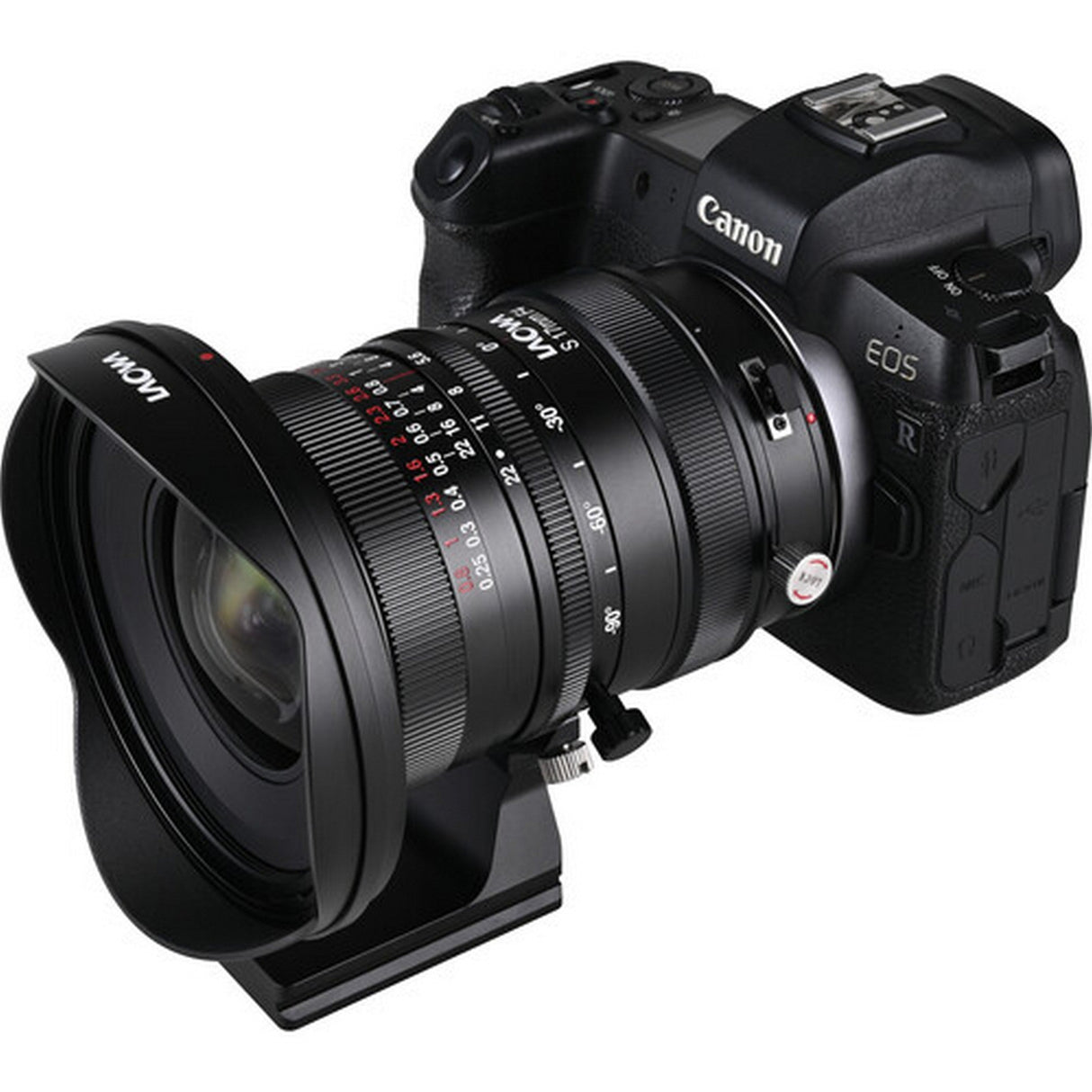

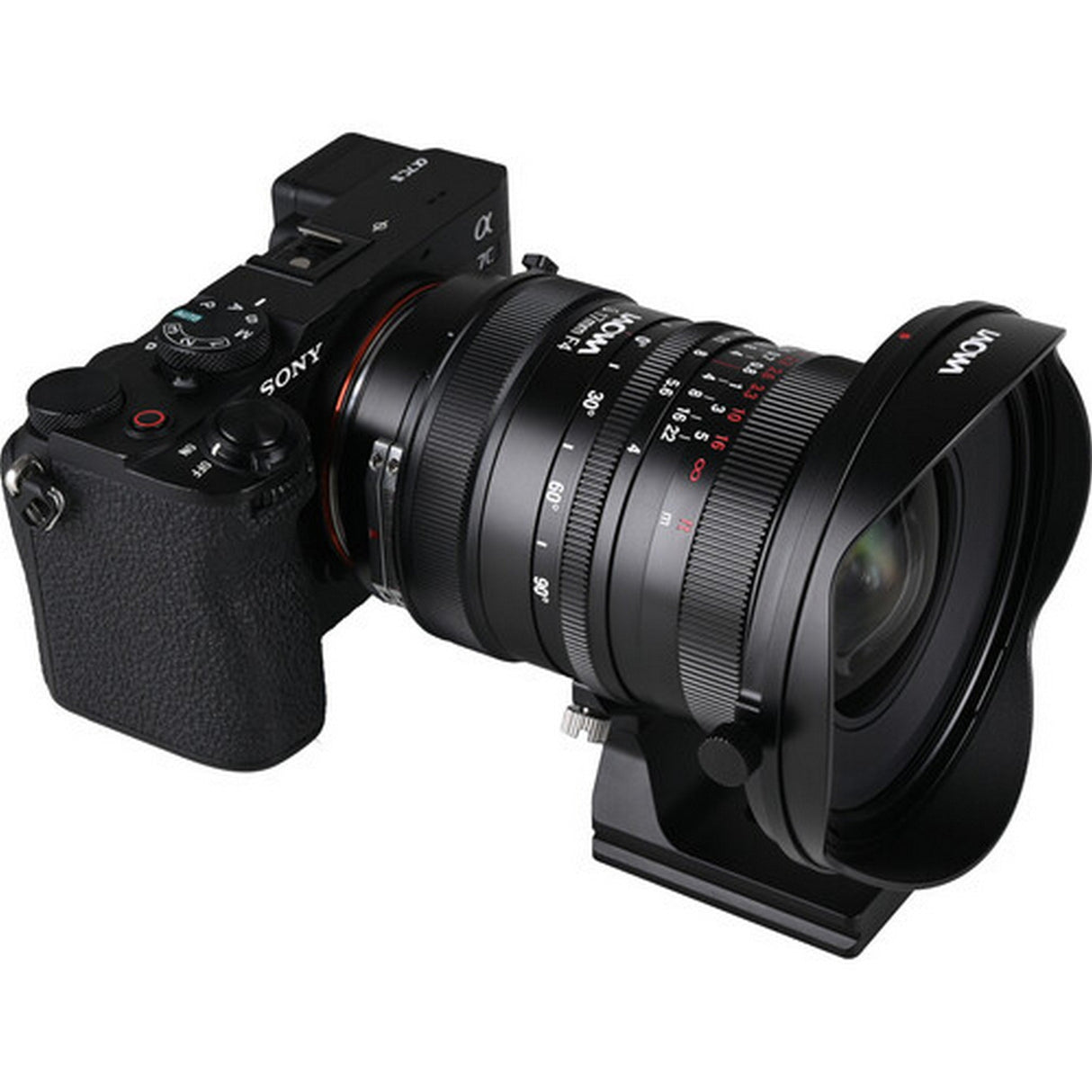

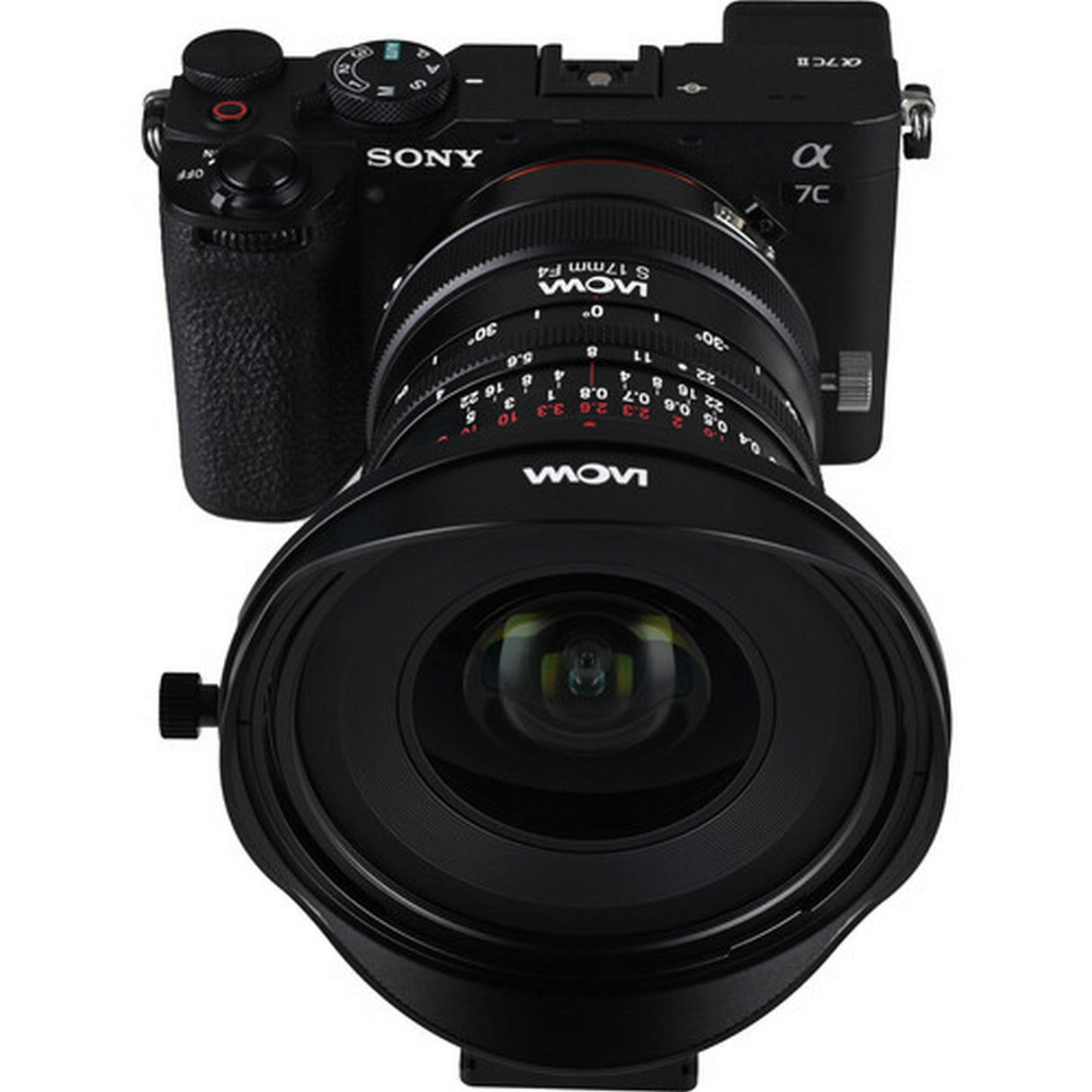

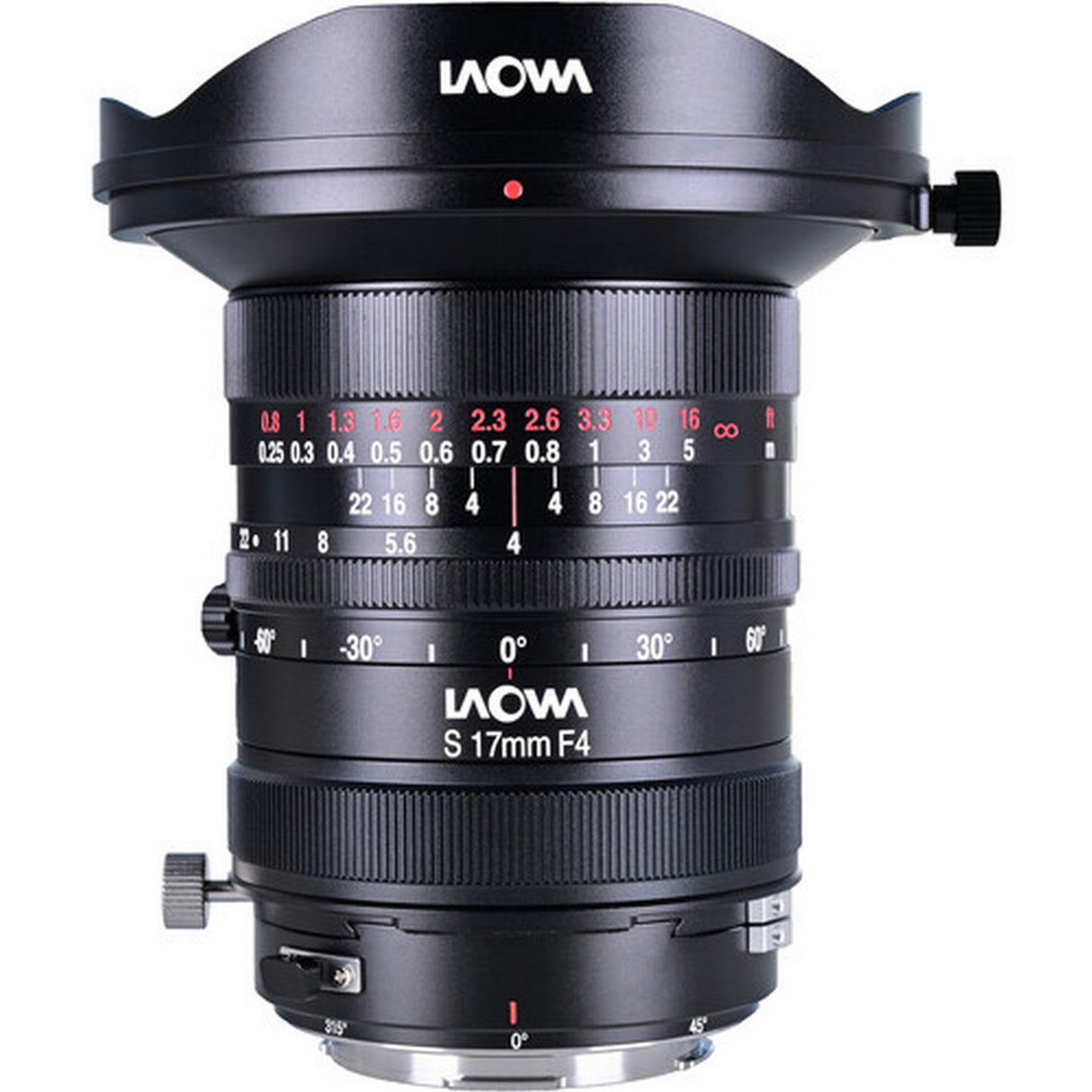

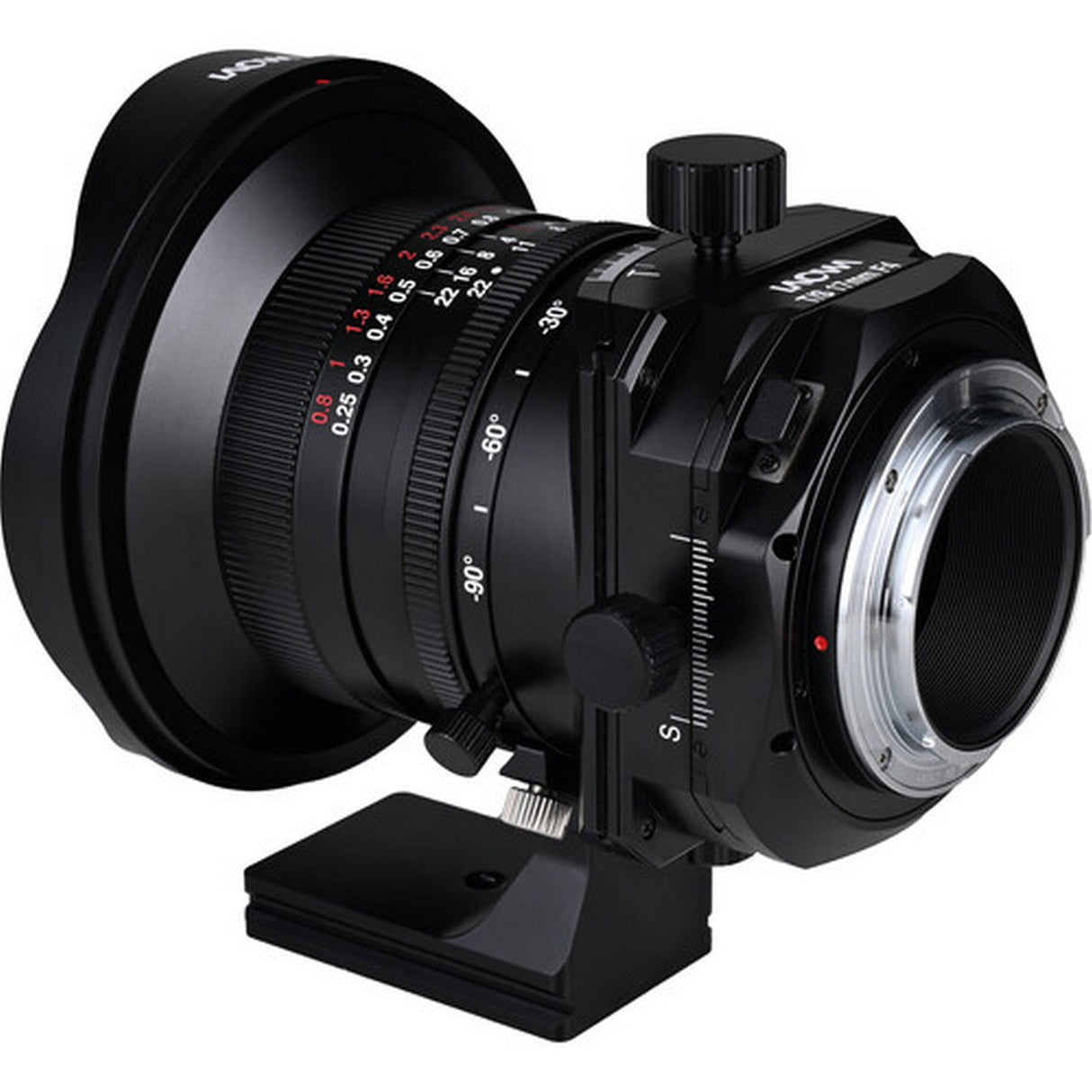

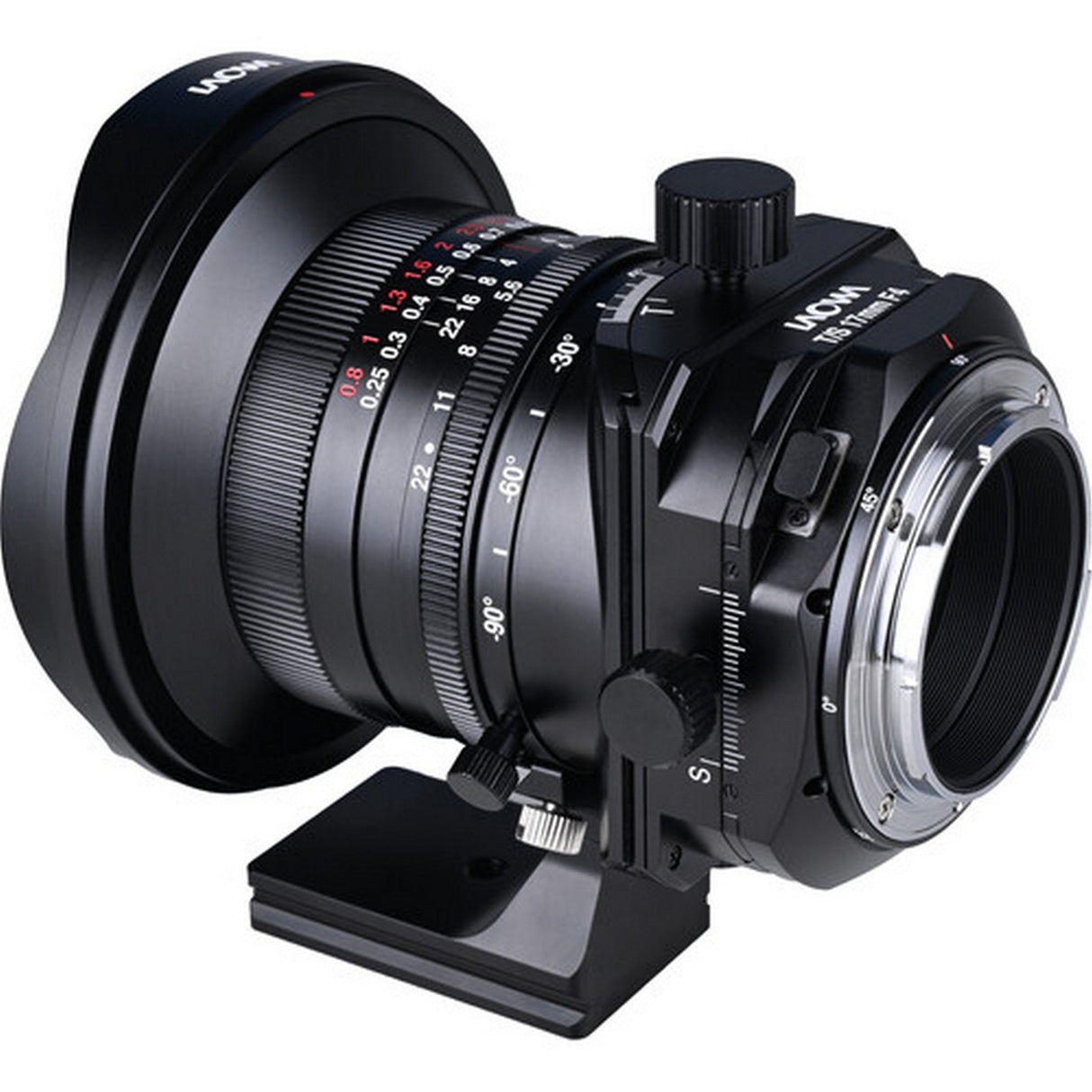

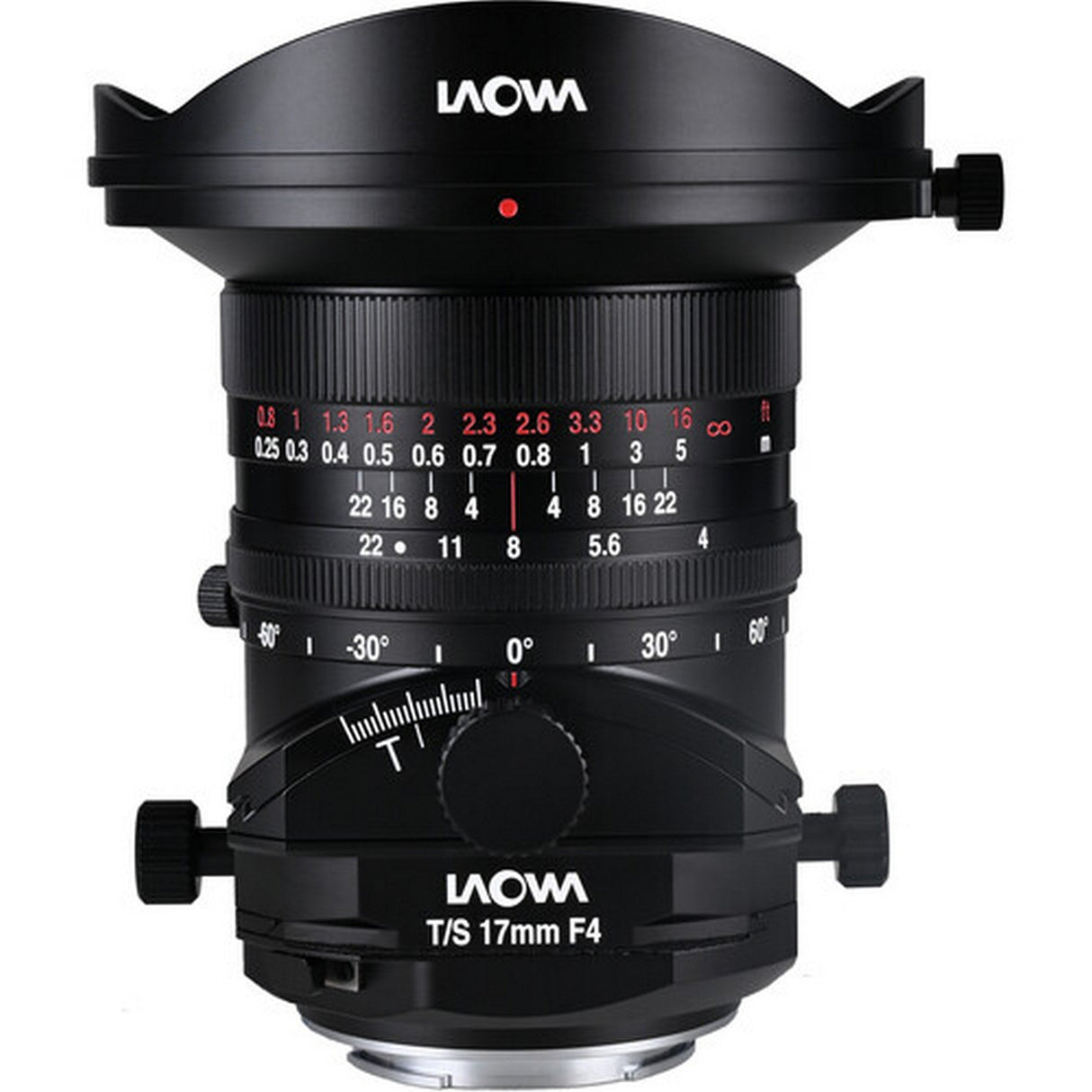

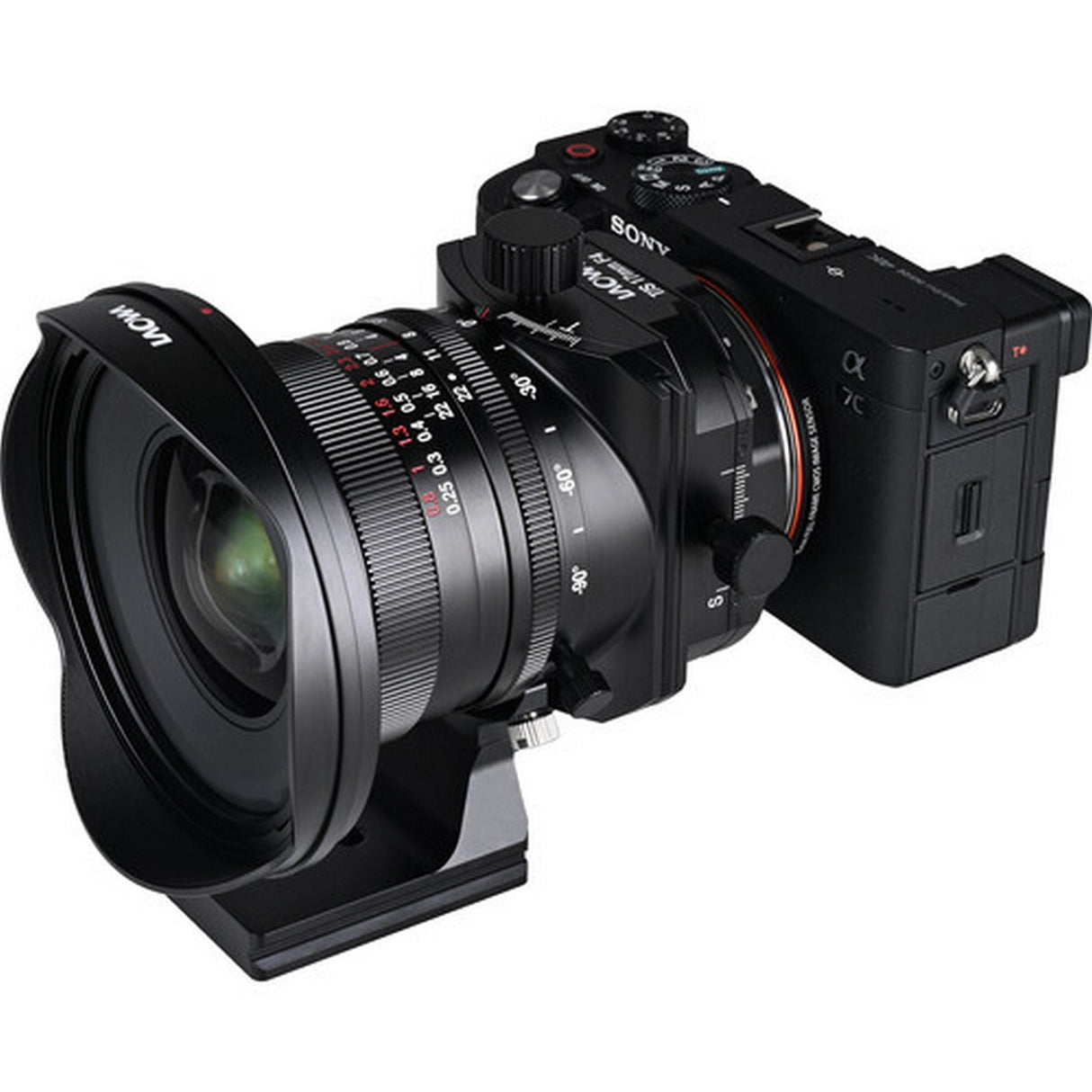

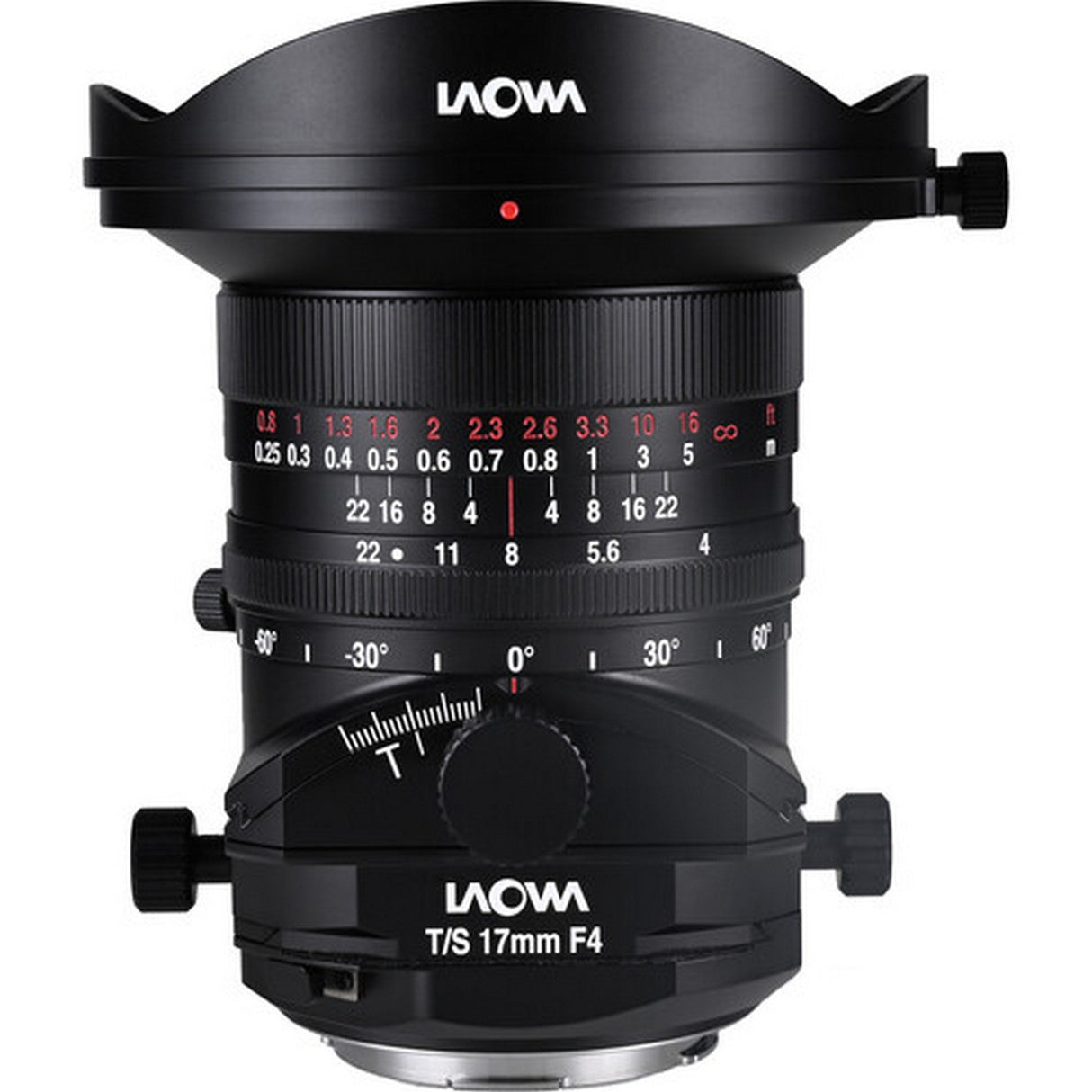

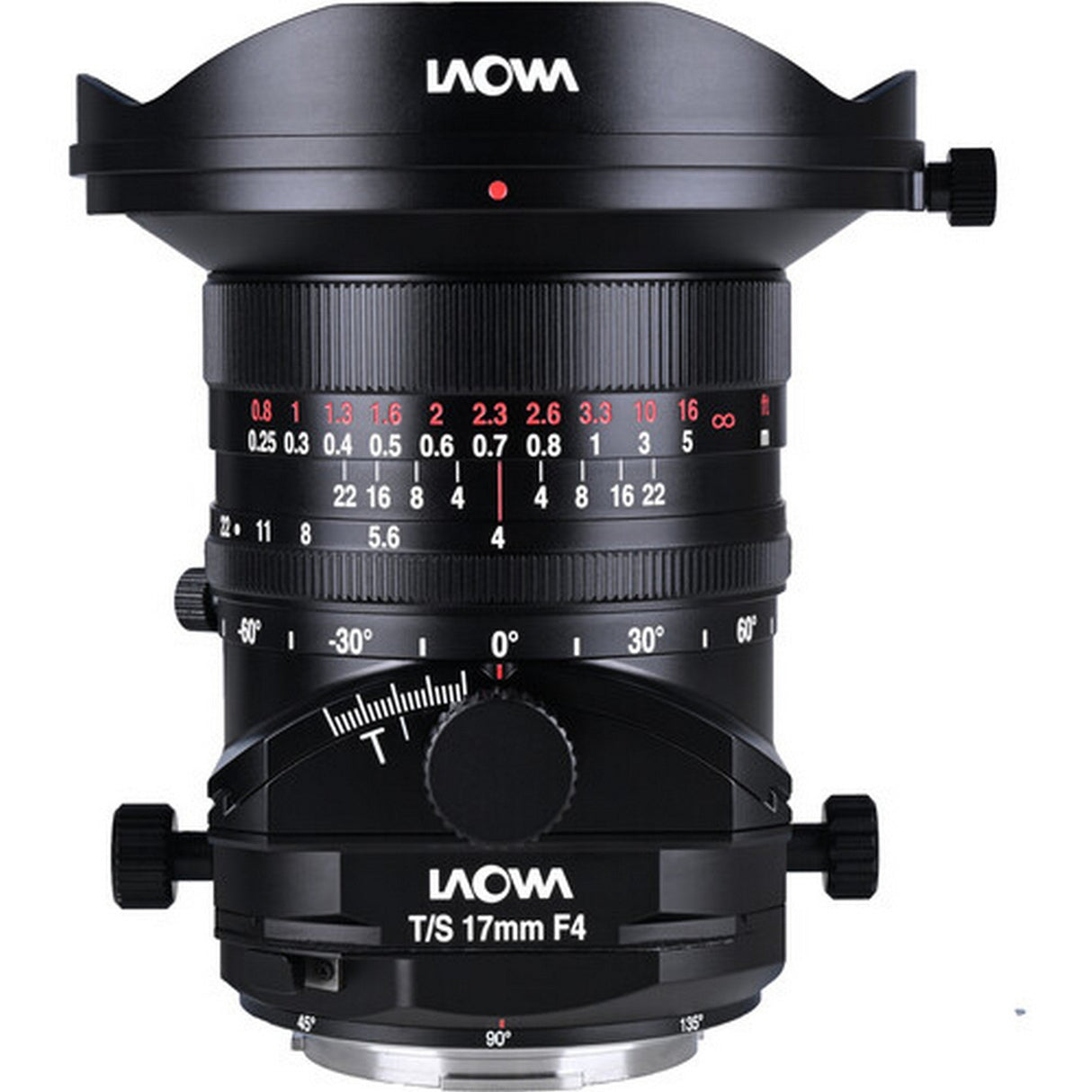

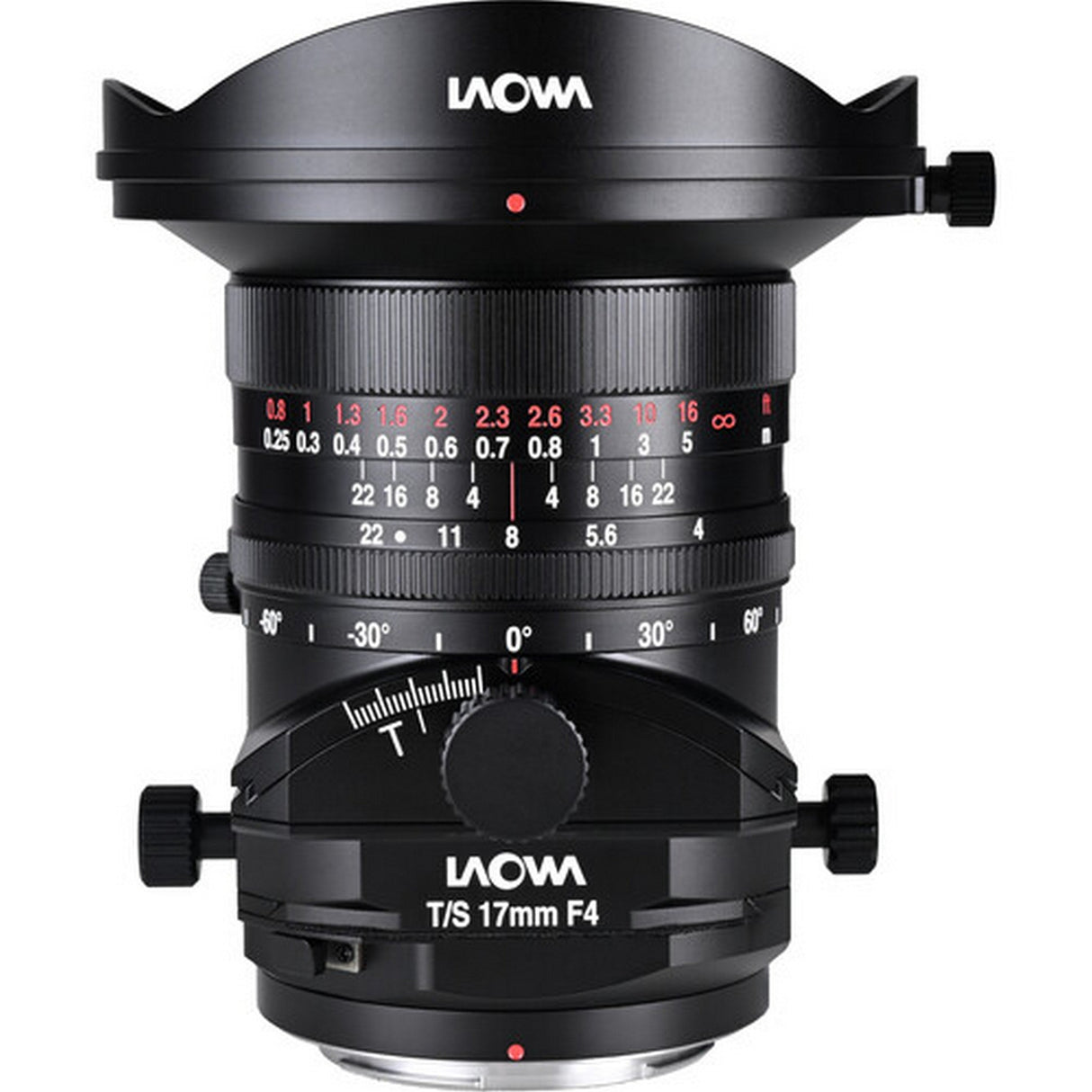

The Venus Optics Laowa 17mm f/4 Zero-D Shift/Tilt-Shift Lens is an ultra-wide manual-focus perspective-control lens offered in dedicated Shift and Tilt-Shift versions. It combines a 104° angle of view with format-specific shift movement, while the Tilt-Shift version also adds focus-plane adjustment for architectural, interior, real estate, landscape, and creative photography.

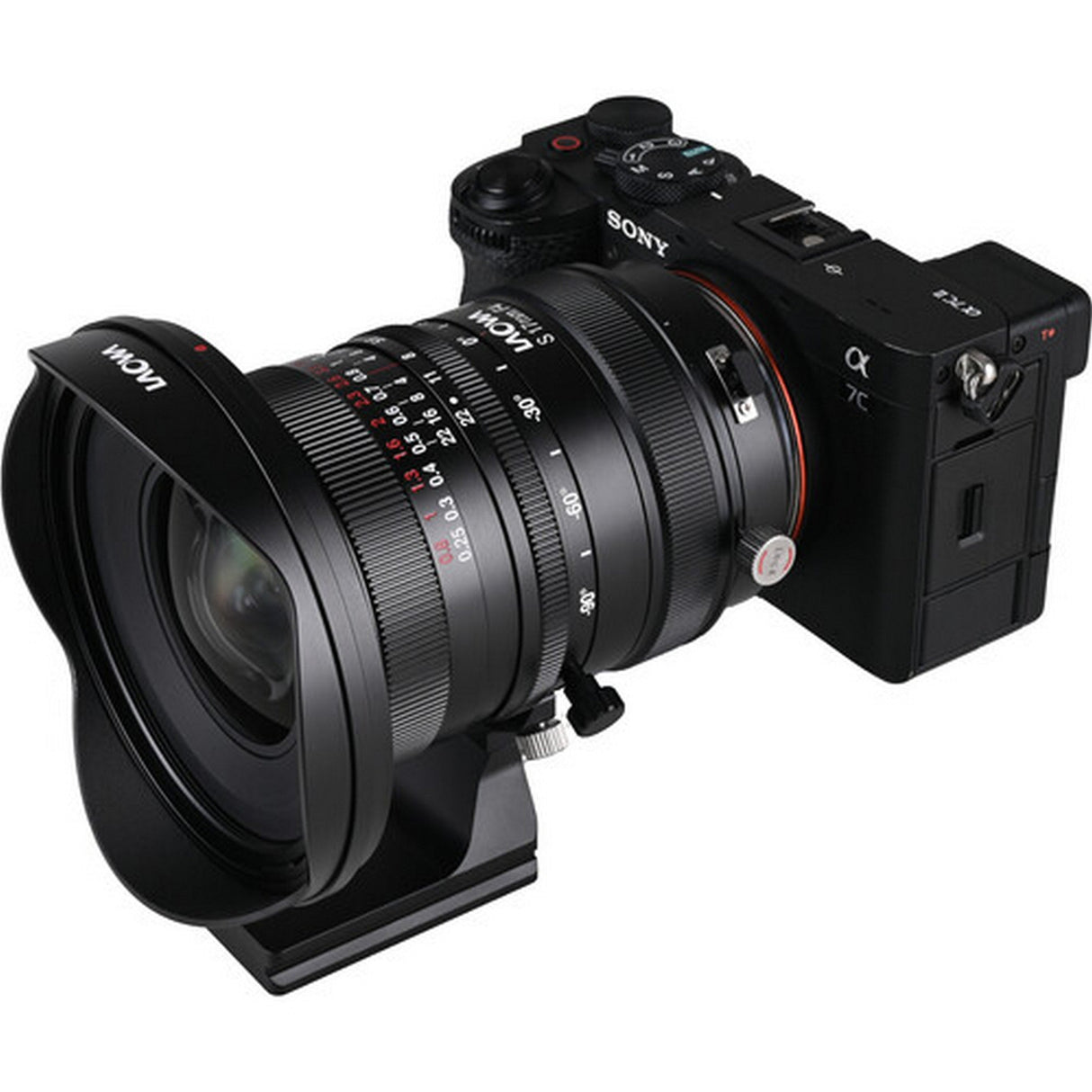

Full-frame Sony E, Nikon Z, Canon RF, and L-Mount versions provide ±11mm shift on the Shift model or ±12mm shift with ±10° tilt on the Tilt-Shift model. FUJIFILM G and Hasselblad X medium-format variants provide ±8mm shift, with ±10° tilt available on the Tilt-Shift version.

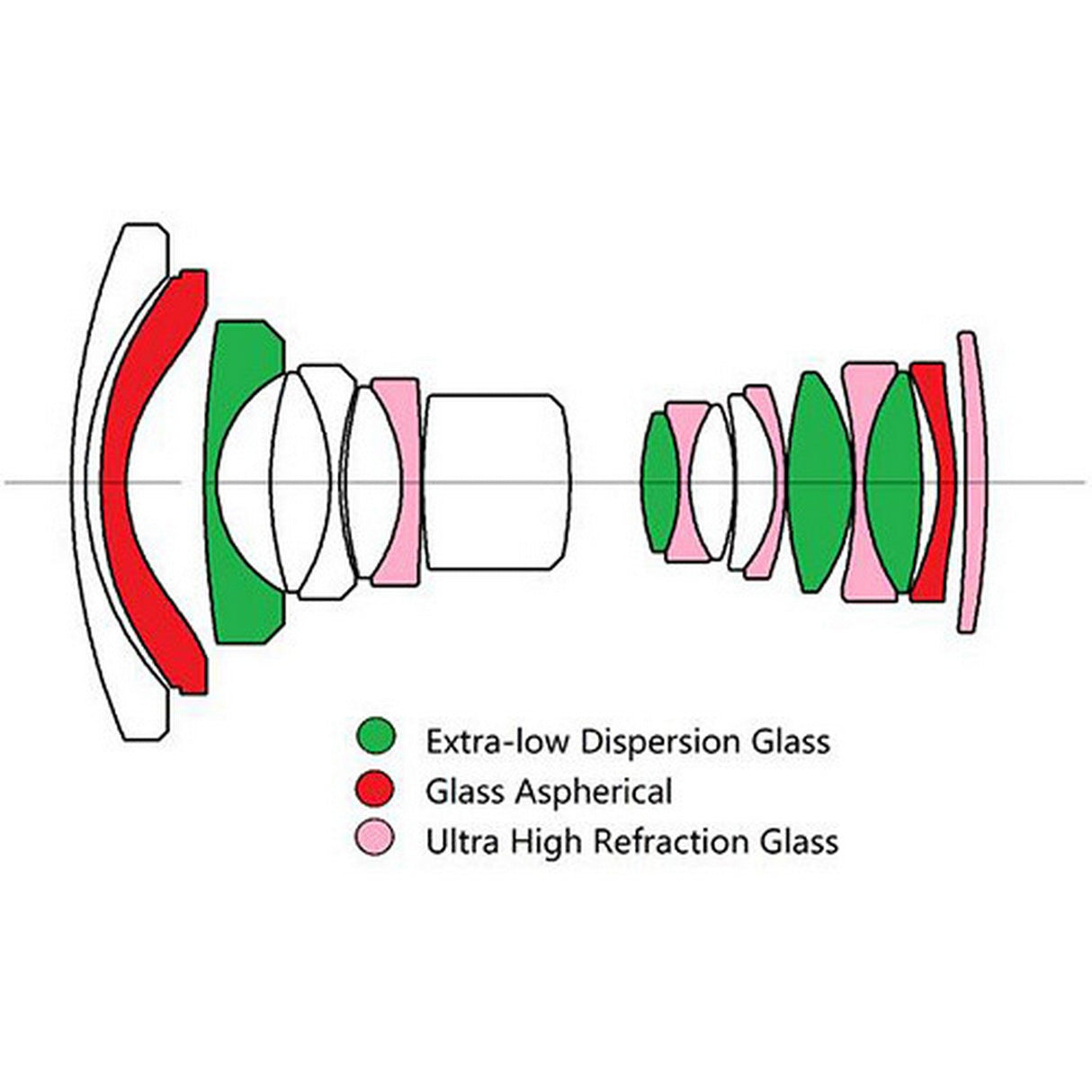

The 18-element, 12-group optical system includes four extra-low dispersion, five ultra-high refraction, and two aspherical elements. A 14-blade diaphragm, 9.8-inch minimum focus distance, 0.131x magnification, 86mm filter thread, 360° rotating mechanism with 15° click stops, integrated Arca-compatible support, and front-element Frog-Eye coating support controlled professional workflows. Choose the version and mount that match the camera and required movement.

Key Features

• Two Perspective-Control Versions: Select a dedicated Shift model or a Tilt-Shift model with additional focus-plane adjustment.
• Format-Specific Shift Range: Full-frame variants provide up to ±12mm shift, while medium-format variants provide ±8mm shift.
• ±10° Tilt Control: Tilt-Shift versions adjust the focus plane for extended depth of field, selective focus, or miniature-style effects.

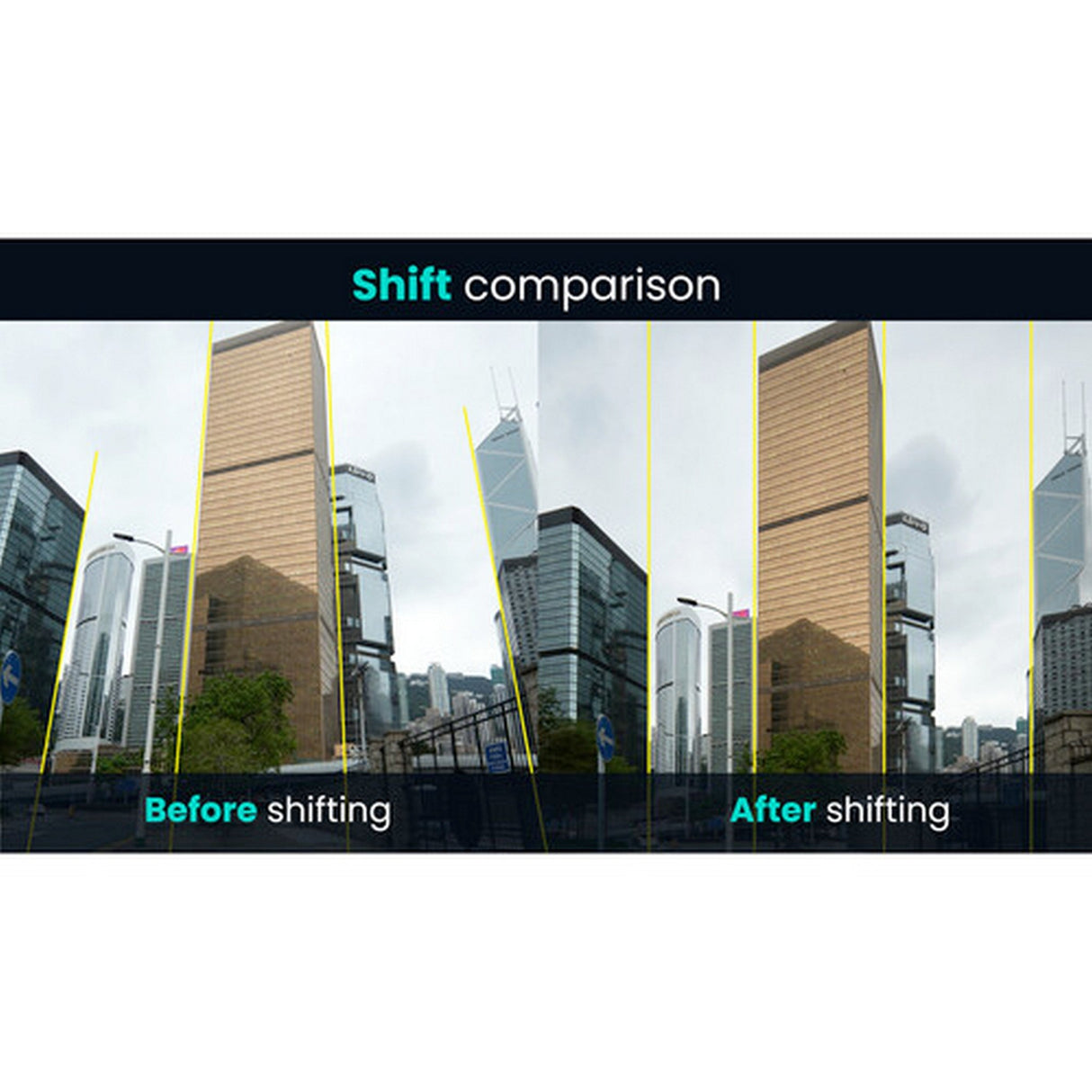

• Zero-D Optical Design: The rectilinear optical system is engineered to minimize distortion and preserve straight architectural lines.
• Ultra-Wide 104° View: Captures buildings, interiors, landscapes, and confined spaces within an expansive 17mm composition.

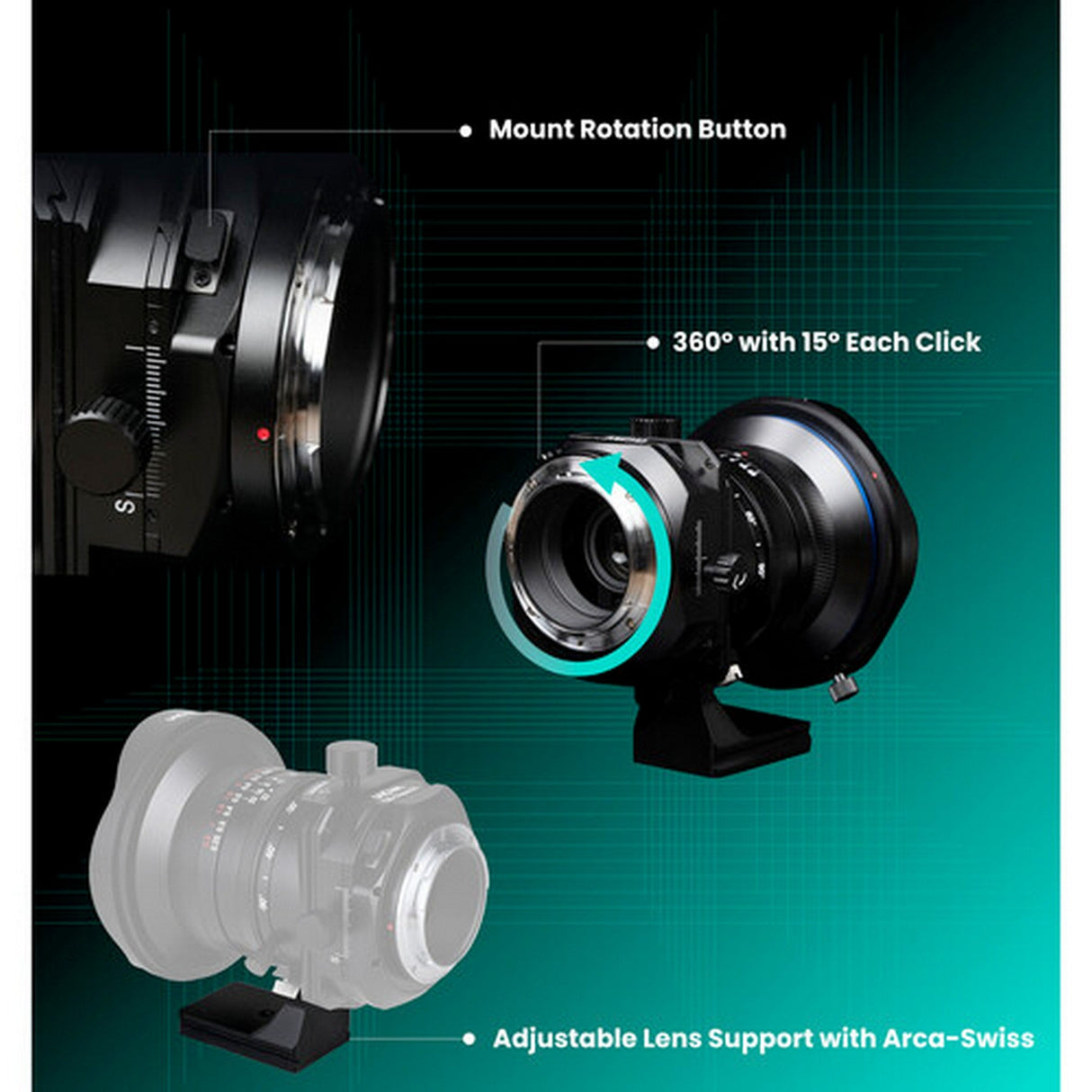

• 360° Rotating Mechanism: Rotates in 15° click-stop increments for vertical, horizontal, and diagonal movement orientations.

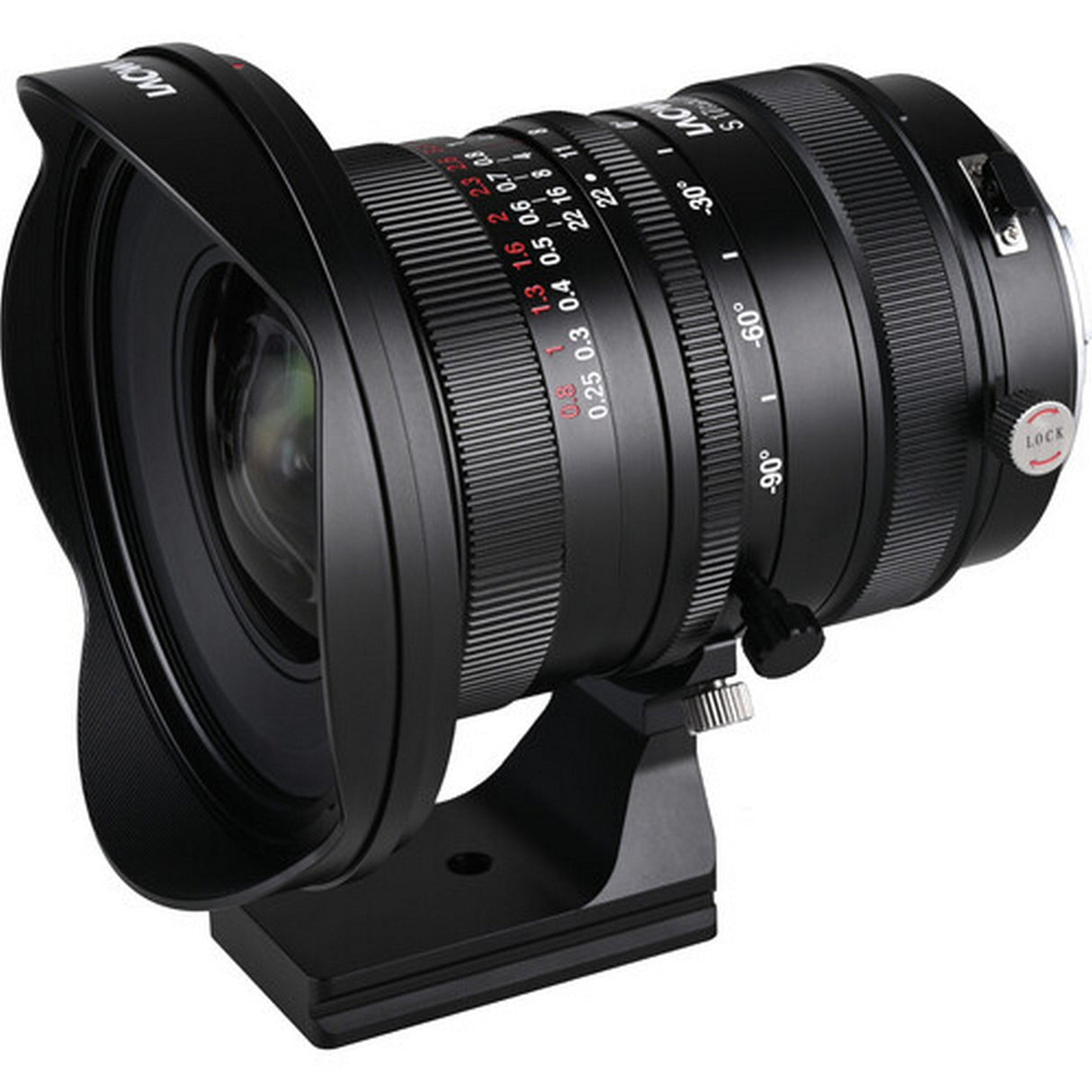

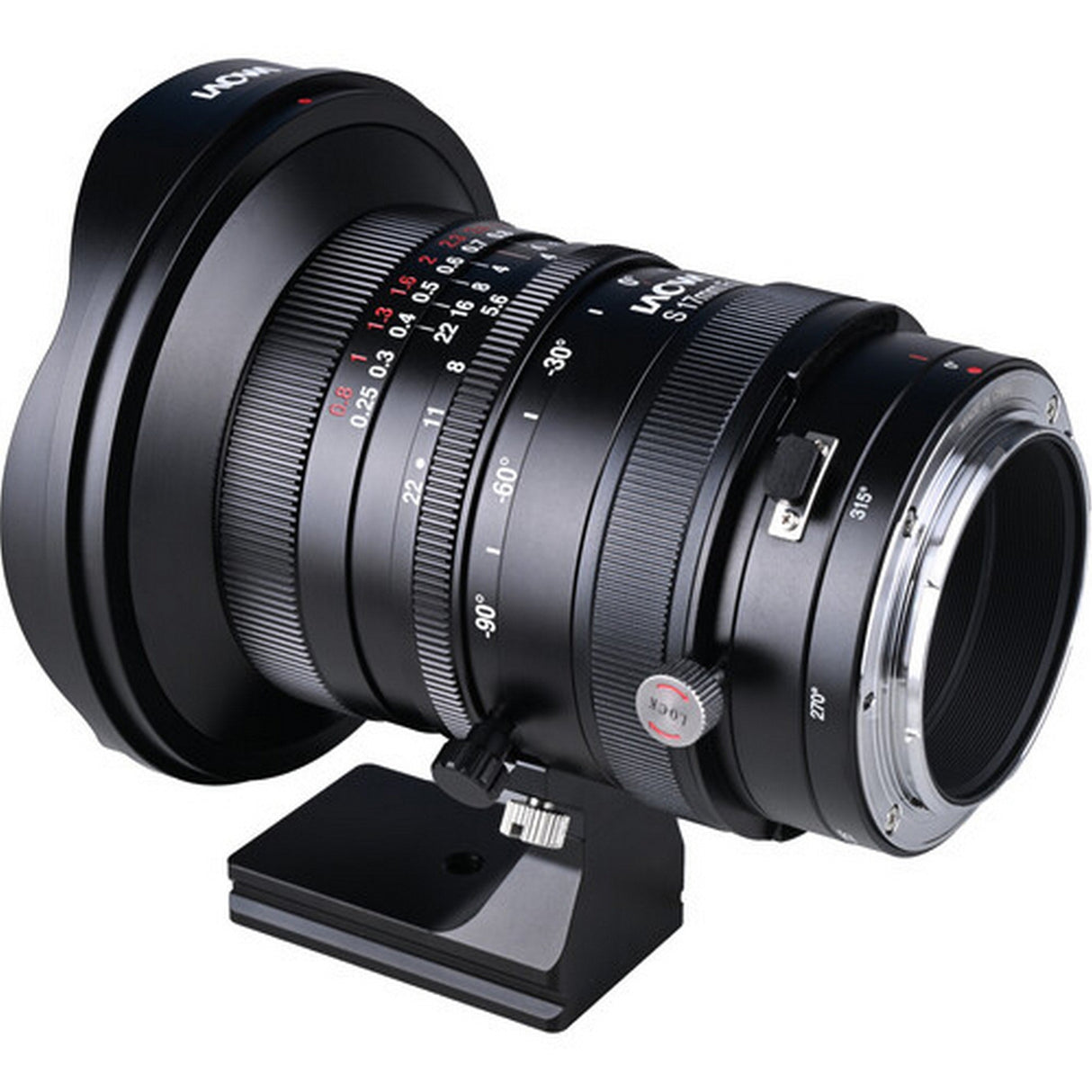

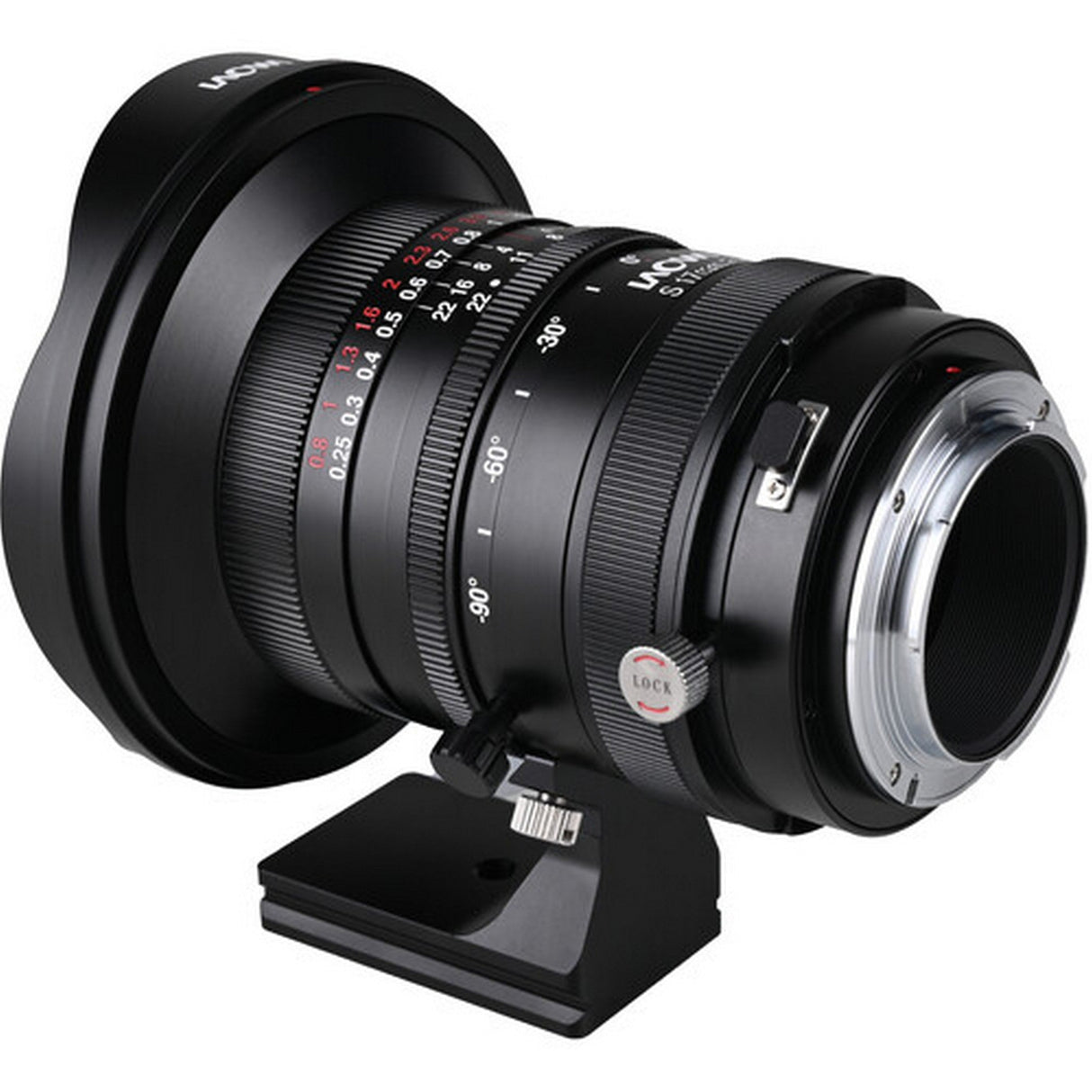

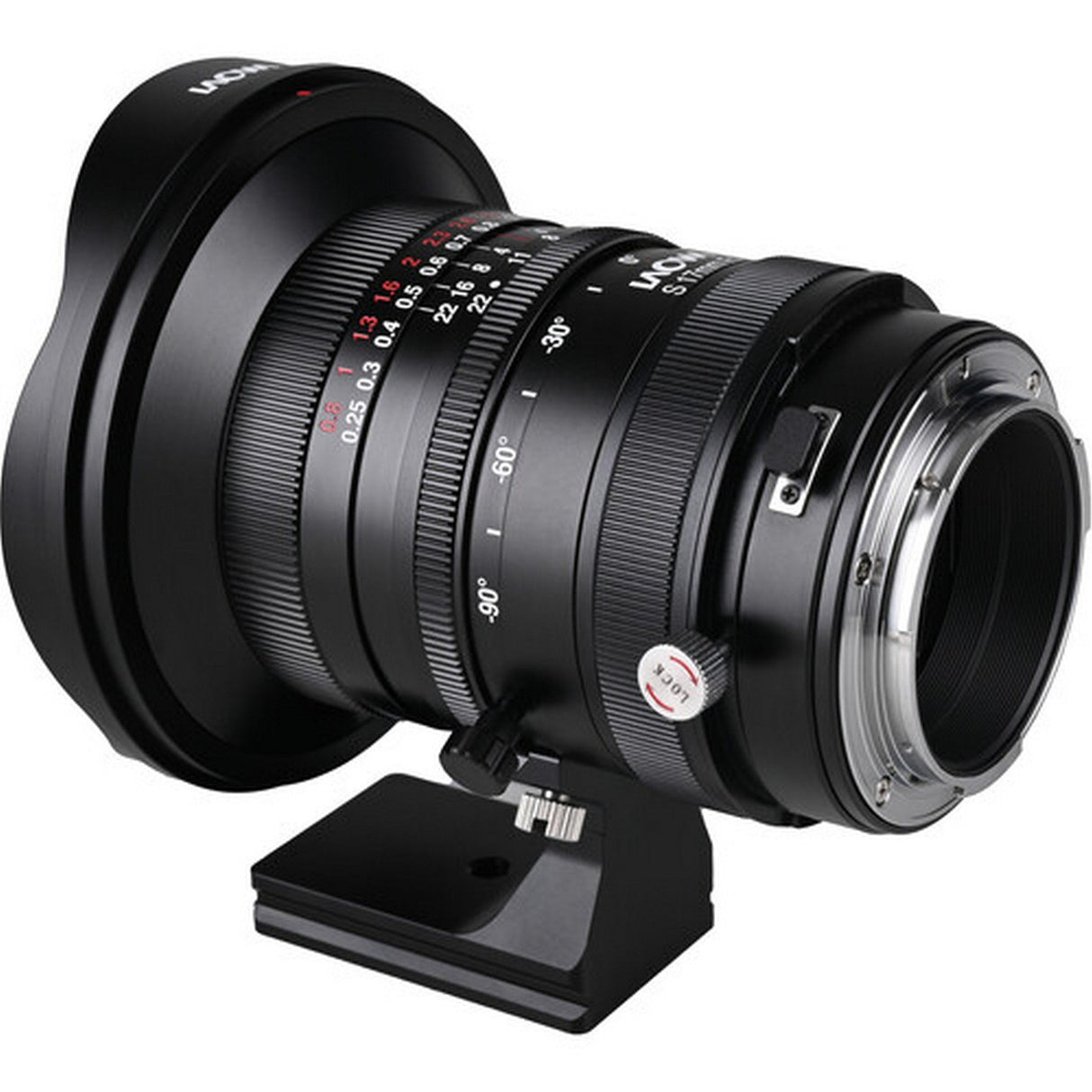

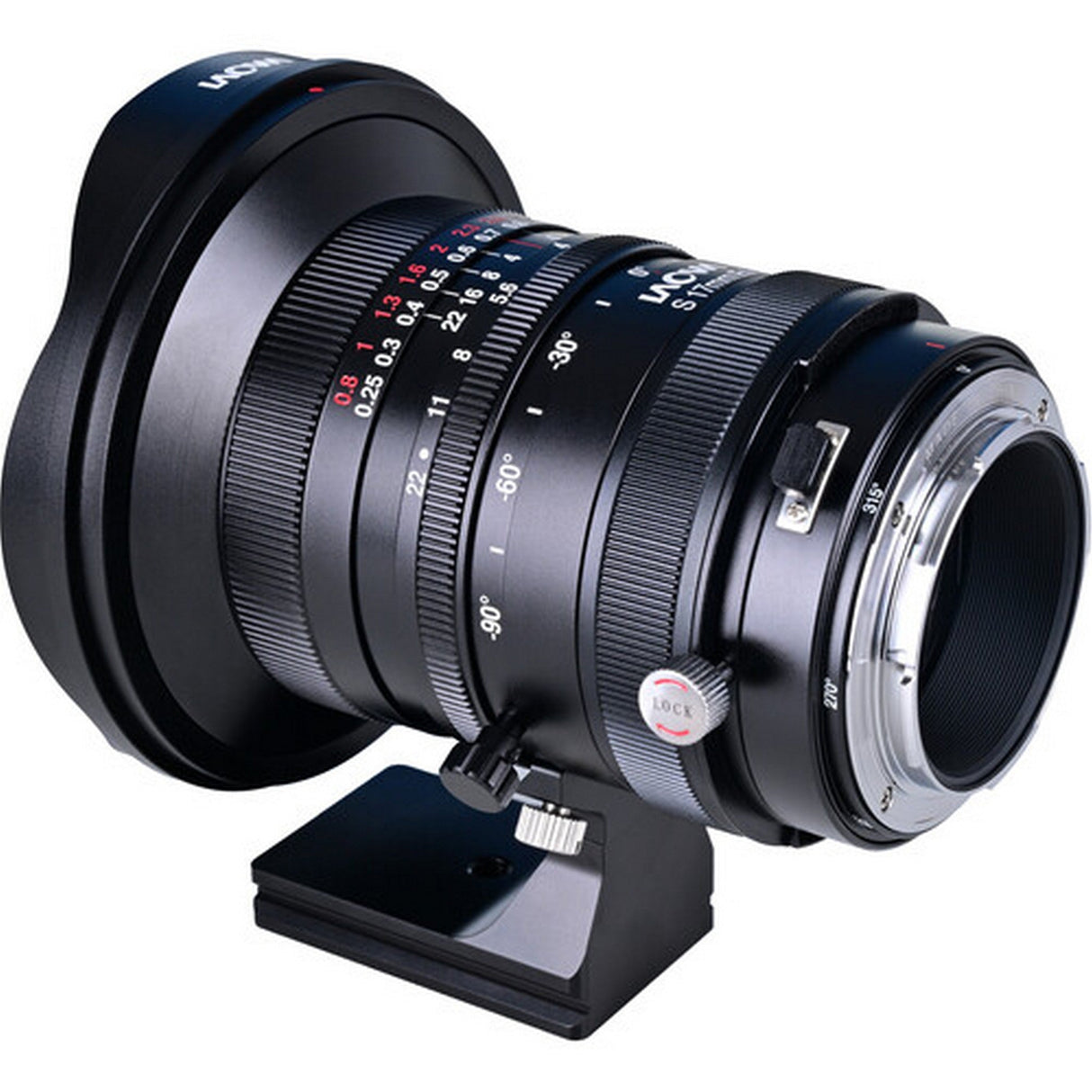

• Professional Mounting Support: An integrated Arca-compatible lens support improves stability during precise perspective adjustments.
• 86mm Filter Thread: Accepts standard screw-in filters without requiring a separate oversized filter holder.

Technical Specifications

• Product Type: Manual-focus perspective-control prime lens
• Available Versions: Shift and Tilt-Shift
• Focal Length: 17mm
• Maximum Aperture: f/4
• Minimum Aperture: f/22
• Angle of View: 104°
• Format Coverage: Full frame and medium format, depending on mount

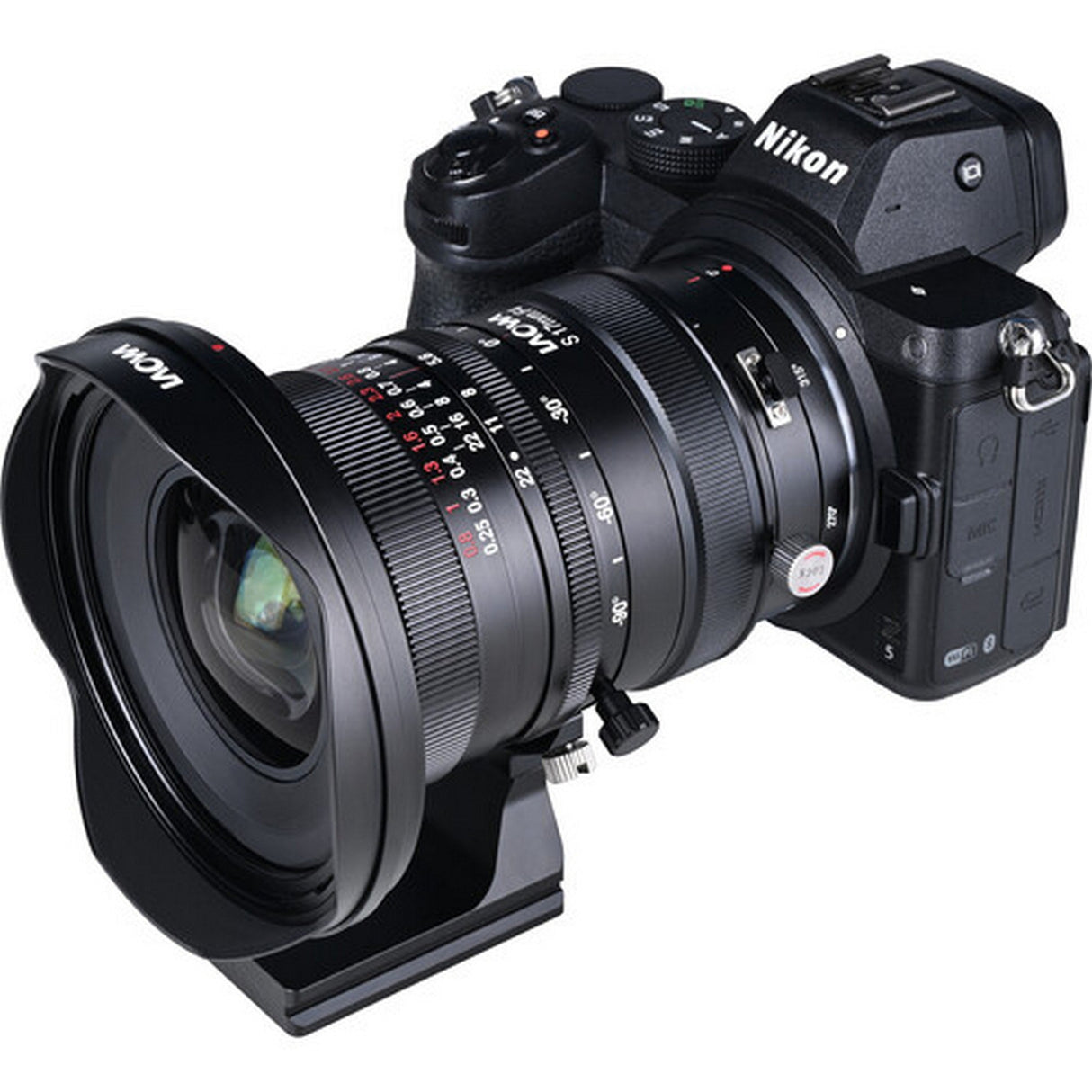

• Full-Frame Mounts: Sony E, Nikon Z, Canon RF, and L-Mount
• Medium-Format Mounts: FUJIFILM G and Hasselblad X
• Full-Frame Shift Model Movement: ±11mm shift
• Full-Frame Tilt-Shift Model Movement: ±12mm shift and ±10° tilt
• Medium-Format Shift Model Movement: ±8mm shift
• Medium-Format Tilt-Shift Model Movement: ±8mm shift and ±10° tilt
• Mount Rotation: 360° with 15° click stops
• Minimum Focusing Distance: 9.8"
• Maximum Magnification: 0.131x
• Optical Design: 18 elements in 12 groups
• Special Optical Elements: 4 extra-low dispersion, 5 ultra-high refraction, and 2 aspherical elements
• Aperture Blades: 14
• Focus Type: Manual focus
• Filter Size: 86mm front filter thread
• Front Element Coating: Frog-Eye Coating
• Tripod Support: Integrated fixed and rotating Arca-compatible collar
• Shift Version Dimensions: 3.7" diameter x 4.4" length
• Shift Version Weight: Approximately 1.7 lb
• Tilt-Shift Version Dimensions: 3.7" diameter x 4.4" length
• Tilt-Shift Version Weight: Approximately 1.8 lb

Shift Version Model Numbers

• Sony E: VE1740S-FE
• Nikon Z: VE1740S-NZ
• Canon RF: VE1740S-RF
• L-Mount: VE1740S-L
• FUJIFILM G: VE1740S-GFX
• Hasselblad X: VE1740S-XCD

Tilt-Shift Version Model Numbers

• Sony E: VE1740TS-FE
• Nikon Z: VE1740TS-NZ
• Canon RF: VE1740TS-RF
• L-Mount: VE1740TS-L
• FUJIFILM G: VE1740TS-GFX
• Hasselblad X: VE1740TS-XCD

What's In the Box

• Venus Optics Laowa 17mm f/4 Zero-D lens in selected version and mount
• Front lens cap
• Rear lens cap
• Lens hood
