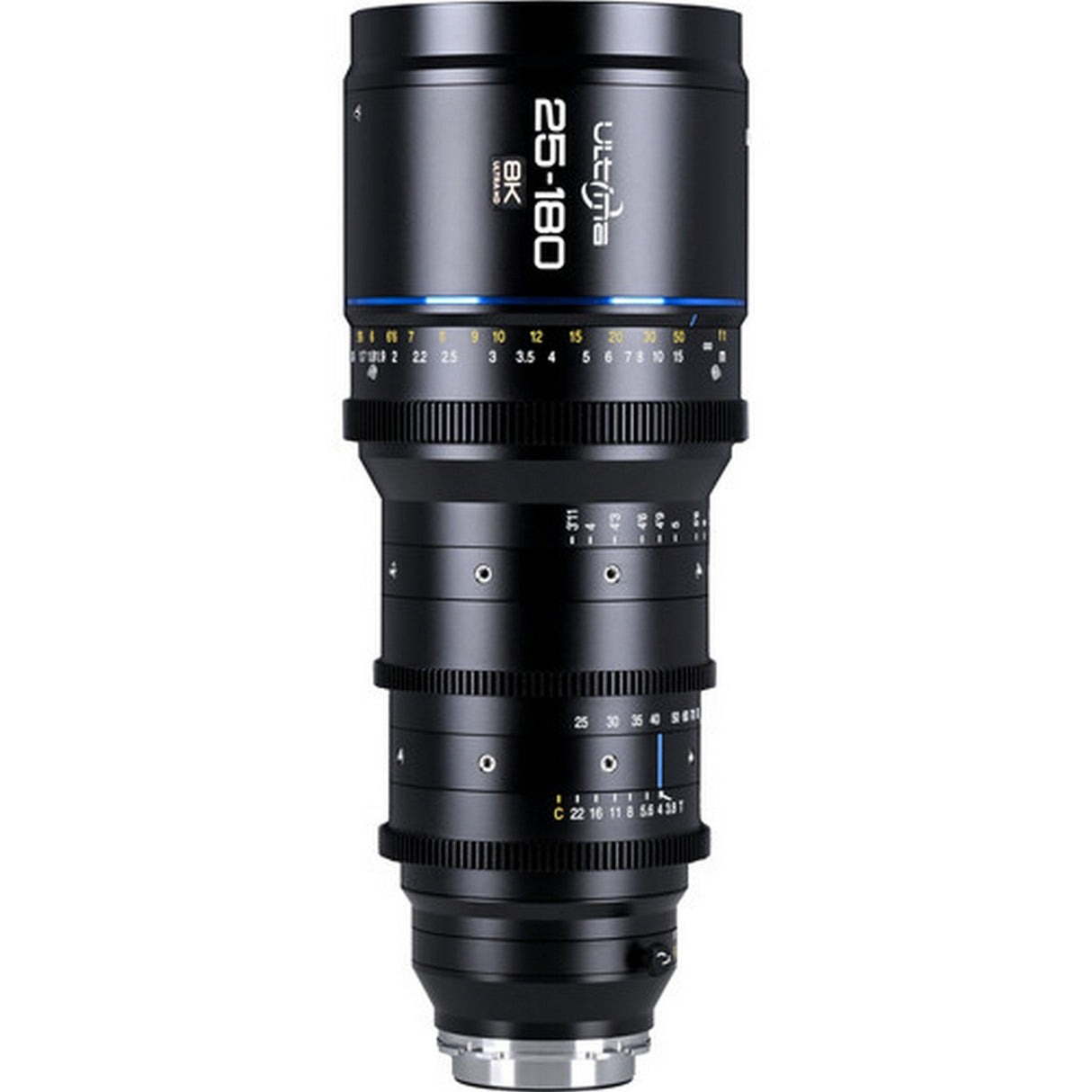

Venus Optics Laowa Ultima FF 25-180mm T3.8 Zoom Lens

Venus Optics Laowa Ultima FF 25-180mm T3.8 Zoom Lens

The Venus Optics Laowa Ultima FF 25-180mm T3.8 Zoom Lens is a parfocal ARRI PL cinema zoom covering full-frame sensors. It combines a constant T3.8 aperture, 7.2x focal range, 8K capture support, and suppressed focus breathing for broadcast, documentary, live-event, and narrative production.

The 25mm wide end captures establishing shots, interiors, and groups, while the 180mm telephoto position isolates distant subjects and close-ups. Because the lens maintains focus while zooming, camera crews can reframe during a take without interrupting focus. Its 3.9-foot minimum focusing distance and 0.2x maximum magnification also support detailed medium close-ups.

Focus, iris, and zoom rings use cinema-standard 0.8 MOD gearing for follow-focus units and motorized lens-control systems. Dual metric and imperial distance markings accommodate international crews, while the included support foot adds a 3/8-inch-16 mounting point for reinforced rod-supported rigs. An optional servo drive enables powered ENG-style zoom control.

Key Features

• Full-Frame Coverage: Maintains a compatible image circle throughout the complete 25-180mm zoom range.
• Constant T3.8 Aperture: Preserves exposure while changing focal length during a continuous shot.
• Parfocal Optical Design: Keeps the selected subject in focus as the operator zooms.
• 7.2x Zoom Range: Covers wide establishing views through compressed telephoto close-ups with one lens.
• Suppressed Focus Breathing: Reduces distracting framing changes during controlled focus pulls.
• Eleven-Blade Iris: Produces rounded out-of-focus highlights and smooth background rendering.
• Cinema Control Gearing: Uses 0.8 MOD focus, iris, and zoom gears for professional lens-control accessories.
• Optional Servo Operation: Supports a separately available servo drive for powered broadcast-style control.

Technical Specifications

Optical Specifications

• Product Type: Full-frame cinema and broadcast zoom lens
• Focal Length: 25-180mm
• Zoom Ratio: 7.2x
• Aperture Range: T3.8-T22-Closed
• Lens Mount: ARRI PL
• Format Coverage: Full Frame
• Capture Resolution Support: Up to 8K
• Angle of View: 81.7 to 13.7 degrees
• Optical Construction: 26 elements in 20 groups
• Aperture Blades: 11
• Minimum Focusing Distance: 3.9 feet from the camera sensor
• Maximum Magnification: 0.2x
• Filter Thread: 110mm
• Focus Type: Manual focus
• Optical Design: Parfocal with suppressed focus breathing
• Image Stabilization: No
• Electronic Communication: No

Lens Controls

• Focus Scales: Metric and imperial
• Focus Rotation: 180 degrees
• Iris Rotation: 35.5 to 42 degrees
• Zoom Rotation: 110 degrees
• Focus Gear: 0.8 MOD
• Iris Gear: 0.8 MOD
• Zoom Gear: 0.8 MOD
• Servo Compatibility: Separately available powered servo drive

Physical Specifications

• Front Outside Diameter: 4.7 inches
• Length: 11.8 inches
• Weight: 8.9 pounds
• Lens Support: Included support foot with one 3/8-inch-16 mounting point

What's In the Box

• Venus Optics Laowa Ultima FF 25-180mm T3.8 Zoom Lens
• Front lens cap
• Rear lens cap
• Support foot
