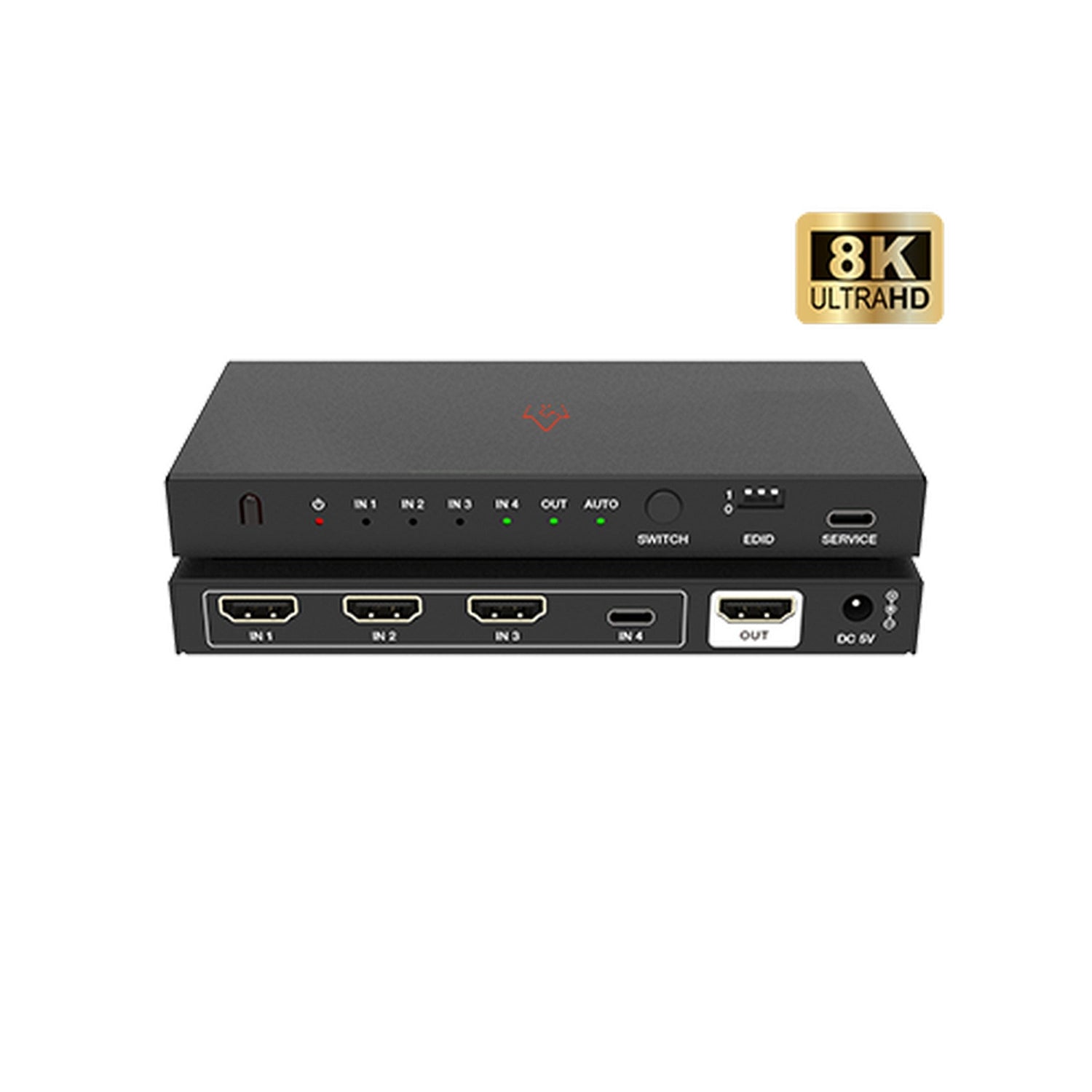

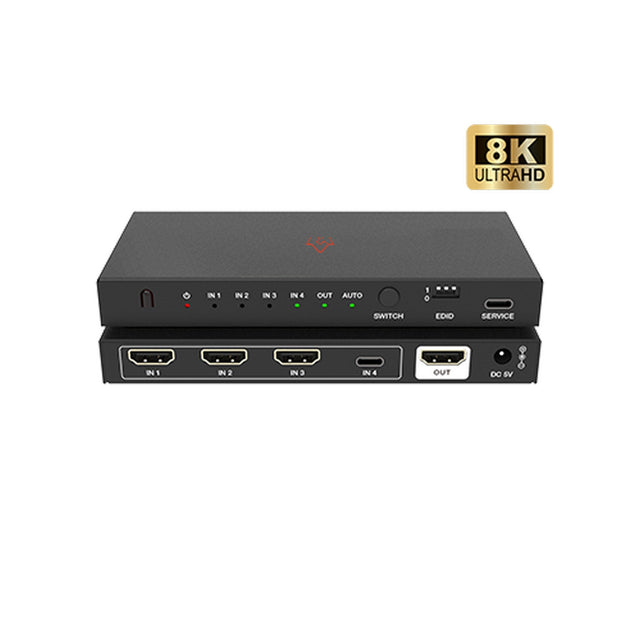

VigilLink VLSW-41CH21E: 4x1 HDMI 2.1 & USB-C Switch with 8K@60Hz Support

The VigilLink VLSW-41CH21E is a high-performance 4x1 switch designed for modern entertainment and professional AV setups. Featuring three HDMI 2.1 inputs and one USB-C input, this switch allows seamless connection of multiple devices to a single HDMI output. With support for HDMI 2.1 and DisplayPort 1.4, it delivers cutting-edge video performance, including resolutions up to 8K@60Hz and 4K@120Hz. The switch is engineered to provide smooth, uninterrupted signal transmission with high-bandwidth capabilities of up to 48Gbps for HDMI and 32Gbps for USB-C, ensuring crystal-clear visuals and ultra-low latency for gaming, streaming, and professional presentations.

Built for versatility, the VLSW-41CH21E supports a wide range of video formats and color depths, including RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, and YCbCr_4:2:0, ensuring exceptional color accuracy and detail. Whether you're experiencing the vibrant visuals of 8K content or enjoying high-refresh-rate 4K gaming at 120Hz, this switch maintains optimal performance without signal degradation. Additionally, it features broad compatibility with leading audio formats such as Dolby Atmos, DTS-HD Master Audio, and Dolby True HD, providing an immersive home theater experience.

Designed for durability and ease of use, the VLSW-41CH21E is housed in a robust metal enclosure for excellent heat dissipation and longevity. The device includes an IR receive window for remote control operation and a USB Type-C service port for firmware updates, ensuring long-term compatibility with evolving AV technology. With recommended premium high-speed HDMI cables, the switch supports extended cable lengths for maximum installation flexibility. Whether you're a gaming enthusiast, a professional content creator, or an AV integrator, this HDMI and USB-C switch delivers unparalleled connectivity and performance.

Key Features

• 4x1 switch with 3 HDMI 2.1 inputs and 1 USB-C input.
• Supports up to 8K@60Hz (HDMI) and 8K@30Hz (USB-C).
• Delivers high-speed video bandwidth: 48Gbps (HDMI), 32Gbps (USB-C).
• Compatible with 4K@120Hz, 12-bit color depth for ultra-smooth gaming.
• Wide color space support including RGB_4:4:4 and YCbCr formats.
• Supports premium audio formats including Dolby Atmos and DTS-HD Master Audio.
• Metal housing for durability and heat dissipation.
• USB Type-C service port for firmware updates.
• IR receive window for remote control operation.

Technical Specifications

HDMI Compliance: HDMI 2.1
HDCP Compliance: HDCP 2.3
DP Compliance: DP 1.4
Video Bandwidth: HDMI: Up to 48Gbps FRL and 18Gbps TMDS, USB-C: Up to 32Gbps
Video Resolution: HDMI: Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit
USB-C: Up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit
Color Depth: 8/10/12-bit
Color Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

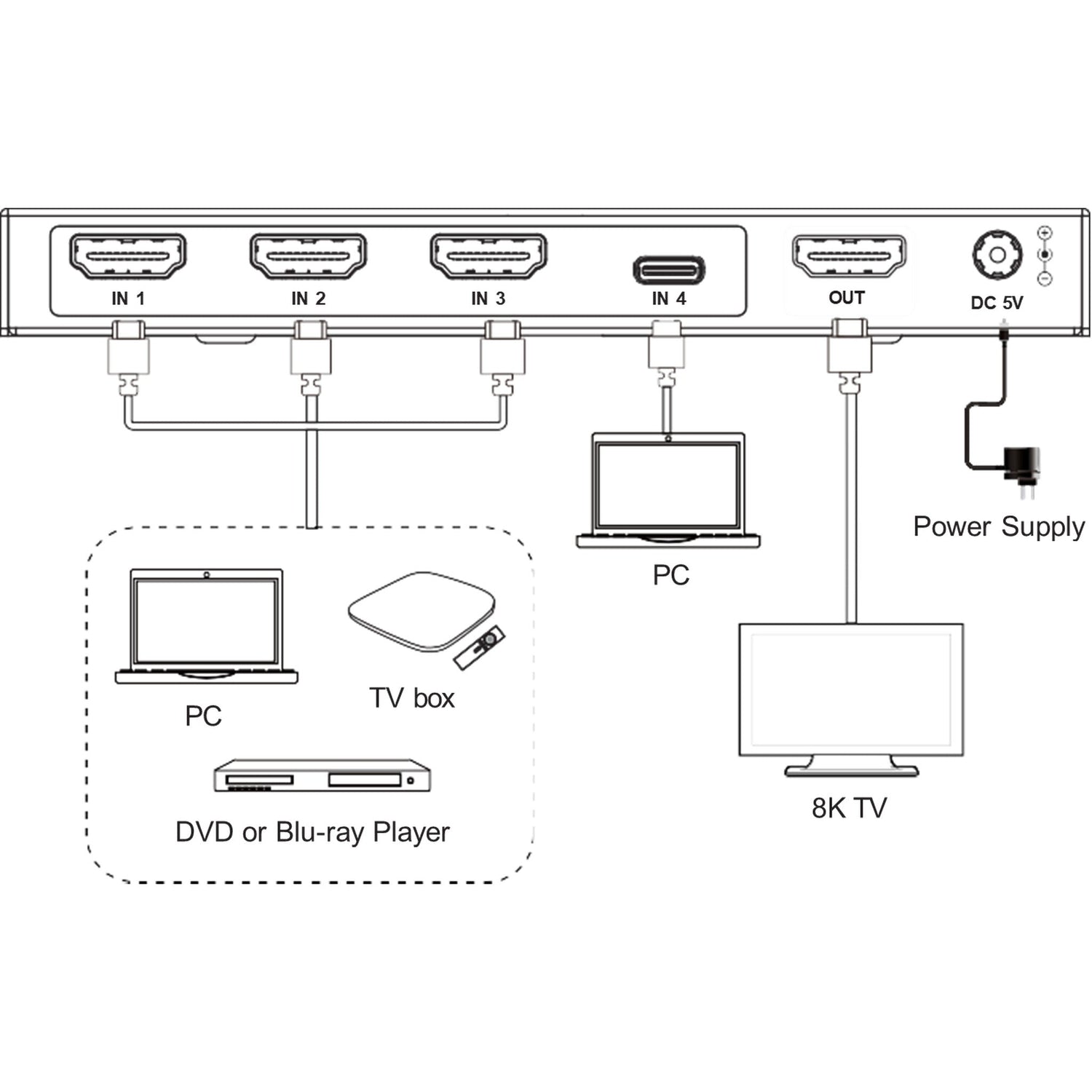

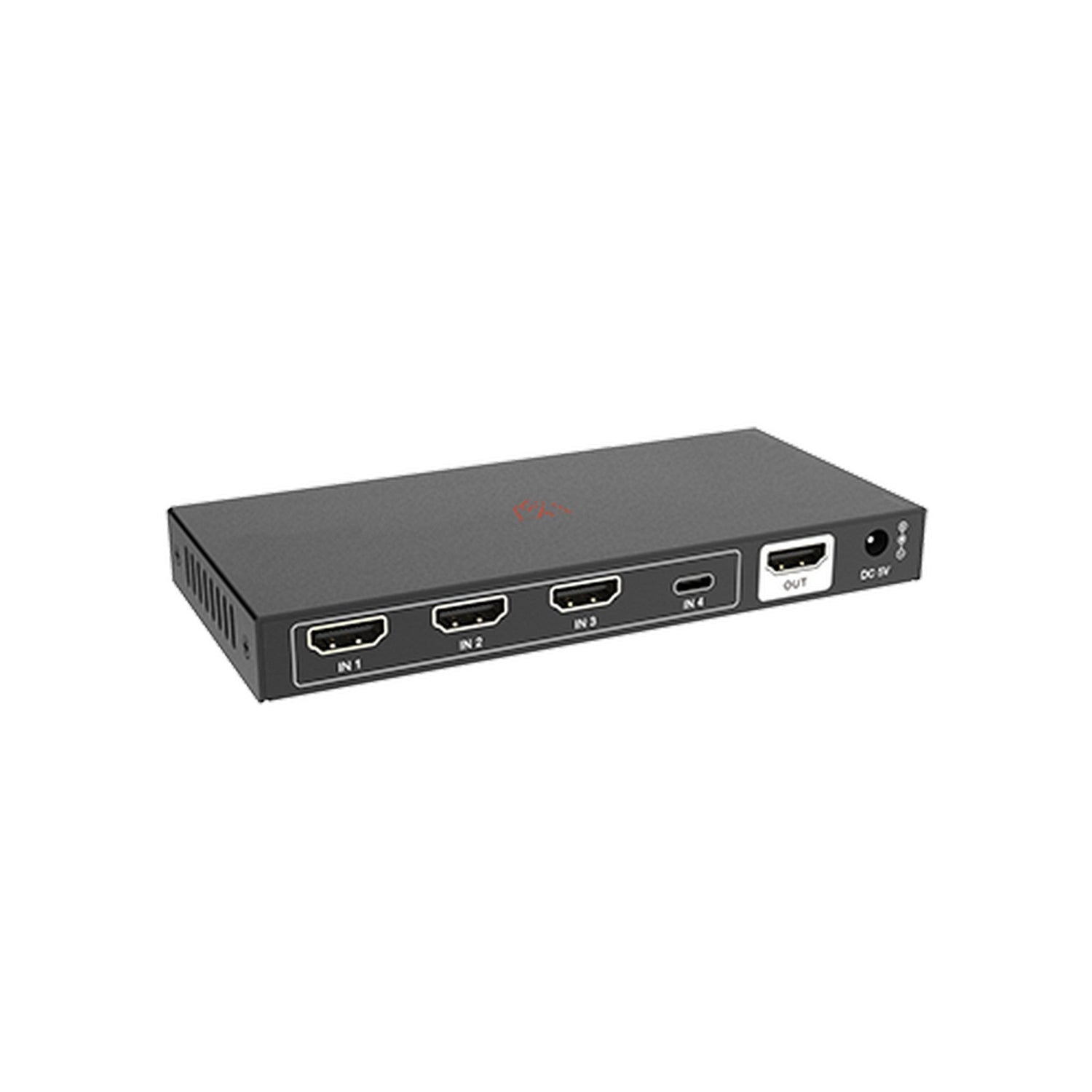

Input: 3 × HDMI IN [HDMI Type A, 19-pin female], 1 × USB-C IN [24-pin female]
Output: 1 × HDMI OUT [HDMI Type A, 19-pin female]

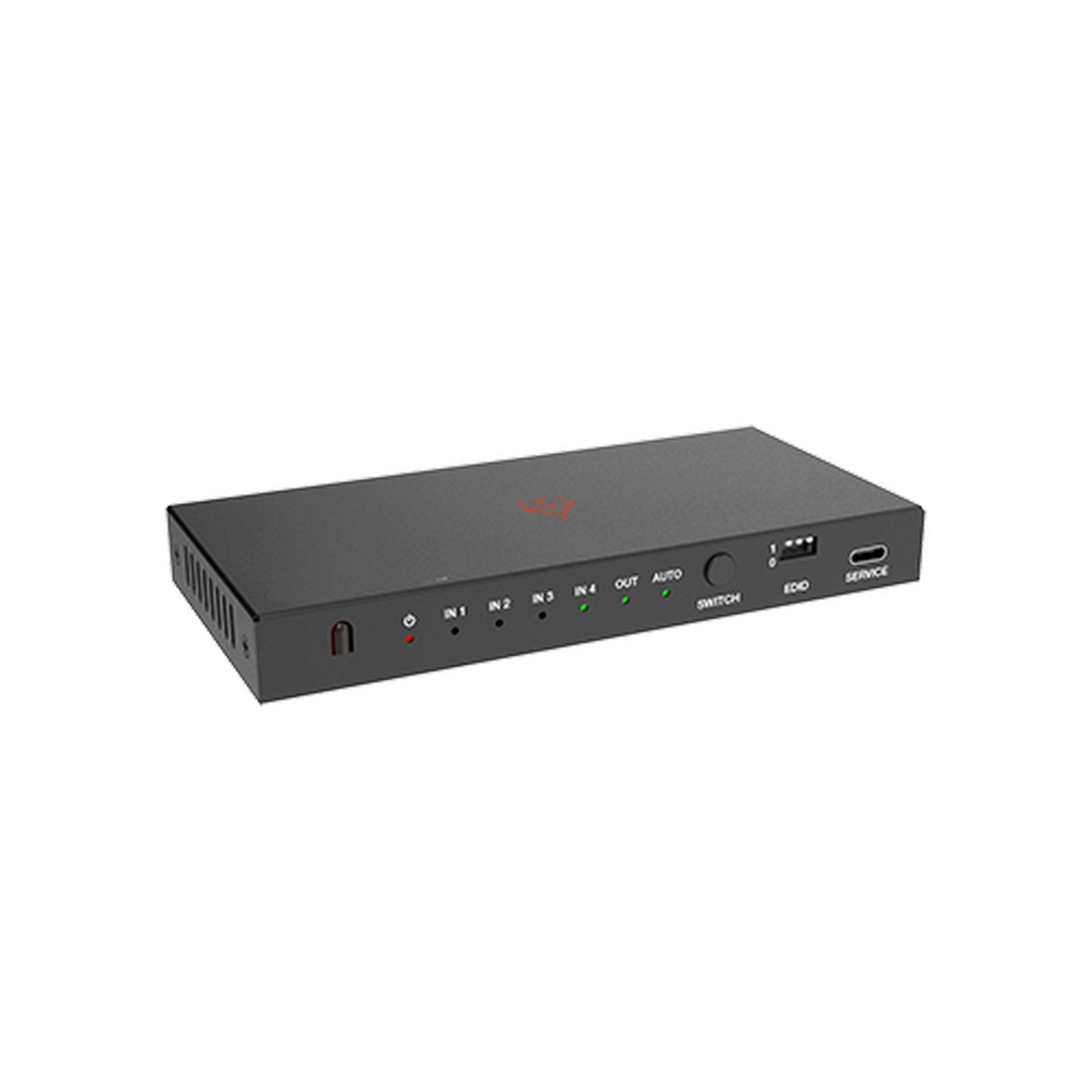

Control: 1 × SERVICE [USB Type-C, update port], 1 × IR Receive Window
Housing: Metal
Color: Black
Dimensions: 5.71" (W) × 2.68" (D) × 0.71" (H)
Weight: 0.57 lbs
Power Supply: Input: AC 100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption: 2.25W (Max)
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -4°F ~ 140°F (-20°C ~ 60°C)
Relative Humidity: 20 - 90% RH (No condensation)
