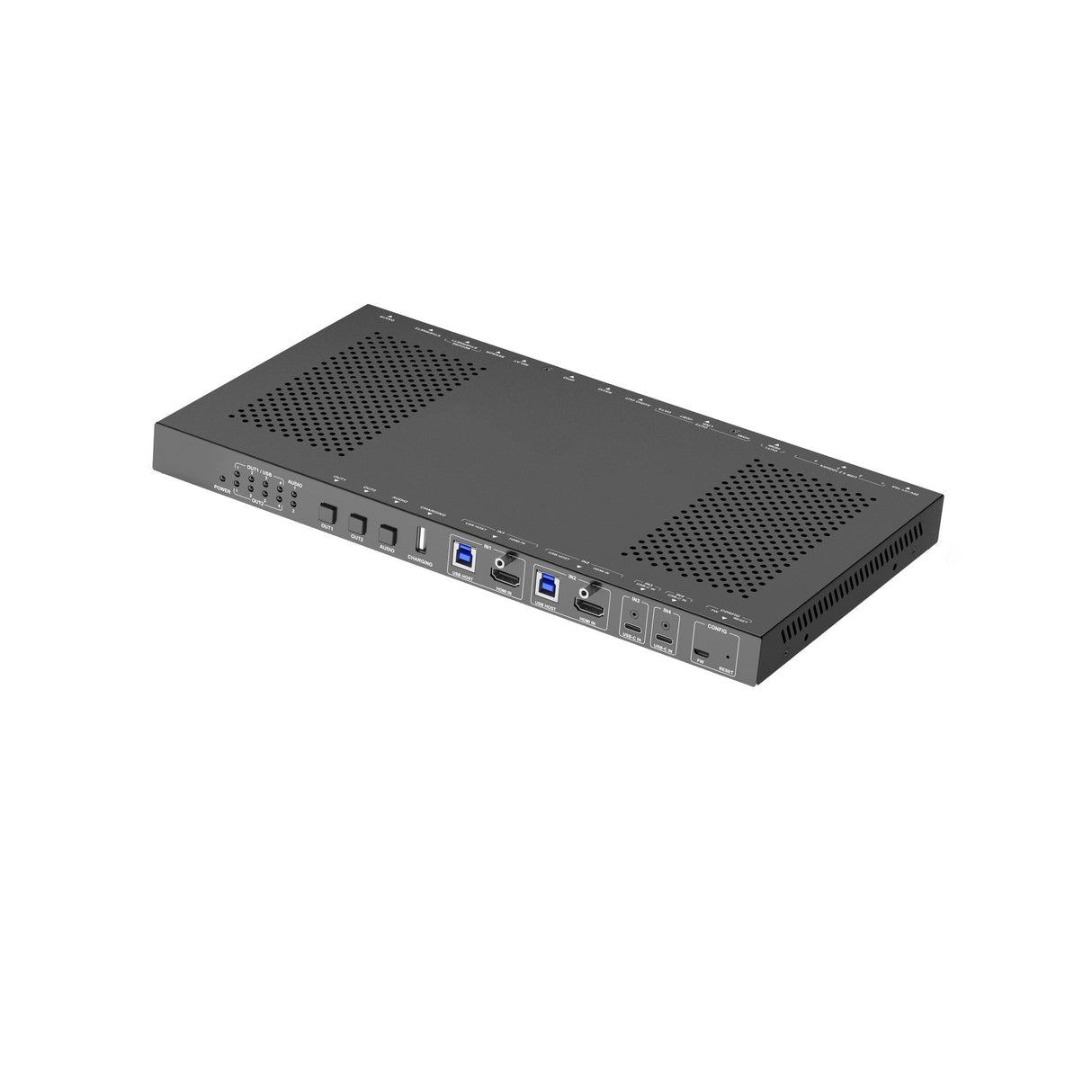

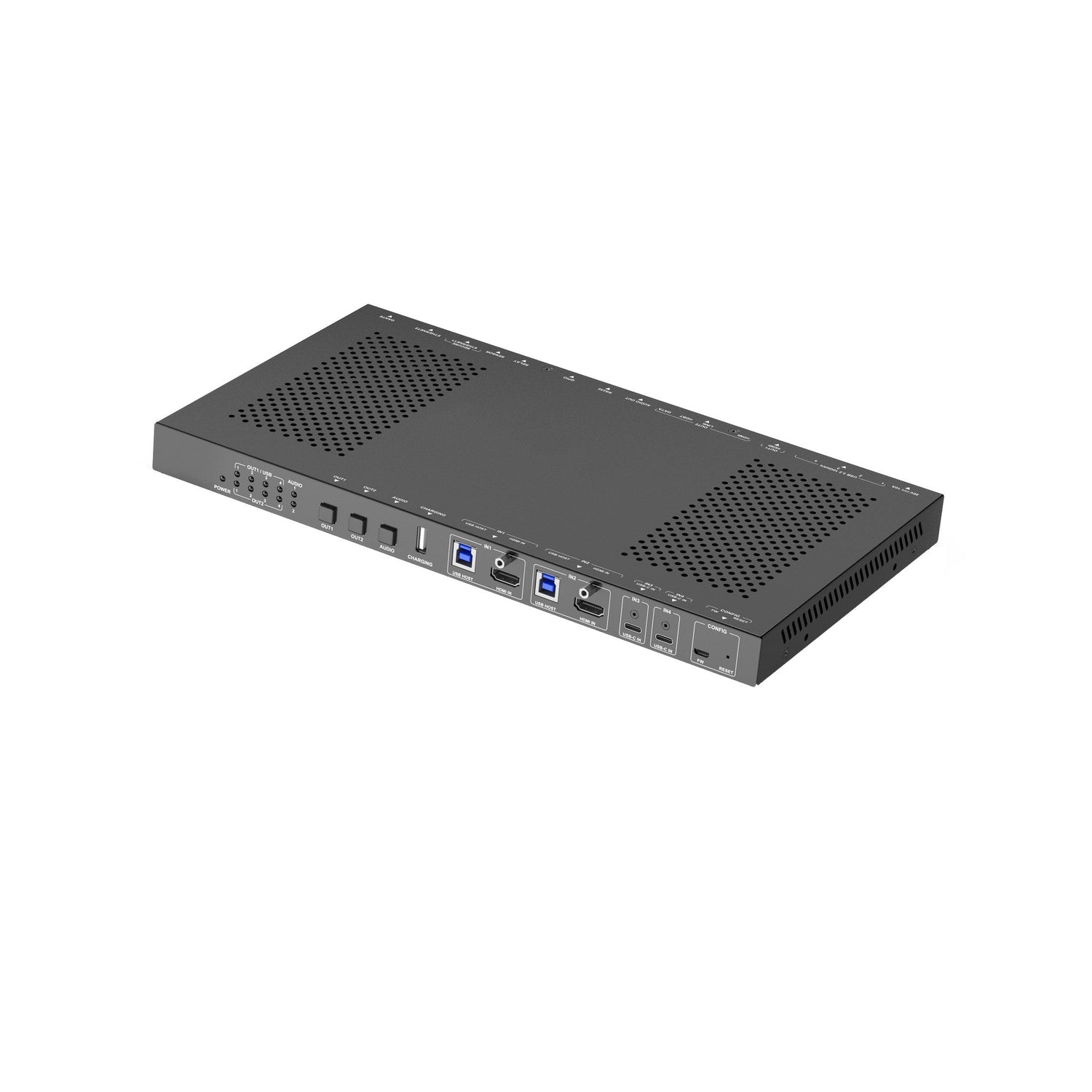

VLPT-42MCSDH 4K HDMI & USB-C Matrix Switcher
The VLPT-42MCSDH is a high-performance 4K HDMI and USB-C matrix switcher designed to seamlessly manage video and audio signals across multiple devices. Built for professional AV setups, it supports HDMI 2.0 standard with resolutions up to 4K@60Hz 4:4:4, ensuring top-tier video quality. The device is ideal for a variety of environments, from conference rooms and studios to home theaters, offering advanced connectivity and control options. Supporting both HDMI and USB-C inputs and outputs, this matrix switcher integrates easily into modern AV systems, allowing users to manage multiple signal sources effortlessly.
This versatile device not only supports high-quality video but also caters to audio needs with the ability to pass through 7.1 channel audio, including formats like Dolby Atmos and DTS:X. It also supports a wide array of HDR formats, including HDR10, Dolby Vision, and HLG. Additionally, the VLPT-42MCSDH is equipped with a variety of input and output ports, such as HDMI, USB, Ethernet, and Dante, allowing for enhanced flexibility and control. USB-C inputs deliver video up to 4K@60Hz with data transfer speeds up to 10 Gbit/s and charging capabilities up to 60W, making it a powerful tool for professionals requiring both high-speed data and video connectivity.
The VLPT-42MCSDH matrix switcher offers multiple control methods, including front panel buttons, RS232, and LAN through Telnet and Web UI. It operates within a wide temperature range, from 32°F to 113°F, and is engineered to withstand various environmental conditions. The unit is compact and efficient, featuring a low-profile design that allows it to fit into tight spaces while offering reliable operation. Whether you're integrating this matrix switcher into a commercial AV installation or using it for home entertainment, it ensures that all devices are connected and controlled with ease.
Key Features:
- Supports 4K video up to 60Hz (4:4:4) and HDR formats including Dolby Vision and HDR10+
- Input/Output ports: 2 x HDMI IN, 2 x USB-C IN, 2 x HDMI OUT, 1 x HDBT, USB HOST, RS232, GPIO, Ethernet, and Dante
- USB-C supports video (DP alt mode), data transfer (up to 10Gbit/s), and charging (60W)
- Up to 7.1ch surround sound, including Dolby Atmos and DTS:X audio formats
- Flexible control via front panel, RS232, LAN (Telnet & Web UI)
Technical Specifications:
Dimensions: 12.80” x 0.98” x 7.09” (without mounting brackets)
Weight: 3.20 lbs
Power Supply: DC 20V, 10A
Power Consumption (Max): 155.6W (with USB + Charging), 13.1W (without USB and Charging)

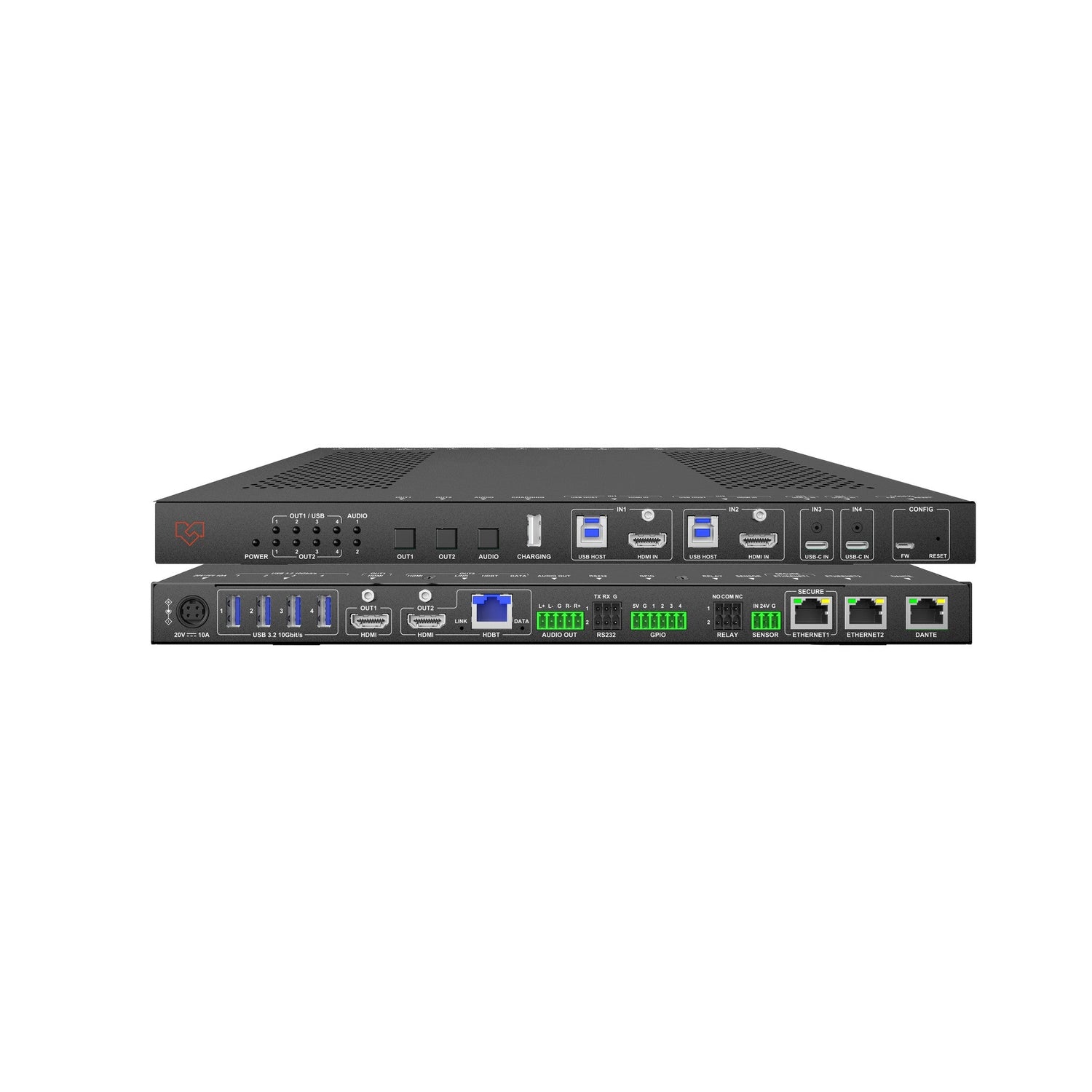

Input/Output Port: 2 x HDMI IN, 2 x USB-C IN, 2 x HDMI OUT, 1 x HDBT, 2 x USB HOST (USB Type-B), 1 x AUDIO OUT (3.5mm, 5-pin phoenix connector), 4 x USB DEVICE (USB Type-A), 2 x RS232, 1 x GPIO (3.5mm, 6-pin phoenix connector), 2 x RELAY, 1 x SENSOR, 2 x ETHERNET (RJ45), 1 x DANTE (RJ45), 1 x DC 20V
Input/Output Signal Type: Supports HDMI 2.0 standard, up to 4K@60Hz 4:4:4, 8bit or 4K@60Hz 4:2:2 12bit. Supports HDCP 2.2/1.4.
USB HOST IN 1 & 2: Supports USB 3.2 Gen 2x1 standard, up to 10Gbit/s
USB-C IN 3 & 4: USB-C supports USB 3.2 Gen 2x1 standard. USB-C IN 3 supports DP alt mode, SST up to 4K@60Hz, USB data up to 10Gbit/s, and charging (60W). USB-C IN 4 supports DP alt mode, MST dual output up to 4K@60Hz, USB data up to 10Gbit/s, and charging (60W).
USB DEVICE: Maximum supports USB 3.2 Gen 2x1 standard, up to 10Gbit/s. 5V/1.5A output per port.
Input/Output Resolution Supported: VESA resolutions up to 3840 x 2160, CTA resolutions up to 4096 x 2160 at 60Hz.
HDR Support: All HDR formats, including HDR 10, HLG, HDR 10+, and Dolby Vision.
Audio Format: Up to 7.1ch, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, and DTS:X. Audio de-embedding: Stereo only. Dante: Stereo only.
Ethernet: 1000M/100M adaptive network
Maximum Data Rate: USB-C IN: 10Gbit/s (per lane), HDMI: 18Gbps, USB 3.2: 10Gbit/s
Control Method: Front Panel Buttons, RS232, LAN (Telnet & Web UI)
Operating Temperature: 32°F to 113°F (0°C to 45°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Humidity: 10% to 90%, non-condensing
ESD Protection: Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge)
Shipping Group: Includes Host, Remote, Remote Controller, Power Supply
