VLWP-3HVG-CTRL Control Wall Panel
The VLWP-3HVG-CTRL Control Wall Panel is designed to offer seamless integration and control over your AV systems with ease and efficiency. This wall-mounted control panel is crafted with both functionality and durability in mind, featuring a sleek metal housing and a choice of white or black front panels. Ideal for commercial or residential installations, the VLWP-3HVG-CTRL ensures intuitive control of your audio and video systems, allowing you to manage inputs, outputs, and settings with minimal effort.

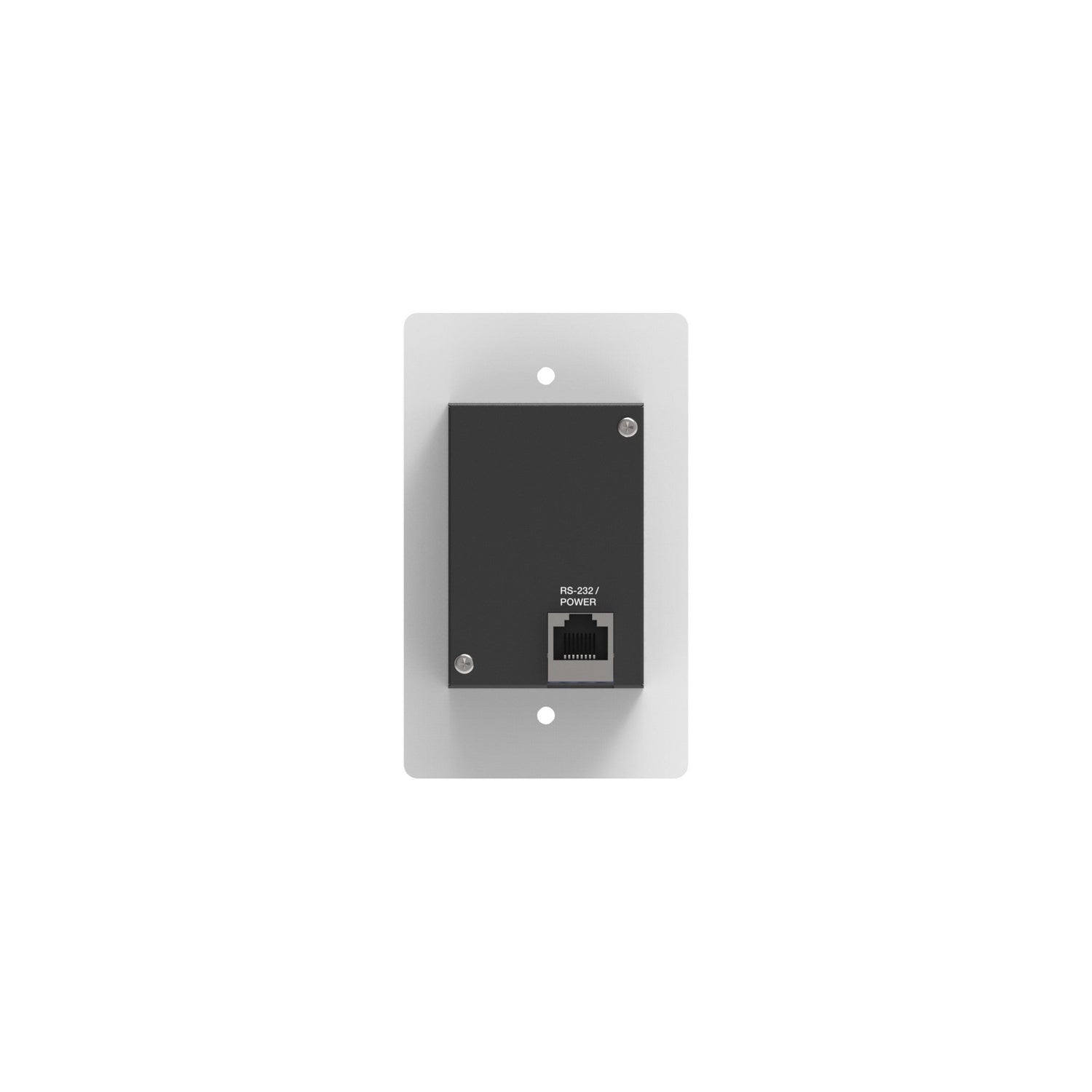

With its Bluetooth V5.0 support, the VLWP-3HVG-CTRL enables wireless control of compatible devices. It also supports multiple wired audio inputs and outputs, including analog audio via 3.5mm jacks and digital audio via the Dante protocol. The front panel houses user-friendly LED indicators to provide real-time status feedback on Bluetooth pairing and connection modes, while the rear panel includes RJ45 connections for Dante integration and a DC power input. The unit is PoE capable, offering greater installation flexibility by eliminating the need for separate power cables.
Built for both durability and ease of use, the VLWP-3HVG-CTRL is engineered to perform reliably in a wide range of environmental conditions. With wide operating temperature and humidity tolerances, the control panel ensures consistent performance in both climate-controlled environments and more demanding settings. Certified for CE and RoHS compliance, it provides peace of mind with its adherence to safety and environmental standards.
Key Features:
- Wireless control via Bluetooth V5.0 with support for SBC, MP3, AAC, APTX, APTX-LL, APTX-HD audio formats.
- Multiple audio input/output options including analog and Dante digital connections.
- PoE support (Power over Ethernet) for streamlined power management.

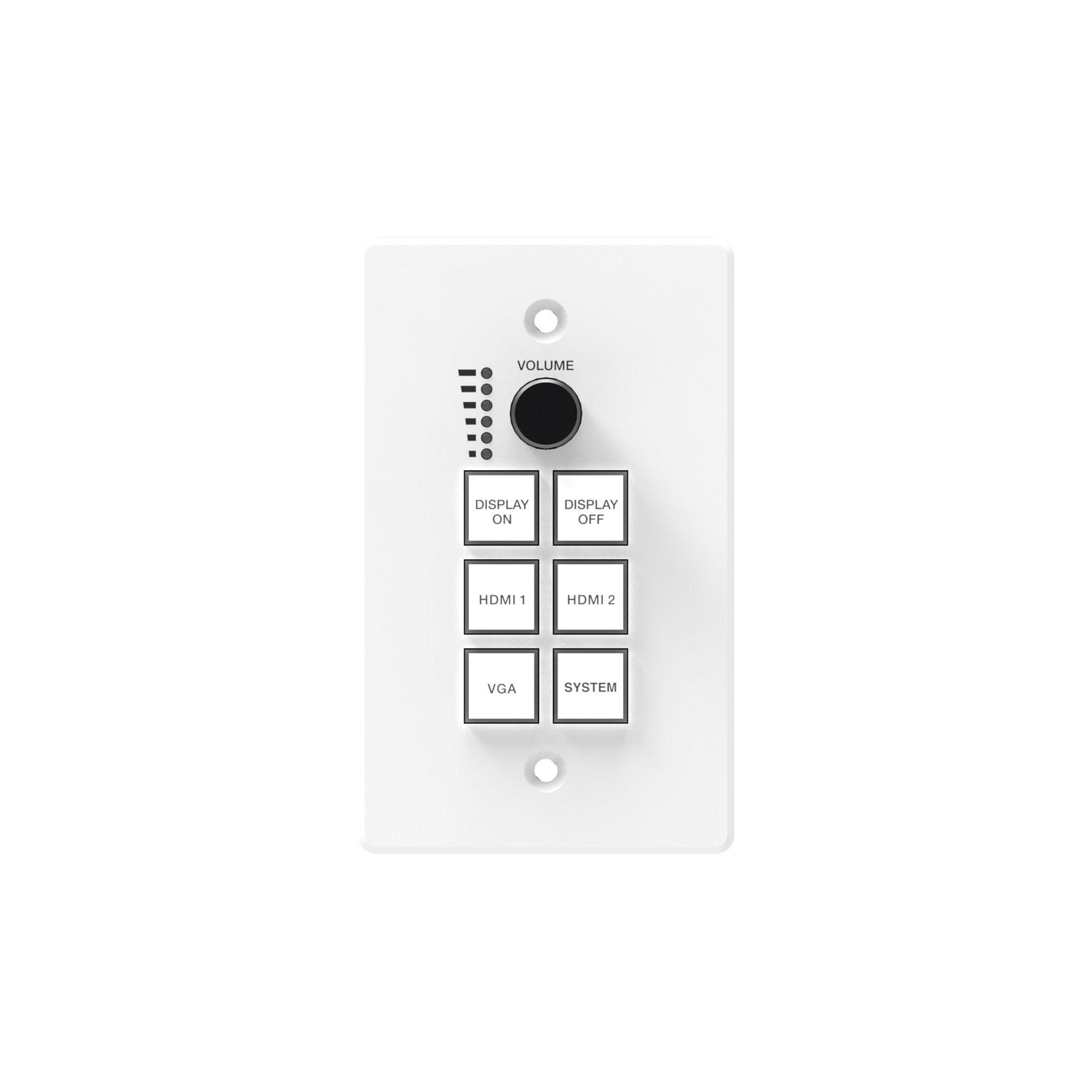

- Real-time feedback with LED indicators for Bluetooth pairing and connection status.
- Compact, durable design with a sleek metal housing and customizable front panel colors (white or black).
- Wide operating temperature range (32Ā°F ~ 113Ā°F) and storage temperature range (-4Ā°F ~ 140Ā°F).
- CE and RoHS certified for safe and environmentally compliant operation.
Technical Specifications:
Housing: Metal Enclosure
Color: White (Front Panel), Black (Rear Panel)
Dimensions: 4.5" (W) x 2.8" (D) x 0.9" (H)
Weight: 0.40 lbs
Operating Temperature: 32Ā°F ~ 113Ā°F (0Ā°C ~ 45Ā°C)
Storage Temperature: -4Ā°F ~ 140Ā°F (-20Ā°C ~ 70Ā°C)
Relative Humidity: 20 - 90% RH (No condensation)
Power: PoE Class 0 IEEE 802.3a or local 12VDC/0.5A
Power Consumption (Maximum): TBD
ESD Protection: Human body model: Ā±8 kV (air-gap discharge), Ā±4 kV (contact discharge)
Surge Protection: Voltage: Ā±1 kV
Certification: CE, RoHS compliant
