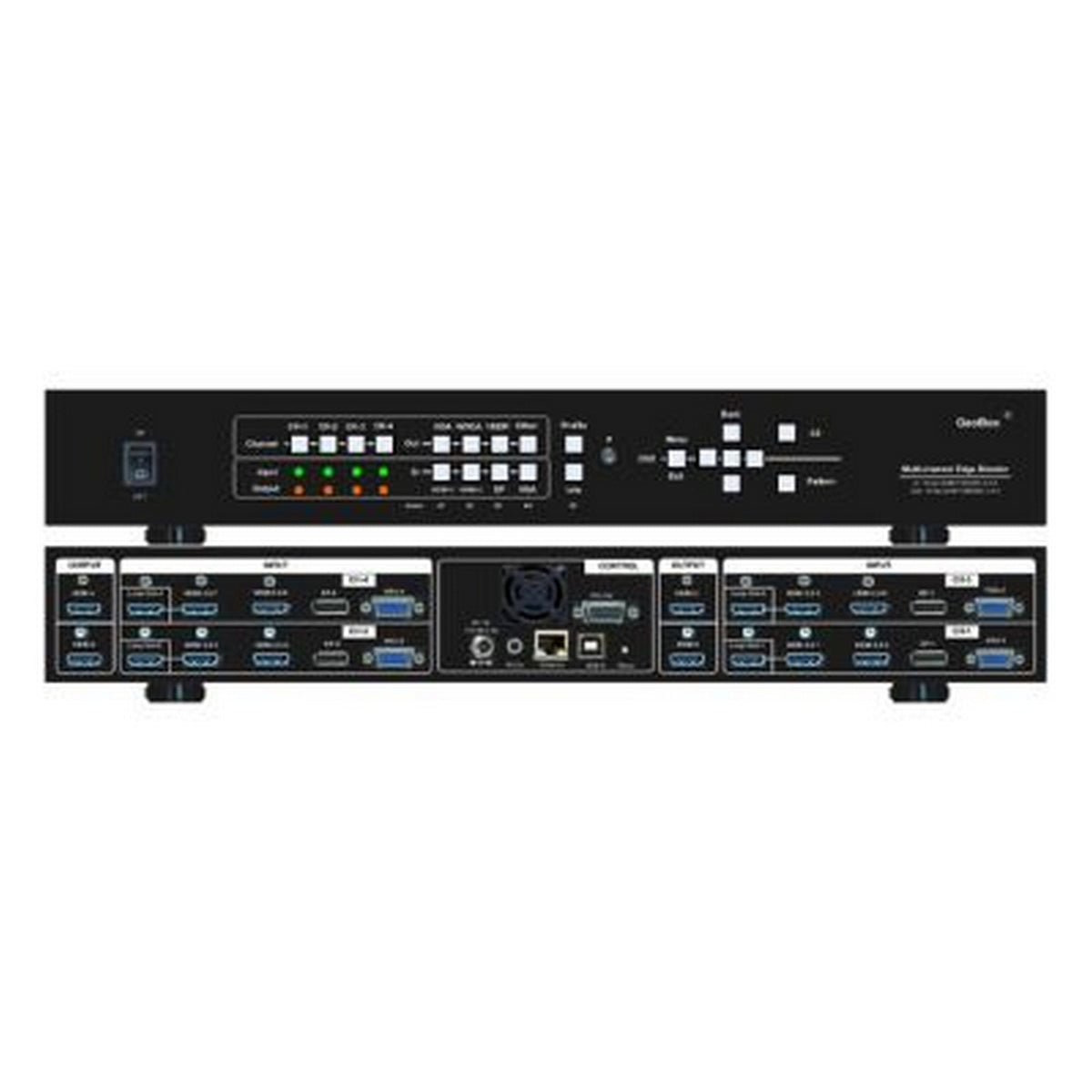

VigilLink M814 4-Channel 4K/2K Modular Edge Blending Processor

VigilLink M814 4-Channel 4K/2K Modular Edge Blending Processor

The VigilLink M814 4-Channel 4K/2K Modular Edge Blending Processor is a professional video processing system designed for seamless multi-projector displays, image warping, and immersive projection environments. Featuring four independent processing modules, support for 4K60 video inputs, and HDMI outputs up to 2048 x 1080 at 60Hz, the M814 controls four projectors from one chassis.

Designed for professional AV integrators, simulation facilities, museums, entertainment venues, and commercial projection installations, the M814 provides extensive control over complex multi-projector arrangements. Each processing module features two HDMI 2.0b inputs, one DisplayPort 1.2a input, and one VGA input, allowing integration with multiple video sources. Advanced image geometry correction aligns projected content across flat, curved, panoramic, and corner-wall surfaces. Four-direction edge blending combines overlapping projector images into continuous displays, while independent RGB gamma correction and black-level compensation help maintain consistent image appearance. The integrated video wall processor supports image splitting, cropping, scaling, and configurable overlap regions without requiring an external video splitter.

The M814 incorporates a 10-bit video processing engine with motion-adaptive deinterlacing, programmable EDID, HDR-to-SDR conversion, and synchronized output capabilities. Picture-in-Picture (PIP) and Picture-Outside-Picture (POP) functions support flexible multi-source presentations, with up to eight input contents displayed across the four-channel system. HDMI loop-through connections allow compatible GeoBox processors to be cascaded for larger installations. Front-panel controls, infrared operation, RS-232, USB, Ethernet, and the GeoBox Control Tool provide multiple configuration methods. Its compact professional chassis supports demanding installations requiring continuous operation and detailed projector alignment.

Key Features

• Four Independent Processing Channels: Controls up to four projectors simultaneously, providing dedicated image geometry, edge blending, and video processing adjustments for each channel.
• High-Resolution 4K Video Inputs: Accepts digital video signals up to 4096 x 2160 at 60Hz or 7680 x 2160 at 30Hz with 4:4:4 color sampling.
• Advanced Geometry Correction: Provides a 17 x 9 geometry control grid with 120 x 68 fine-adjustment capability for precise projection alignment on complex surfaces.
• Four-Direction Edge Blending: Combines overlapping projector images using adjustable blending regions, independent RGB gamma correction, and nine-region black-level compensation.
• Integrated Video Wall Processing: Supports image cropping, splitting, scaling, and overlap management without requiring additional video distribution hardware.
• Picture-in-Picture and Multi-Source Viewing: Supports PIP and POP configurations, allowing up to eight different input contents across the complete four-channel processor.
• Expandable HDMI Loop-Through: Provides dedicated HDMI 2.0b loop outputs for cascading compatible GeoBox processors in larger projection installations.
• Professional Control Options: Supports front-panel keypads, IR remote operation, RS-232, USB, Ethernet, WebGUI, and GeoBox Control Tool software.

Technical Specifications

General Specifications

• Brand: VigilLink
• Product Family: GeoBox M810 Series
• Model: M814
• Product Type: Modular Edge Blending and Video Processing System
• Processing Configuration: Quad-Module Processor
• Independent Processing Channels: 4
• Maximum Directly Controlled Projectors: 4
• Video Processing Architecture: 10-Bit
• Supported Applications: Multi-Projector Edge Blending, Image Warping, Simulation, Immersive Displays, and Video Walls
• Continuous Operation: Designed for 24/7 Operation

Video Input Specifications

• Total Video Input Connections: 16
• HDMI Inputs: 8 x HDMI 2.0b
• DisplayPort Inputs: 4 x DisplayPort 1.2a
• VGA Inputs: 4 x VGA
• Inputs per Processing Module: 2 x HDMI 2.0b, 1 x DisplayPort 1.2a, 1 x VGA
• Maximum Digital Input Resolution: 7680 x 2160 at 30Hz
• Ultra-Wide Input Resolution: 7680 x 1200 at 60Hz
• 4K Input Resolution: 4096 x 2160 at 60Hz
• Supported Input Signal Types: Progressive and Interlaced RGB/YUV
• Input Chroma Sampling: 4:4:4
• Maximum Input Color Depth: 30 Bits
• HDMI Input HDCP: HDCP 2.2 / 1.4
• DisplayPort Input HDCP: HDCP 1.3
• Non-VESA Input Timing: Supported
• Programmable EDID: Supported
• Programmable EDID Horizontal Range: 1024-3840 Pixels
• Programmable EDID Vertical Range: 720-2400 Pixels

Video Output Specifications

• Primary Video Outputs: 4 x HDMI 1.4
• HDMI Loop-Through Outputs: 4 x HDMI 2.0b
• Total HDMI Output Connections: 8
• Independently Processed Outputs: 4
• Maximum Primary Output Resolution: 2048 x 1080 at 60Hz
• WUXGA Output: 1920 x 1200 at 60Hz
• Selectable Output Timings: 15
• Output Signal Format: Progressive RGB 4:4:4
• Output HDCP: HDCP 1.4
• Processing Latency: Approximately 2 Frames / 33 ms at 60Hz
• HDMI Loop-Through: Supports Cascading Compatible GeoBox Processors
• Multi-Unit Expansion: Supported
• Frame Lock: Supported
• Free-Run Output Mode: Supported

Geometry Correction and Image Warping

• Geometry Correction: Advanced Multi-Point Image Warping
• Geometry Control Grid: 17 x 9 Control Points
• Fine Geometry Adjustment: 120 x 68 Grid Position Adjustment
• Control Point Adjustment Precision: 1/4 Pixel per Step
• Control Point Adjustment Range: Up to 12.5 Pixels
• Maximum Geometry Adjustment Range: 600 Pixels Horizontally and Vertically
• Corner Alignment: Supported
• Keystone Correction: Supported
• Linearity Grid Line Adjustment: Supported
• Corner Wall Geometry: W-Shaped Horizontal and V-Shaped Vertical Adjustment
• Maximum Corner Wall Adjustment: 1200 Pixels
• Image Rotation: 90, 180, and 270 Degrees
• Image Flipping: Supported
• Portrait Projection: Supported
• Independent Image Cropping: Supported
• Independent Image Scaling: Supported
• Real-Time Geometry Adjustment: Supported

Edge Blending and Color Management

• Edge Blending: Four-Direction
• Maximum Horizontal Blend Overlap: 1920 Pixels
• Maximum Vertical Blend Overlap: 1200 Pixels
• Independent RGB Gamma Correction: Supported
• Independent Output Color Correction: Supported
• White Balance Adjustment: Supported
• Black-Level Compensation: 9 Adjustable Regions
• Geometry-Based Edge Masking: Up to 500 Pixels
• Adjustable Edge Mask: 8 Control Points with Up to 900-Pixel Adjustment
• Selectable Grid Pattern Size: 8-120 Pixels
• Selectable Grid Pattern Colors: Supported
• Grid Pattern Transparency: Adjustable
• Independent Channel Color Management: Supported

Picture-in-Picture and Multi-Source Functions

• Picture-in-Picture: Supported
• Picture-Outside-Picture: Supported
• Maximum PIP Window Resolution: 1920 x 1200
• Minimum PIP Window Resolution: 320 x 180
• PIP Window Positioning: Adjustable
• PIP Aspect Ratio: Adjustable
• POP Layout: Side-by-Side
• Maximum Input Contents Displayed: 8 Across Four Processing Channels
• Multi-PC Source Integration: Supported
• Video Wall Image Allocation: Supported
• PIP Limitation: Unavailable When the Main Image Uses 90- or 270-Degree Rotation

Video Processing Functions

• Internal Video Processing: 10-Bit
• Motion-Adaptive Deinterlacing: 3D Motion Adaptive
• Low-Angle Smoothing: Supported
• 3:2 Pulldown: Supported
• 2:2 Pulldown: Supported
• Deep Color Processing: 8/10/12-Bit
• xvYCC Color Support: Supported
• HDR Input Processing: Supported
• HDR-to-SDR Conversion: Supported
• Video Scaling: Integrated Scaling Engine
• Aspect Ratio Adjustment: Supported
• Frame Synchronization: Supported

Control and Management

• Front-Panel Controls: Integrated Keypads
• Infrared Remote Control: Supported
• RS-232 Control: Supported
• USB Control: Supported
• Ethernet Control: Supported
• Web-Based Management: WebGUI
• PC Configuration Software: GeoBox Control Tool (GCT)
• Maximum Recallable System Presets: 5
• Configuration Backup: Supported Through PC
• Configuration Transfer: Supported Between Compatible Units

Electrical Specifications

• Power Supply Requirement: 12V DC, 3.3A
• Maximum Power Consumption: 28.8W
• Electrostatic Discharge Protection: +/-15 kV Air Discharge, +/-8 kV Contact Discharge

Physical Specifications

• Chassis Dimensions (L x W x H): 17.3" x 7.5" x 2.3"
• Dimensions Including Protruding Components: 17.3" x 7.9" x 2.7"
• Chassis Weight: 6.2 lb
• Chassis Configuration: Four Processing Modules in One Enclosure

Environmental Specifications and Compliance

• Maximum Specified Operating Temperature: 113 Degrees Fahrenheit
• Operating Humidity: 10-90% RH
• Certifications and Compliance: CE, FCC, RoHS
