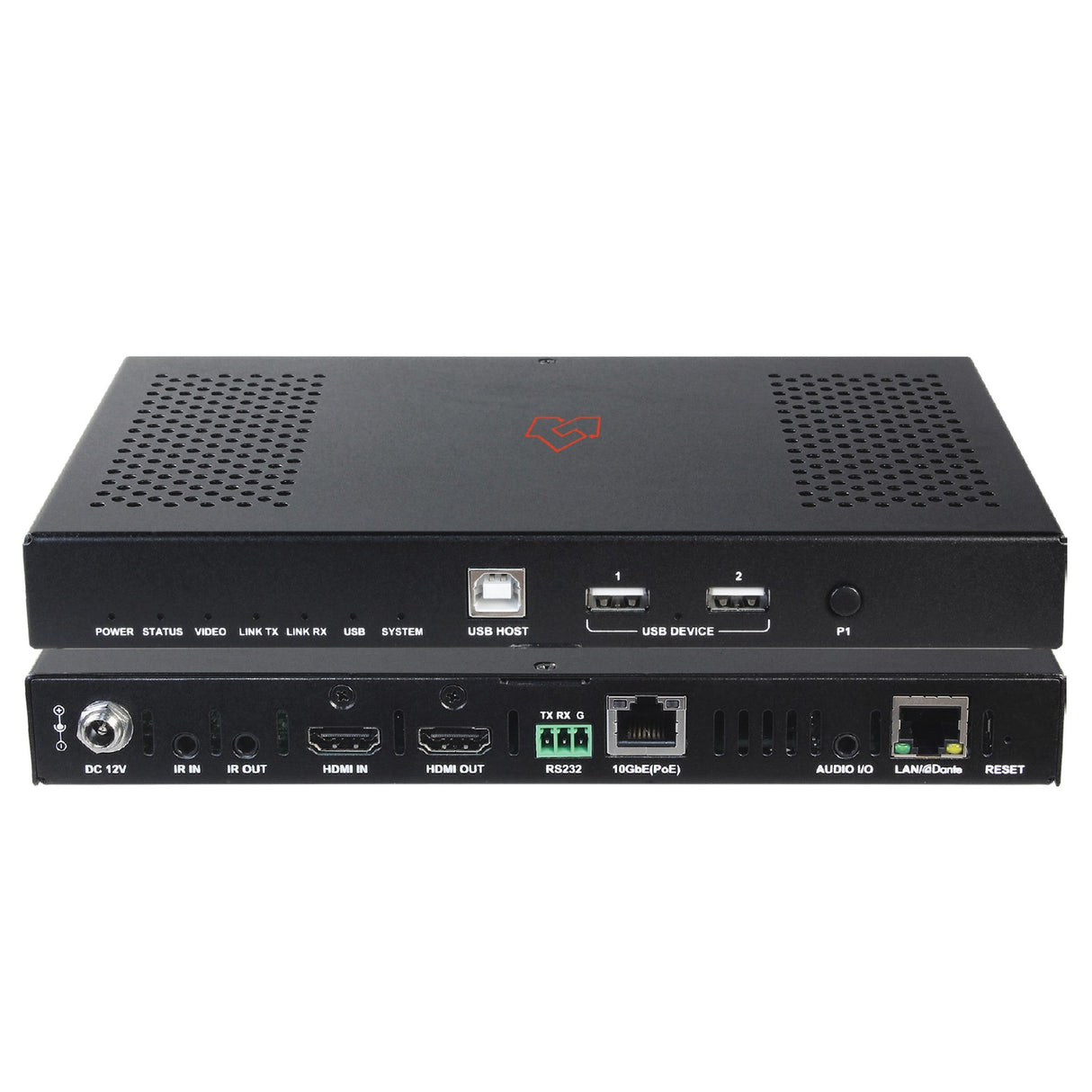

SDVoE 10G HDMI 4K60 4:4:4 over IP w/Videowall and Multiview with Icron USB 2.0 and Dante Copper Transceiver

The VLIP-SDUDCP-TRX is a cutting-edge video/audio control system designed for seamless integration into a wide variety of professional setups. Whether you’re managing video distribution or controlling complex audio signals, this device delivers top-notch performance with an array of connectivity options. It supports HDMI 2.0, 10GBase-T, and 10GBase-SR for both video and Ethernet inputs, providing flexibility for high-quality signal processing. Additionally, it allows for unbalanced stereo audio input, making it an ideal choice for modern AV installations and broadcast systems.

This device is engineered for high-resolution video support and high-fidelity audio transmission. It can handle multiple video resolutions, from standard 480p up to 4K UHD, ensuring compatibility with a wide range of devices. The audio capabilities are equally impressive, supporting formats like LPCM, Dolby True HD, and DTS-HD Master Audio. With multiple outputs, including HDMI 2.0, unbalanced stereo audio, and Dante audio, the VLIP-SDUDCP-TRX ensures you can meet the demands of any AV system with ease and precision.

Beyond its video and audio capabilities, the VLIP-SDUDCP-TRX offers convenient control options via Ethernet or RS232. The built-in PC configurator allows for straightforward management of settings, upgrades, and testing. With a robust power supply and an ultra-compact design, this unit is perfect for environments where space is limited but high performance is a must. Its environmental protections, including wide operating temperature ranges and ESD protection, make it reliable for both fixed installations and mobile setups.

Key Features:

• Supports multiple video resolutions including 4K UHD and 1080p.
• High-quality audio support for LPCM, Dolby True HD, DTS-HD Master Audio.
• Multiple input/output options: HDMI 2.0, unbalanced stereo audio, 10GBase-T/10GBase-SR, and Dante audio.
• PC configurator for easy configuration, control, and upgrading via Ethernet/RS232.
• Compact design, ideal for installations where space is limited.
• Energy-efficient power supply (12V DC converter with lock).

Technical Specifications:

Dimensions: 5.51" x 8.46" x 0.98" (L x W x H)
Operating Temperature: 32°F to +104°F (0°C to +40°C), 10% to 90%, non-condensing
Storage Temperature: -4°F to +158°F (-20°C to +70°C), 10% to 90%, non-condensing
Humidity: 10% to 90%, non-condensing
Product Weight: To be measured
Power Supply: 12V DC converter (with lock) with US pin
Transport Distance: 328 feet (100m)
ESD Protection: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

VIDEO/AUDIO

• Input Connectors: 1 x HDMI 2.0, 1 x Unbalanced stereo audio, 1 x 10GBase-T/1 x 10GBase-SR
• Supported Input Video Resolutions: 640x480, 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1440x1050, 1600x1200, 720x480 (480i59, 480p59), 720x576 (576i50, 576p50), 1280x720 (720p50, 720p59, 720p60), 1920x1080 (1080i50, 1080i59, 1080i60, 1080p23, 1080p24, 1080p25, 1080p29, 1080p30, 1080p50, 1080p59, 1080p60), 3840x2160 (2160p23, 2160p24, 2160p25, 2160p29, 2160p30, 2160p60), 4096x2160
• Supported Audio: LPCM (2.0/5.1/7.1 channel, 44.1/48/96/192 kHz), Dolby True HD (up to 7.1, 192 kHz), DTS-HD Master (up to 7.1, 192 kHz), Dolby Digital AC-3 (DVD format), DTS version 1 (DVD format)

Output Connectors

• Output Connectors: 1 x HDMI 2.0, 1 x Unbalanced stereo audio, 1 x 10GBase-T/1 x 10GBase-SR, 1 x Dante, GbE
• Supported Output Video Resolutions: Same as input video resolutions listed above
• Supported Audio Formats: Same as input audio formats listed above
• Dante Audio: Two channels PCM

Control

• Ethernet: PC Configurator for configuring, controlling, and upgrading
• RS232: PC Configurator for testing and upgrading

What's Included:

• VLIP-SDUDCP-TRX Control Unit
• User Manual
• 12V DC Power Supply (with lock) and US Pin
