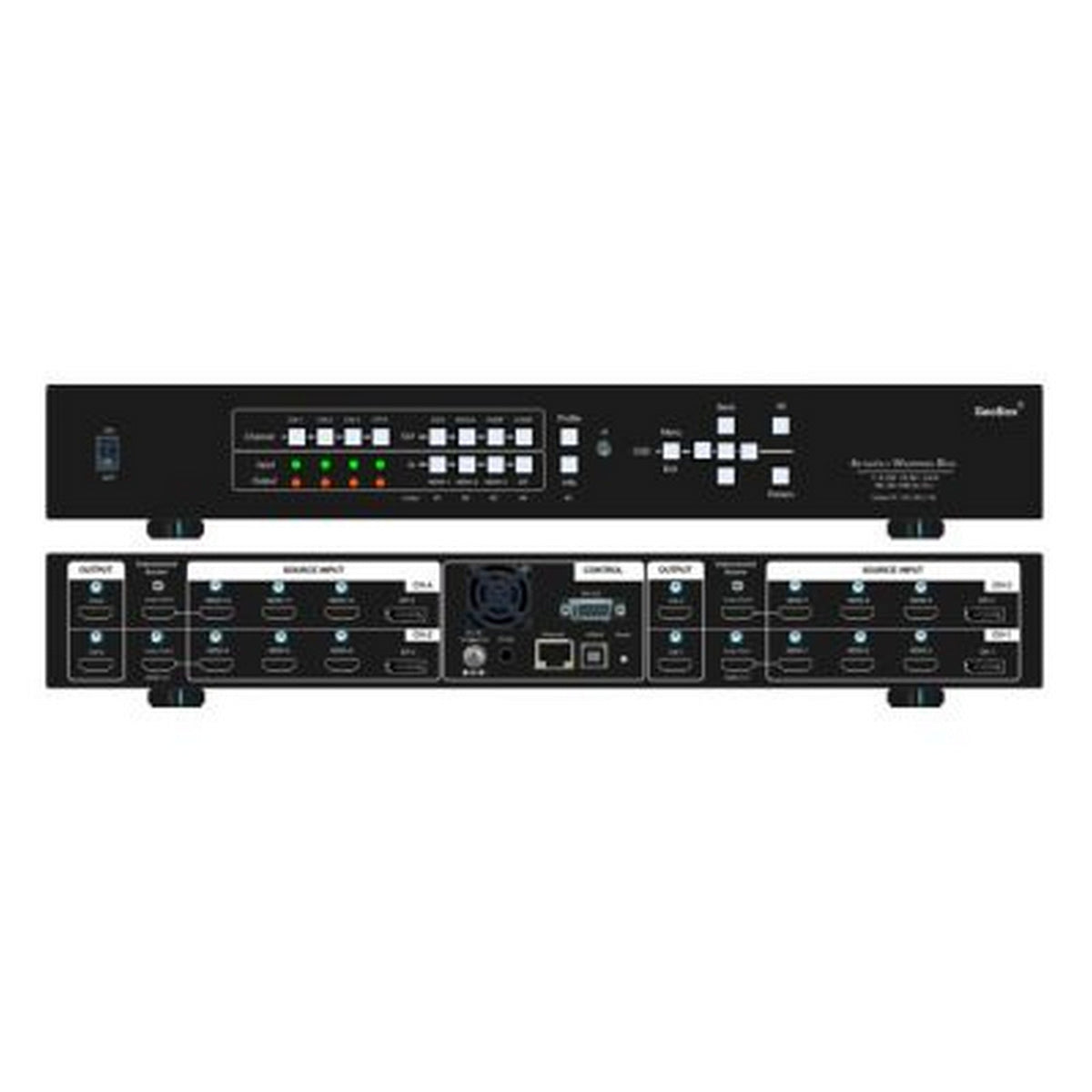

VigilLink UD104 4-Channel 4K Edge Blending Processor with Multiviewer

VigilLink UD104 4-Channel 4K Edge Blending Processor with Multiviewer

The VigilLink UD104 4-Channel 4K Edge Blending Processor with Multiviewer is a professional video processing system designed for seamless multi-projector displays. Featuring four independent processing channels, support for input resolutions up to 7680 x 4320 at 30Hz through DisplayPort, and 4K60 HDMI outputs, it combines advanced geometric correction, edge blending, and multi-source viewing capabilities.

Designed for AV integrators, simulation facilities, museums, entertainment venues, and immersive projection installations, the UD104 enables precise alignment of up to four 4K projectors. Each processing channel provides three HDMI 2.0b inputs and one DisplayPort 1.4 input, allowing flexible integration with professional video sources. Advanced image warping corrects geometric distortions on flat, curved, and 360-degree projection surfaces, while edge blending creates continuous images across overlapping projector outputs. The integrated multiviewer supports picture-in-picture (PIP), picture-outside-picture (POP), and multiple split-screen configurations. Whether creating an immersive simulation environment, configuring a panoramic projection system, or installing a large-scale video wall, the UD104 provides independent control over image geometry, color, and source allocation.

The UD104 incorporates 10-bit video processing, motion-adaptive deinterlacing, programmable EDID, and independent RGB gamma correction for precise image adjustments. Its four processing modules provide dedicated HDMI outputs and loop-through connections for cascading additional GeoBox processors. Front-panel controls, infrared remote operation, RS-232, USB, and Ethernet management enable flexible system configuration. With a compact professional chassis measuring 17.3" x 7.5" x 2.3", the UD104 integrates into demanding commercial AV environments while providing extensive control over multi-projector image alignment and presentation.

Key Features

• Four Independent Processing Channels: Controls up to four 4K projectors from a single chassis, providing dedicated video processing, geometry correction, and output management for each channel.
• High-Resolution HDMI and DisplayPort Inputs: Features 12 HDMI 2.0b inputs and four DisplayPort 1.4 inputs across four processing modules, supporting high-resolution professional video sources.
• Advanced 4K Edge Blending: Combines overlapping projector images into continuous displays with adjustable blending regions, independent RGB gamma correction, and black-level compensation.
• Precision Geometry Correction: Supports image warping, corner alignment, and adjustable control points for flat, curved, panoramic, and 360-degree projection surfaces.
• Integrated 16-Source Multiviewer: Displays up to 16 different input sources across four projector outputs using configurable PIP, POP, and split-screen layouts.
• 4K60 HDMI Output: Delivers resolutions up to 4096 x 2160 at 60Hz with RGB 4:4:4 color sampling for detailed professional projection applications.
• Expandable Multi-Projector Systems: Provides dedicated HDMI loop-through outputs for cascading compatible GeoBox processors and expanding beyond four projectors.
• Comprehensive Control Options: Supports front-panel keypads, IR remote, RS-232, USB, and Ethernet control for professional installation and system management.

Technical Specifications

General Specifications

• Brand: VigilLink
• Product Family: GeoBox UD100 Series
• Model: UD104
• Distributor SKU: VigilLink-UD104
• Product Type: 4K Edge Blending Processor with Multiviewer
• Processing Channels: 4
• Processing Modules: 4 Independent Modules
• Maximum Directly Controlled Projectors: 4
• Video Processing: 10-Bit
• Supported Applications: Multi-Projector Edge Blending, Image Warping, Immersive Projection, Simulation, and Video Walls

Video Input Specifications

• Total Video Inputs: 16
• HDMI Inputs: 12 x HDMI 2.0b
• DisplayPort Inputs: 4 x DisplayPort 1.4
• Inputs per Processing Channel: 3 x HDMI 2.0b and 1 x DisplayPort 1.4
• Maximum DisplayPort Input Resolution: 7680 x 4320 at 30Hz
• Maximum HDMI Input Resolution: 7680 x 2160 at 30Hz
• Additional HDMI Input Resolution: 7680 x 1200 at 60Hz
• Additional HDMI Input Resolution: 4096 x 2400 at 50Hz
• 4K HDMI Input Resolution: 4096 x 2160 at 60Hz
• Supported Input Signals: Progressive and Interlaced RGB/YUV
• Chroma Sampling: Up to 4:4:4
• Input Color Depth: Up to 30 Bits
• HDMI Input HDCP: HDCP 2.2 / 1.4
• DisplayPort Input HDCP: HDCP 1.3
• Input Switching: Seamless Switching Within Each Processing Module
• EDID Management: Programmable
• Non-VESA Timing Support: Supported

Video Output Specifications

• Primary Video Outputs: 4 x HDMI 2.0
• Loop-Through Outputs: 4 x HDMI 2.0b
• Total HDMI Output Connections: 8
• Maximum Primary Output Resolution: 4096 x 2160 at 60Hz
• Output Chroma Sampling: RGB 4:4:4
• Output Signal Type: Progressive
• Output HDCP: HDCP 2.0 / 1.4
• System Processing Latency: Approximately 2 Frames, 33 ms at 60Hz
• HDMI Loop-Through Functions: Audio, Monitoring, and Multi-Unit Cascading
• Multi-Projector Expansion: Supported Through Compatible GeoBox Processor Cascading

Edge Blending and Geometry Correction

• Edge Blending: Supported Across Four Processing Channels
• Supported Projection Surfaces: Flat, Curved, and 360-Degree Screens
• Geometry Alignment: Multi-Point Image Warping
• Geometry Control Grid: Up to 17 x 9 Control Points
• Corner Alignment: Supported
• Edge Overlap Adjustment: Supported
• Independent RGB Gamma Correction: Supported
• Independent Output Color Correction: Supported
• Black-Level Compensation: 9 Adjustable Regions
• Image Cropping: Supported
• Image Scaling: Supported
• Image Rotation: 90, 180, and 270 Degrees
• Image Flipping: Supported
• Portrait Projection: Supported
• Real-Time Geometry Adjustment: Supported
• Video Wall Image Allocation: Supported

Multiviewer Specifications

• Integrated Multiviewer: Yes
• Maximum Simultaneously Displayed Input Sources: 16 Across Four Processing Channels
• Picture-in-Picture: Supported
• Picture-Outside-Picture: Supported
• Split-Screen Modes: 2, 3, and 4-Way Configurations
• Minimum PIP Window Resolution: 320 x 180
• Maximum PIP Window Resolution: 1920 x 1200
• PIP Window Positioning: Adjustable
• Source Allocation: Independent Processing Channel Configuration

Video Processing Functions

• Video Processing Bit Depth: 10-Bit
• Motion-Adaptive Deinterlacing: Supported
• Low-Angle Smoothing: Supported
• 3:2 Pulldown: Supported
• 2:2 Pulldown: Supported
• Input Timing Optimization: Programmable EDID
• Independent Color Adjustment: Supported Per Output
• Multi-Unit Synchronization: Supported

Control and Management

• Front-Panel Controls: Integrated Keypads and On-Screen Display Controls
• Infrared Control: Supported
• RS-232 Control: Supported
• USB Control: Supported
• Ethernet Control: Supported
• Web-Based Management: WebGUI
• System Configuration: Independent Channel Adjustment
• Configuration Backup: Computer-Based Backup and Restoration

Electrical Specifications

• Power Supply Requirement: 12V DC
• UD104 Operating Current: 4.1A
• Maximum Power Consumption: 49.2W

Physical Specifications

• Chassis Dimensions (L x W x H): 17.3" x 7.5" x 2.3"
• Chassis Weight: 6.4 lb
• Construction: Professional Desktop Video Processing Chassis
• Processing Module Configuration: Four Channels in One Enclosure

Environmental Specifications and Compliance

• Operating Humidity: 10-90% Relative Humidity
• Certifications and Compliance: CE, FCC, RoHS
