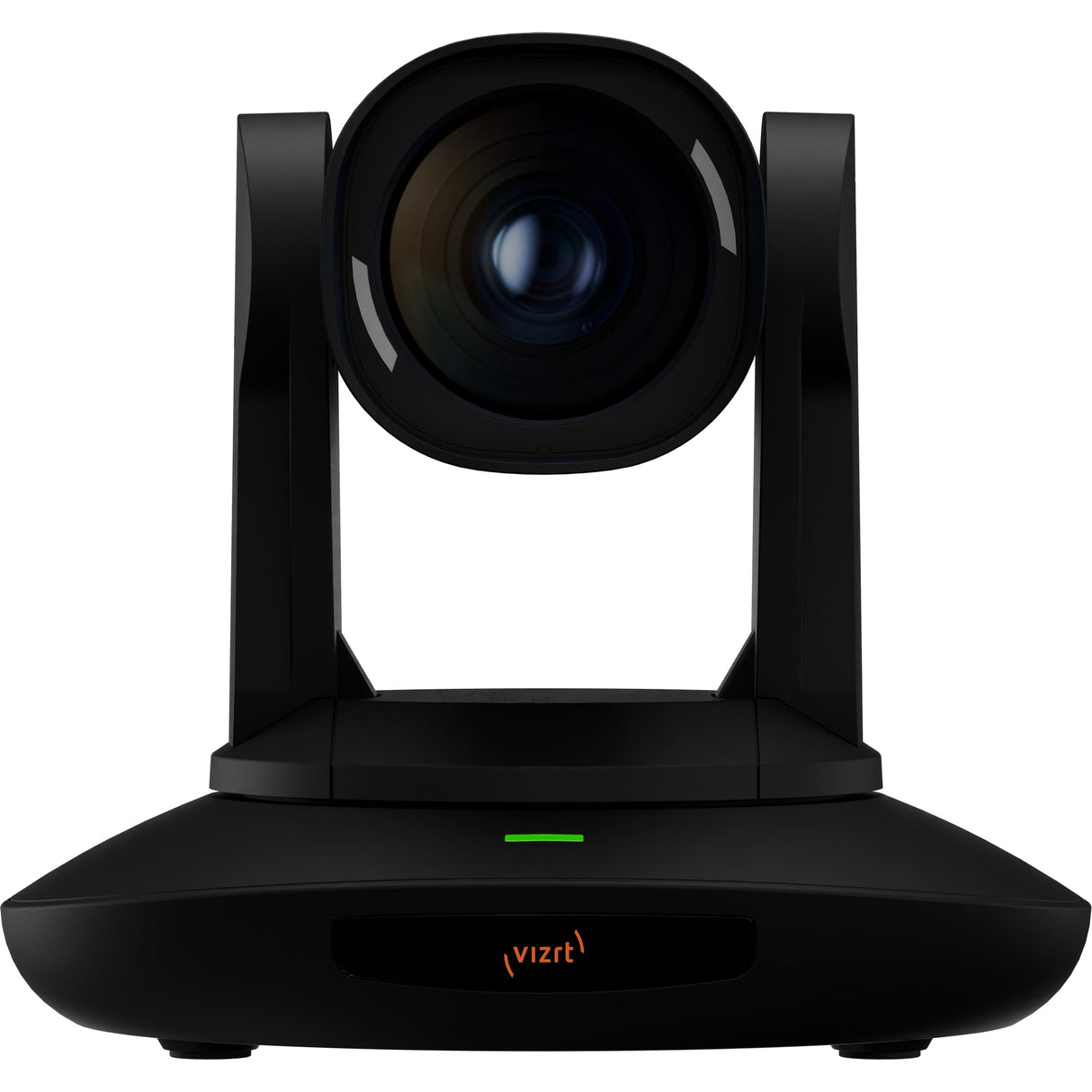

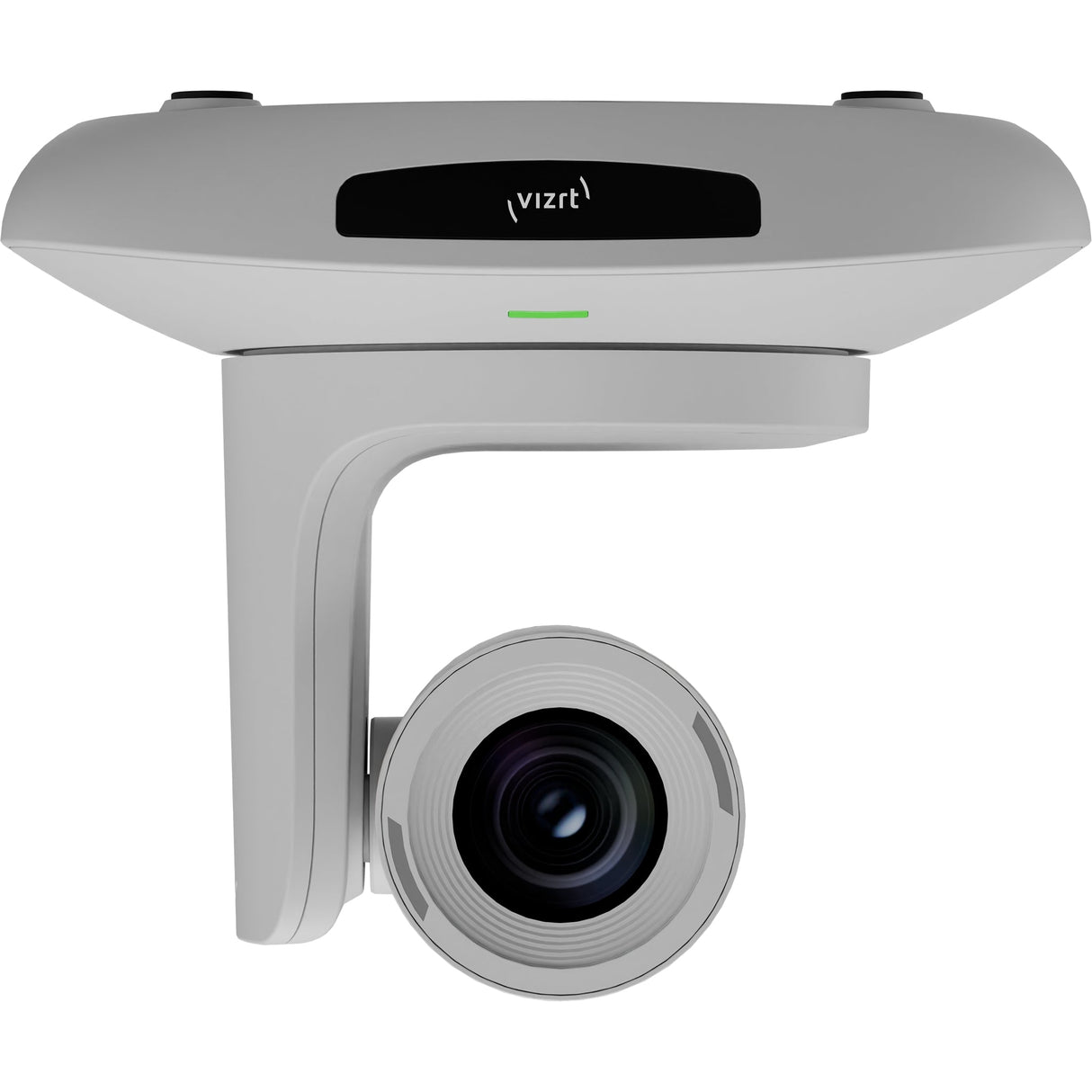

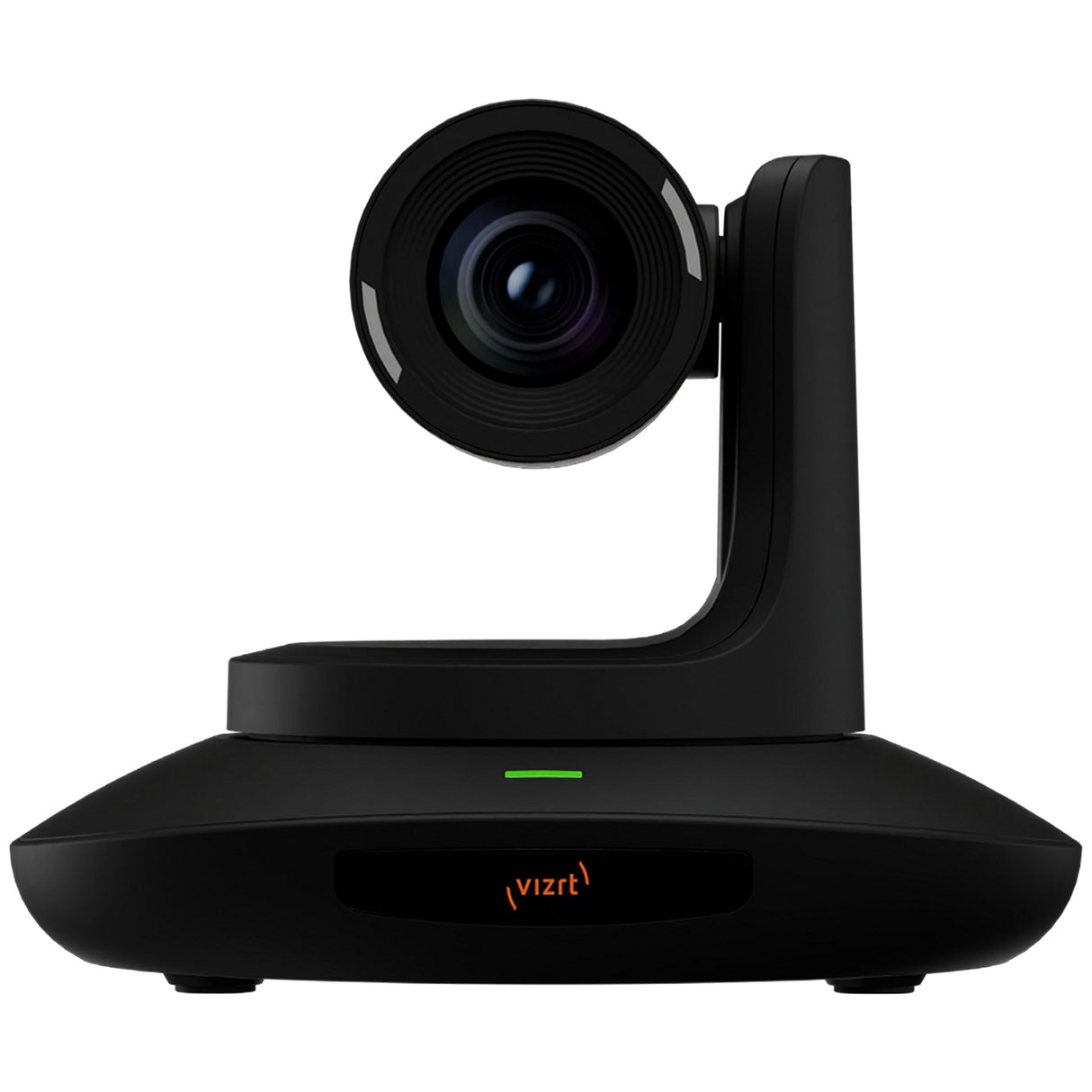

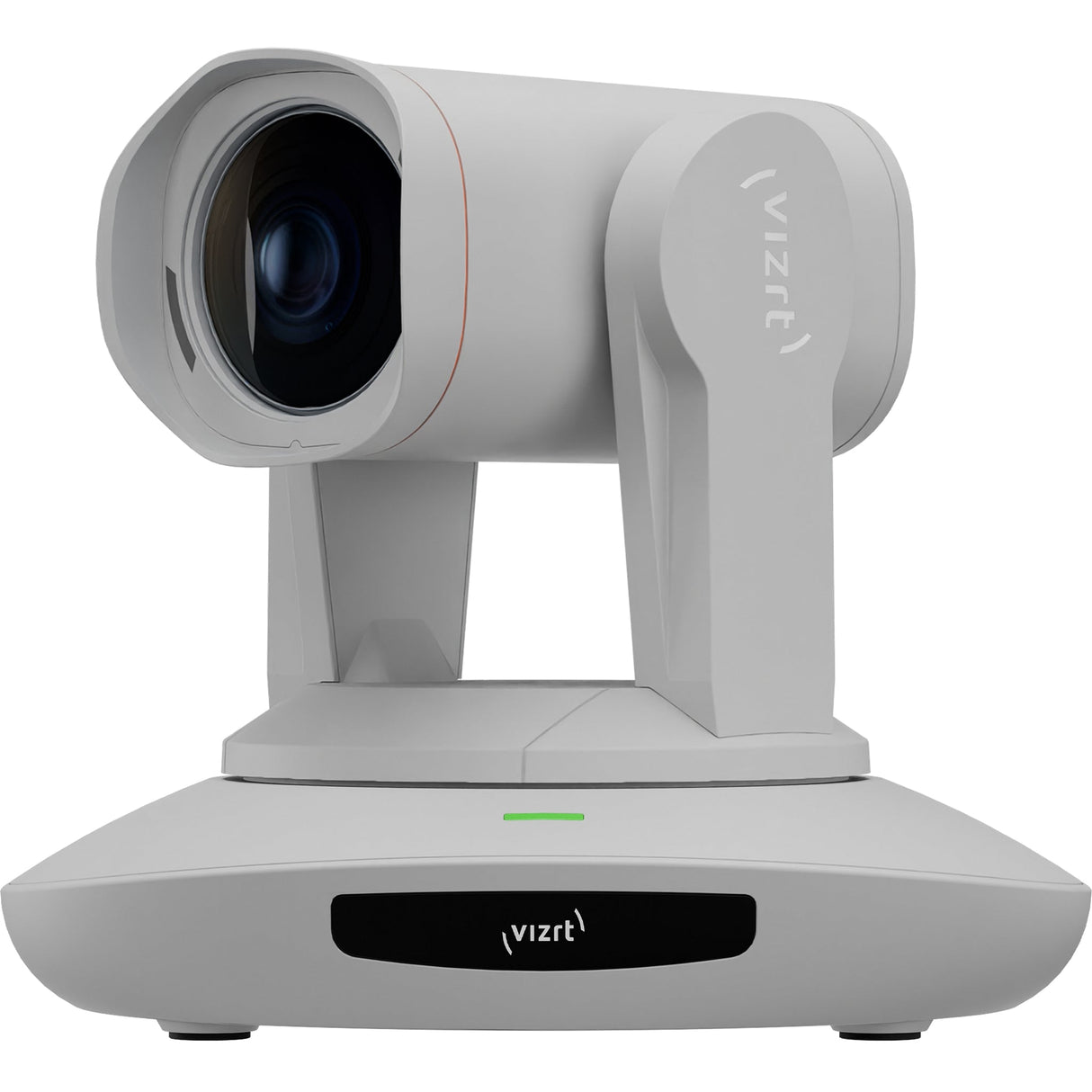

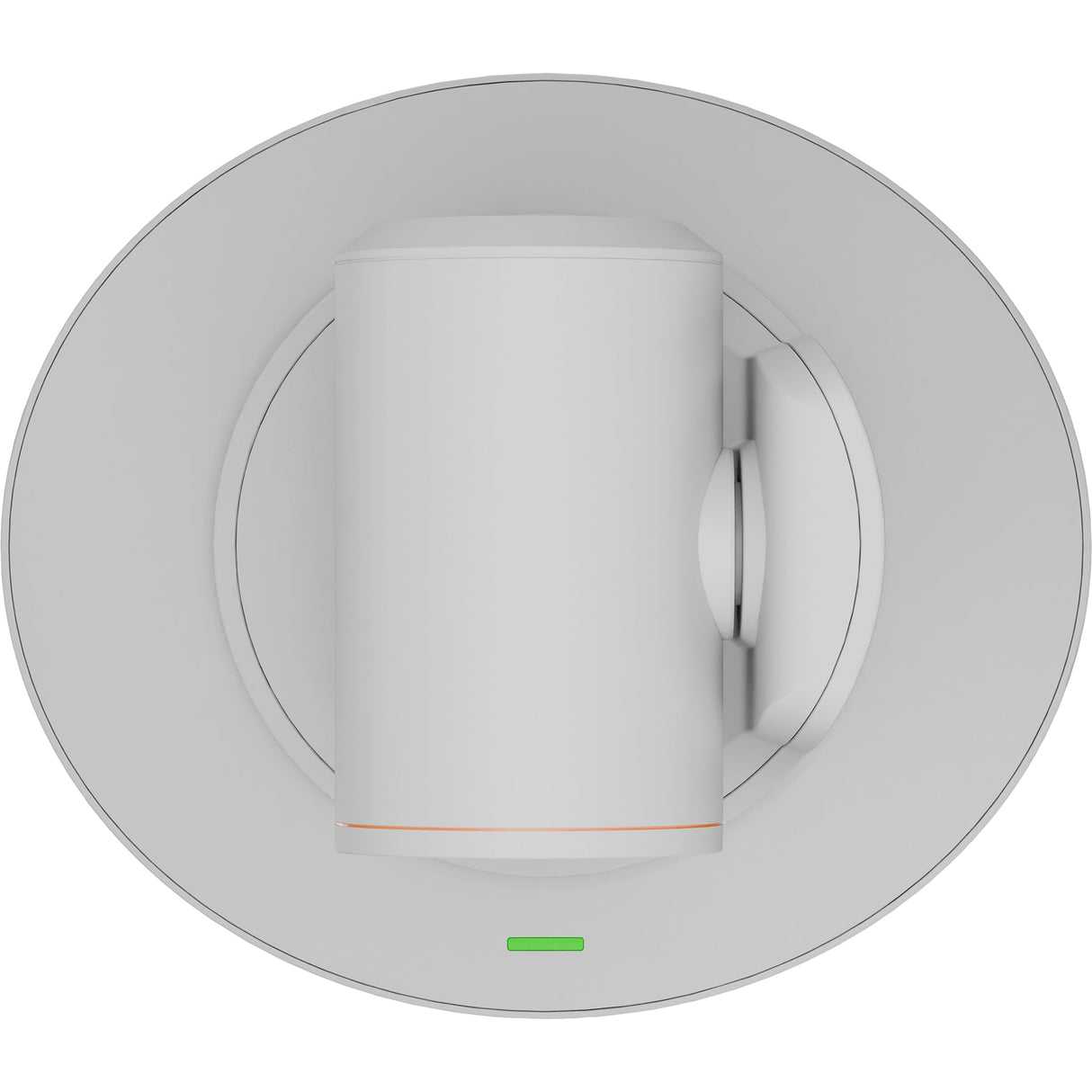

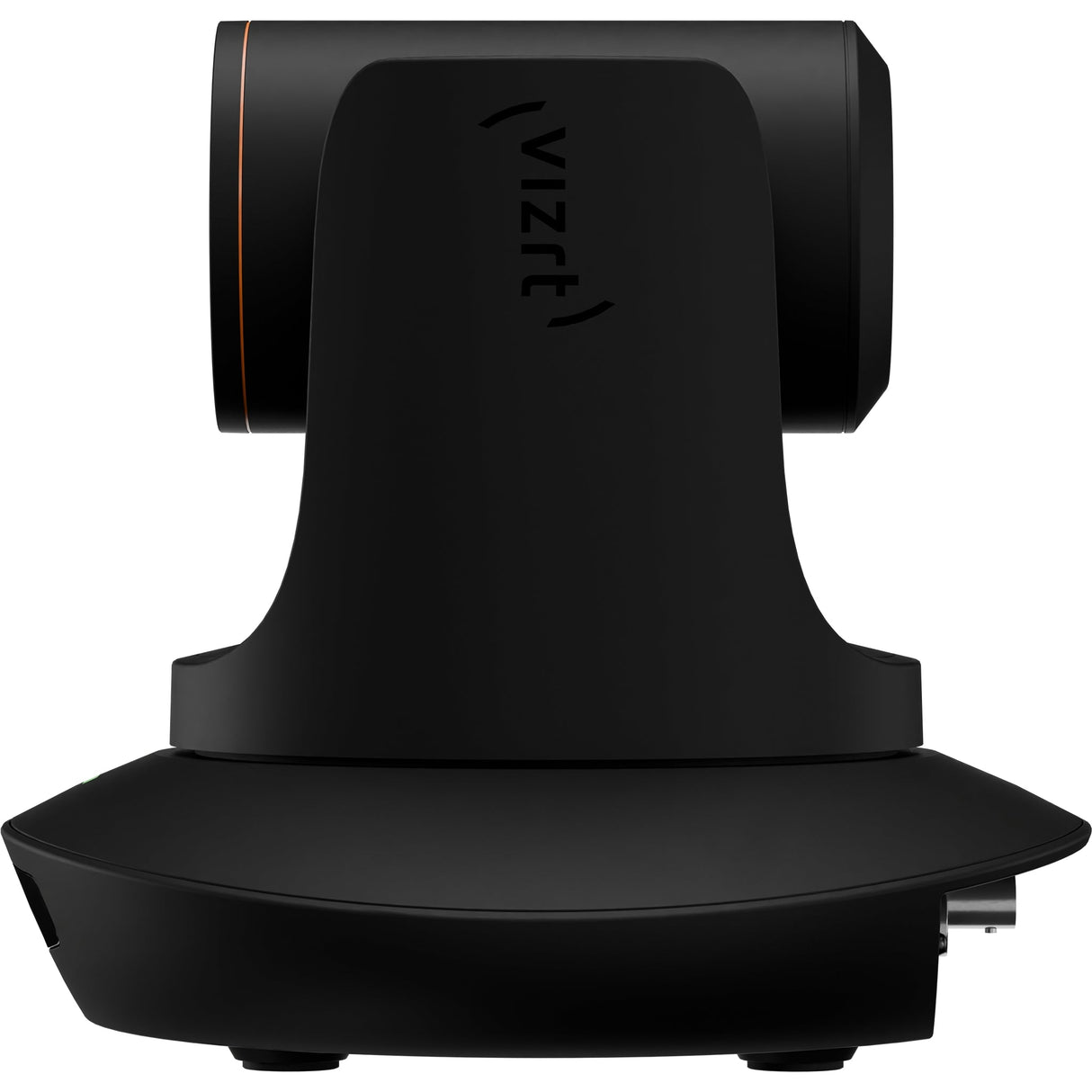

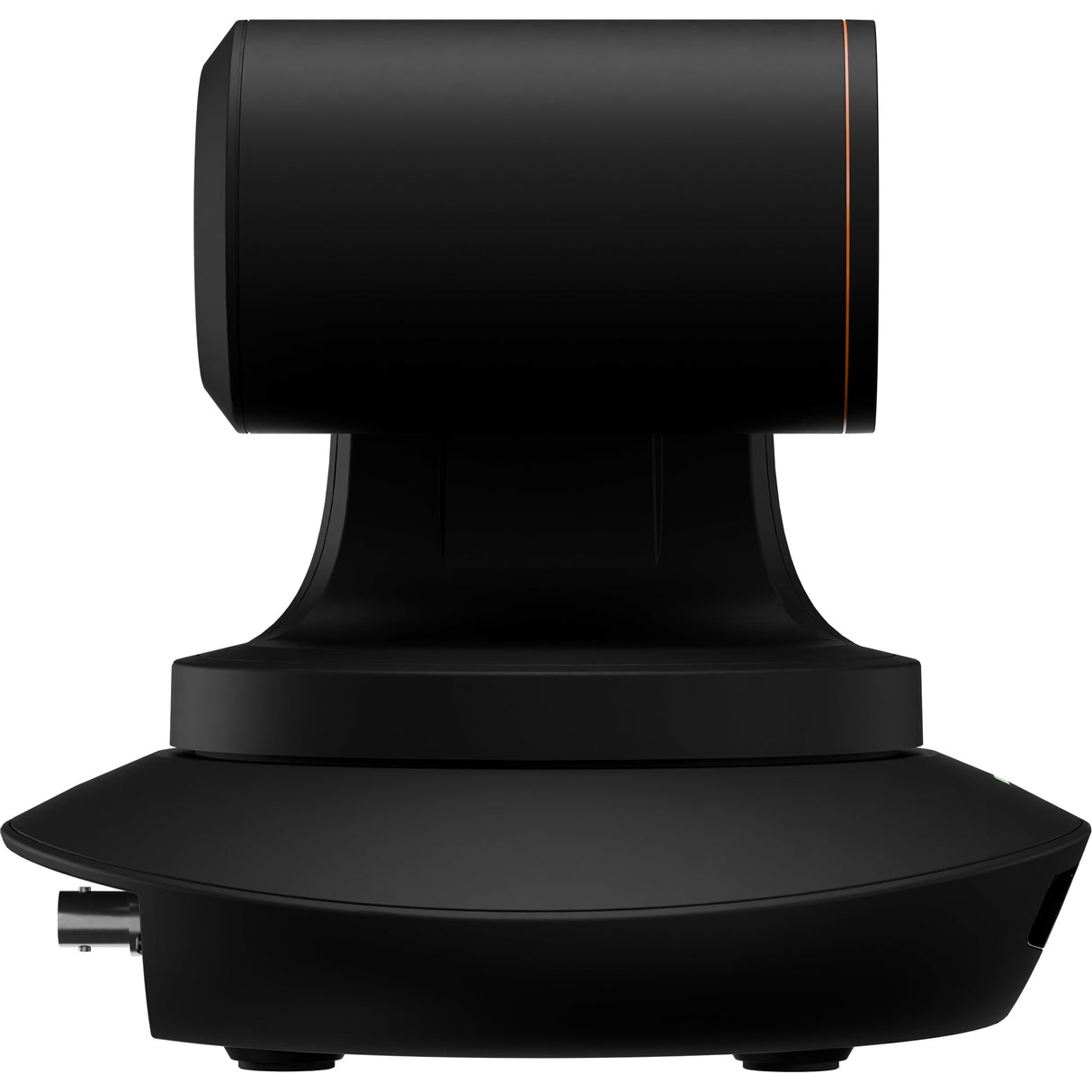

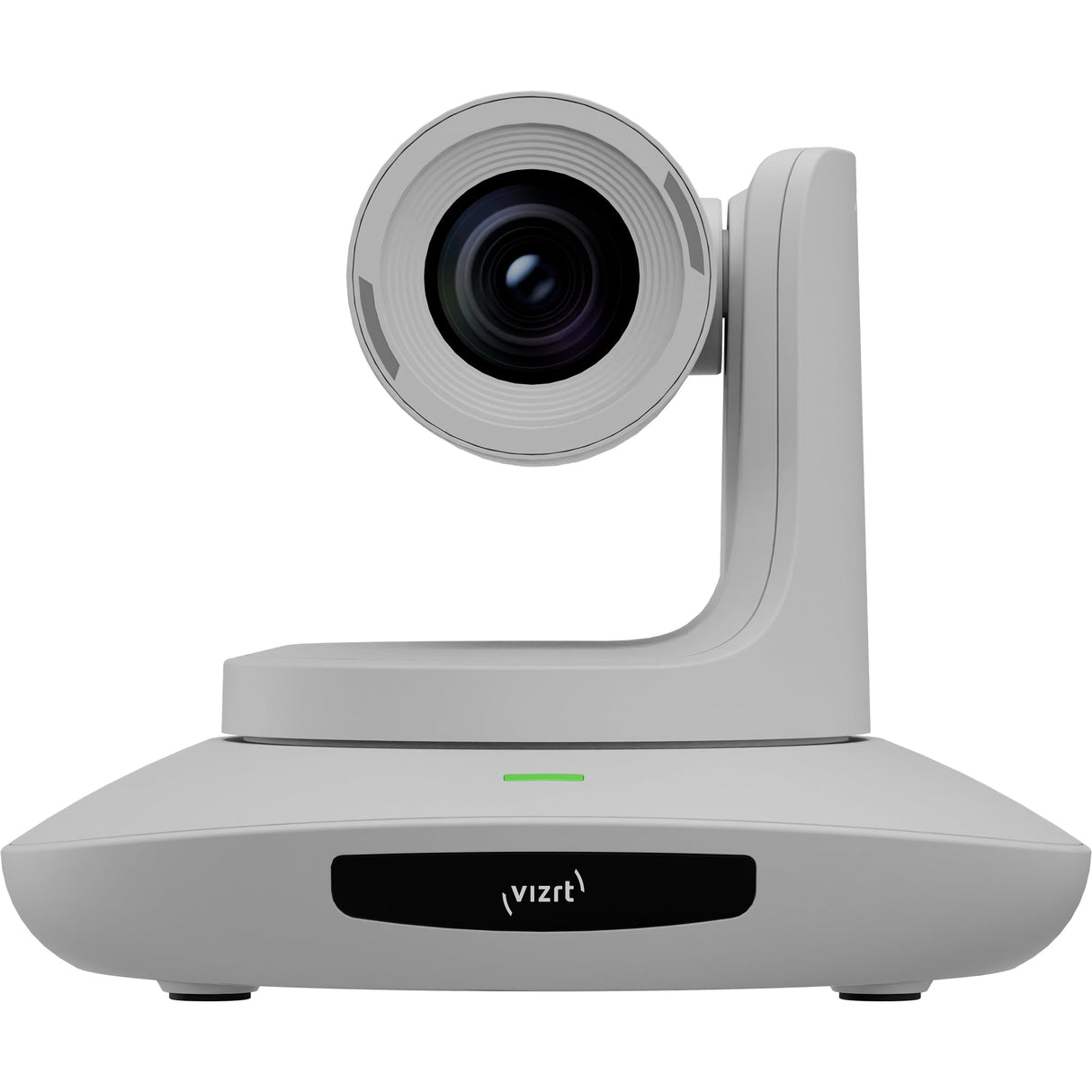

Vizrt PTZ3 PLUS 20x FHD / 30x UHD PTZ Cameras

Elevate your productions with stunning HD or UHD visuals, smooth 20-30x zoom, and exceptional low-light performance. The Vizrt PTZ3 PLUS 20x FHD / 30x UHD PTZ Cameras deliver broadcast-quality video and crystal-clear audio thanks to phantom power. Plus, intelligent features like AI presenter tracking keep your subject in focus automatically. This innovative technology, combined with world-first FreeD tracking data embedded via NDI|HX, simplifies AR/VR integration for next-level productions.

PTZ3 PLUS cameras are perfect for live streaming, corporate events, and capturing live experiences. NDI connectivity allows for seamless integration into your network, while embedded FreeD tracking data empowers you to create dynamic augmented reality and virtual reality experiences with ease. With PTZ3 PLUS, you'll be producing professional-looking content in no time, leaving a lasting impression on your audience.

Effortless Superiority in Image Quality and Performance, HD or UHD 4K resolution with 20-30x optical zoom: Capture every detail, from wide establishing shots to close-ups, in stunning clarity. Whether you're live streaming a conference or recording a lecture, these PTZ cameras deliver exceptional image quality that will impress your audience.

Key Features

• Exceptional video quality: Choose between HD or UHD 4K resolution.
• Powerful zoom: Get close to the action with 20-30x optical zoom.
• Superb low-light performance: Capture clear images in dimly lit environments.
• Professional audio: Connect microphones for high-quality audio with phantom power.
• AI presenter tracking: Automatically keep your presenter in frame.
• FreeD tracking data embedded over NDI|HX: Simplify AR/VR setups.
• Intuitive software control: Manage video, audio, tracking, and devices from one panel.
• Discreet design: Blend into any environment with a sleek, low-profile body.
• NDI connectivity: Easy setup and integration with your network.

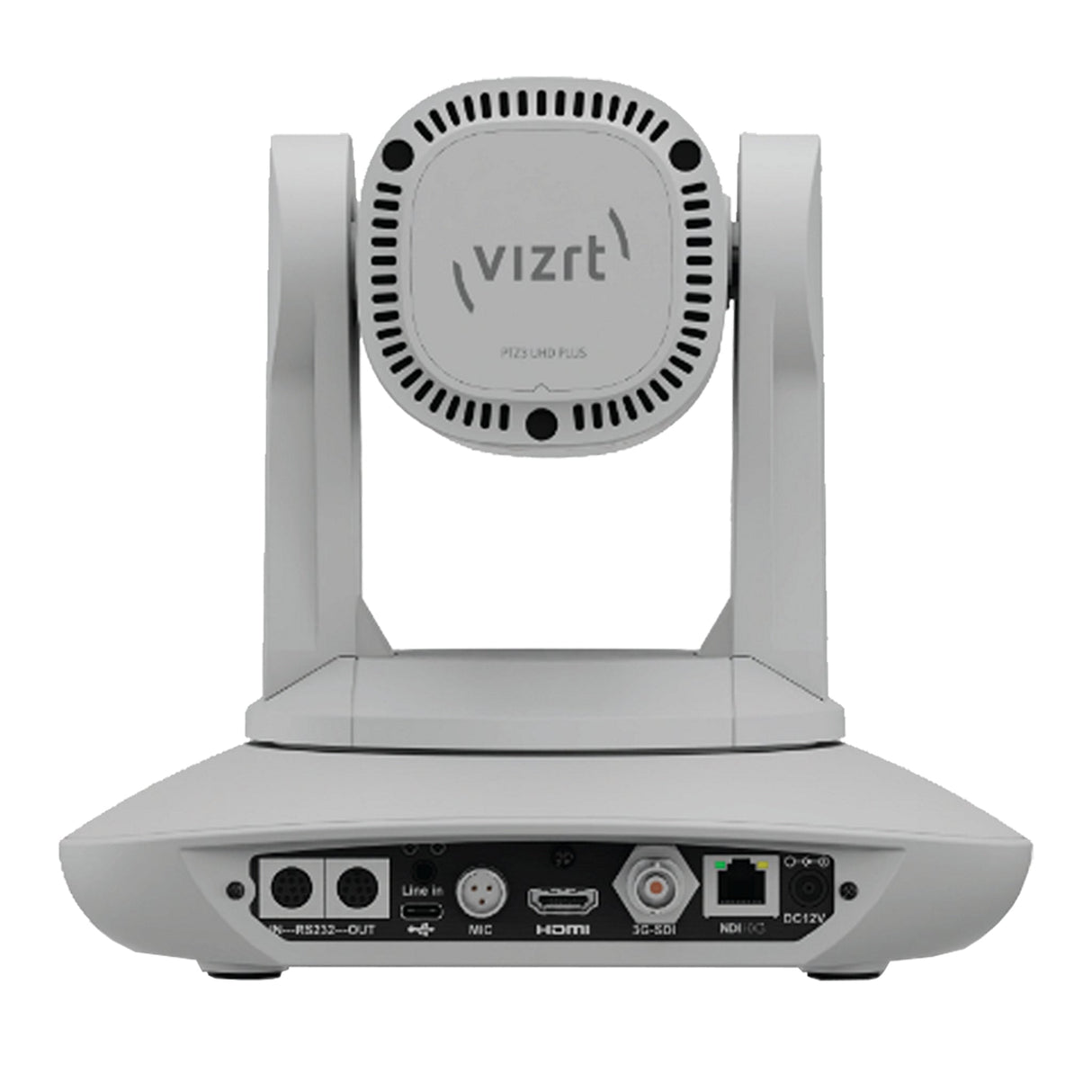

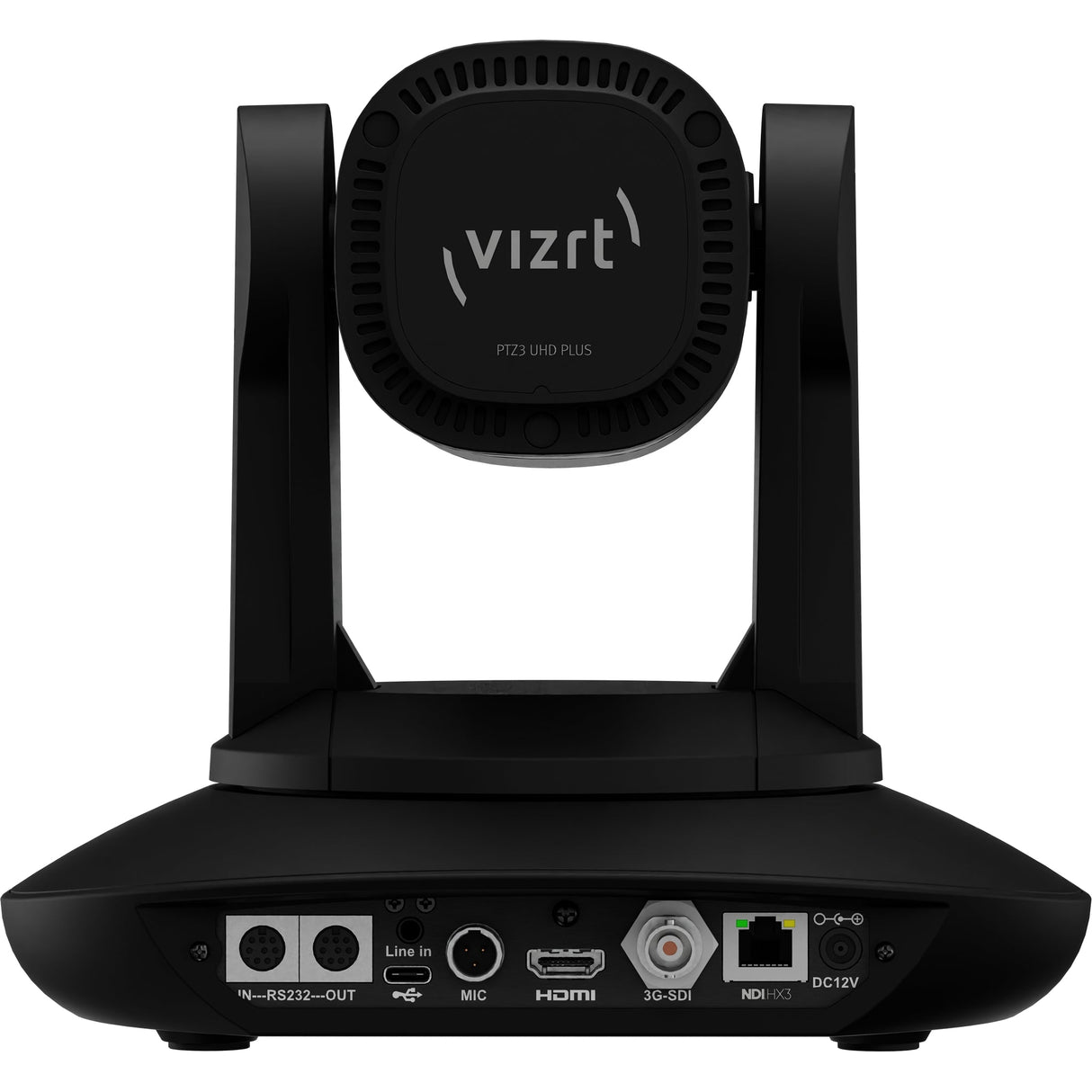

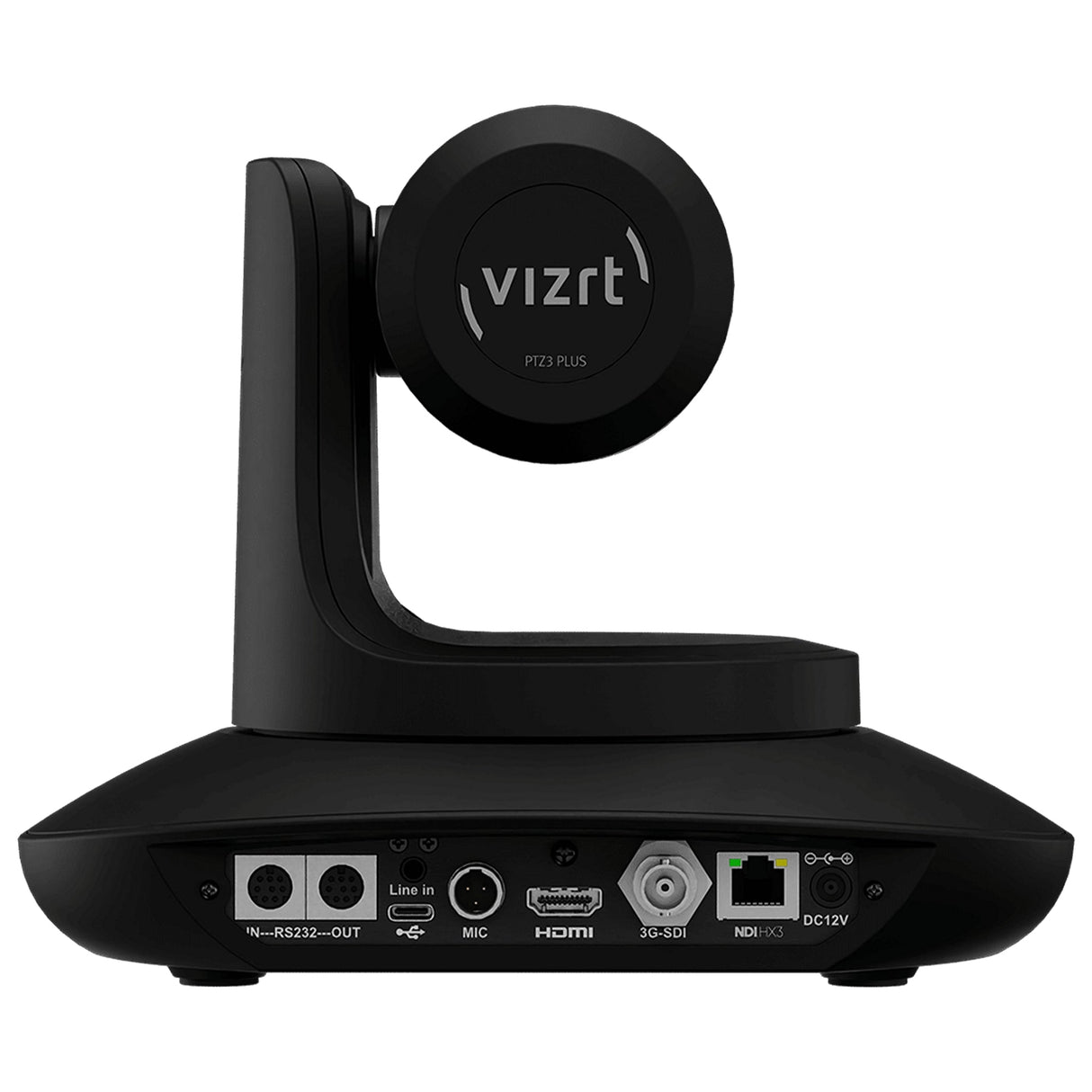

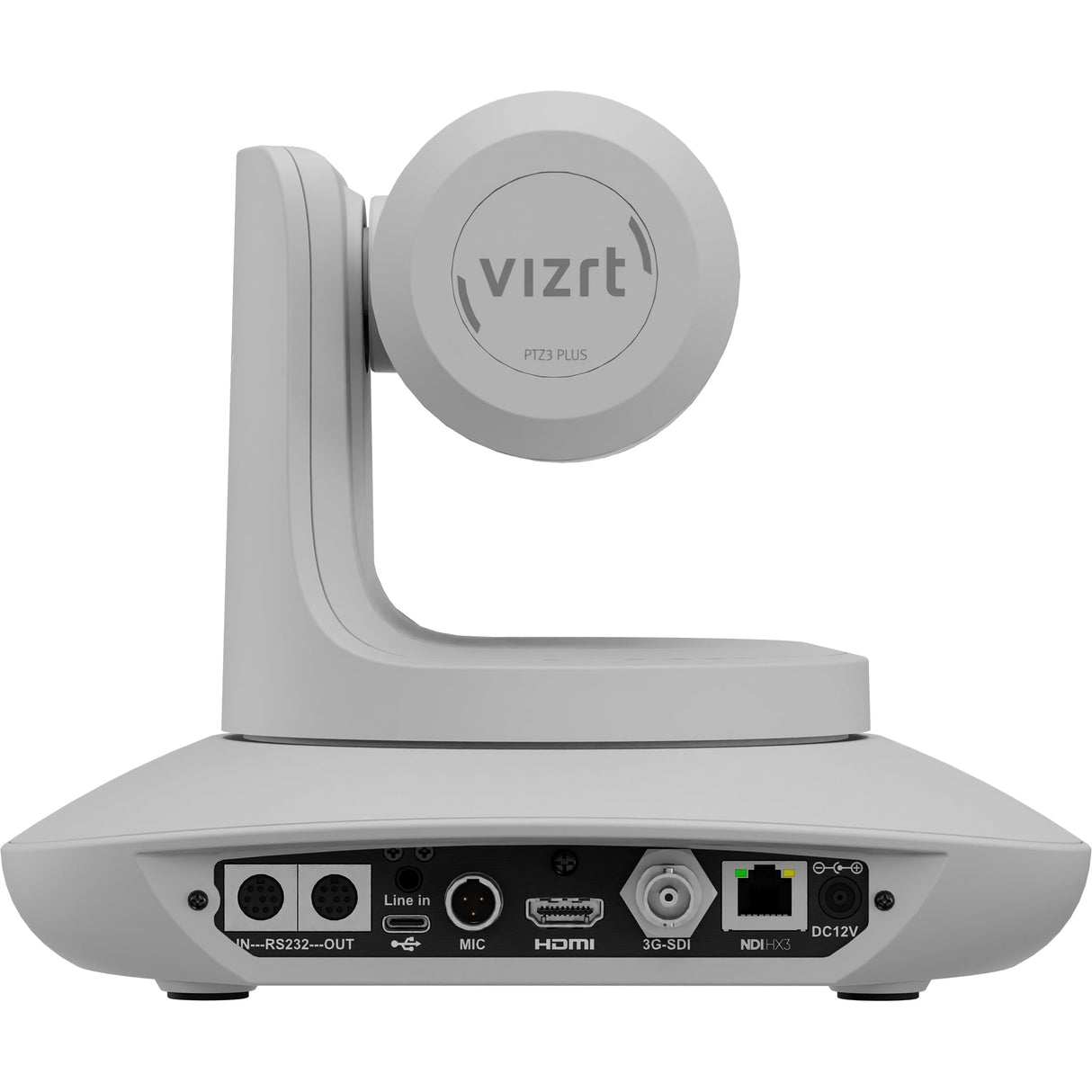

• Multiple outputs: Connect using 3G-SDI, HDMI, or RS-232.
• Single ethernet cable: Provides power, video, audio, control, tally, and FreeD data.
• NDI|HX3 compatibility: Broadcast-quality video with low latency and minimal bandwidth usage.
• Crystal clear capture: Capture presentations with wide aperture lenses, large sensors, and optical low pass filters.
• Multiple framing options: Choose from various subject framing and aspect ratios.
• Silky smooth movement: Enjoy natural, high-quality transitions.
• Seamless workflow: Integrate with TriCaster, CaptureCast, Viz Virtual Studio Go, and other devices.
• Macro control for subject tracking: Fine-tune tracking settings.
• Simplified AR/VR setups: Create immersive experiences with Viz Virtual Studio Go.

Specifications

• Tracking Data: FreeD-over-NDI|HX, FreeD via UDP
• Face and Posture Presenter Tracking AI: Yes
• Presenter Tracking Pan/Tilt Limit: Yes - tracking area limited within top-left and bottom-right boundary
• Target Timeout (Return to Home): 0.5s to 10s selectable
• Presenter Target Scaling: 1/6, 1/8, 1/10, 1/12, 1/16, 1/20
• Presenter Target Switching: Yes - left to right selectable
• Blackboard Detection: Yes - reduces tracking in front of the presentation area to minimize distractions
• Video Output: NDI|HX 3, NDI|HX 2, 3G-SDI, HDMI
• NDI Codecs: H.264 or HEVC
• Bit Rate: CBR/VBR
• Datarates: Low, Med, High, HX 3 Ultra
• NDI Multicast: Yes
• NDI Discovery Server: Yes
• Video Formats
• PTZ3 PLUS: 1080p: 60, 59.94, 50, 30, 29.97, 25, 24; 1080i: 59.94, 50; 720p: 60, 59.94, 50, 30, 29.97, 25
• PTZ3 UHD PLUS: 2160p: 60, 59.94, 50, 30, 29.97, 25; 1080p: 60, 59.94, 50, 30, 29.97, 25, 24; 720p: 60, 59.94, 50, 30, 29.97, 25
• Lens
• PTZ3 PLUS: 20x Optical & 2x Digital Zoom
• PTZ3 UHD PLUS: 30x Optical & 2x Digital Zoom
• Sensor
• PTZ3 PLUS: Panasonic 1/2.86″ CMOS
• PTZ3 UHD PLUS: Sony 1/1.8″ 12MP sensor
• Shutter Speed: 1/30 to 1/10,000 sec
• Horizontal Viewing Angle
• PTZ3 PLUS: 60°(Far) - 3.2°(Near)
• PTZ3 UHD PLUS: 60°(Far) - 2°(Near)
• Focal Length
• PTZ3 PLUS: 4.9~98mm
• PTZ3 UHD PLUS: 6.91mm~214.64mm
• Aperture
• PTZ3 PLUS: F1 ~ F14
• PTZ3 UHD PLUS: F1.8 ~ F14
• Min. Object Distance: (Tele) 1.5M
• Min. Illumination
• PTZ3 PLUS: 0.7lux (50 IRE Max AGC, 1/30, F1.8)
• PTZ3 UHD PLUS: 0.5lux (50 IRE Max AGC, 1/30, F1.8)
• Optical low pass filter: Yes
• Focus Control: Auto or Manual
• Iris Control: Auto or Manual
• Shutter Control: Auto or Manual
• Picture Control: Brightness, Contrast, Saturation, Sharpness
• Noise Reduction: 2D/3D
• Mirror: On/Off
• Flip: On/Off
• White Balance Modes: Auto/Indoor/Outdoor/One-Push/Auto-tracking/Manual
• Panning Angle: -170° to +170°
• Tilting Angle: 30° to +90°
• Audio Input: On/Off
• Mic Gain/Volume Control: Yes
• Phantom Power to Mini XLR: Enabled through Web GUI with double confirm
• Tally: Web-based or NDI Studio Monitor applications for remote configuration, control, and monitoring.
• User Interface: HDMI/SDI OSD operated through IR Remote
• Warranty: 3-years

Package Contents

• PTZ3 PLUS/UHD PLUS Camera
• Reversible L wall mount bracket mount
• Fixed plate ceiling/shelf mount
• Mount fixings
• Remote control (to control up to four cameras)

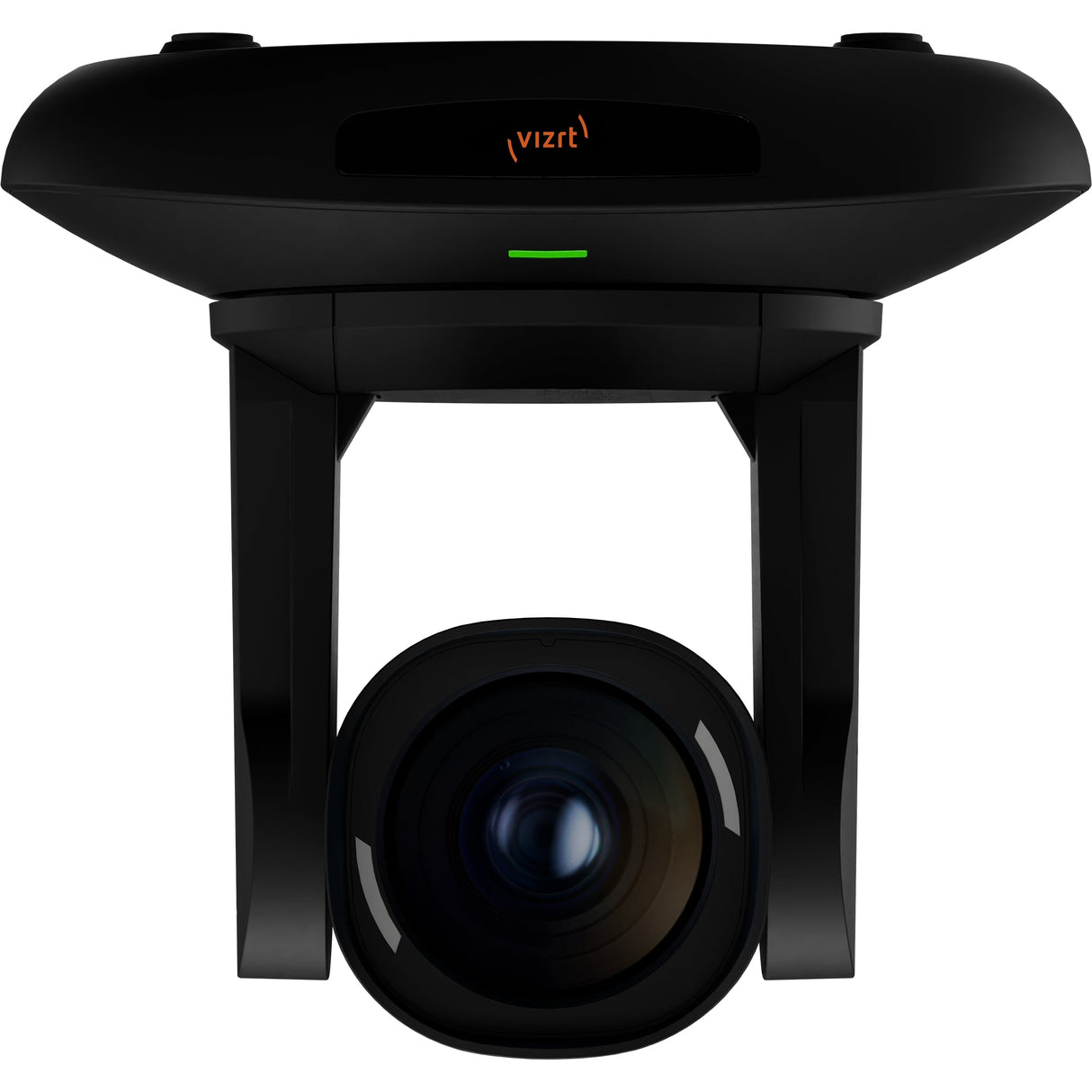

• Secondary reversed faceplate for upside-down mounting
• Power supply with UK, US, EU, and ASIA Power cables
• Mini XLR to XLR Adapter cable
• USB C cable and USB to serial cable for firmware updates and recovery
