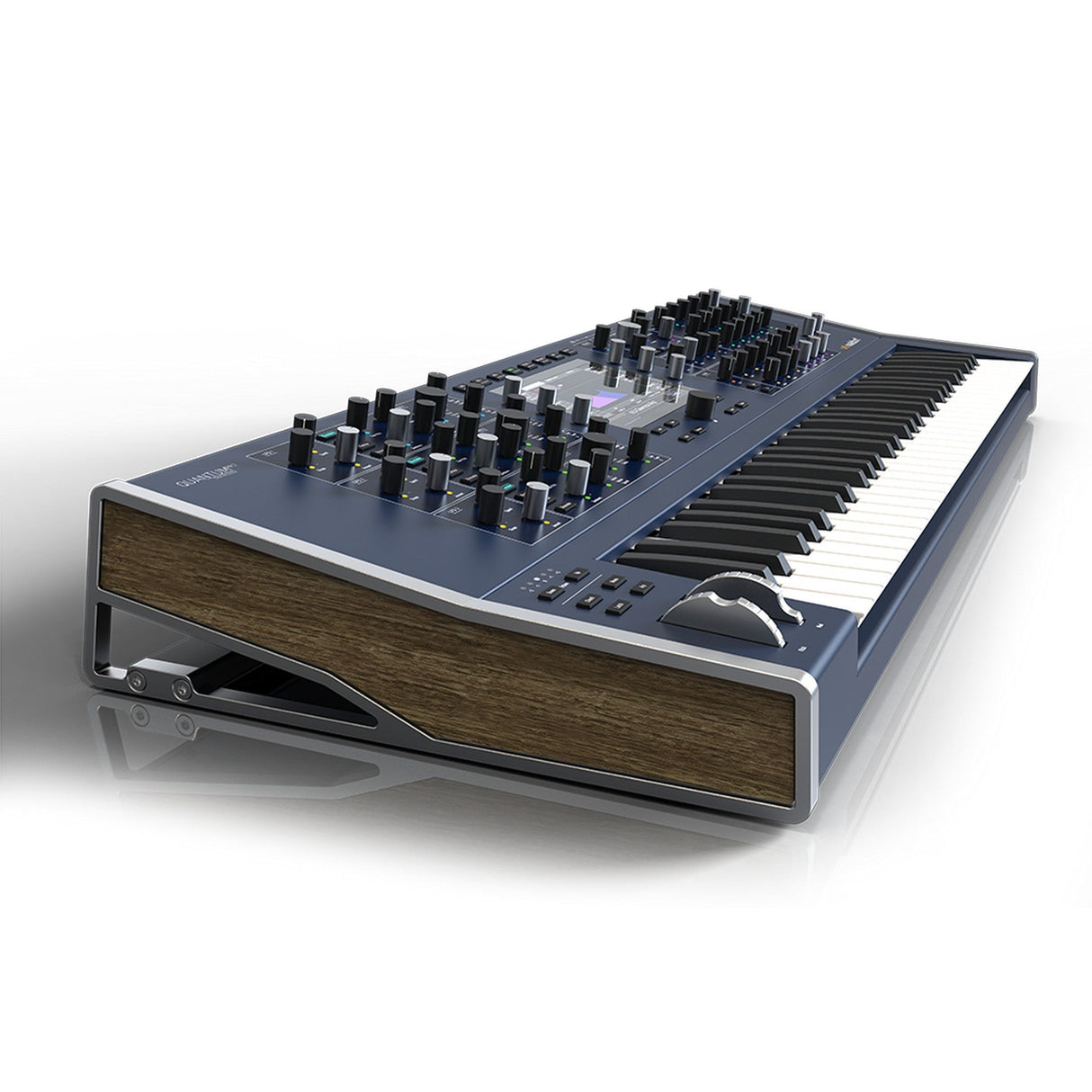

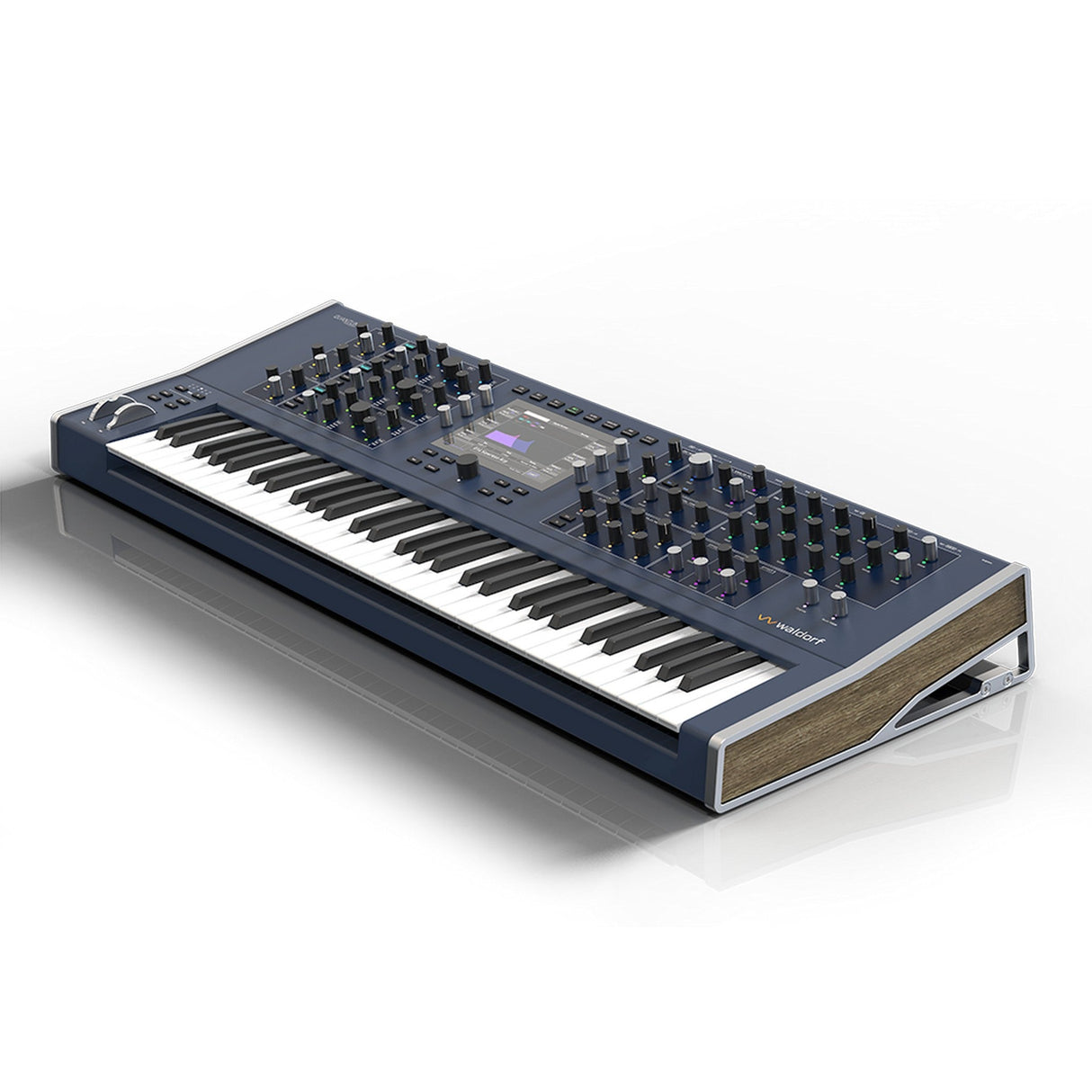

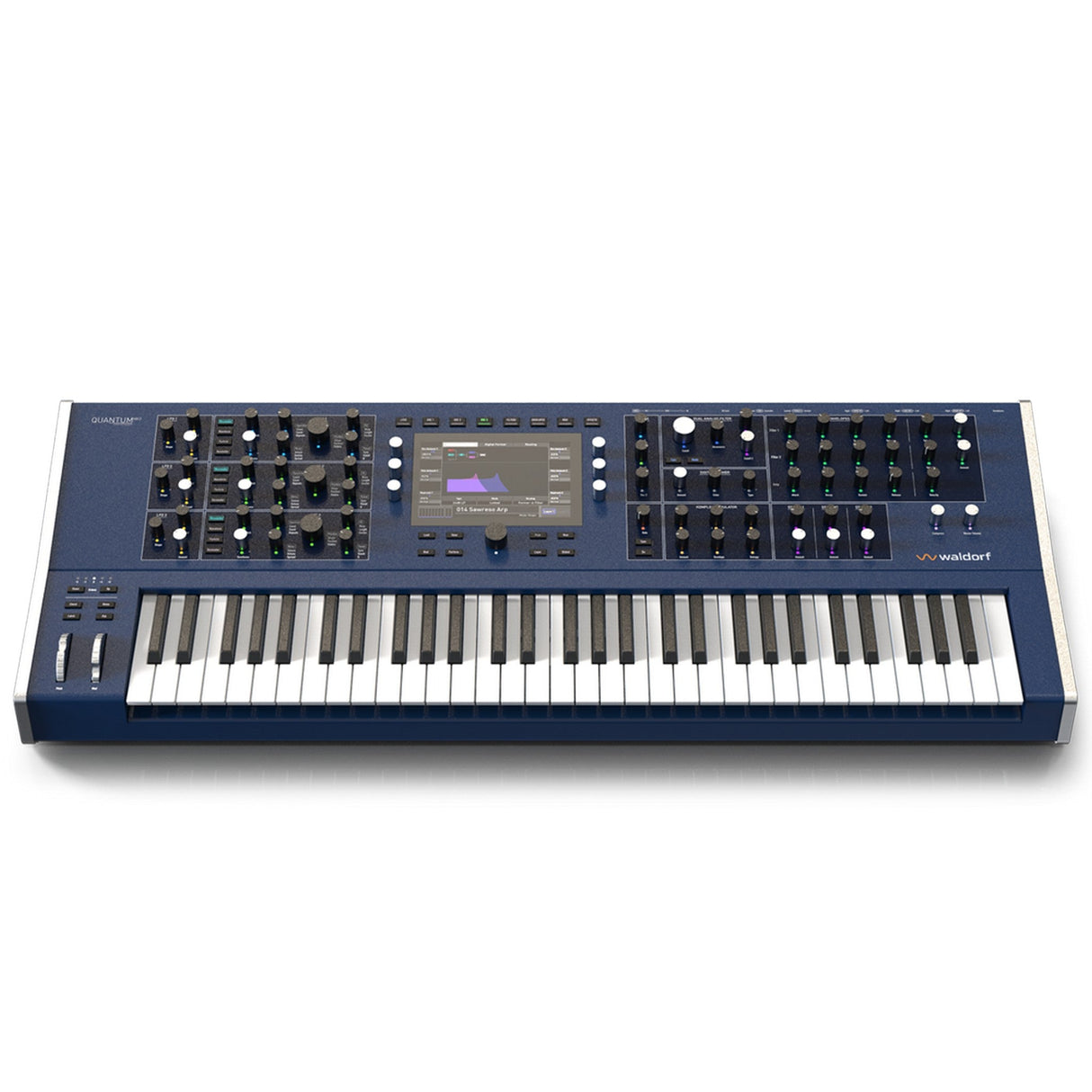

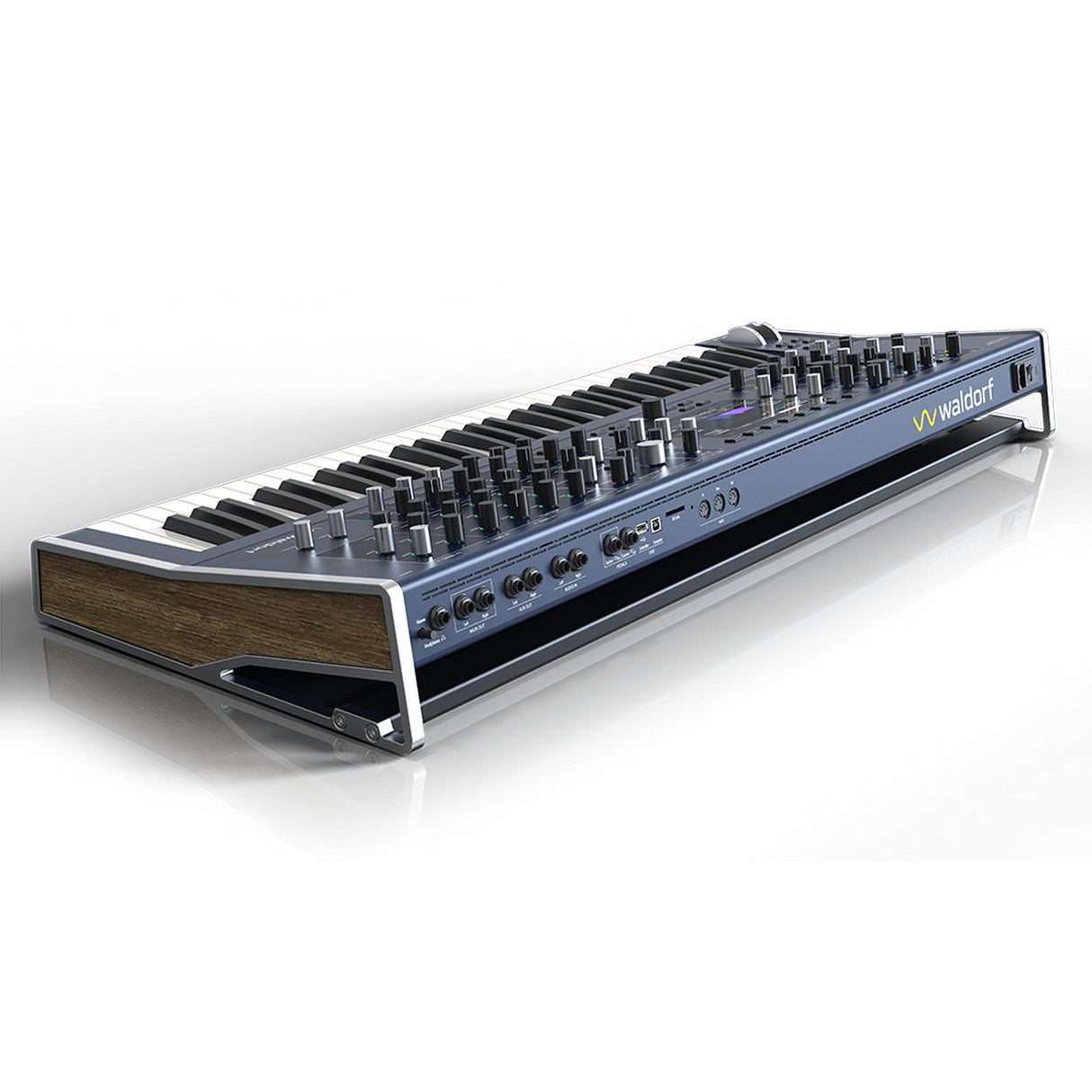

Waldorf Quantum MK2 61-Key 16-Voice Polyphonic Hybrid Synthesizer

Waldorf Quantum MK2 61-Key 16-Voice Polyphonic Hybrid Synthesizer

The Waldorf Quantum MK2 is a 61-key hybrid polyphonic synthesizer built for detailed sound design, performance, sequencing, and sample-based production. Its architecture combines three digital oscillators with eight analog filters and eight multimode filters, giving musicians access to subtractive, wavetable, sample-driven, and hybrid synthesis workflows from a single instrument.

A semi-weighted, velocity-sensitive keyboard with aftertouch supports expressive playing, while two modulation wheels, chord and latch controls, and 16 onscreen pads extend performance control. The Quantum MK2 provides 16-voice polyphony alongside six LFOs, six loopable envelope generators, and a 40-slot modulation matrix for building animated patches and complex modulation relationships.

Production tools include a 32-step sequencer, configurable arpeggiator, real-time audio recording, sampling, and playback of WAV and AIFF/AIFC files. Internal flash storage, an SD card slot, USB Type-A and Type-B connections, MIDI In/Out/Thru, auxiliary audio I/O, pedal inputs, and dedicated headphone monitoring allow the Quantum MK2 to integrate into hardware-focused and computer-based studios.

Key Features

• Hybrid synthesizer architecture with digital oscillators and analog filtering
• 61 semi-weighted keys with velocity sensitivity and aftertouch
• Three digital oscillators supporting classic waveforms, wavetables, and samples
• 16-voice polyphony for layered chords, pads, leads, and evolving textures
• Six LFOs, six loopable envelopes, and a 40-slot modulation matrix
• Integrated 32-step sequencer, arpeggiator, chord controls, and latch functions
• Real-time sampling and recording with WAV and AIFF/AIFC playback
• USB, MIDI, SD card, auxiliary audio, pedal, and headphone connectivity

Technical Specifications

Keyboard and Performance

• Keyboard: 61 semi-weighted keys
• Velocity Response: Velocity sensitive
• Aftertouch: Supported
• Performance Controls: 2 modulation wheels, chord button, and latch button
• Onscreen Performance Pads: 16
• Maximum Polyphony: 16 voices

Synthesis Architecture

• Synthesis Design: Hybrid analog/digital architecture
• Digital Oscillators: 3
• Available Waveforms: Square, sawtooth, triangle, sine, wavetables, and samples
• Analog Filters: 8
• Multimode Filters: 8
• Low-Frequency Oscillators: 6 LFOs with polyphonic and global operation
• Envelope Generators: 6 loopable envelopes
• Modulation Matrix: 40 modulation slots

Sequencing and Performance Tools

• Step Sequencer: 32 steps
• Arpeggiator Controls: Octave range, 7 sorting orders, velocity modes, gate length, and beat division

Effects

• Effects: Phaser, flanger, chorus, reverb, drive, and EQ

Sampling and Audio File Support

• Sampling: Supported
• Audio Recording: Real-time recording
• Supported Playback Formats: WAV and AIFF/AIFC

Sound and Sample Storage

• Preset and Wavetable Storage: 4 GB
• Sample Storage: 59 GB
• Storage Media: Internal flash memory and SD card slot

Audio Connections

• Auxiliary Audio Inputs: 2 x 1/4"
• Main and Auxiliary Audio Outputs: 4 x 1/4"
• Headphone Output: 1 x 1/4" TRS

USB, MIDI, and Control Connections

• USB Connections: 1 x USB Type-B and 1 x USB Type-A
• MIDI Connectivity: MIDI In, Out, Thru, and USB MIDI
• Pedal Connections: 2 x 1/4" inputs for sustain and control pedals

Power and Physical Specifications

• Power Connection: Standard IEC AC cable
• Width: 44.1"
• Depth: 20.5"
• Height: 9.1"
• Weight: 39.2 lbs
• Manufacturer Part Number: AMS-QUANTUM-MK2

What's Included

• Waldorf Quantum MK2 61-Key Hybrid Synthesizer
