Warm Audio JUDE-MP Mono Microphone Preamp

Warm Audio JUDE-MP Mono Microphone Preamp

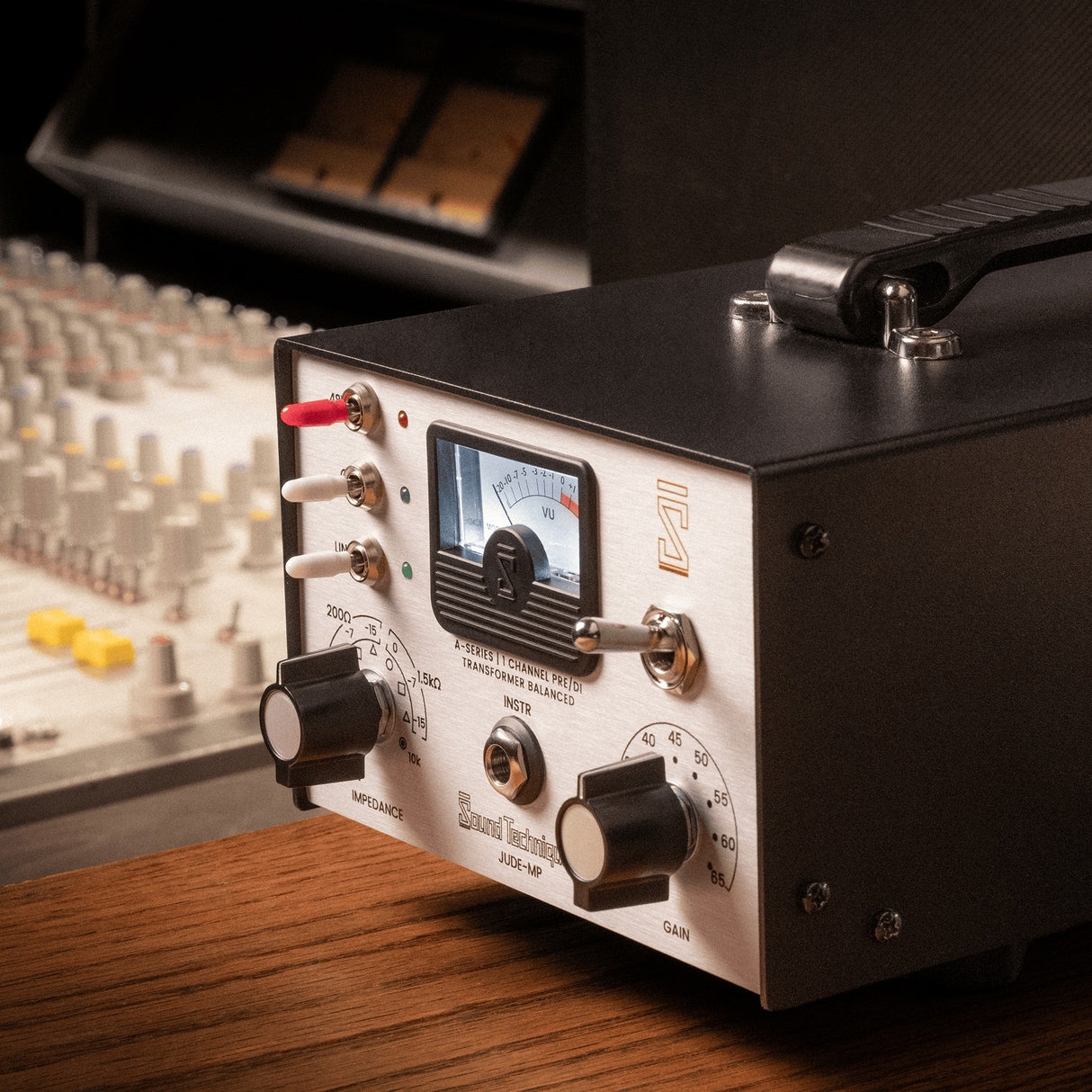

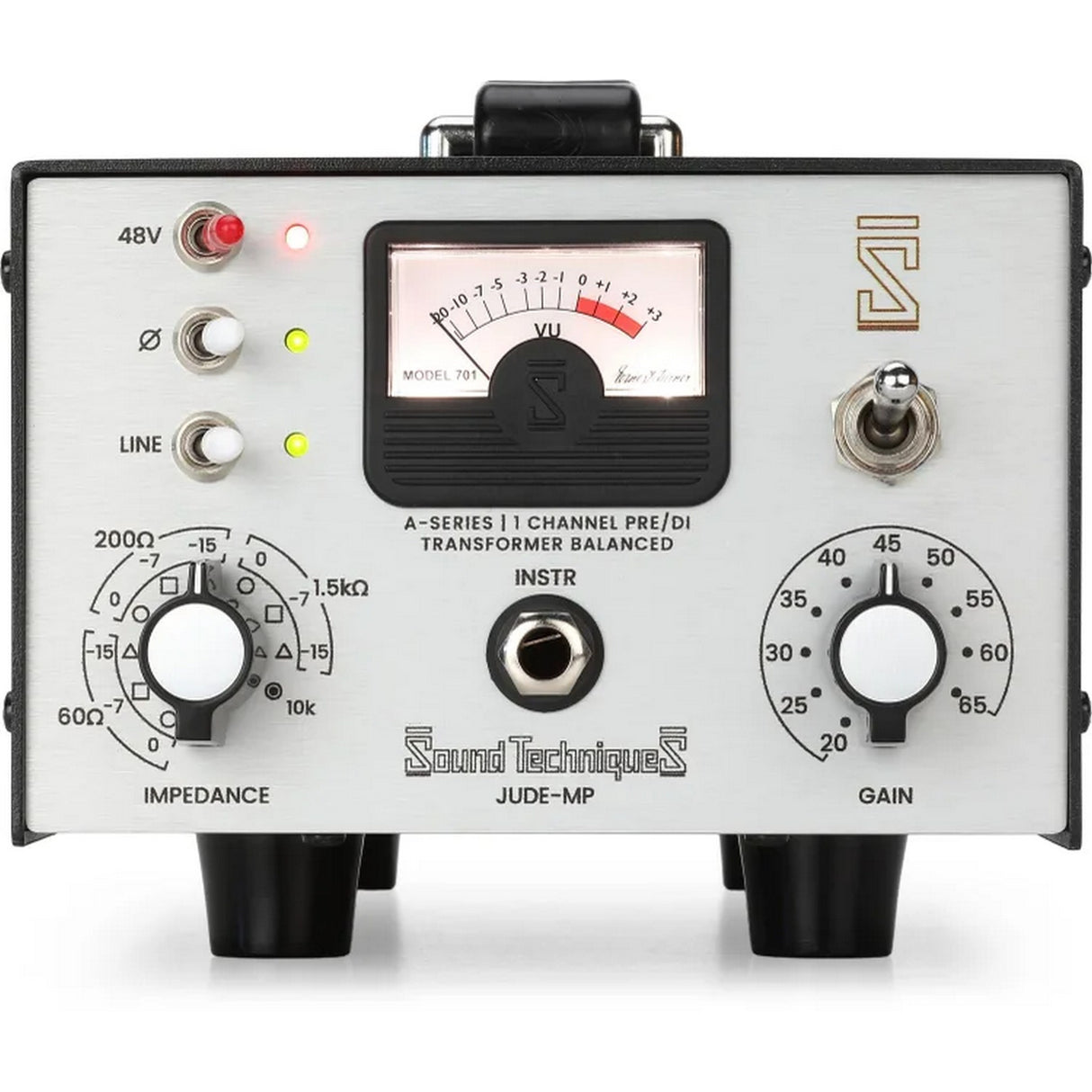

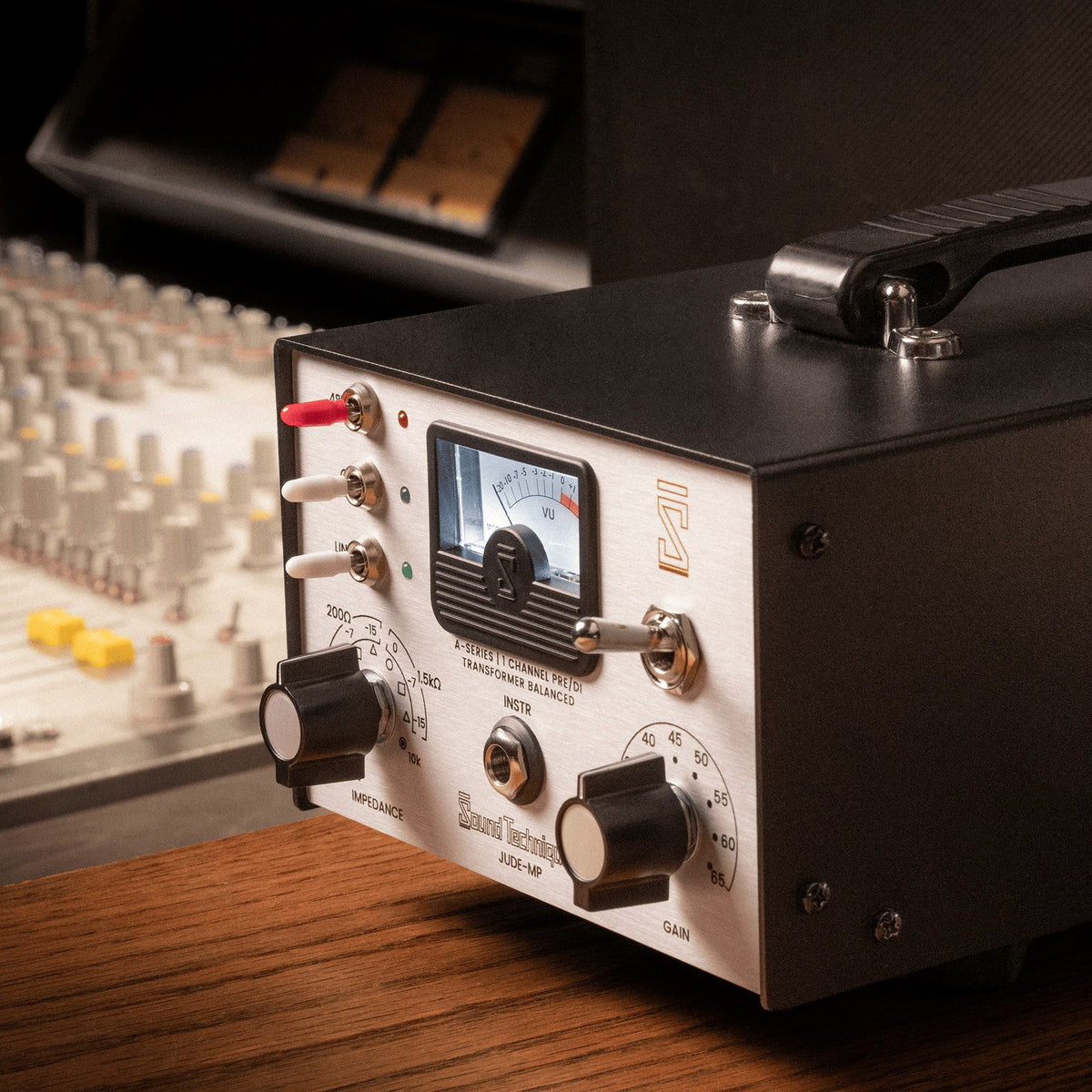

The Warm Audio JUDE-MP Mono Microphone Preamp is a single-channel, dual-discrete Class-A recording preamp based on the original Sound Techniques A-Range console circuit. It combines a 3035 amplifier topology, custom CineMag transformers, and a 9-position Z-Match control to provide 65-76 dB of gain with selectable microphone-to-preamp interaction.

Designed for studio vocals, acoustic instruments, electric guitar, bass, keyboards, piano, and drums, the JUDE-MP accepts microphone, line-level, and instrument sources. Its Z-Match circuit changes input-stage behavior to affect gain, transient response, frequency balance, and headroom, giving engineers additional control when pairing the preamp with dynamic, ribbon, tube, and condenser microphones.

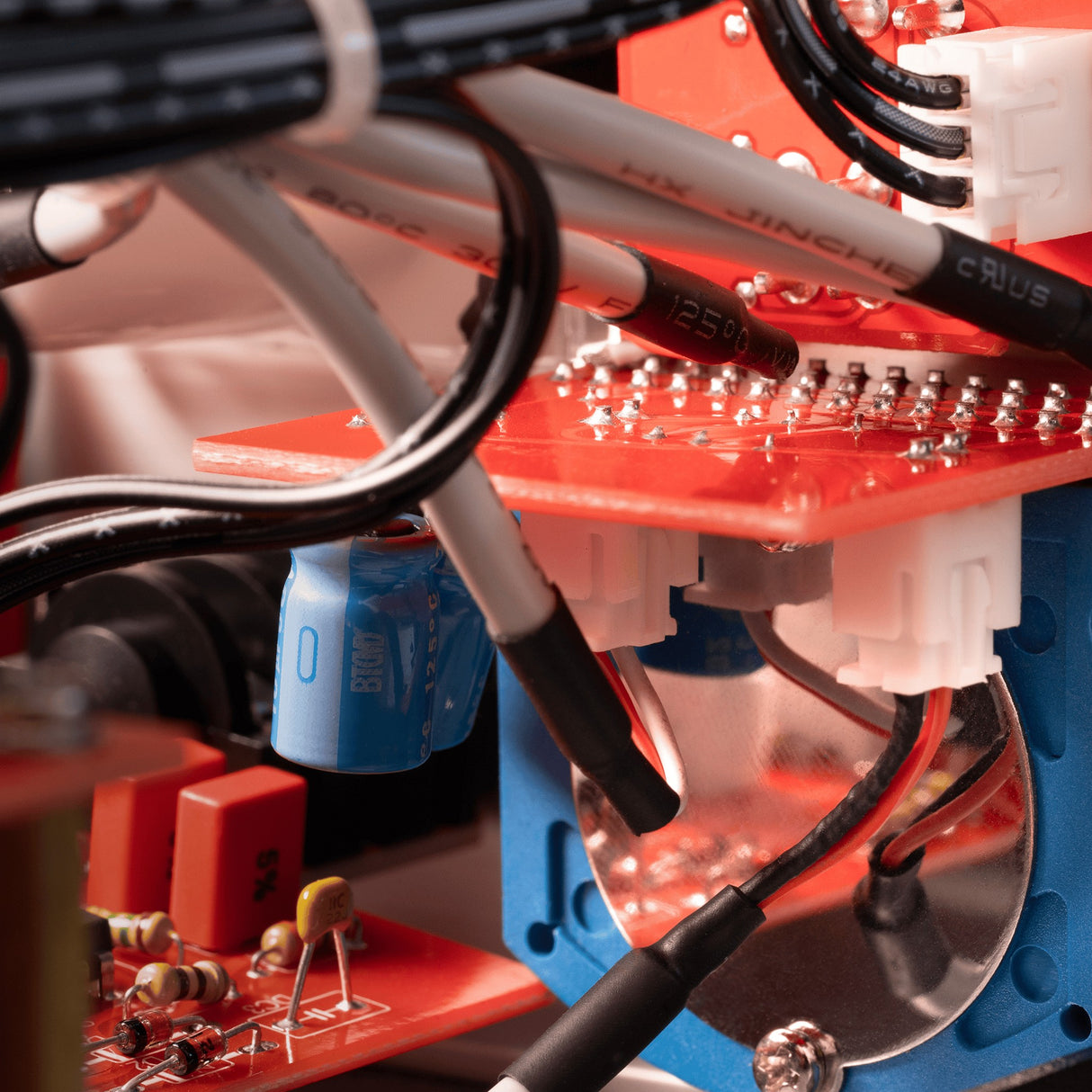

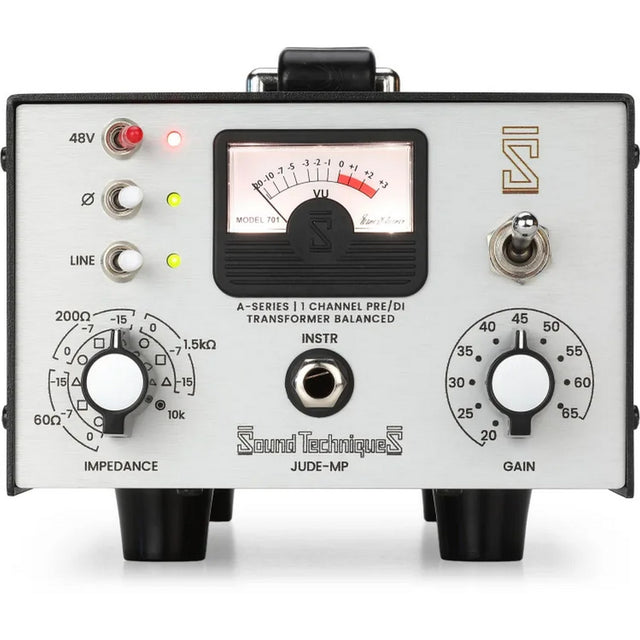

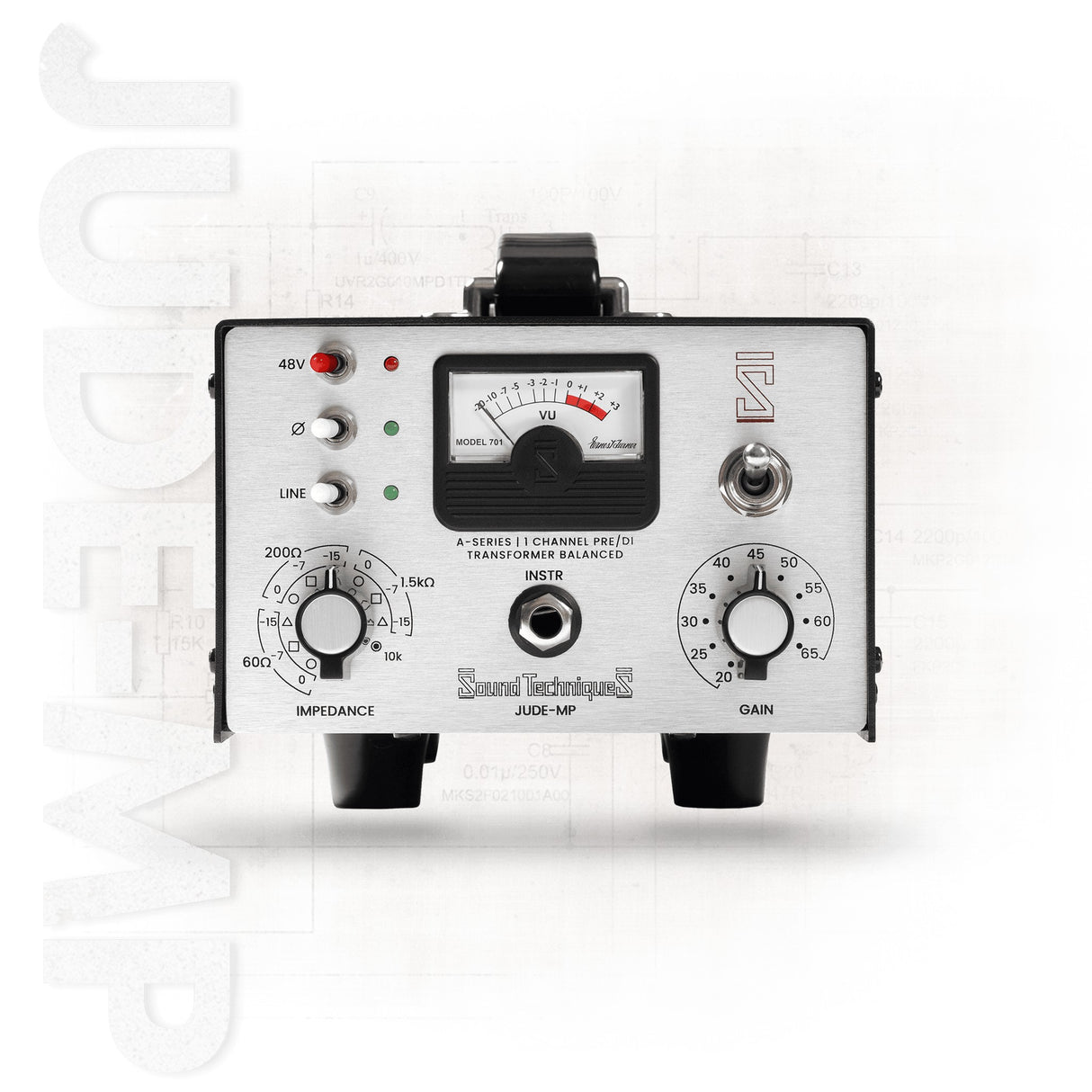

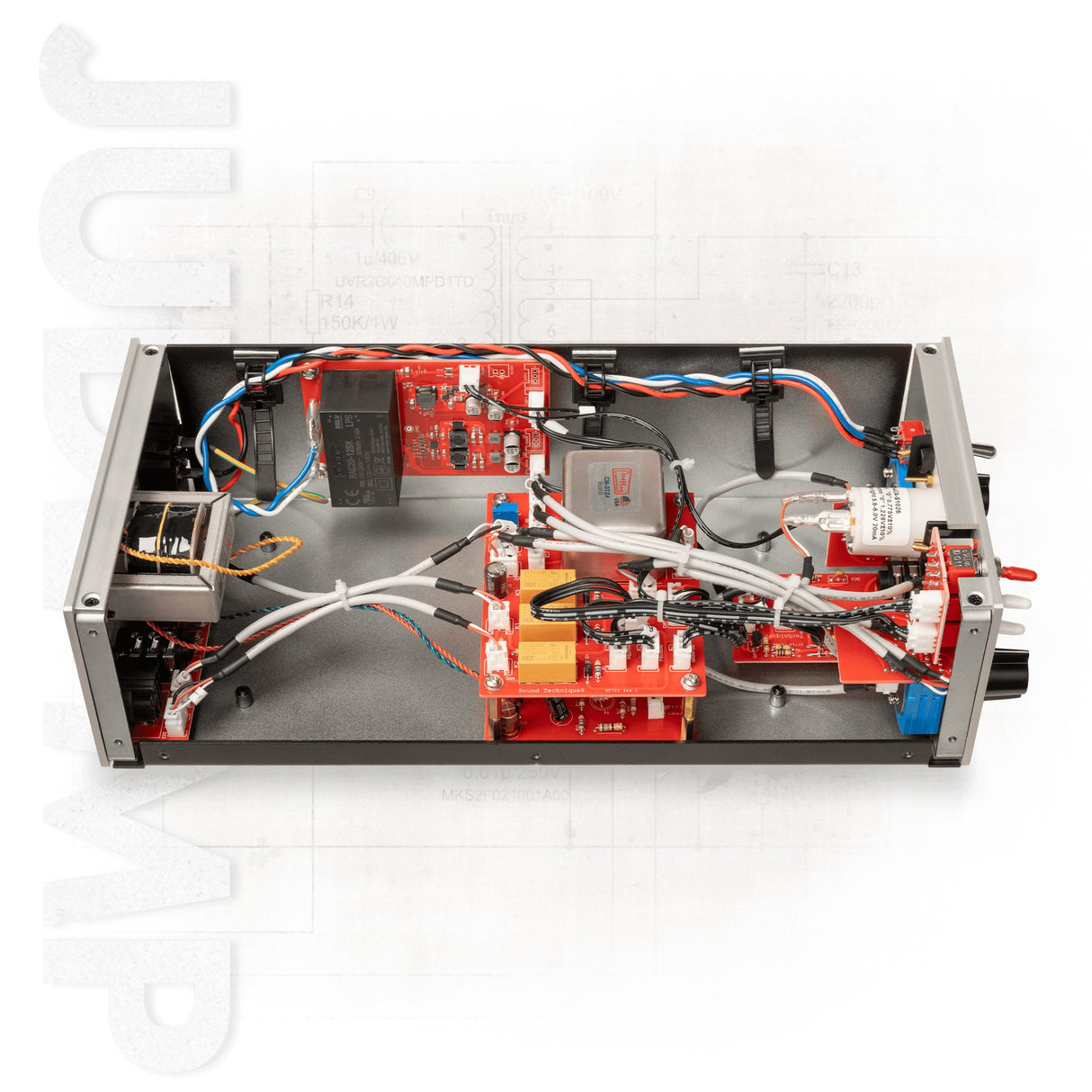

The hand-wired signal path uses Nichicon and Wima audio-grade capacitors, carbon resistors, a three-impedance CineMag input transformer, and a high-purity nickel CineMag output transformer. Professional controls include 48V phantom power, polarity inversion, a line-level switch, stepped gain adjustment, and analog VU metering. Balanced XLR and 1/4" TRS connections integrate the preamp with recording interfaces, converters, and studio patching systems.

Key Features

• Sound Techniques A-Range Circuit: Recreates the original console microphone preamp signal path using a dual-discrete 3035 Class-A amplifier.
• 9-Position Z-Match Control: Changes microphone and preamp interaction to adjust gain, response, headroom, and tonal character.
• 65-76 dB Preamp Gain: Provides substantial analog gain for microphones and other studio recording sources.
• Custom CineMag Transformers: Uses a three-impedance input transformer and high-purity nickel output transformer.
• Flexible Source Connections: Supports microphone, balanced line-level, and front-panel instrument signals.
• Essential Studio Controls: Includes 48V phantom power, polarity inversion, line-level switching, and stepped gain adjustment.
• Analog VU Meter: Provides visual monitoring of the signal level leaving the preamp channel.
• Hand-Wired Construction: Uses selected audio-grade components in an aluminum-fronted steel chassis.

Technical Specifications

• Model: JUDE-MP
• Product Type: Single-channel console microphone preamp
• Channels: 1
• Circuit Topology: Sound Techniques A-Range
• Amplifier: Dual-discrete 3035 Class-A
• Input Gain: Variable based on Z-Match impedance setting
• Preamp Gain: 65-76 dB at 40 ohm source impedance
• Z-Match Control: 9-position impedance control
• Microphone Input Impedance: 60 ohms, 200 ohms, 1.5 kilohms
• Line Z-Match Setting: 10 kilohms
• Input Transformer: Custom-wound three-impedance CineMag
• Output Transformer: Custom-wound high-purity nickel CineMag
• Capacitors: Nichicon audio-grade and Wima
• Equivalent Input Noise: -128 dBu, A-weighted
• Self-Noise: -99 dBu, A-weighted
• Total Harmonic Distortion: 0.008%
• Frequency Response: 10 Hz-25 kHz, +/-2 dB
• Phantom Power: 48V
• Polarity Switch: Yes
• Line-Level Switch: Yes
• Gain Control: Stepped potentiometer
• Front Instrument Input: 1 x 1/4" TS

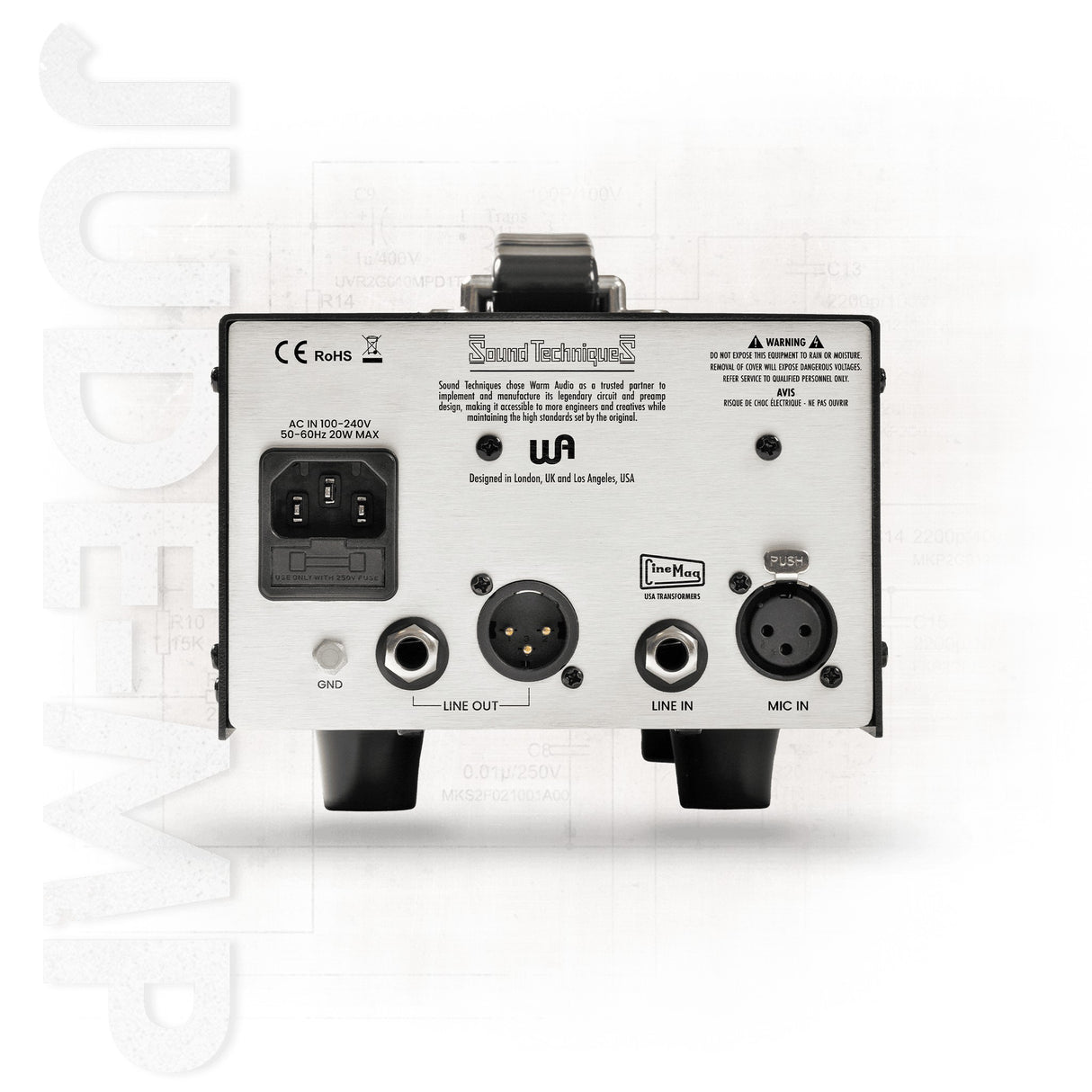

• Rear Balanced Inputs: XLR and 1/4" TRS
• Balanced Outputs: XLR and 1/4" TRS line-level
• Level Meter: Analog VU meter
• Power Input: IEC AC
• Ground Connection: Chassis ground post

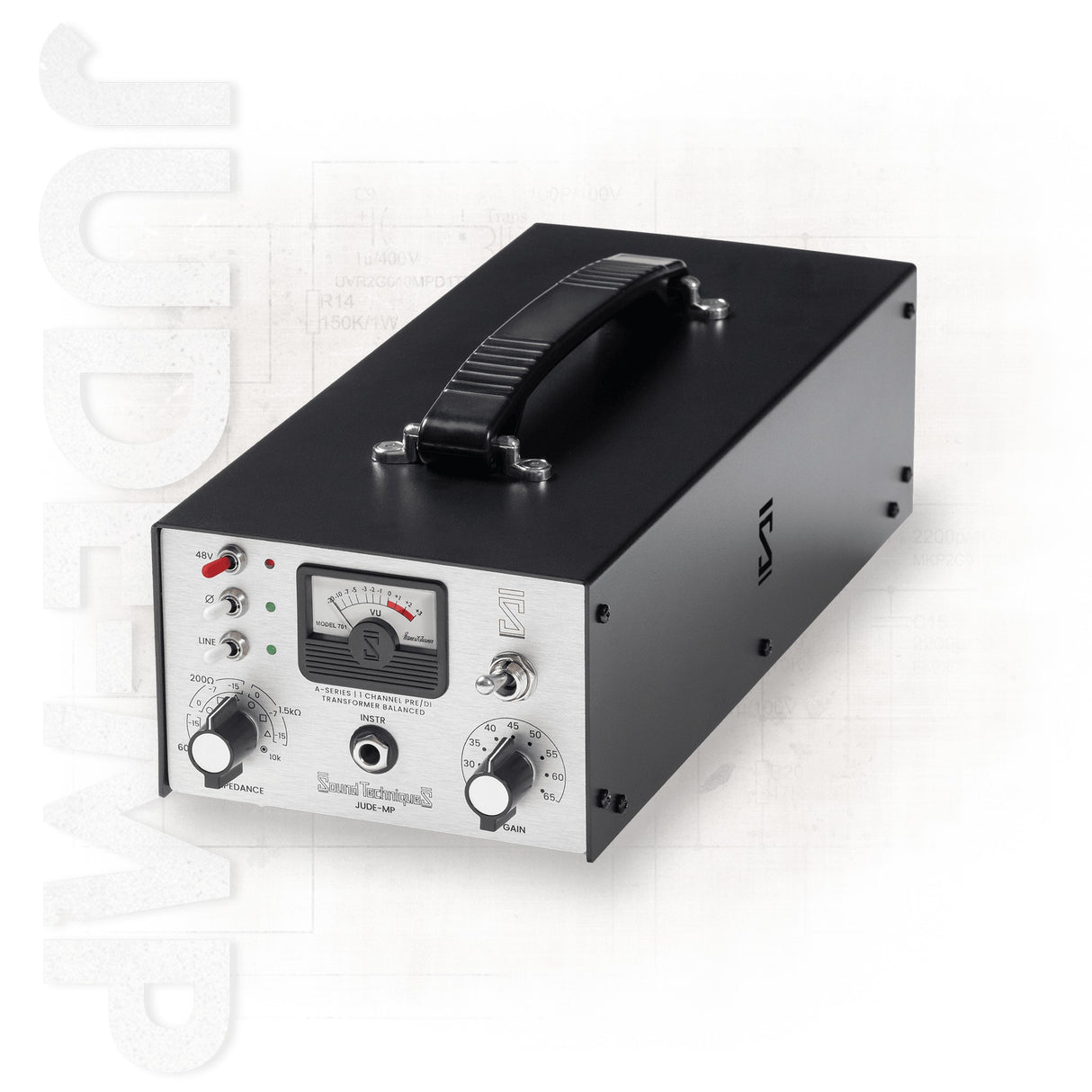

• Faceplate Material: Aluminum
• Chassis Material: Steel
• Dimensions: 13.6 x 5.6 x 5.2" (L x W x H)
• Weight: 6.5 lb
