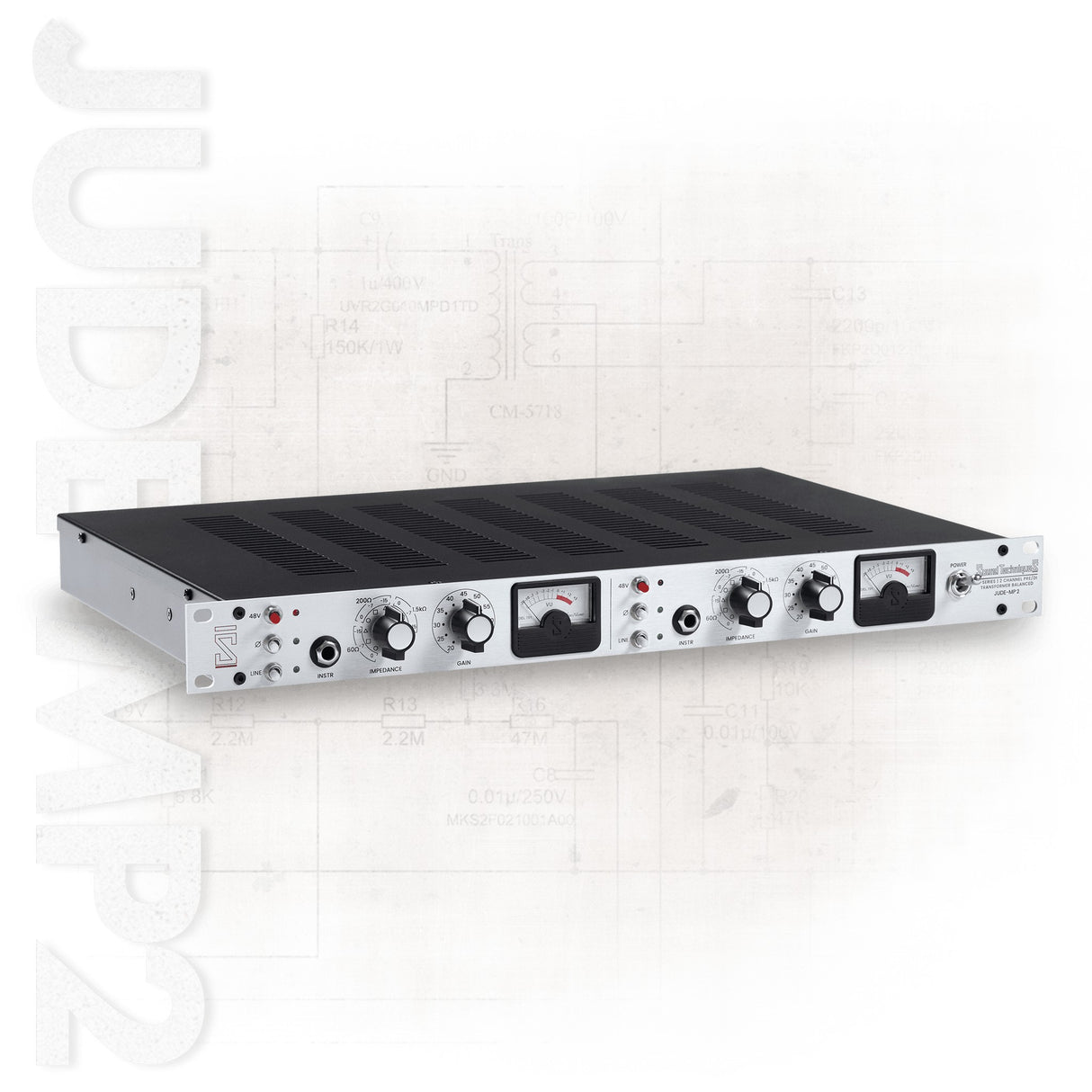

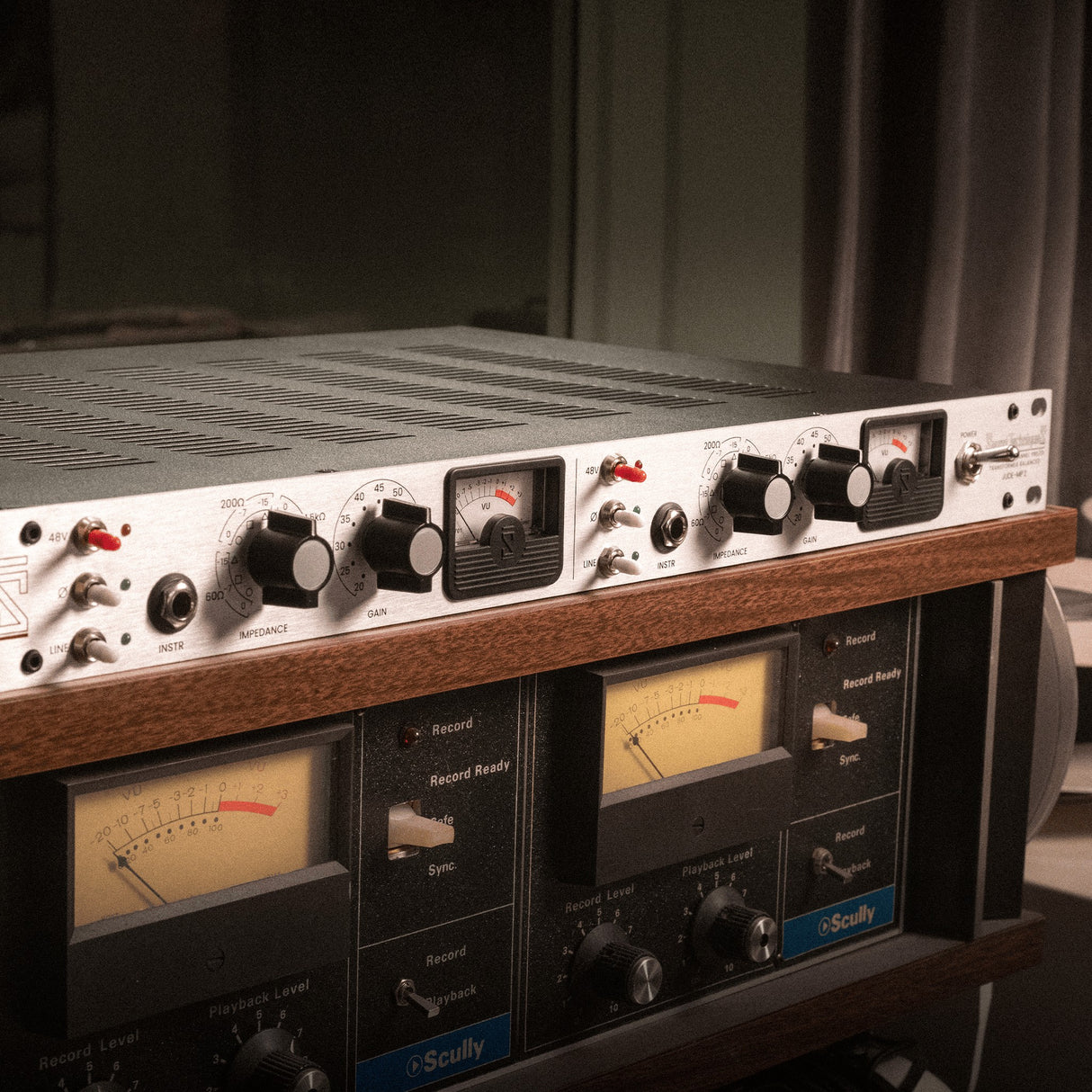

Warm Audio JUDE-MP2 Stereo Dual-Channel Microphone Preamp

Warm Audio JUDE-MP2 Stereo Microphone Preamp

The Warm Audio JUDE-MP2 Stereo Microphone Preamp is a dual-channel, dual-discrete Class-A recording preamp based on the original Sound Techniques A-Range console circuit. Each channel combines a 3035 amplifier, custom CineMag transformers, and 9-position Z-Match impedance control with 65-76 dB of available microphone gain.

Built for stereo microphone pairs, drum overheads, piano, guitars, vocals, room microphones, and dual-mono tracking, the JUDE-MP2 gives each channel independent gain and impedance control. Z-Match changes the relationship between the connected microphone and input stage, affecting available gain, transient behavior, frequency response, headroom, and tonal character across different microphone designs.

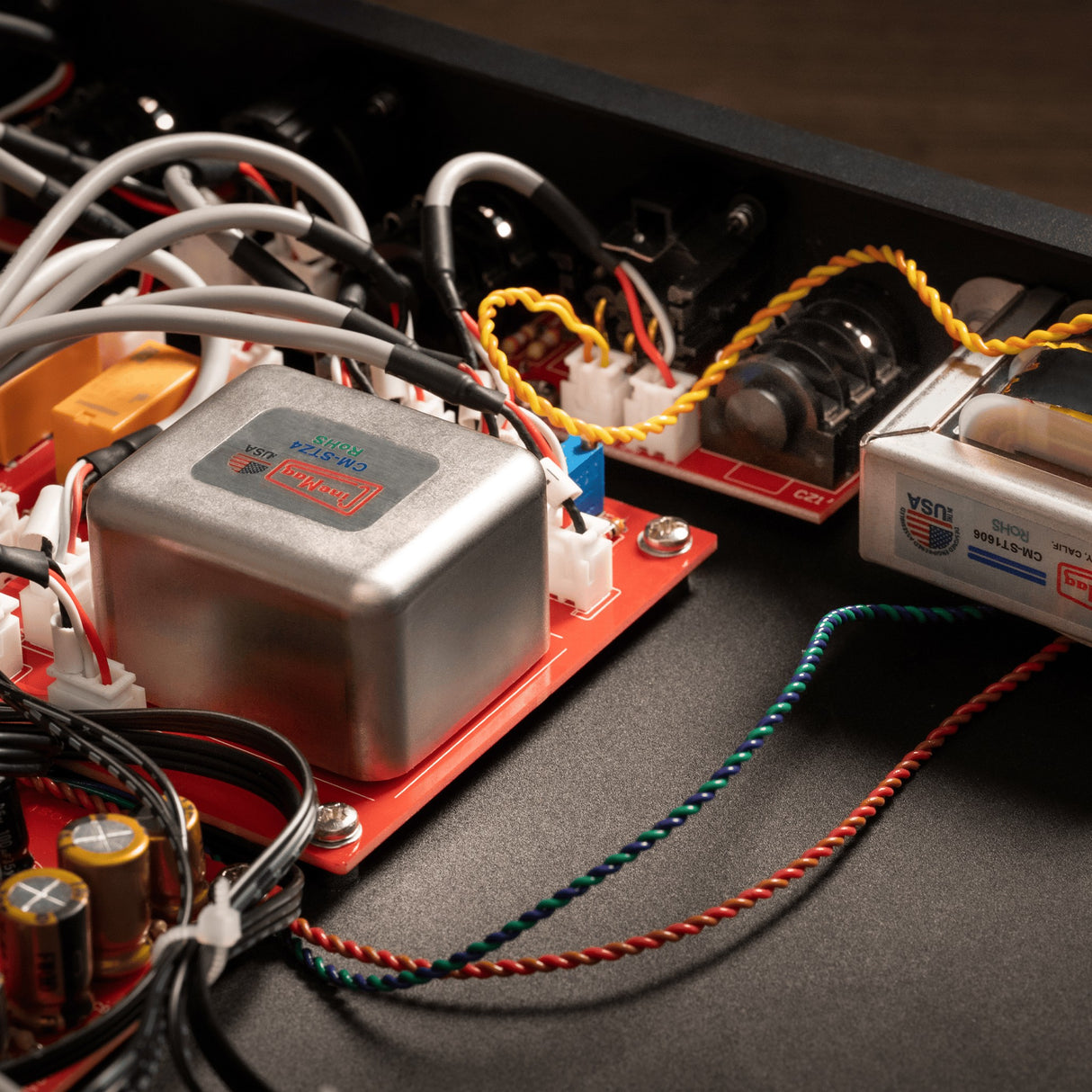

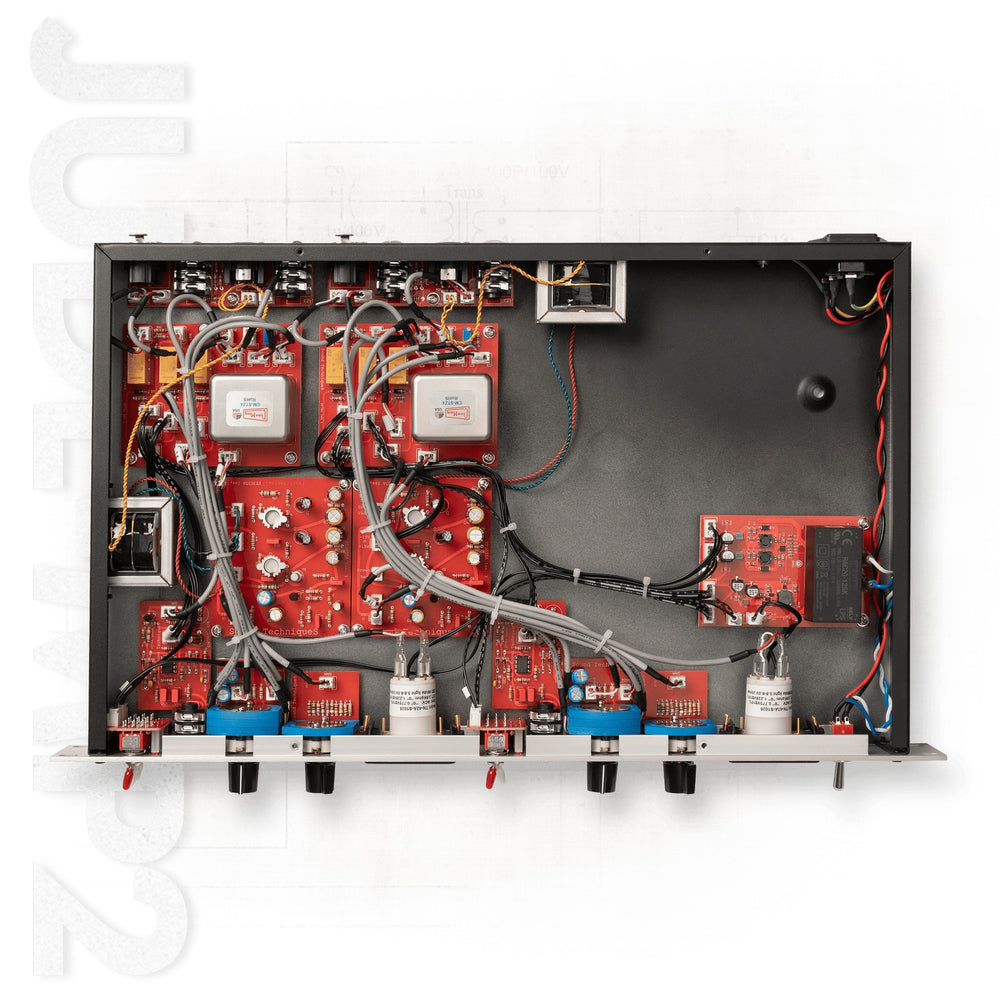

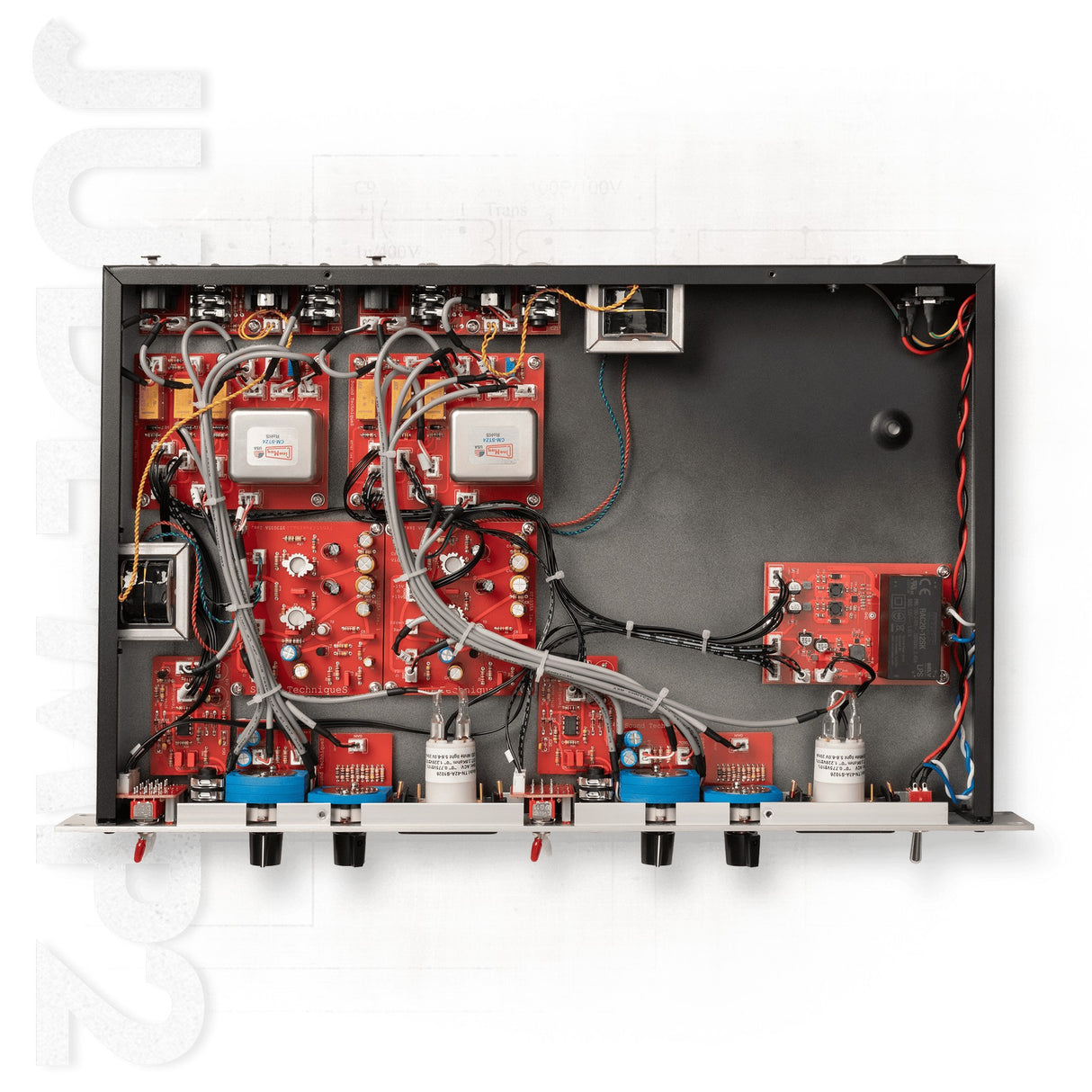

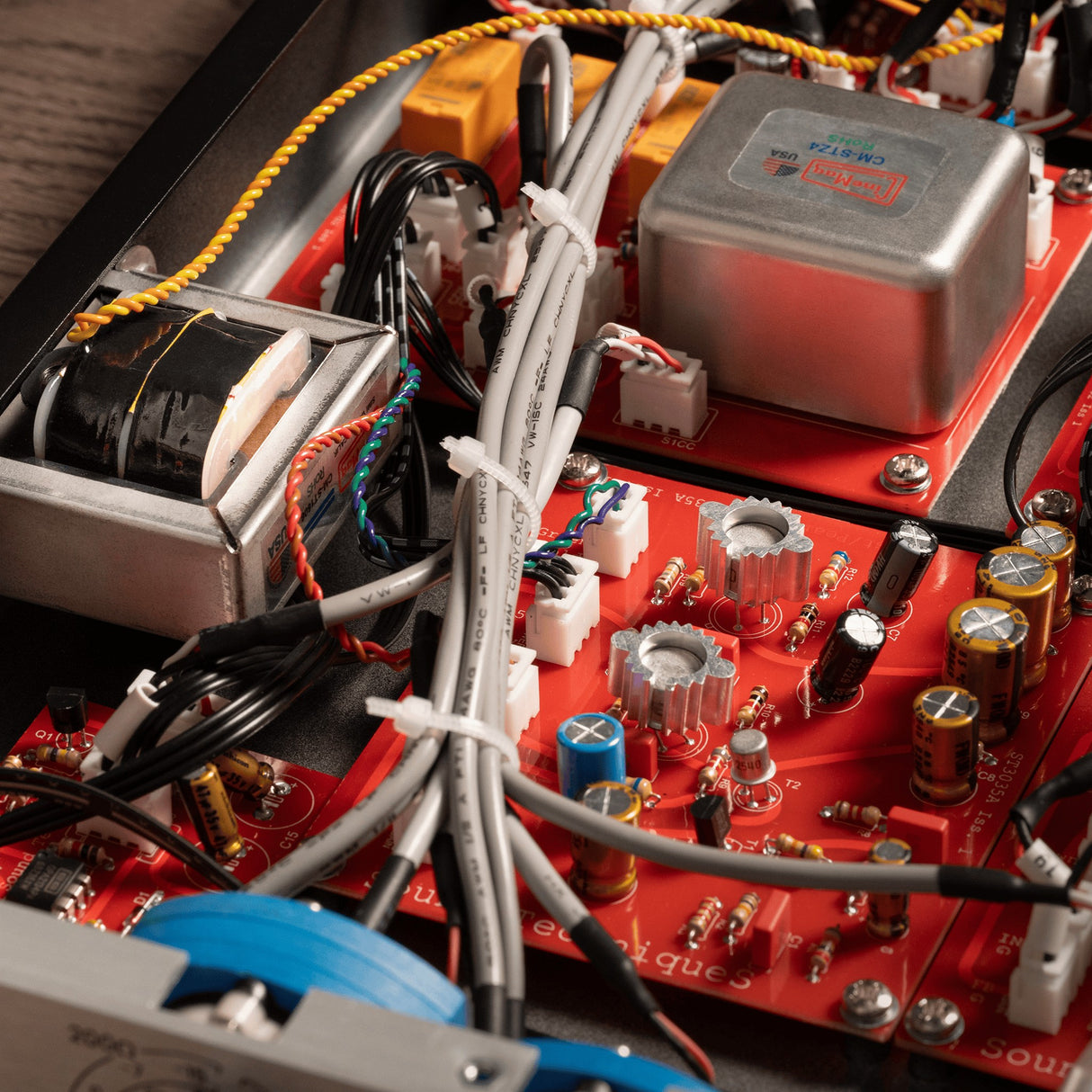

The hand-wired signal path uses custom three-impedance CineMag input transformers, high-purity nickel CineMag output transformers, Nichicon and Wima audio-grade capacitors, and carbon resistors. Each channel includes 48V phantom power, polarity inversion, line-level operation, a front instrument input, and analog VU metering. Balanced XLR and 1/4" TRS connections support integration with professional recording interfaces, converters, and studio patching systems.

Key Features

• Dual-Channel A-Range Circuit: Provides two independent recording channels based on the original Sound Techniques console preamp design.
• Dual-Discrete 3035 Class-A Amplifiers: Preserves the discrete amplification topology used throughout each channel's signal path.
• 9-Position Z-Match Control: Changes input-stage behavior to adjust gain, response, headroom, and microphone interaction.
• 65-76 dB Gain Per Channel: Provides substantial microphone amplification with total gain varying according to impedance selection.
• Custom CineMag Transformers: Uses three-impedance input transformers and high-purity nickel output transformers on both channels.

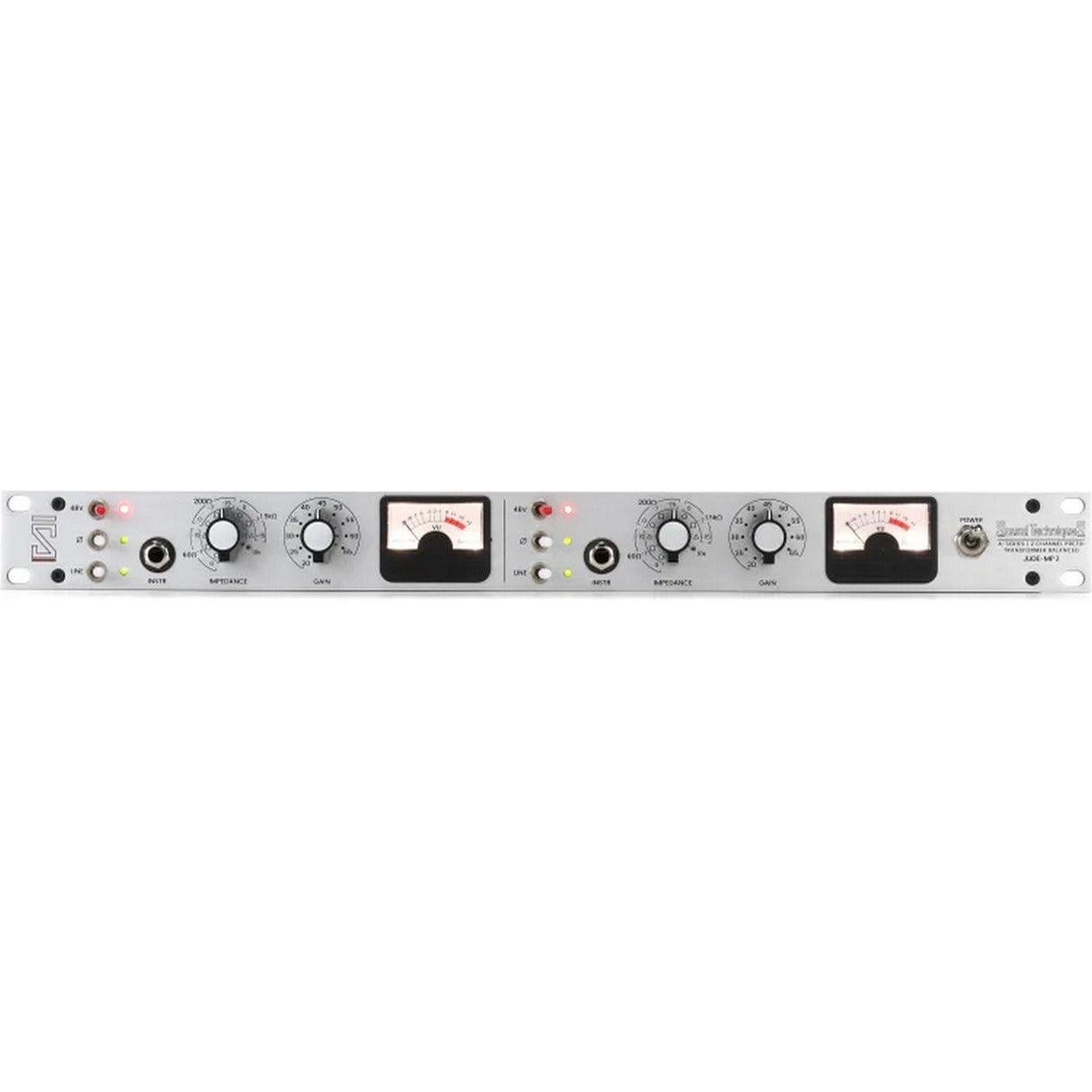

• Independent Channel Controls: Each channel provides phantom power, polarity inversion, line-level switching, impedance selection, and gain adjustment.
• Flexible Studio I/O: Includes microphone, line, and instrument connectivity with balanced XLR and 1/4" TRS outputs.
• Analog VU Metering: Dedicated VU meters provide visual monitoring of the output level from each preamp channel.

Technical Specifications

• Model: JUDE-MP2
• Product Type: Dual-channel console microphone preamp
• Channels: 2
• Circuit: Sound Techniques A-Range
• Amplifier Topology: Dual-discrete 3035 Class-A per channel
• Input Gain: Variable according to Z-Match impedance setting
• Preamp Gain: 65-76 dB per channel at 40-ohm source impedance
• Z-Match: 9-position impedance control per channel
• Microphone Input Impedance: 60 ohms, 200 ohms, 1.5 kilohms
• Line Impedance Setting: 10 kilohms
• Input Transformers: Custom-wound 3-impedance CineMag
• Output Transformers: Custom-wound high-purity nickel CineMag
• Capacitors: Nichicon audio-grade and Wima
• Equivalent Input Noise: -128 dBu, A-weighted
• Self-Noise: -99 dBu, A-weighted
• Total Harmonic Distortion: 0.008%
• Frequency Response: 10 Hz-25 kHz, +/-2 dB
• Phantom Power: 48V per channel
• Polarity Switch: Yes, per channel
• Line-Level Switch: Yes, per channel
• Gain Control: Stepped potentiometer per channel
• Front Instrument Inputs: 2 x 1/4" TS

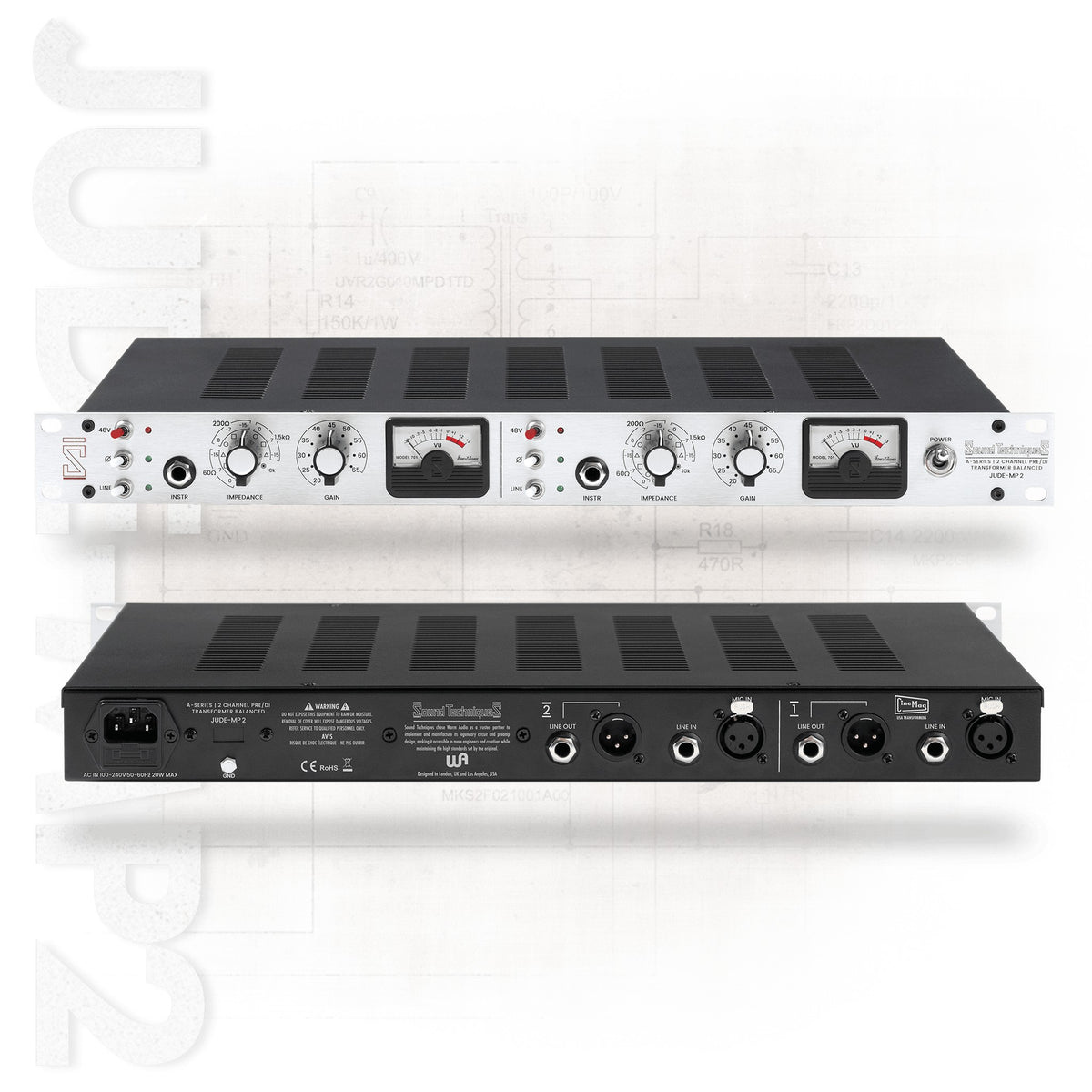

• Rear Balanced Inputs: 2 x XLR and 2 x 1/4" TRS
• Balanced Outputs: 2 x XLR and 2 x 1/4" TRS line-level
• Metering: 2 x analog VU meters
• Power Input: IEC AC
• Ground Connection: Chassis ground post
• Faceplate Material: Aluminum
• Chassis Material: Steel
• Rack Size: 1U
• Dimensions: 19 x 1.8 x 12" (W x H x D)
• Weight: 11.5 lb
• Maximum Operating Temperature: 95 degrees F
