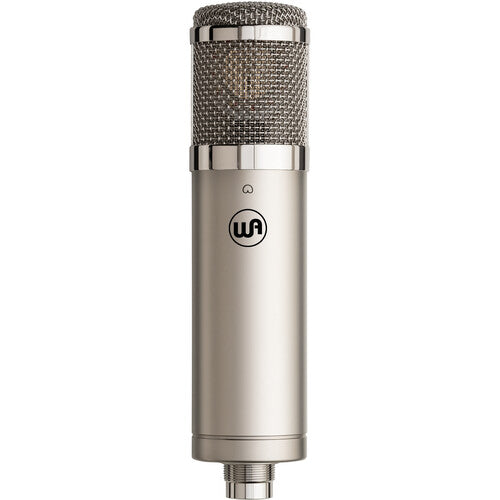

Warm Audio WA-47jr SE Large-Diaphragm Condenser Microphone - Nickel Finish

Warm Audio WA-47jr SE Large-Diaphragm Condenser Microphone

The Warm Audio WA-47jr SE Large-Diaphragm Condenser Microphone is a fixed-cardioid, transformerless FET studio microphone available in Nickel or Black. Its gold-sputtered, single-backplate K47-style capsule and fully discrete signal path provide focused capture for vocals, instruments, podcasts, streaming, and other recording applications.

Designed as the streamlined member of the WA-47jr family, the WA-47jr SE removes the switchable polar patterns, pad, and high-pass filter found on the standard WA-47jr. The fixed cardioid pattern emphasizes sound arriving from the front while reducing pickup from the sides and rear, making this condenser microphone practical for lead vocals, acoustic guitar, percussion, amplifiers, and spoken-word production.

Both color variants share the same acoustic and electronic specifications, including 9 dBA self-noise, 138 dBA dynamic range, and a maximum SPL of 147 dB. The transformerless balanced XLR output requires 48V phantom power, while the included hard mount and storage pouch support routine studio setup and transport.

Key Features

• Nickel or Black Finish: Choose between two color variants with identical WA-47jr SE performance and included accessories.
• K47-Style Capsule: Uses a gold-sputtered, large-diaphragm, single-backplate capsule designed for focused studio recording.
• Fixed Cardioid Pattern: Prioritizes sound from the front while reducing side and rear pickup.
• Fully Discrete Signal Path: Uses transformerless FET circuitry for balanced analog microphone output.
• Low Self-Noise: A 9 dBA noise specification supports quieter vocals, acoustic instruments, and detailed recording sources.
• High SPL Capability: Handles sound pressure levels up to 147 dB for use with both moderate and louder sources.
• Wide Frequency Range: Covers 20 Hz to 20 kHz for full-range studio and content-production applications.
• 48V Phantom Power: Connects to compatible microphone preamps, mixers, and audio interfaces through balanced XLR.

Technical Specifications

• Brand: Warm Audio
• Series: WA-47jr
• Model: WA-47jr SE
• Nickel Variant Model: WA-47JR SE-N
• Black Variant Model: WA-47JR SE-B
• Color Variants: Nickel, Black
• Microphone Type: Large-diaphragm condenser
• Element Type: FET condenser
• Circuit Design: Transformerless, fully discrete signal path
• Polar Pattern: Cardioid
• Orientation: Side address
• Capsule: Gold-sputtered, large-diaphragm, single-backplate K47-style capsule
• Diaphragm Diameter: 1.3 inches
• Frequency Range: 20 Hz to 20 kHz
• Maximum SPL: 147 dB
• Dynamic Range: 138 dBA
• Self-Noise: 9 dBA
• Sensitivity: -37 dBV or 14 mV/Pa
• Output Impedance: 100 ohms
• Output: Balanced 3-pin XLR male
• Power Requirement: 48V phantom power
• Controls: None
• Mounting Thread: 5/8-inch-27 female; 3/8-inch-16 female with adapter
• Dimensions: 8 x 2 x 2 inches
• Weight: 1.3 lb
• Warranty: 5-year limited warranty with product registration

What's In the Box

• Warm Audio WA-47jr SE Large-Diaphragm Condenser Microphone in selected color
• Custom hard mount
• Storage pouch
