Warm Audio WA-CVB Centavo Blackout Limited Edition Overdrive Pedal

Warm Audio WA-CVB Centavo Blackout Limited Edition Overdrive Pedal

The Warm Audio WA-CVB Overdrive Pedal is the Blackout edition of the Centavo, a vintage-inspired boost and drive pedal built around a three-control circuit with buffered bypass. Gain, Treble, and Output controls cover clean boosting through saturated overdrive, while a rear MOD switch extends low-frequency response for a fuller response on lower guitar strings.

Designed for electric guitar rigs, pedalboards, and amplifier front ends, the Centavo can add output level with restrained clipping or provide progressively stronger drive as Gain increases. The active Treble circuit shapes the upper response, while the dedicated Output control sets the final level. Its Blackout finish gives this WA-CVB variant a subdued appearance while retaining the full-size Centavo control layout.

Warm Audio builds the circuit with TL072 operational amplifiers, vintage-style diodes, carbon and metal-film resistors, and a charge-pump voltage regulator. Buffered bypass keeps the signal path active when the effect is disengaged. Standard 1/4-inch instrument connections and operation from either a 9V battery or 9V DC pedal supply make the pedal compatible with conventional professional and home guitar setups.

Key Features

• Blackout Centavo Edition: Combines the established Centavo circuit with the black WA-CVB finish for a distinctive pedalboard appearance.
• Flexible Overdrive Range: Moves from clean boost and light breakup to stronger clipping using the Gain and Output controls.
• Rear MOD Switch: Changes the high-pass filter value to extend low-frequency response, especially on lower guitar strings.
• Active Treble Control: Provides boost and cut capability for shaping the pedal's upper-frequency response.
• Buffered Bypass: Maintains an active buffered signal path when the overdrive effect is switched off.
• Premium Circuit Components: Uses TL072 op amps, vintage-style diodes, carbon and metal-film resistors, and a charge-pump voltage regulator.
• Standard Pedal Connectivity: Includes 1/4-inch instrument input and amplifier output connections for conventional guitar rigs.
• Dual Power Options: Runs from a 9V battery or standard 9V DC pedal adapter with a 40mA current requirement.

Technical Specifications

• Model: WA-CVB
• Series: Centavo
• Product Type: Professional overdrive pedal
• Finish: Blackout

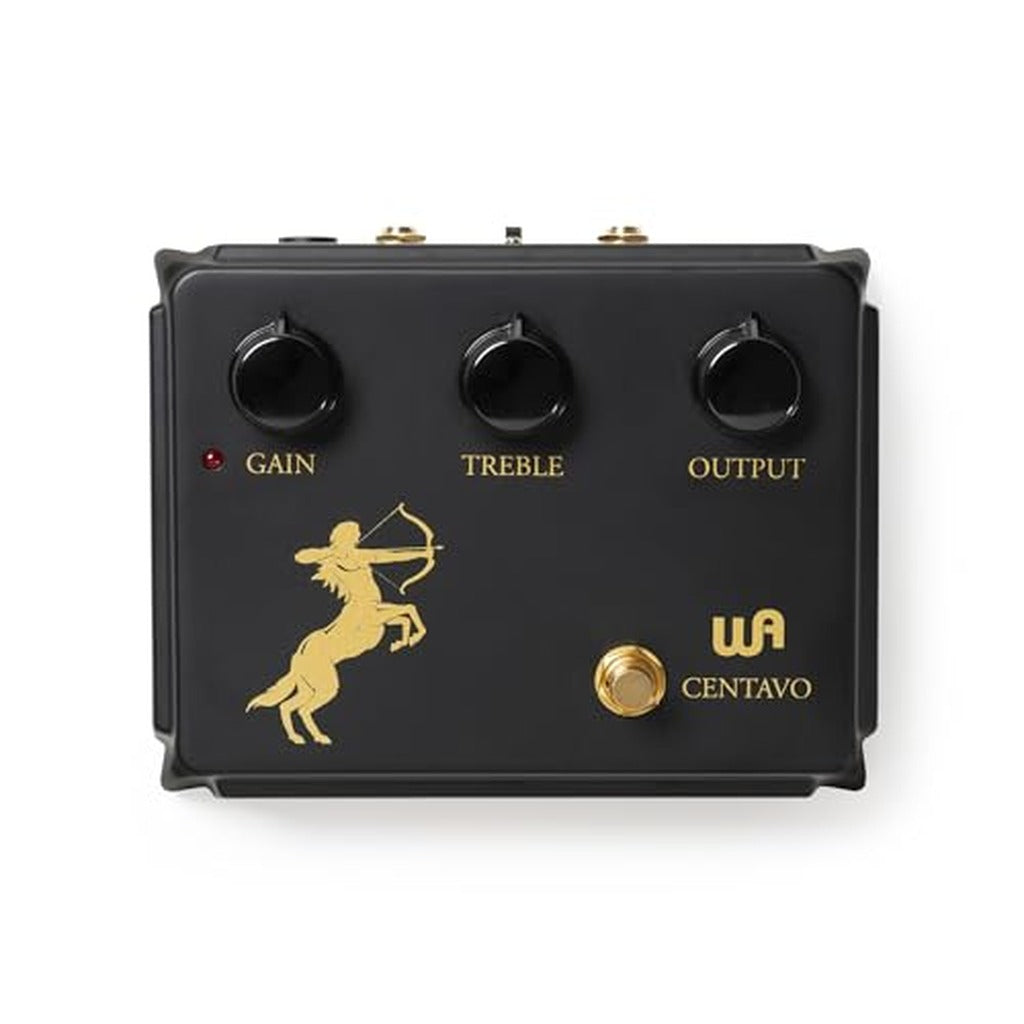

• Controls: Gain, Treble, Output
• Treble Circuit: Active high-pass filter adjustment at 400 Hz

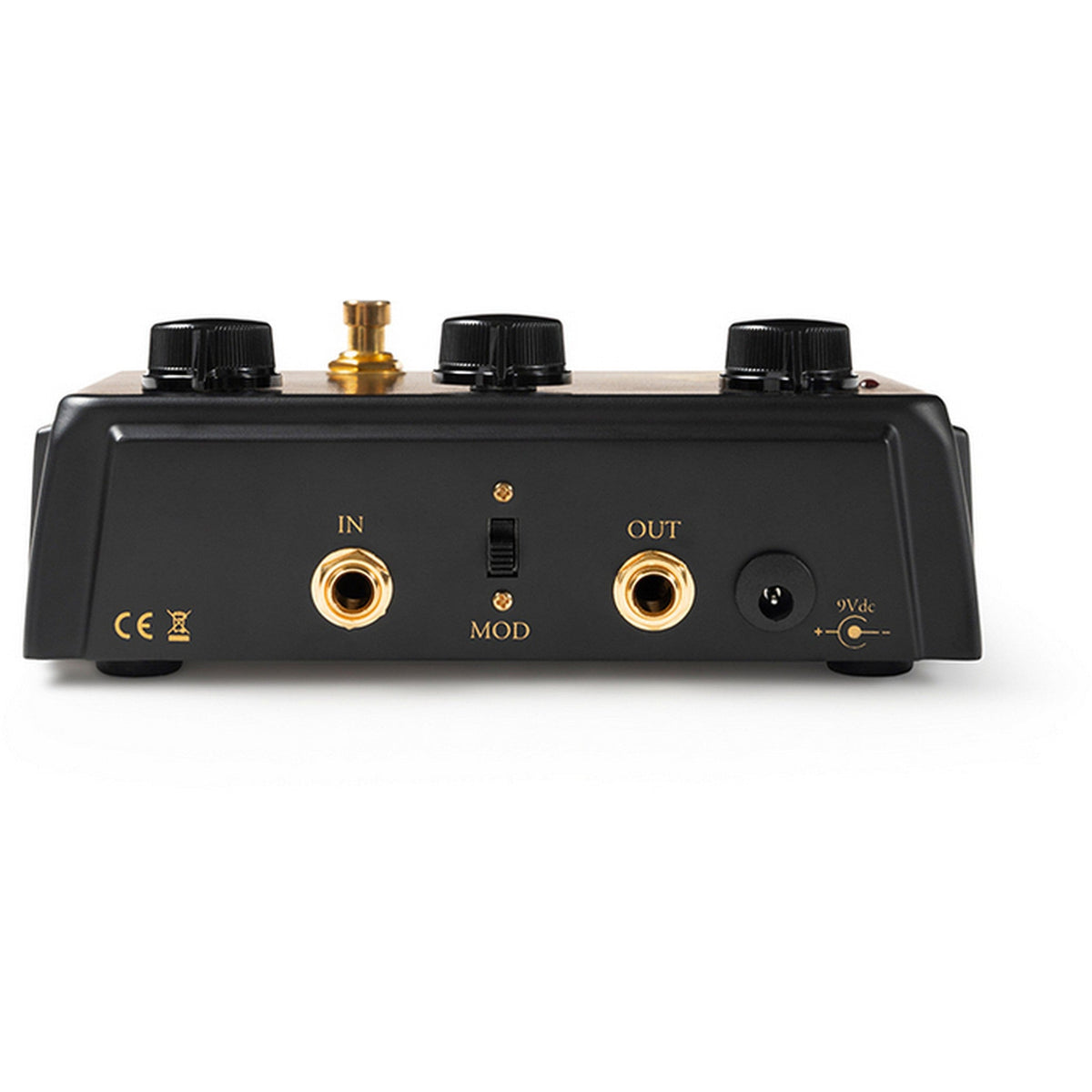

• MOD Switch: Rear-mounted switch for extended low-frequency response
• Bypass: Buffered bypass
• Op Amps: TL072
• Diodes: Vintage-style diodes
• Resistors: Carbon and metal-film resistors
• Voltage Regulation: Charge-pump voltage regulator
• Input: 1 x 1/4" instrument jack
• Output: 1 x 1/4" amplifier jack
• Power: 9V battery or standard 9V DC pedal adapter
• DC Operation: 9V DC only; 18V operation is not supported
• Power Consumption: 40mA
• Dimensions: 5 x 6.8 x 2.3"
• Weight: 2 lb
• Warranty: Limited 5-year manufacturer warranty for the registered original purchaser
