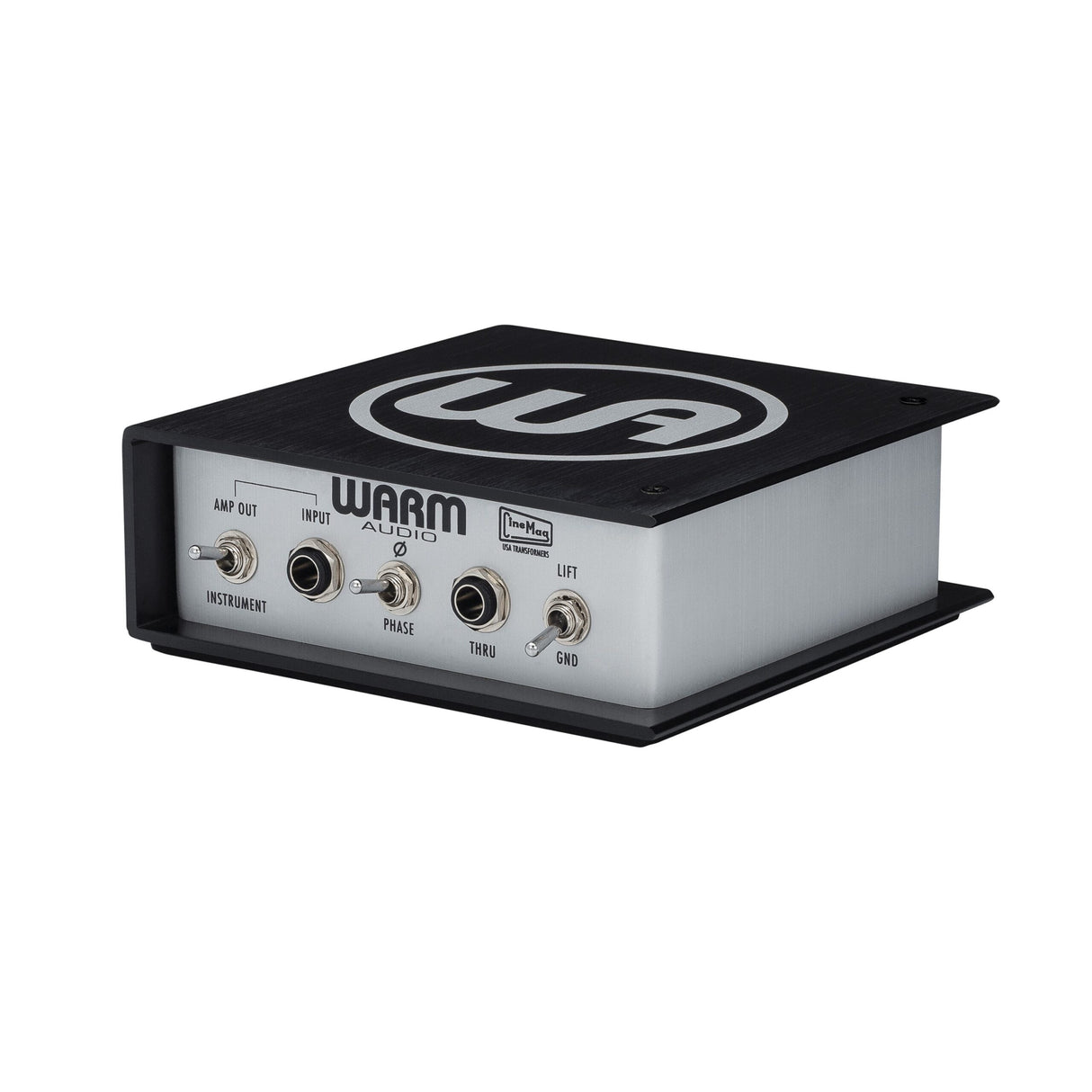

Warm Audio WA-DI-A Active Direct Box
Warm Audio WA-DI-A Active Direct Box
Free Shipping
Warm Audio WA-DI-A Active Direct Box
Whether you play guitar, bass, keyboards or another stringed instrument, you'll need a direct box that won't diminish your instrument's tone, like the Direct Box Active and Direct Box Passive from Warm Audio. Built around world-famous CineMag USA Transformer topology and engineering, like no other DI Boxes in the world. Constructed with top-tier discrete components housed in rugged aluminum chassis' that include switches, knobs and connectors that are all designed to wIt'stand heavy abuse on the road or in the studio. Every aspect of our direct boxes are designed for maximum sonic integrity, from the custom-wound CineMag USA transformer to the rugged metal knob and switches. You can expect warm, rich tone even after long cable runs, and the extruded aluminum enclosure ensures a long life span. When you need to convert an instrument-level signal to mic-level, with sonic quality as your top priority, you'll be well-served with the Direct Box Active and Direct Box Passive from Warm Audio.
Key Features
- CUSTOM-WOUND CINEMAG USA OUTPUT TRANSFORMER
- CONVERTS INSTRUMENTS TO MIC-LEVEL SIGNALS WITHOUT SIGNAL DEGRADATION
- IDEAL SOLUTION FOR PLUGGING YOUR INSTRUMENT DIRECT INTO ANY MIC PRE
- TOP-QUALITY CLASS A COMPONENTS WITH GOLD-PLATED TRACES ON CIRCUIT BOARD
- RUGGED ALUMINUM CONSTRUCTION
Technical Specifications
PAD
VARIABLE FROM -3DB TO -30DB
BALANCED OUTPUTS
600 OHMS, MIC LEVEL
INPUT IMPEDANCE
1 MEG OHMS
THD:
.01% FROM 20HZ TO 100HZ. LESS THAN .004% FROM 100HZ TO 20KHZ
FREQUENCY RESPONSE
20HZ TO 70KHZ +/- 0.5DB
POWER
48V PHANTOM OR TWO 9V BATTERIES. CAN ALSO BE USED PASSIVELY
CUSTOM-WOUND CINEMAG USA OUTPUT TRANSFORMER
CONVERTS INSTRUMENTS TO MIC-LEVEL SIGNALS WITHOUT SIGNAL DEGRADATION
IDEAL SOLUTION FOR PLUGGING YOUR INSTRUMENT DIRECT INTO ANY MIC PRE
TOP-QUALITY CLASS A COMPONENTS WITH GOLD-PLATED TRACES ON CIRCUIT BOARD
RUGGED ALUMINUM CONSTRUCTION
PAD
VARIABLE FROM -3 TO -30DB
BALANCED OUTPUT
600 OHMS, MIC LEVEL
INPUT IMPEDANCE
1 MEG OHMS
THD
.01% FROM 20HZ TO 50HZ. LESS THAN .003% FROM 50HZ TO 20KHZ
FREQUENCY RESPONSE
10HZ TO 90KHZ +/- 0.5DB
