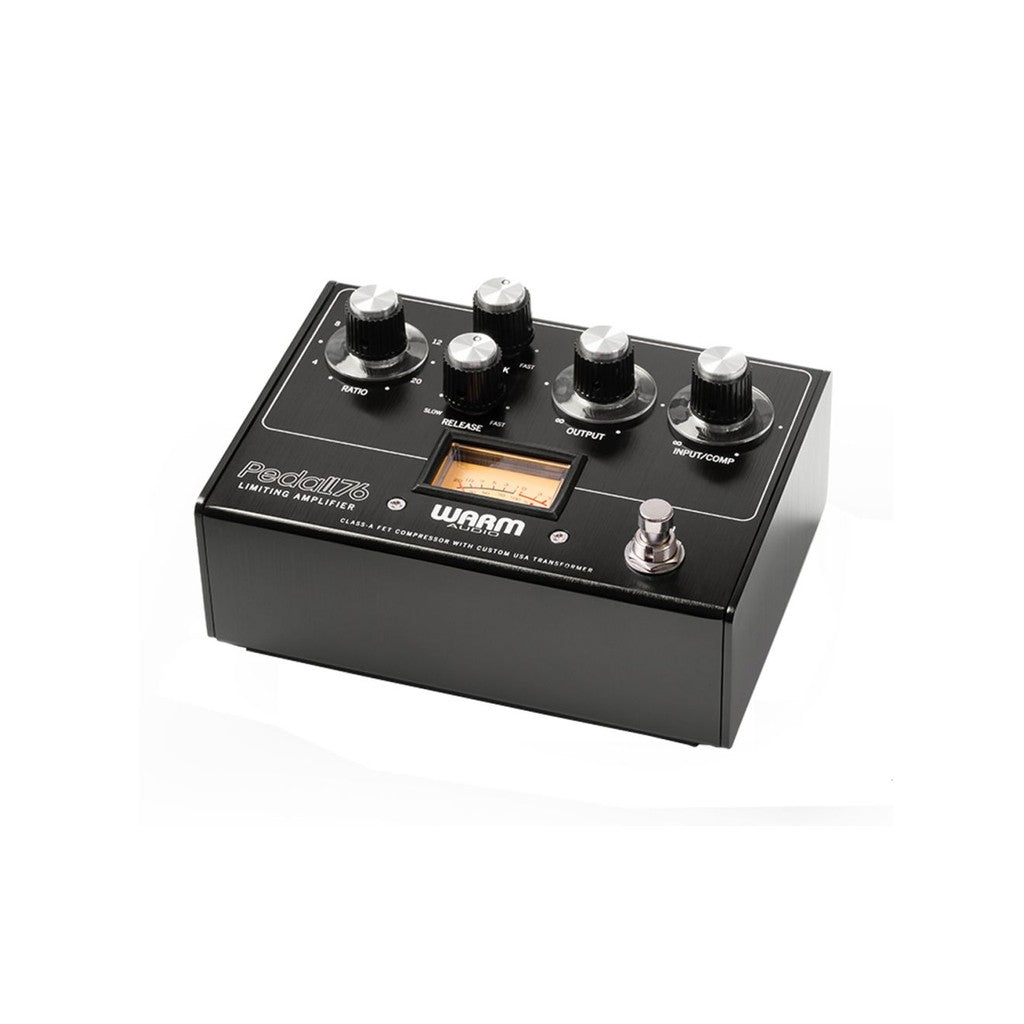

Warm Audio WA76-P Pedal76 Analog FET Compressor and DI Pedal

Warm Audio WA76-P Pedal76 Analog FET Compressor and DI Pedal

The Warm Audio WA76-P Pedal76 analog FET compressor and DI pedal brings fast, studio-style dynamic control to guitar, bass, and keyboard rigs. Its discrete analog signal path, adjustable attack and release, selectable ratios, and transformer-balanced output deliver everything from subtle level control to aggressive limiting and sustained lead tones.

Designed for pedalboards, live stages, and recording sessions, this 76-style compressor gives musicians direct control over transient response and output consistency. Input, Output, Attack, Release, and Ratio controls simplify precise compression, while selectable input sensitivity accommodates low-output instruments and hotter active pickups. Ratios up to 20:1 provide firm peak limiting when required.

A custom CineMag USA output transformer adds harmonic character to the balanced DI signal when external power is connected. Ground lift, output pad, and high or low DI gain improve compatibility with mixers and recording equipment. Selectable true or buffered bypass helps the pedal integrate cleanly into compact boards and extended signal chains.

Key Features

• 76-Style FET Compression: Provides ultra-fast dynamic control for cleaner rhythm playing, sustained leads, and consistent bass performance.
• All-Analog Signal Path: Uses a 100% discrete analog circuit to preserve instrument character while controlling level changes.
• Adjustable Compression: Includes Input, Output, Ratio, Attack, and Release controls for detailed response and gain shaping.
• Compressor and Limiter Ratios: Covers settings from 4:1 to 20:1 for gentle compression through firm peak limiting.
• Transformer-Balanced DI: Routes a balanced signal through a custom CineMag USA output transformer when using external power.
• Live and Studio Controls: Adds input sensitivity, ground lift, DI output pad, and high or low DI gain switching.
• Selectable Bypass: Switches between true bypass and buffered bypass to suit different pedalboard configurations.
• Visual Gain Monitoring: Features a vintage-style amber VU meter for clear gain-reduction indication.

Technical Specifications

General

• Product Type: Analog FET Compressor and DI Pedal
• Model: Pedal76
• Manufacturer Part Number: WA76-P
• Circuit Design: All-Analog Transformer-Balanced FET Compressor
• Signal Path: 100% Discrete Analog
• Noise Performance: Ultra-Low-Noise Design

Compression Controls

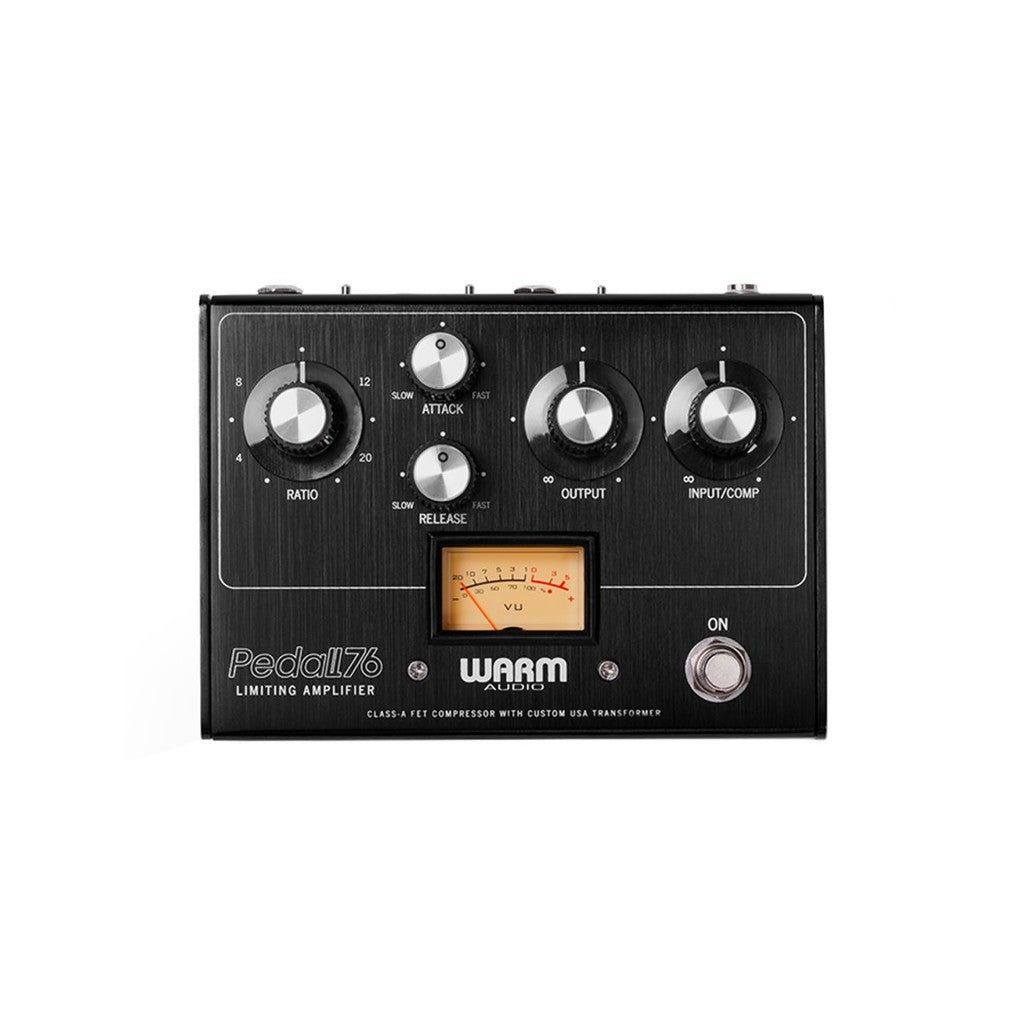

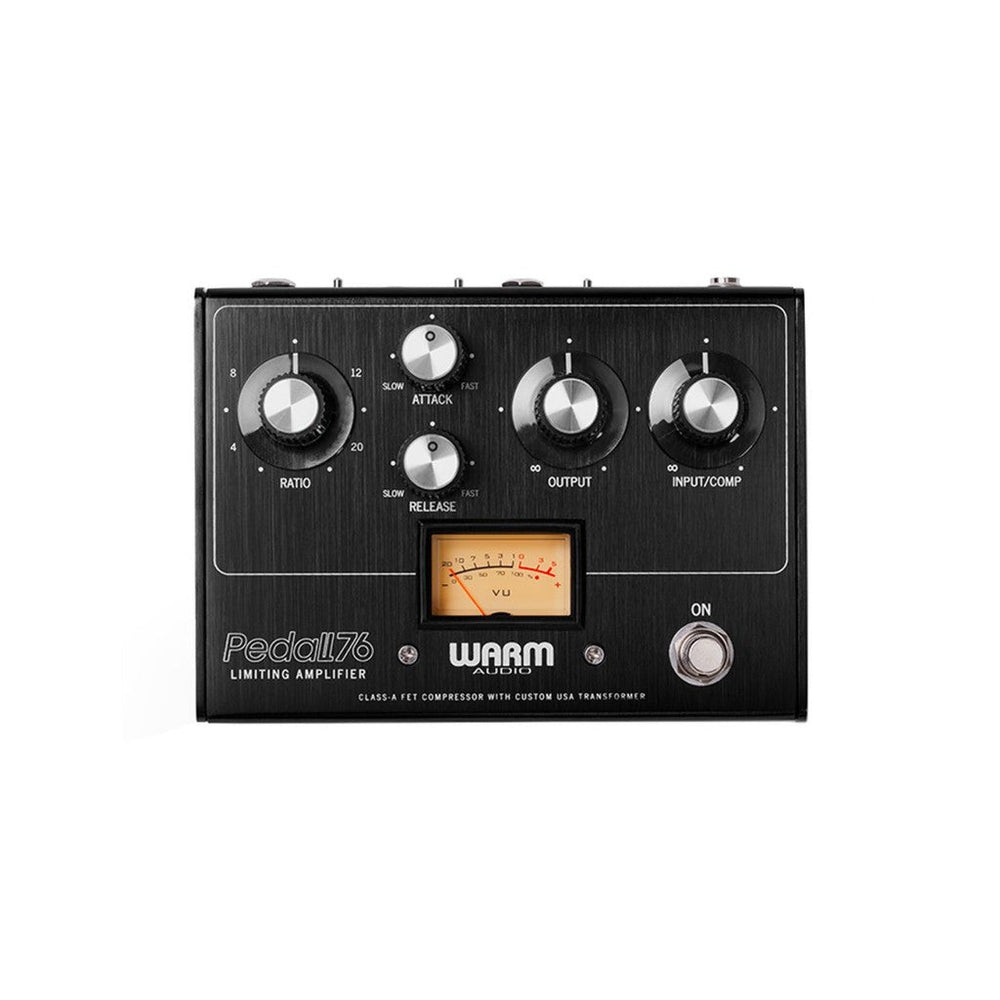

• Primary Controls: Input/Compression, Output, Ratio, Attack, and Release
• Compression Ratio Range: 4:1 to 20:1
• Limiter Operation: 12:1 and 20:1 Settings
• Attack Time: 20 to 800 Microseconds
• Release Time: 50 to 1100 Milliseconds
• Gain Reduction Meter: Vintage-Style Amber VU Meter

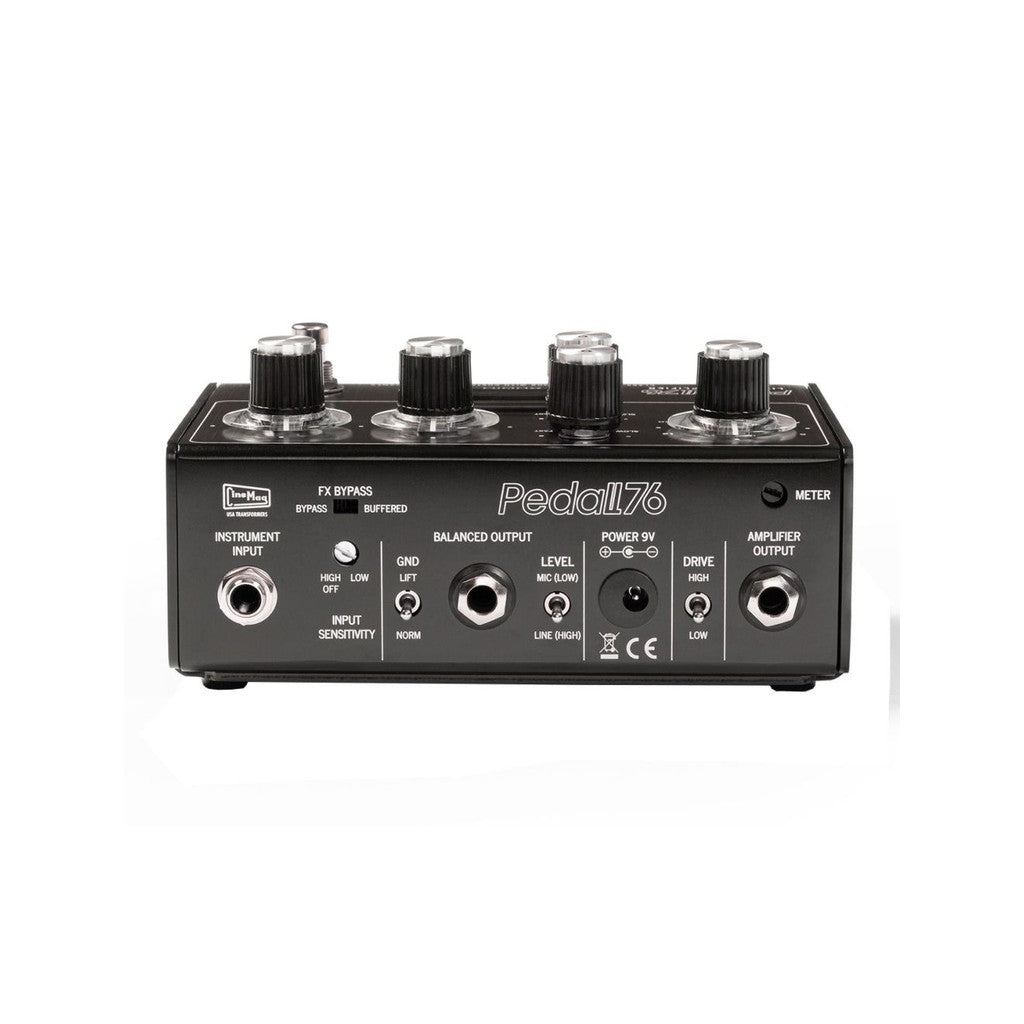

DI and Pedalboard Controls

• Input Sensitivity: Adjustable for Lower-Output and High-Output Instruments
• DI Ground Control: Ground/Lift Switch
• DI Output Pad: Selectable
• DI Gain: High or Low
• High-Gain Function: Adds a Level Boost to the Balanced Output
• Bypass Modes: True Bypass or Buffered Bypass
• Balanced Output: TRS DI Output

Transformer and Power

• Output Transformer: Custom CineMag USA Transformer
• Transformer Operation: Engages When the Pedal Uses External Power
• Power Options: External Power Supply or 9V Battery
• External Power Current Requirement: 125mA
• Voltage Conversion: Internal DC-to-DC Voltage Converter with External Power

Physical Specifications

• Dimensions: 5.9" x 4.1" x 1.9"
• Weight: 1.65 lbs
