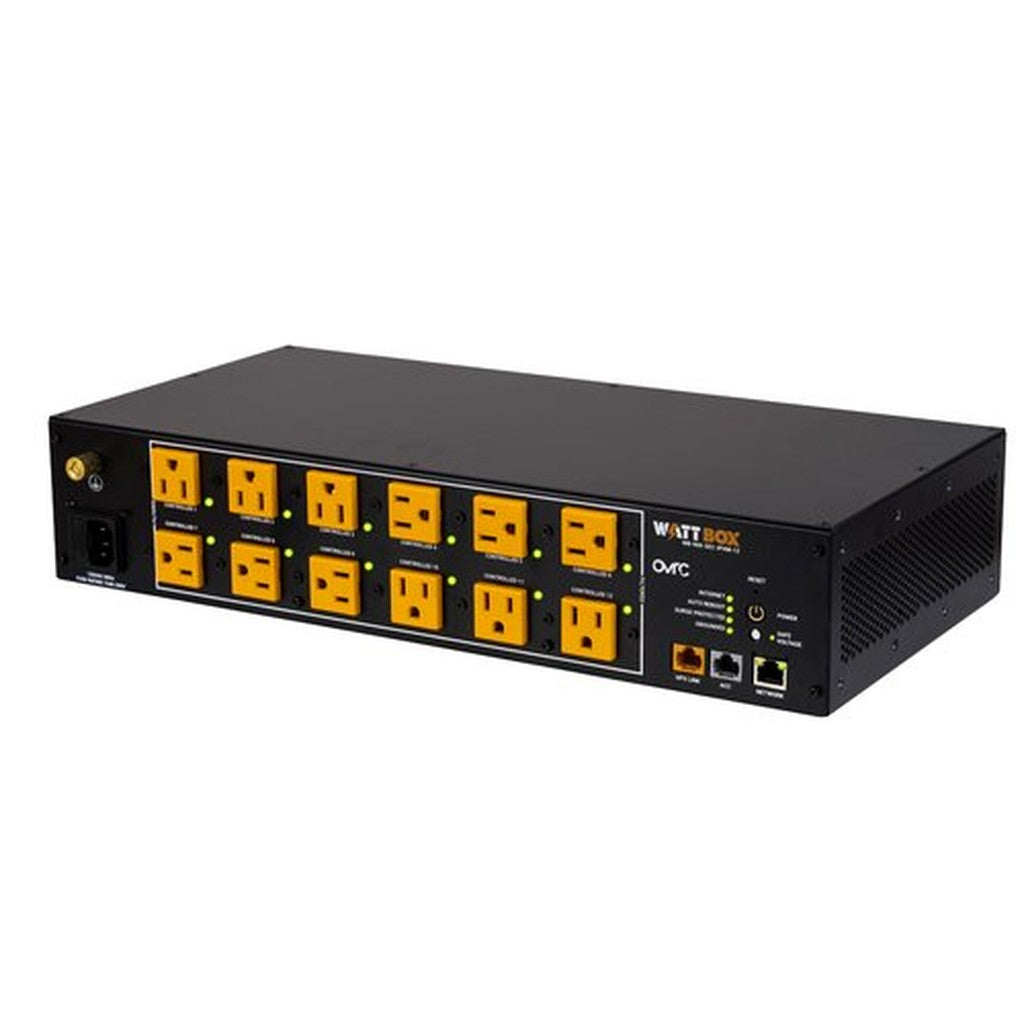

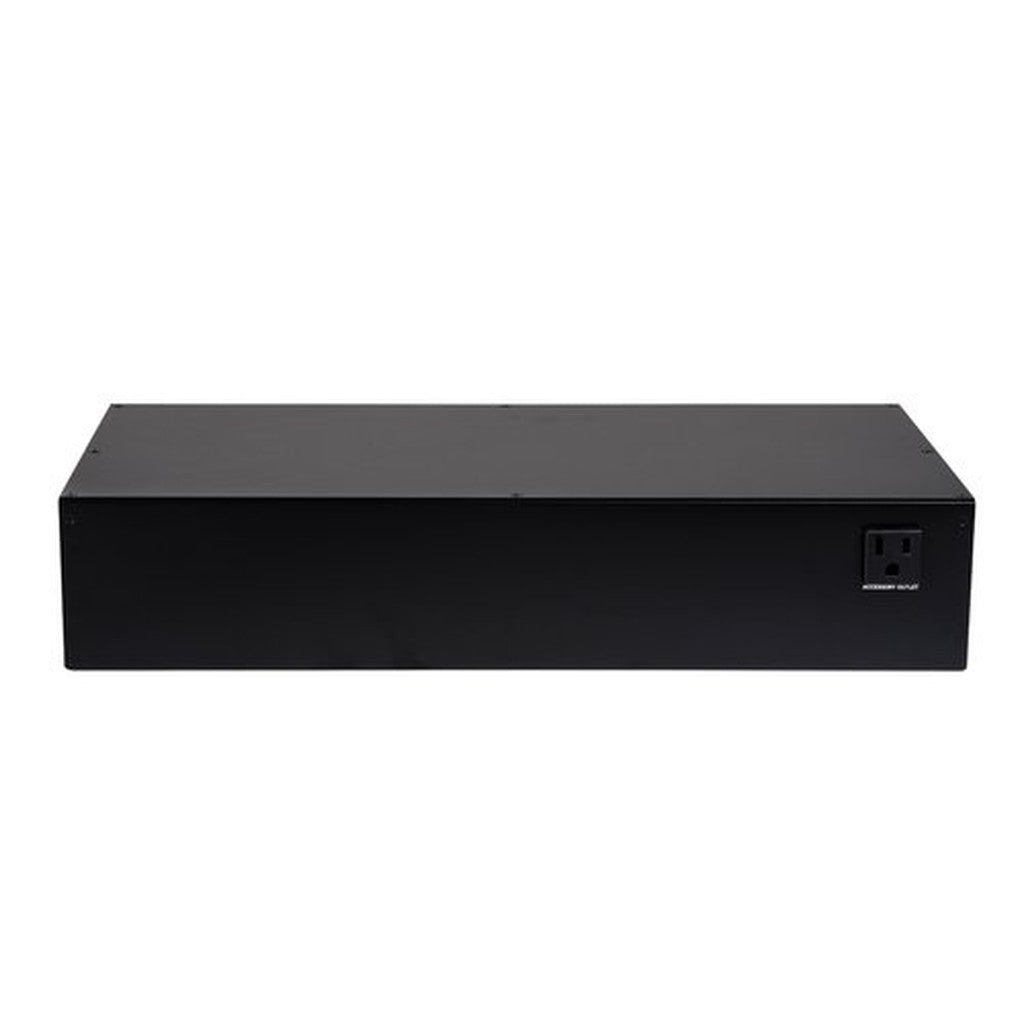

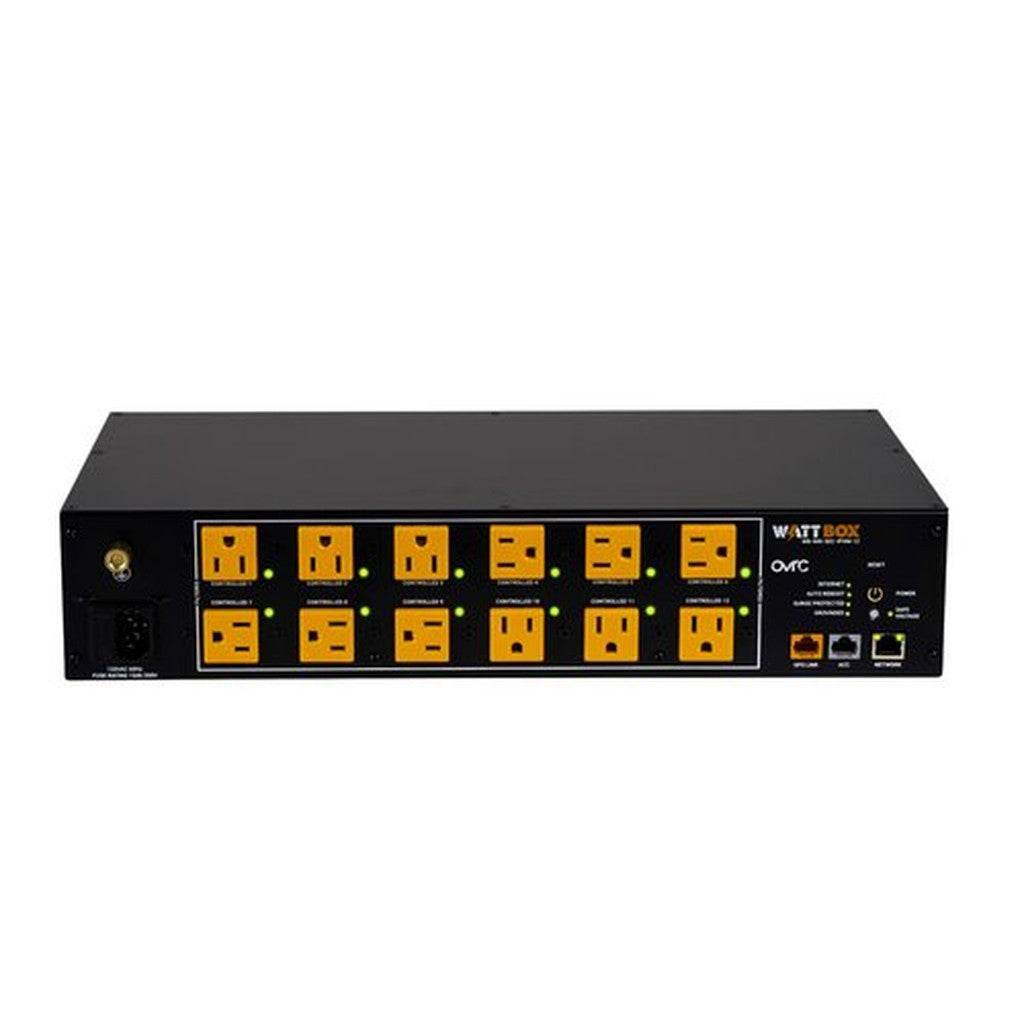

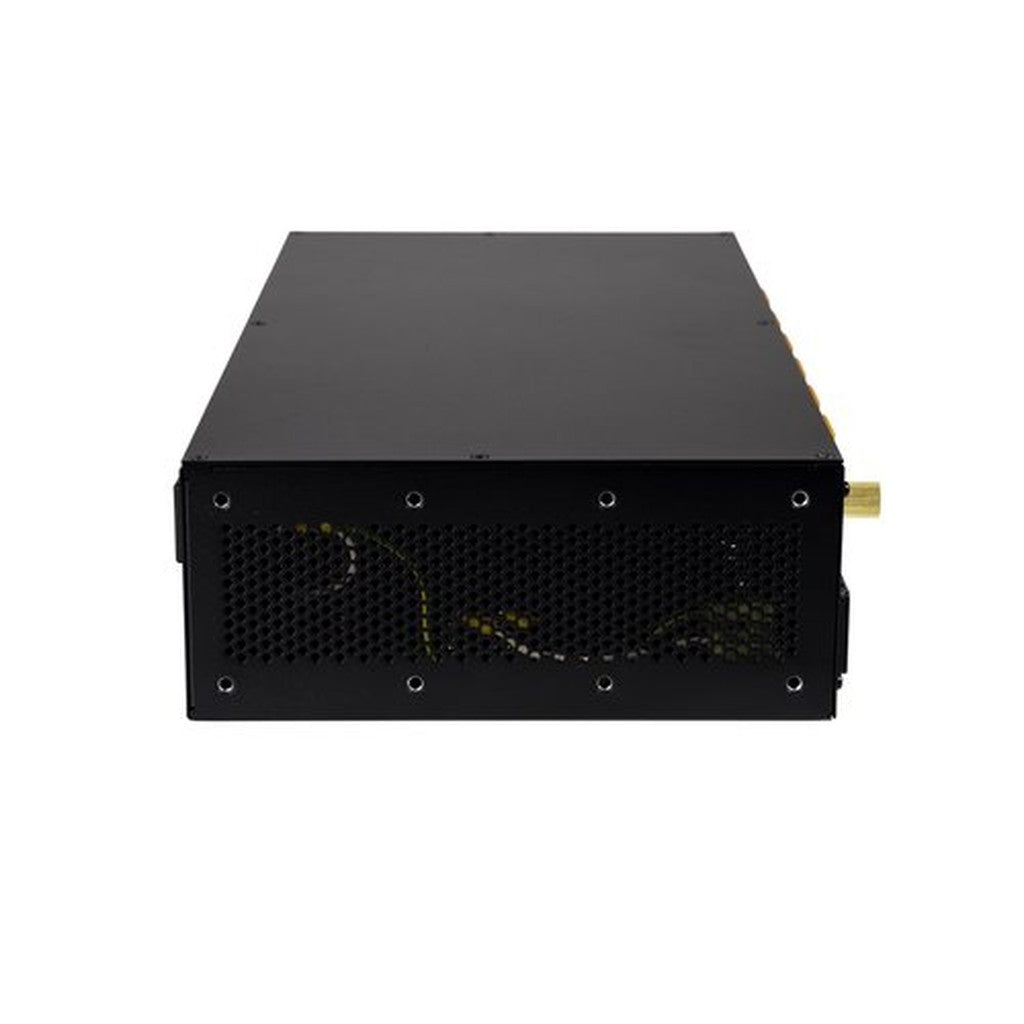

WattBox WB-900-SEC-IPVM-12 12-Outlet IP Power Conditioner

WattBox WB-900-SEC-IPVM-12 12-Outlet IP Power Conditioner

The WattBox WB-900-SEC-IPVM-12 IP power conditioner protects and manages professional AV, networking, automation, and surveillance equipment. It combines 12 individually controlled and metered outlets with non-sacrificial Surge Elimination Circuit technology, Safe Voltage protection, EMI/RFI filtration, and OvrC remote system management in a 2U rack-mount design.

Designed for equipment racks, network closets, control rooms, and integrated smart systems, this 12-outlet rack power conditioner gives installers granular control over every connected device. Individual outlet rebooting, scheduled power cycles, outlet sequencing, and configurable monitoring thresholds help resolve common equipment problems remotely while reducing unnecessary service visits.

The Power Insights Dashboard displays outlet-level historical consumption data, helping technicians identify abnormal loads and diagnose equipment performance. IP and Telnet API support enables integration with compatible control platforms, while optional OvrC UPS integration expands the system with managed battery backup functions. Certified electrical performance and a six-year limited warranty support dependable residential and commercial installations.

OvrC IP Power Management Key Features

• Non-Sacrificial SEC Protection: Maintains series-mode surge protection through repeated surge events without relying solely on replaceable sacrificial components.
• 12 Controlled Outlets: Provides individual IP control and power metering for every connected device.
• OvrC Remote Management: Enables alerts, remote reboots, automated recovery, scheduling, sequencing, and system health monitoring.
• Power Insights Dashboard: Tracks historical outlet-level power consumption to support proactive diagnostics and maintenance.
• Safe Voltage Protection: Monitors incoming voltage across a specified 90V to 136V operating window.
• EMI/RFI Filtration: Reduces electromagnetic and radio-frequency interference affecting connected AV and network equipment.
• Flexible Installation: Supports rack, cabinet, wall, shelf, and other equipment-area mounting arrangements using the included hardware.
• Control-System Integration: Supports IP and Telnet API connectivity for compatible professional automation platforms.

WattBox WB-900-SEC-IPVM-12 Technical Specifications

• Product Type: IP power conditioner with series-mode surge protection
• Product Series: WattBox 900 Series
• Outlet Quantity: 12
• Outlet Type: NEMA 5-15R
• IP-Controllable Outlets: 12
• Outlet Control: Individually controllable
• Power Metering: Individual outlet and whole-device metering
• Remote Management: OvrC
• Power Analytics: Power Insights Dashboard
• API Support: Yes
• Surge Protection: Non-sacrificial line-to-neutral protection with MOV protection
• Protection Modes: Line-to-neutral, line-to-ground, and neutral-to-ground
• Peak Impulse Current: 135,000A
• Joule Rating: 3240J
• Voltage Protection Rating: Line-to-neutral: 500V; line-to-ground: 600V; neutral-to-ground: 700V
• Safe Voltage Range: 90V to 136V
• EMI/RFI Filtration: One filter for 12 outlets
• Line Voltage: 120V, 50/60 Hz
• UL Current Rating: 12A
• UL Power Rating: 1500W
• Fuse Rating: 15A
• Fuse Type: Fast-acting ceramic tube fuse
• AC Input: IEC C14 with integrated fuse holder
• Power Cord: Locking and detachable 14 AWG C13 power cord
• Power Cord Length: 6.6'
• Rack Height: 2U
• Operating Temperature: 14°F to 122°F
• Dimensions: 17.32" x 8.39" x 3.46"
• Certifications and Standards: UL 62368-1, CAN/CSA C22.2 No. 62368-1-14, FCC Part 15 Subpart B, ICES-003 Issue 7 Class B, and tested to UL 1449
• Warranty: Six-year limited warranty

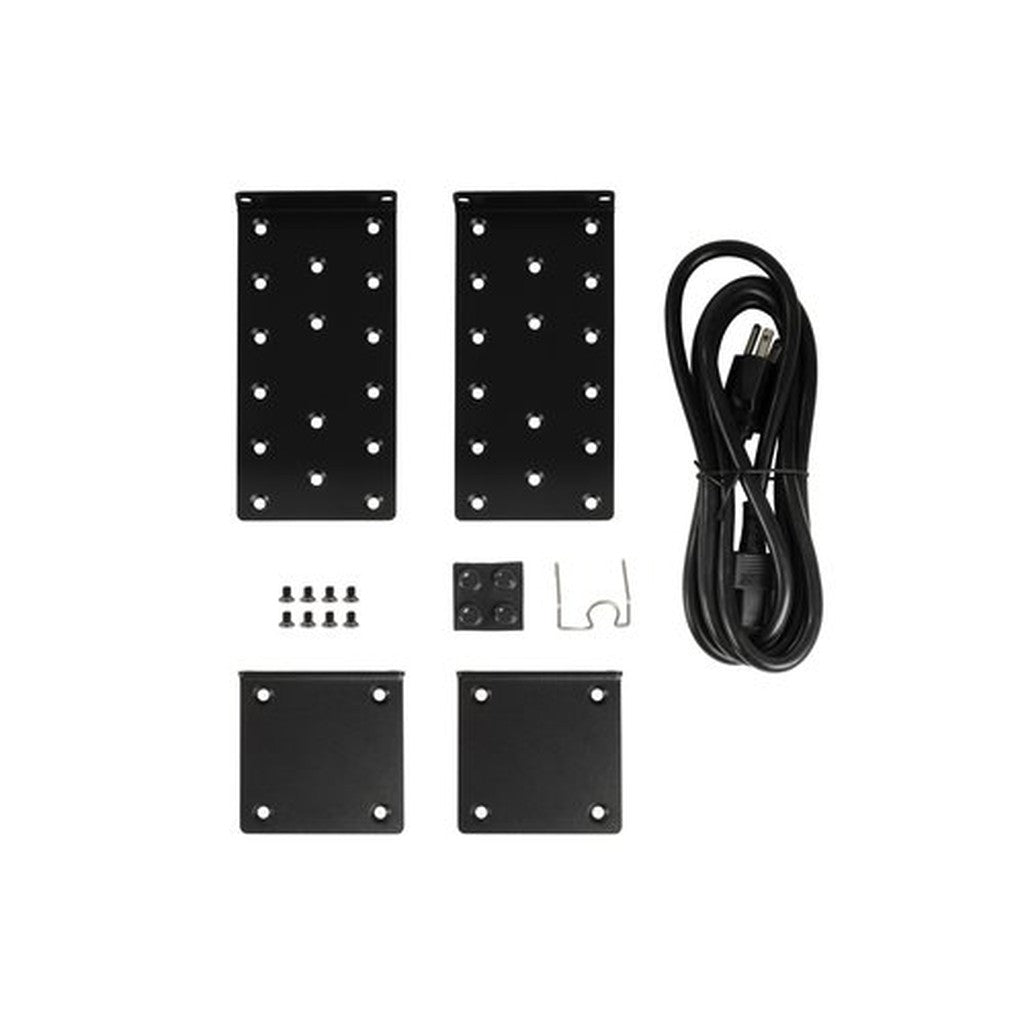

What's In the Box

• WattBox WB-900-SEC-IPVM-12 IP power conditioner
• Power cord
• Two small rack-mounting brackets
• Two large rack-mounting brackets
• Eight mounting-bracket screws
• Four wall-mounting screws, washers, and anchors
• Three hook-and-loop tie-down straps
• Power-cord locking clip
• Documentation QR insert card
