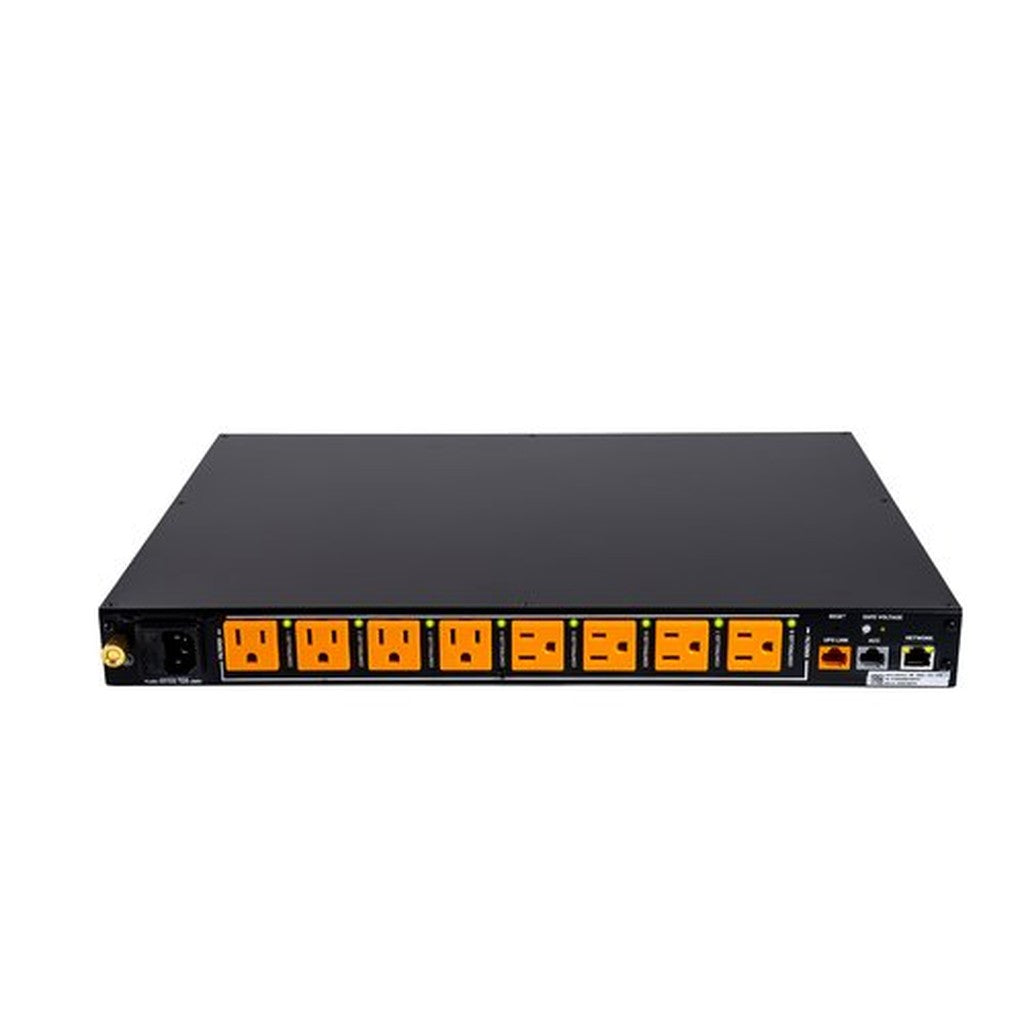

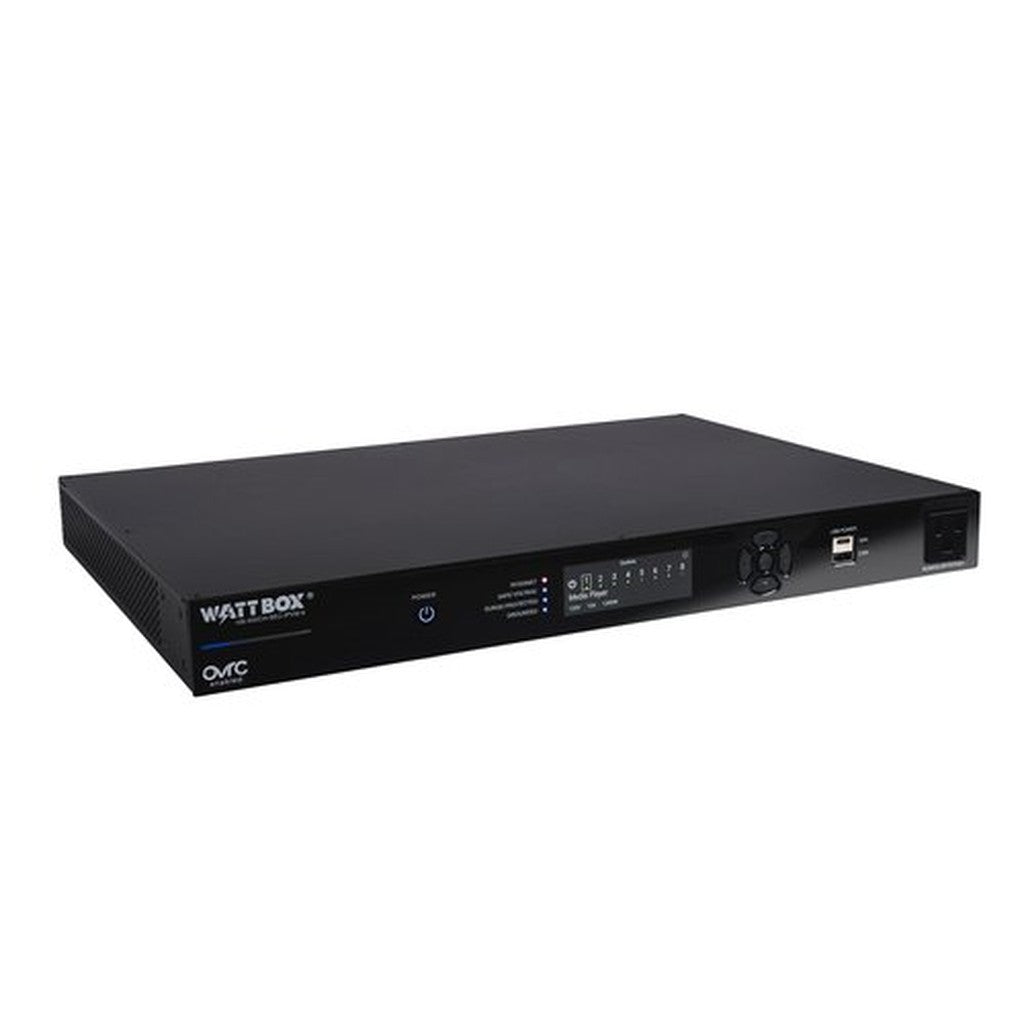

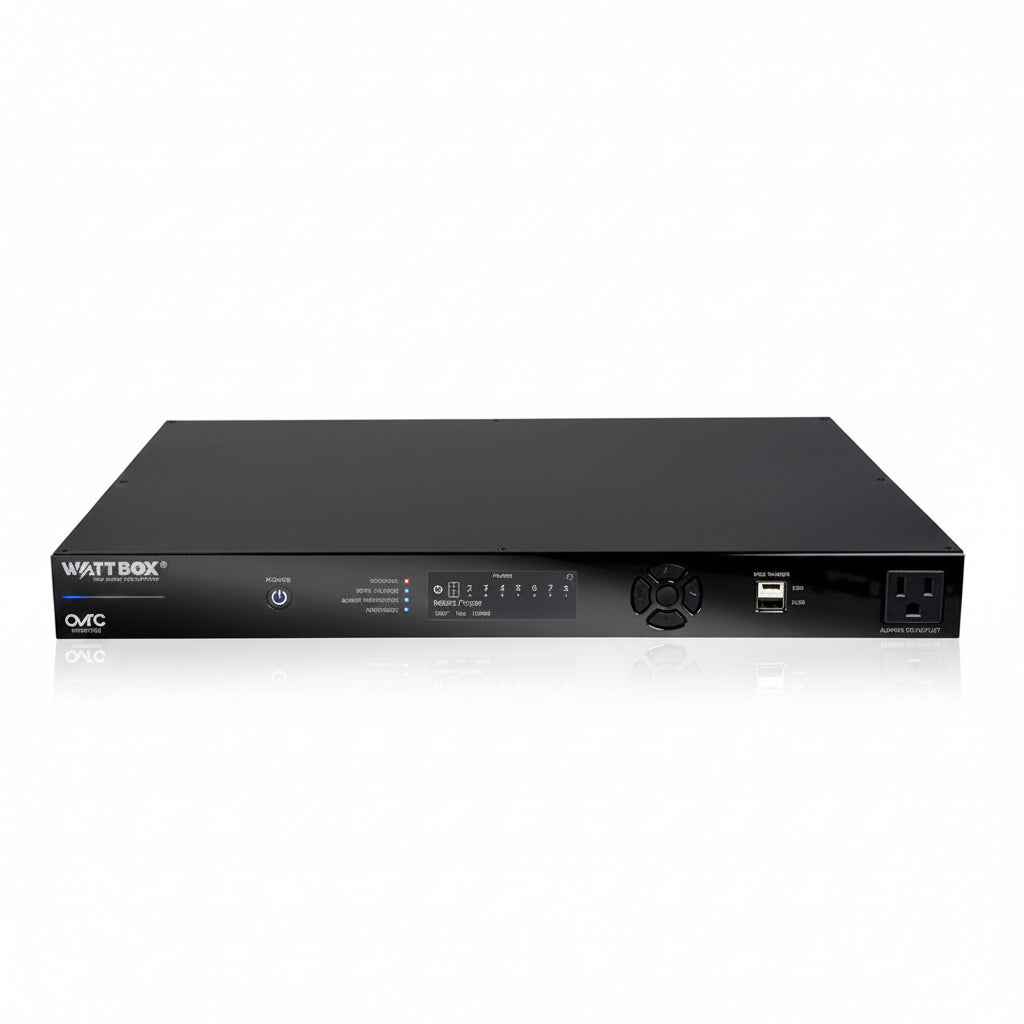

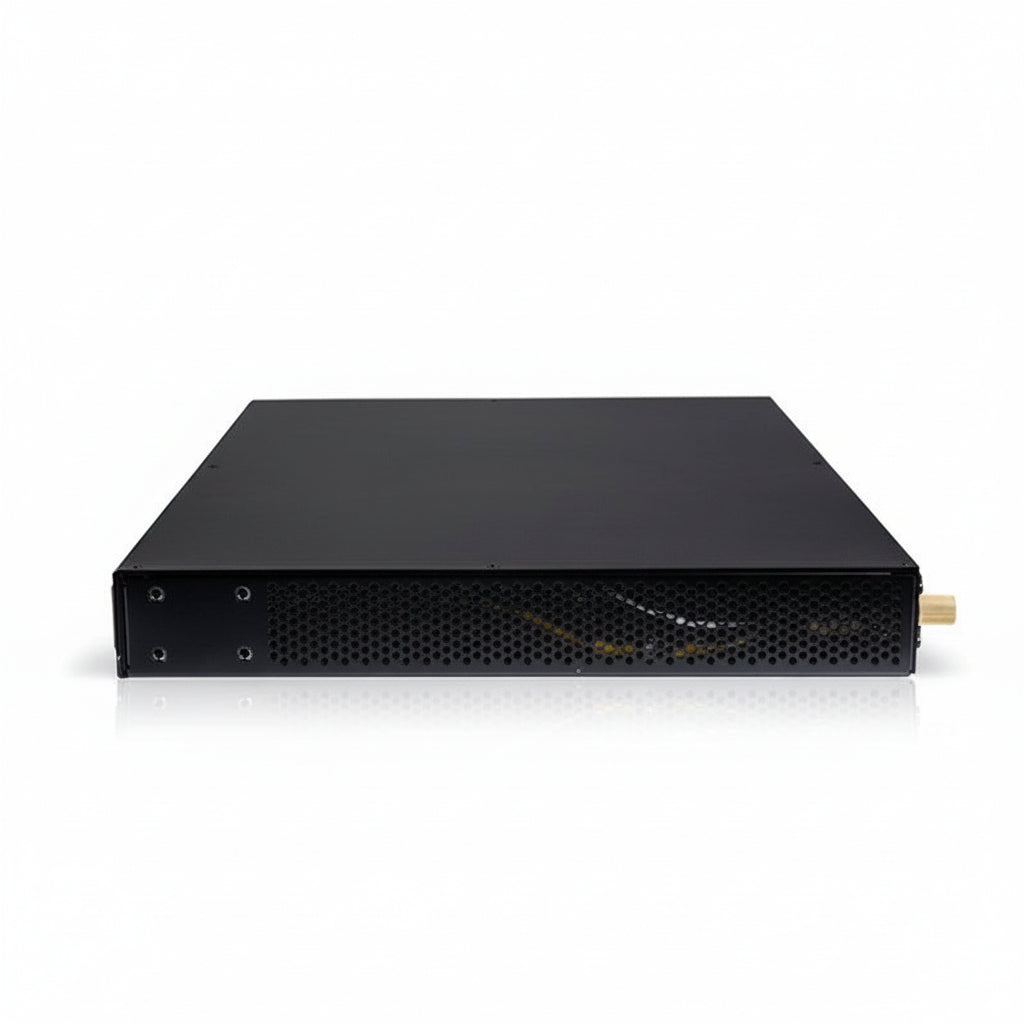

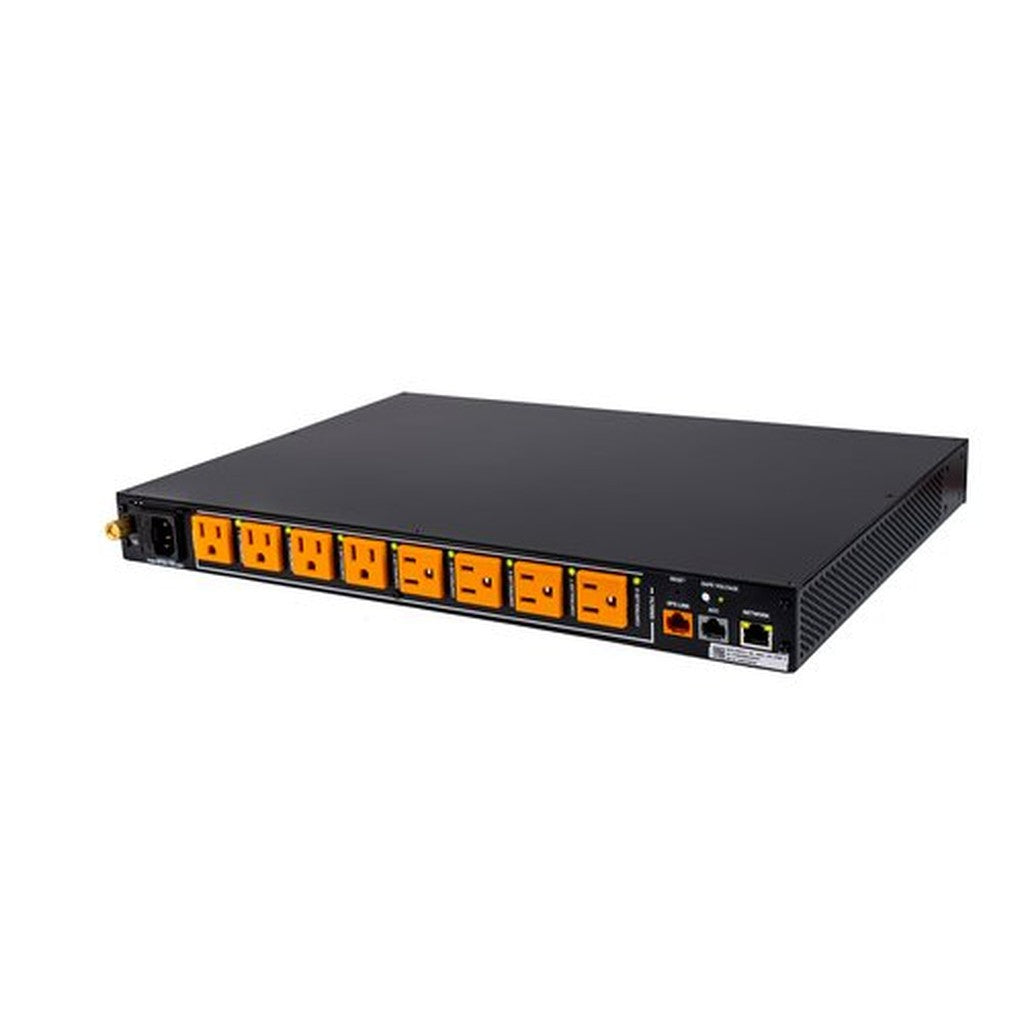

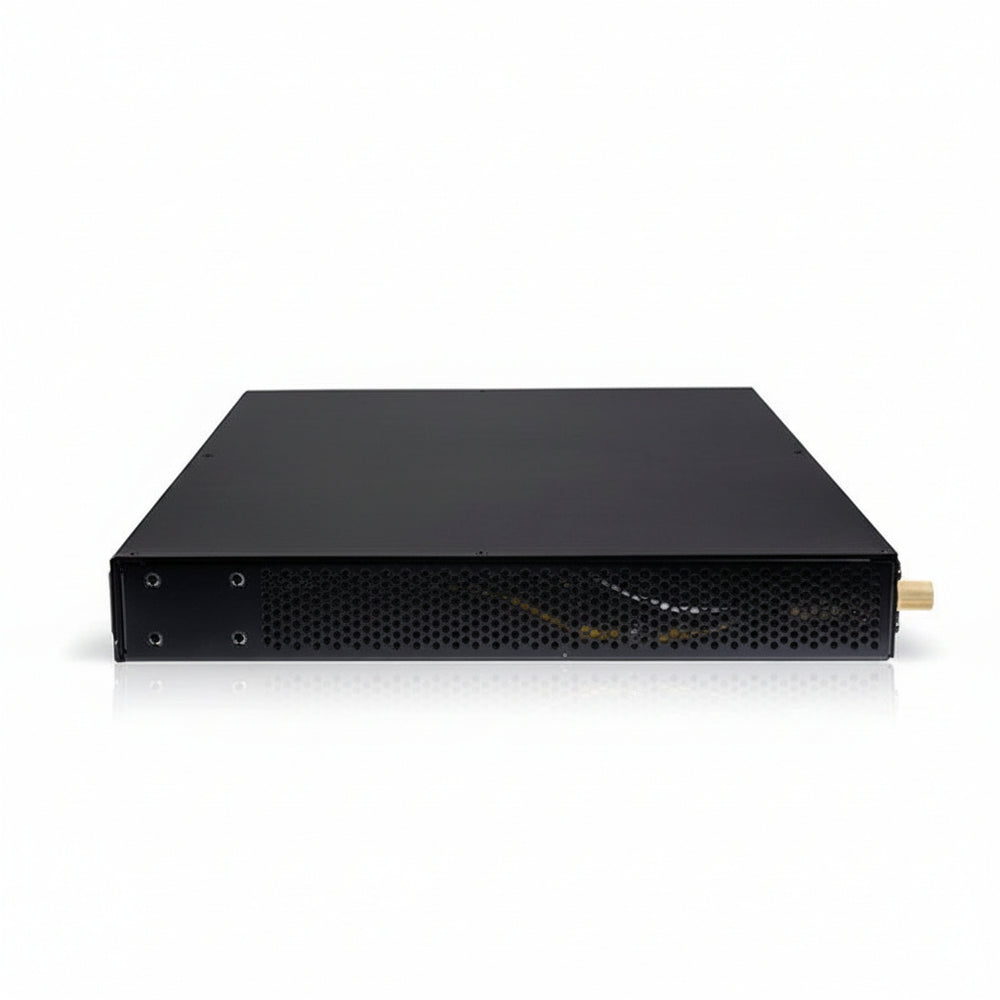

WattBox WB-900CH-SEC-IPVM-8 8-Outlet IP Power Conditioner

WattBox WB-900CH-SEC-IPVM-8 8-Outlet IP Power Conditioner

The WattBox WB-900CH-SEC-IPVM-8 is a 1U rack-mount IP power conditioner designed to protect and manage professional AV, networking, automation, and surveillance systems. It combines eight individually controlled and metered outlets, non-sacrificial Surge Elimination Circuit protection, OvrC remote management, a full-color front-panel display, and Safe Voltage monitoring.

Integrators can reboot connected devices, configure power sequences, review operating status, and perform outlet-level actions locally or remotely. The front-panel display and directional controls provide direct access without requiring a computer. Power Insights tracks historical energy use, while real-time alerts and automated recovery help technicians diagnose equipment issues and reduce unnecessary service visits.

The 900 Series chassis supports equipment racks in commercial AV installations, network closets, control rooms, and advanced residential systems. EMI/RFI filtration helps minimize electrical interference, while individual and whole-device power metering provide greater visibility into connected loads. API support and optional UPS integration accommodate broader control, monitoring, and power-backup workflows.

OvrC IP Power Management Key Features

• Non-Sacrificial SEC Protection: Protects connected equipment from repeated line-to-neutral surge events without degrading after each occurrence.
• Eight Managed Outlets: Provides individual IP control, power metering, rebooting, and sequencing for connected devices.
• Full-Color Front Display: Shows outlet and system information while supporting local power actions through directional controls.
• OvrC Remote Management: Enables off-site monitoring, troubleshooting, rebooting, alerts, and automated recovery.
• Power Insights Dashboard: Displays historical power-consumption trends for individual outlets and the complete unit.
• Safe Voltage Monitoring: Operates within a specified 90V to 136V voltage range to help protect sensitive electronics.
• EMI/RFI Filtration: Reduces electromagnetic and radio-frequency noise that can affect audio, video, and network performance.
• 1U Rack-Mount Chassis: Integrates into professional equipment racks while conserving valuable installation space.

WattBox WB-900CH-SEC-IPVM-8 Technical Specifications

• Product Type: IP power conditioner with series-mode surge protection
• Product Series: WattBox 900 Series
• Outlets: Eight NEMA 5-15R outlets
• IP-Controllable Outlets: Eight
• Outlet Management: Individual control, rebooting, and sequencing
• Power Metering: Individual outlet and whole-device metering
• Remote Management: OvrC
• Power Analytics: Power Insights Dashboard
• API Support: Yes
• Surge Protection: Non-sacrificial line-to-neutral protection
• Protection Modes: Line-to-neutral, line-to-ground, and neutral-to-ground
• Safe Voltage Range: 90V to 136V
• EMI/RFI Filtration: One filter for eight outlets
• Line Voltage: 120V, 50/60 Hz
• UL Current Rating: 12A
• UL Power Rating: 1500W
• AC Input: IEC C14 with integrated fuse holder
• Fuse Rating: 15A
• Fuse Type: Fast-acting ceramic tube fuse
• Power Cord: Locking, detachable 14 AWG C13 power cord
• Power Cord Length: 6.6'
• Rack Height: 1U
• Operating Temperature: 14°F to 104°F
• Dimensions: 17.32" x 12.99" x 1.71"
• Certifications and Standards: UL 62368-1, CAN/CSA C22.2 No. 62368-1, FCC Part 15 Subpart B, and ICES-003 Issue 7 Class B
• Warranty: Six-year limited warranty

What's In the Box

• Power cord
• Two mounting feet
• Four mounting-foot screws
• Two rack-mounting brackets
