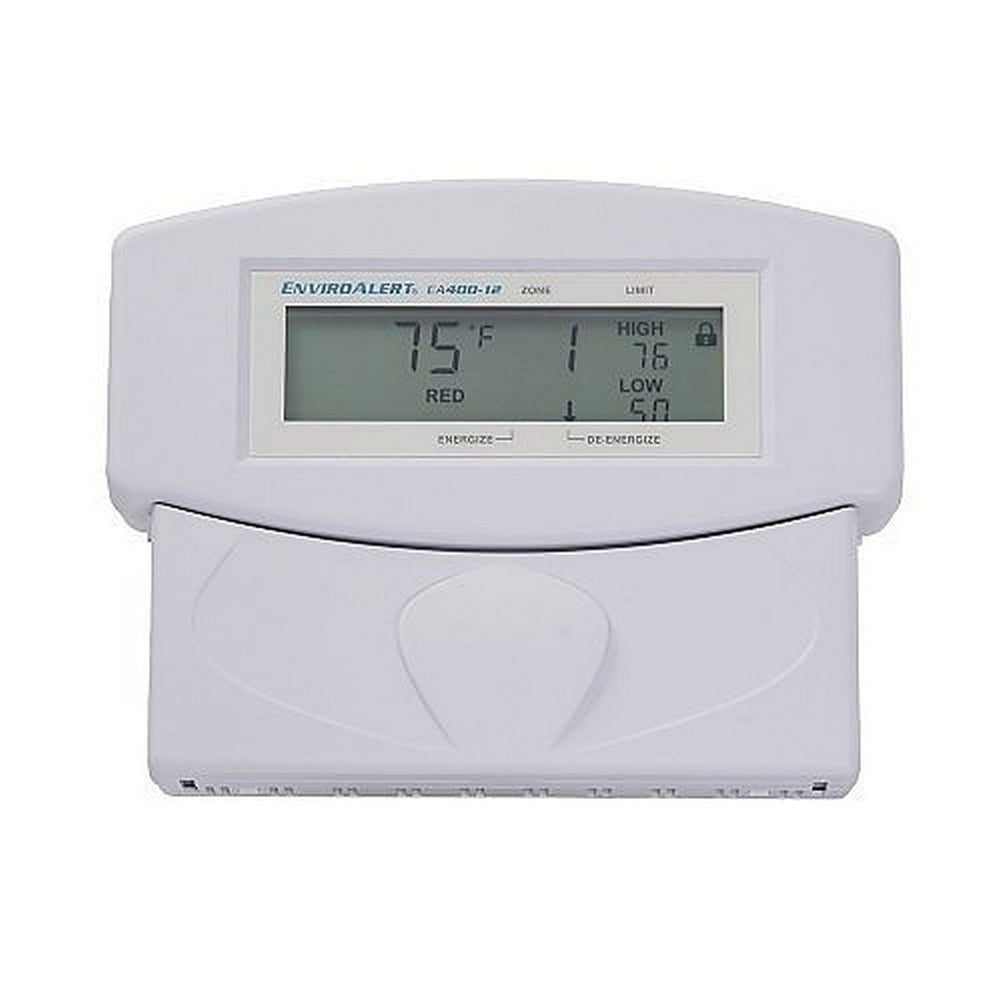

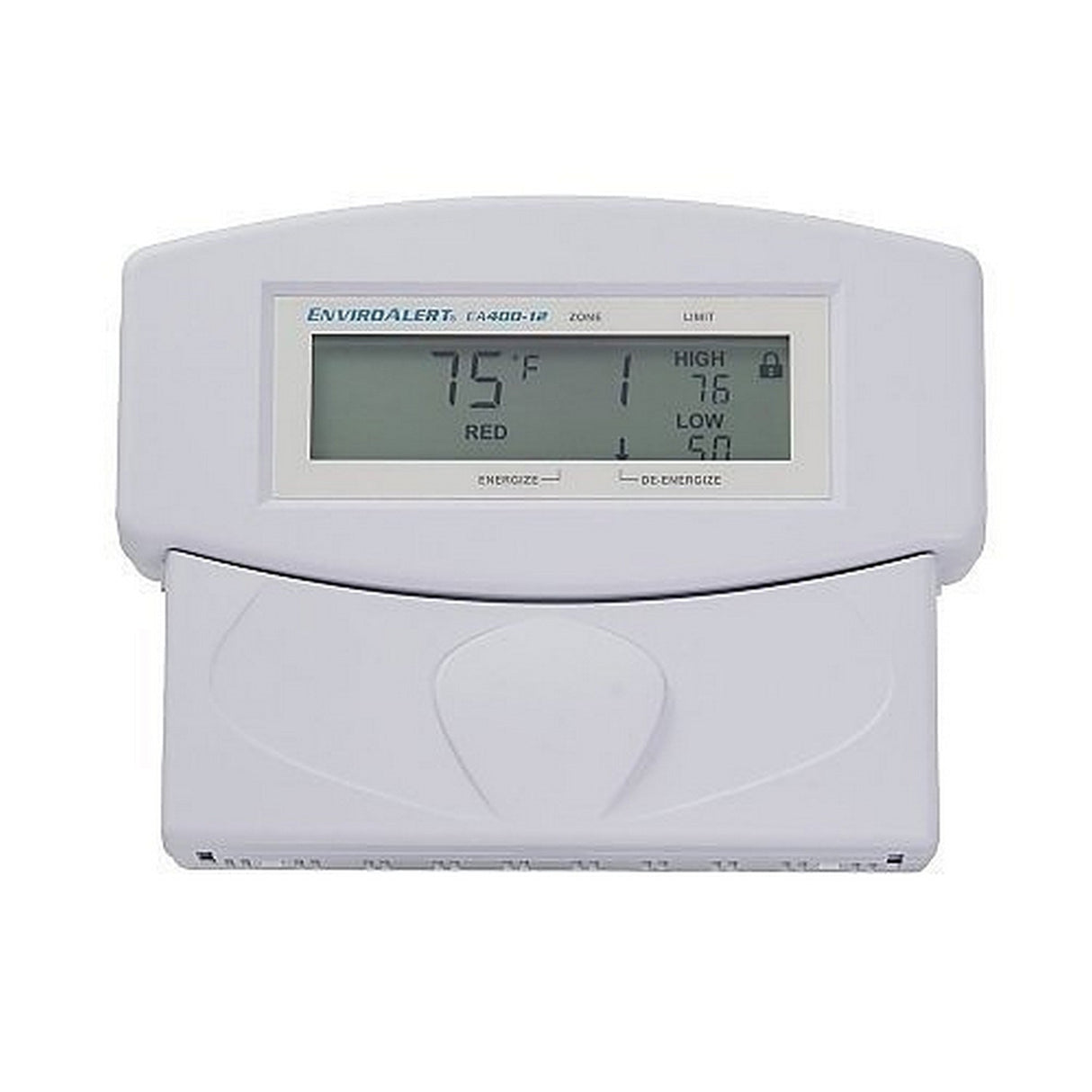

The Winland EA400-12 environmental monitor supervises temperature, humidity, or water conditions through as many as four compatible wired sensors. It displays local status on an LCD and provides relay outputs for integration with security or alarm panels, helping facilities respond when a configured high or low threshold is crossed.

Each zone operates simultaneously and can use its own sensor type, limits, offset, relay behavior, and alarm delay. Eight-event memory records incidents with time and date, while the tamper-resistant lock helps prevent unauthorized setting changes. A 10-minute alarm-silence timer supports local response without clearing the underlying condition.

Designed for refrigerated storage, warehouses, server rooms, healthcare facilities, and other monitored spaces, the EA400-12 remains outside the controlled environment while remote probes measure conditions inside. It has no onboard sensor, so compatible sensors are required and sold separately. The enclosure mounts to a standard two-gang box or directly to a surface and requires 12 VDC power.

Key Features

• Four Monitoring Zones: Operates four external sensors simultaneously for independent environmental areas or conditions.
• Multiple Sensor Types: Supports compatible temperature, humidity, and supervised water-detection sensors.
• Alarm Panel Integration: Four configurable dry-contact relays connect zone alarms to compatible security or notification systems.
• Incident Memory: Stores eight alarm events with their corresponding time and date information.
• Programmable Alarm Delay: Delays individual zone alarms for up to 120 minutes to reduce nuisance notifications.

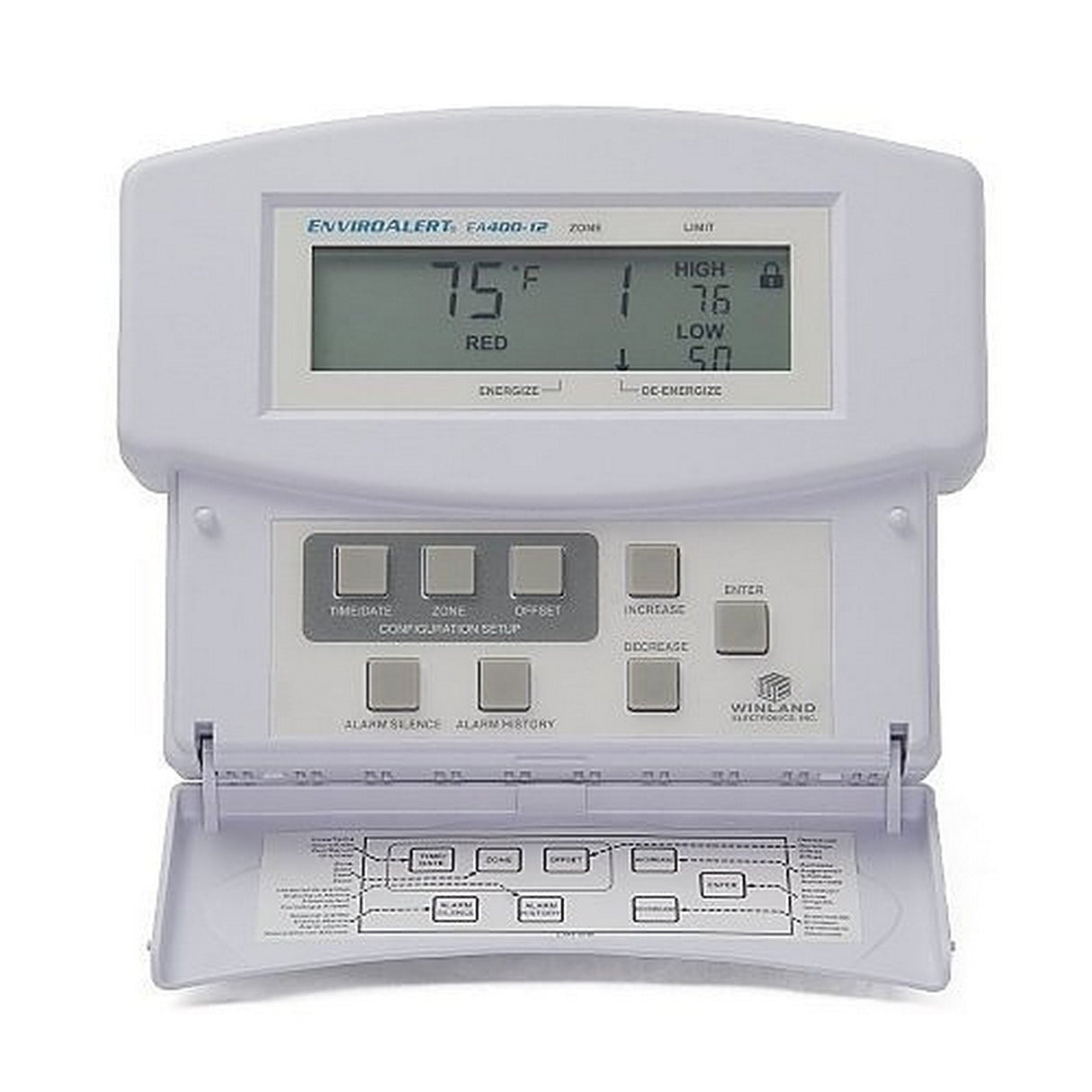

• Local Status Display: The LCD presents readings and flashes when the system detects an alarm condition.
• Protected Configuration: A tamper-resistant lock helps prevent unauthorized changes to programmed settings.
• Flexible Installation: Mounts on a standard two-gang electrical box or directly to a suitable wall surface.

Technical Specifications

System Configuration

• Brand: Winland Electronics
• Model: EA400-12
• Manufacturer Item Number: M-001-0096
• Product Line: EnviroAlert 400
• Product Type: Four-zone critical-condition monitoring device
• Connectivity: Wired
• Monitoring Zones: 4
• Remote Sensor Inputs: 4
• Onboard Sensor: None
• Supported Conditions: Temperature, humidity, and water presence with compatible external sensors
• Color: White

Monitoring and Alarm Functions

• Incident Memory: 8 events with time and date
• Display: LCD with flashing alarm indication
• Threshold Controls: Programmable temperature and humidity high and low setpoints
• Sensor Offset Adjustment: Up to +/-9.0
• Alarm Delay: Programmable up to 120 minutes for each zone
• Alarm Silence Timer: 10 minutes
• Zone Alarm Outputs: Four configurable Form C SPDT relays
• Auxiliary Alarm Output: One non-configurable Form C SPDT relay
• Relay Contact Rating: Dry contact, 30 VDC at 1A
• External Sensor Limit Range: -58 to 302 degrees Fahrenheit, dependent on sensor type
• Device Operating Temperature: 32 to 122 degrees Fahrenheit
• Operating Environment: Noncondensing

Compatible Sensors and Accessories

• TEMP-L-S Sensor: Stainless-steel temperature probe for -58 to 158 degrees Fahrenheit
• TEMP-L-W Sensor: Waterproof temperature probe for -58 to 158 degrees Fahrenheit
• TEMP-H-S Sensor: Stainless-steel temperature probe for 32 to 302 degrees Fahrenheit
• TEMP-H-W Sensor: Waterproof temperature probe for 32 to 221 degrees Fahrenheit
• HA-III+ Sensor: Humidity monitoring from 5% to 95% RH
• HA-4 Sensor: Humidity monitoring from 5% to 95% RH
• W-S-S Sensor: Supervised wet/dry water-surface detection
• Optional Power Supply: Winland 12VDCT 12 VDC transformer

Power and Physical Specifications

• Power Requirement: 12 VDC at 120 mA
• Mounting: Standard two-gang box or surface mount
• Dimensions: 6 x 4.8 x 1.3 inches
• Weight: 0.6 pounds
• Country of Origin: United States
• TAA Compliant: No
