Wittner PSVW Peg Shaper for Ultra and Wooden Violin and Viola Pegs

Wittner Peg Shaper for Ultra and Wooden Pegs

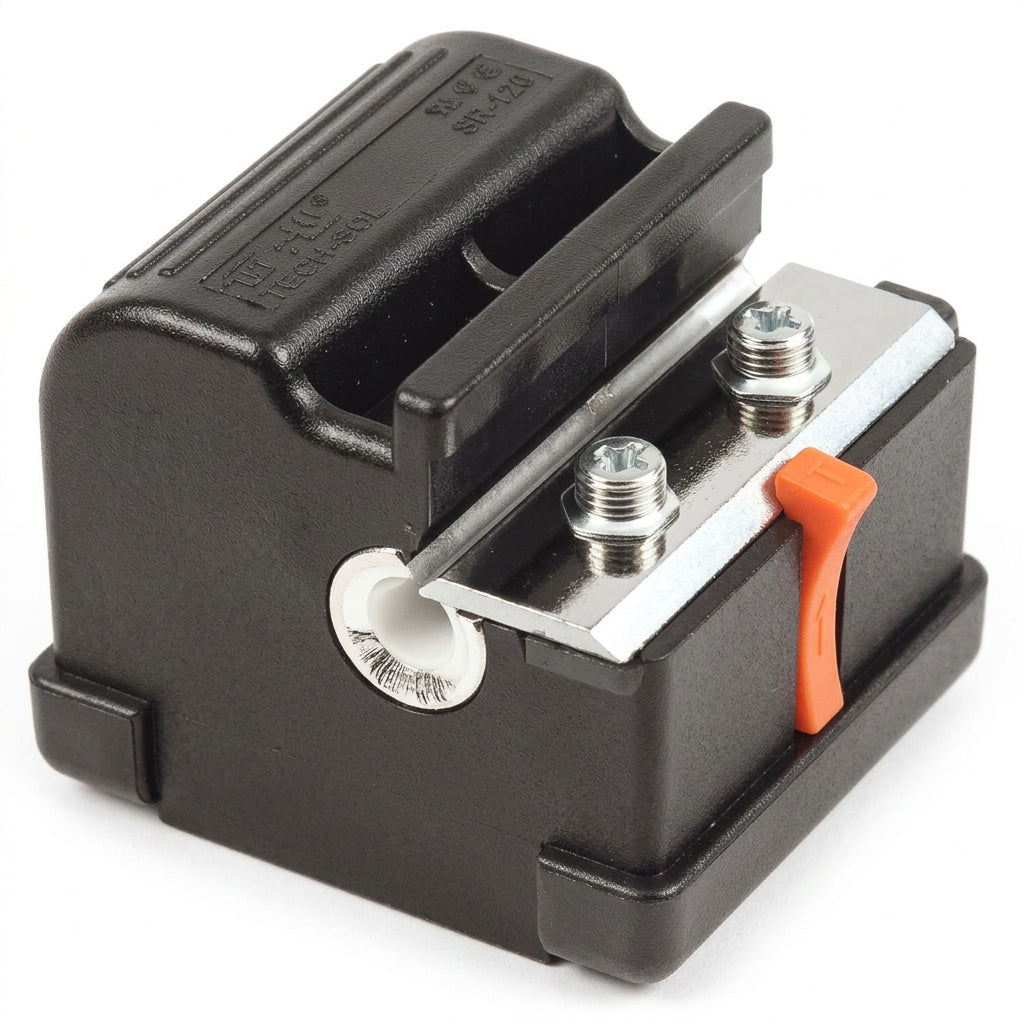

The Wittner Peg Shaper shapes Ultra composite and wooden violin and viola peg shafts for fitting. Interchangeable bushings provide four diameter options and three taper ratios, while an adjustable blade controls shaving thickness. This workshop tool helps instrument makers prepare compatible pegs to match the taper required by the instrument's peg holes.

For violin peg replacement and viola setup work, the bushing system lets a technician select the appropriate shaft diameter and taper combination. Two blade adjusters help set the cutting position, including corrections when material removal differs across the blade. A removable peg handle assists handling during shaping and also serves to exchange the bushings.

Made in Germany, the tool supports the manufacturer's Ultra pegs and conventional wooden pegs. Its serviceable blade can be repositioned or replaced according to Wittner's instructions, supporting ongoing workshop use. Select the bushing to match the fitting requirements, then follow the manufacturer's procedure for blade adjustment and peg preparation. Finetune geared pegs require a different fitting approach and cannot be shaped with this tool.

Peg-Fitting Features

• Interchangeable Bushings: Provide diameter and taper choices for compatible peg shafts.
• Three Taper Ratios: Offer 1:20, 1:25, and 1:30 configurations.
• Adjustable Cutting Blade: Allows the technician to control shaving thickness.
• Independent Blade Adjusters: Help align the cutting edge with the selected bushing taper.
• Removable Peg Handle: Assists peg handling and bushing exchange.
• Replaceable Blade: Supports maintenance using original Wittner replacement blades.

Technical Specifications

• Brand: Wittner
• Product Type: Peg shaper
• Instrument Application: Violin and viola
• Peg Compatibility: Wittner Ultra composite pegs and wooden pegs
• Bushing Diameter Options: Approximately 0.3", 0.3", 0.3", and 0.4"
• Taper Ratios: 1:20, 1:25, and 1:30 for each diameter
• Interchangeable Bushings: 12 configurations
• Blade Width: 2"
• Blade Adjustment: Two adjusters
• Country of Manufacture: Germany
