WyreStorm NHD-600-TRXF NetworkHD 600 Series 4K60 4:4:4 10Gb SDVoE Fiber Transceiver

WyreStorm NHD-600-TRXF NetworkHD 600 Series 4K60 4:4:4 10Gb SDVoE Fiber Transceiver

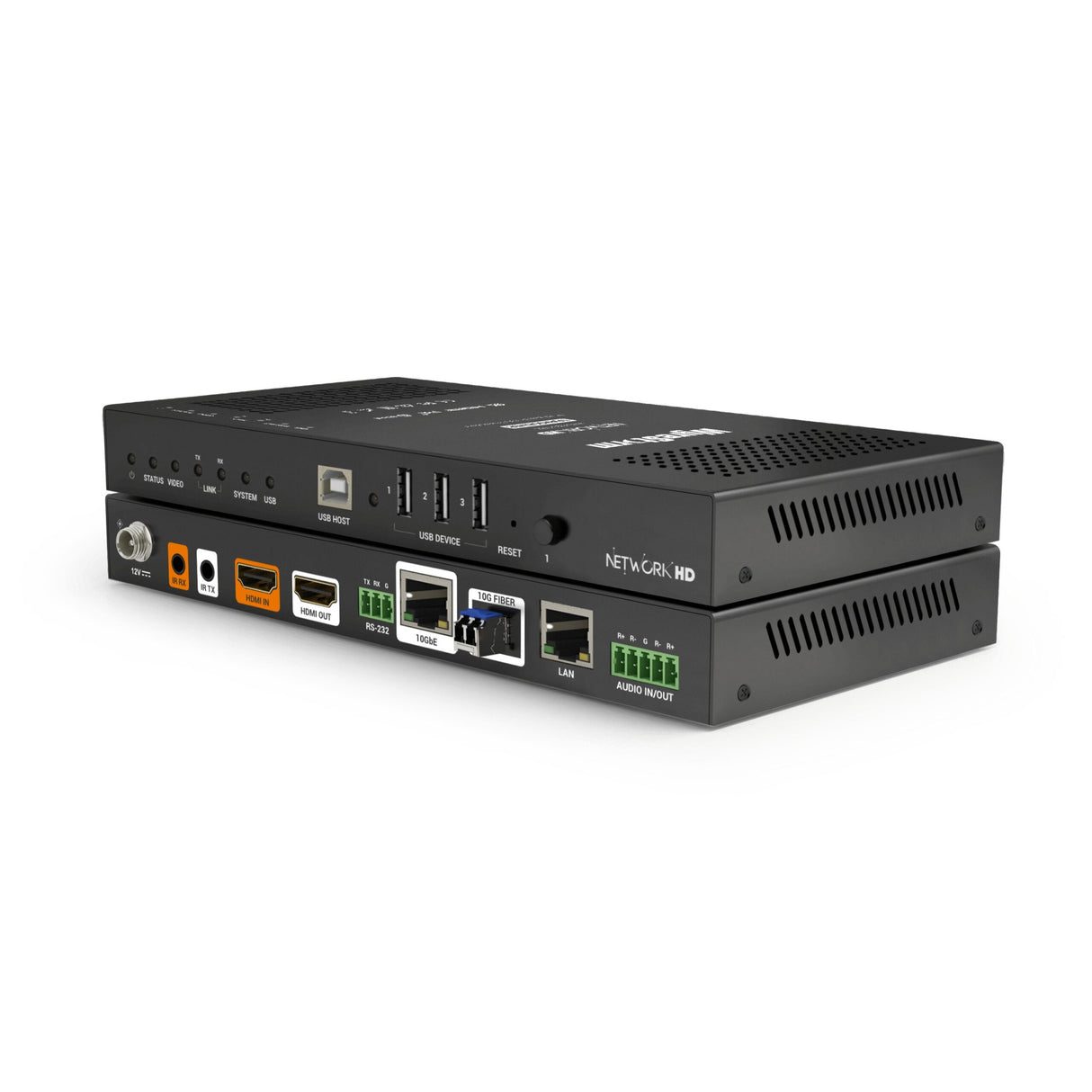

The NHD-600-TRXF is a SDVoE fiber transceiver capable of lossless & latency-free 4K60 over a 10Gb network. The TRXF allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. The SFP+ connector supports up to 300m (984ft), 10Gbps transmission distance for extremely long reach commercial applications. 3 x High-Speed USB 2.0 ports allow extension for keyboard & mouse applications and even compatibility with webcams, touchscreens, and media storage.

With all the bells & whistles of a flagship AV over IP solution, the NetworkHD 600 Series provides clarity and performance for those environments requiring detail and responsiveness. Whether monitoring mission critical AV feeds from a control room, immersed in the competitive E-Sports environment, or requiring crystal clear visuals in the medical field, this AV over IP distribution solution exceeds with no limitations.

TRANSCEIVER
One model to rule them all! As a transceiver the TRX can transmit and receive up to 4K60 video simultaneously. Additional settings also allow you to choose whether it is a TX, RX or TRX.

USB
Got USB? The TRXF is equipped with 3 x High-Speed USB 2.0 ports for extension of webcams, touchscreens, data storage and more. Genlock mode allows for a lag-free experience.

FIBER
Equipped with an SFP+ connector, transmit or receive 4K60 video up to 300m (984ft) with zero latency and lossless video using multi-mode fiber.

VIDEO WALL & MULTIVIEW
Up to an 8x8 video wall can be processed with bezel and gap correction along with the ability to process multiview PiP up to 16 windows.

Key Features

• Supports 4K UHD and DCI resolutions up to 60fps RGB or YUV 4:4:4
• Supports Dolby Vision, HDR10 and HLG HDR formats and ITU-R BT.2020 and BT.2100 color spaces
• Equipped with an SFP+ connector, transmit or receive 4K60 video up to 300m (984ft) with zero latency and lossless video using multi-mode fiber.
• Capable of high-bitrate multichannel audio passthrough, including Dolby Atmos and DTS:X
• HDCP 2.2 and HDCP 1.x support
• 3x USB 2.0 ports for extension of keyboard/mouse, webcams, touchscreens & media storage
• Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
• Video resolution, framerate and color space conversion using SMPTE/ITU recommended methods
• Genlock scaler mode for zero end-to-end latency
• Supports seamless AV source switching via Fast Switch mode
• Secondary video stream with alternate scaling options can be used for multiview source content
• Fully featured multiview image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
• Video wall processing including display bezel compensation
• Balanced analog audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
• Bidirectional IP to Infrared / RS-232 functionality via the API or 3rd-party drivers
• Auxiliary 1GbE channel for network connectivity of attached source devices
• Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
• Compatible with NHD-000-RACK4 for easy rack mounting
• Secure A/V transmissions using AES encryption methods
• *Preview streams not supported

Technical Specifications

AUDIO & VIDEO
Inputs/Outputs
1x HDMI 2.0 input
1x HDMI 2.0 output
1x 5-pin balanced analog audio in/out
1x 10Gb/s SFP+ GBIC
10GBASE-SR: 300m using OM3 multi-mode
10GBASE-LR: 10km using OM3 single-mode
Video Encoding/Decoding
SDVoE Pixel Pipeline
Encoding/Decoding Data Rate
1080p@60Hz 8bit - 3.4Gbps
4K UHD@30Hz 4:4:4 8bit - 6.4Gbps
4K UHD@60Hz 4:4:4 8bit - 8.7Gbps (with light compression)
End to End Latency
Genlock Mode: Uncompressed = 30us, Compressed <120us
Fast Switch Mode: 1~2 video frames = min. between 16.7 - 33.4ms @ 60fps
Video Resolution (Max)
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
1920x1080p @60Hz 12bit
Supported Standards
RGB | DCI
COMMUNICATION & CONTROL
HDMI
HDCP 2.2 & 1.x compliant
Ethernet
1x 1GbE LAN 8-pin RJ45
RS-232
1x 3-pin Phoenix Connector | 2 Way | Broadcast | Routed | API Programmable
IR
1x IR TX 3.5mm TS Mono Jack | API Programmable
1x IR RX 3.5mm TRS Stereo Jack | API Programmable
USB
3x USB 2.0 Type A
1x USB 2.0 Type B Host
USB Bandwidth: 480Mbps
POWER
Power Supply
12V 2A DC PSU
Max Power Consumption
Max
24w | Average: 10w
In the Box
1x NHD-600-TRXF Transceiver
1x 12V DC PSU (US/UK/EU/AU)
1x IR Emitter
1x IR Receiver
2x Wall Mounting Brackets
2x Rack Mounting Brackets
1x 3-pin Terminal Block
1x 5-pin Terminal Block
