Yale YRD256-CBA-619 Assure Lock SL Wi-Fi Touchscreen Deadbolt, Satin Nickel

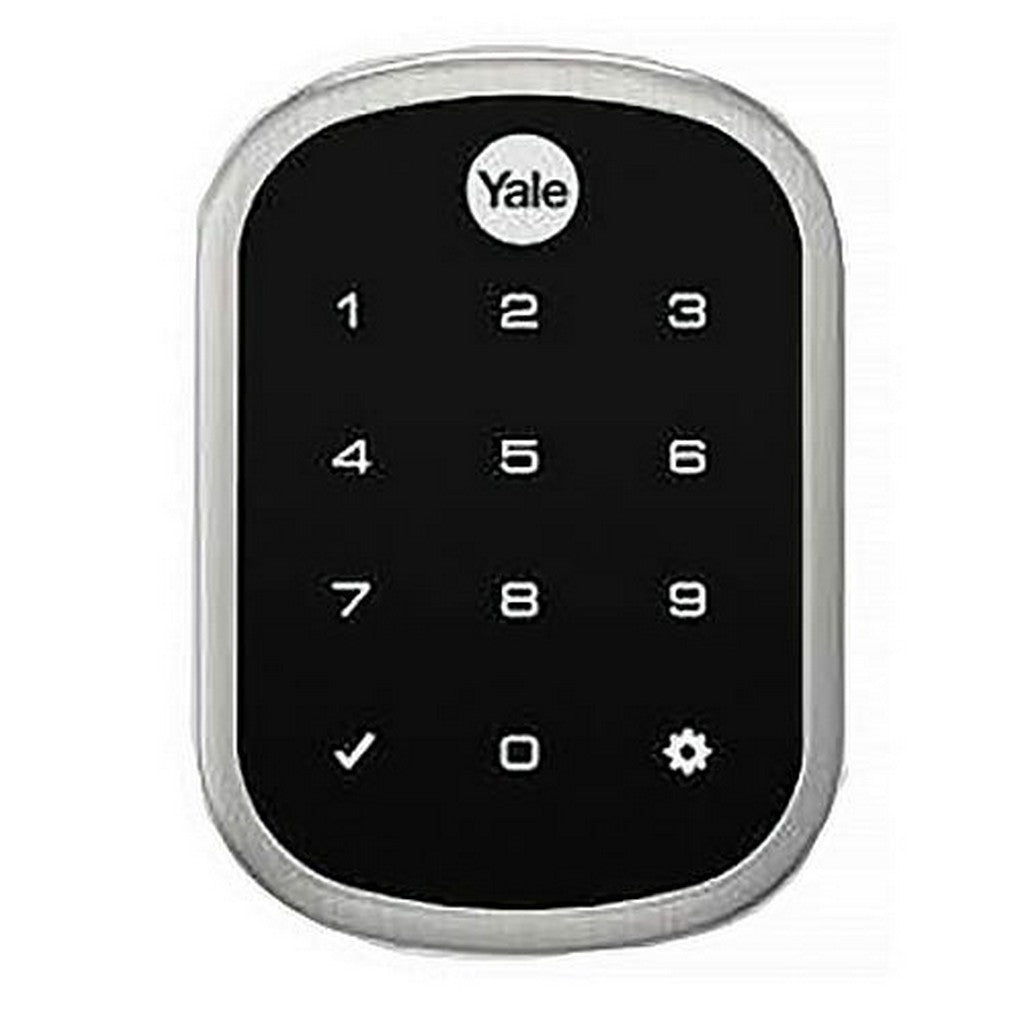

Yale YRD256-CBA-619 Assure Lock SL Smart Deadbolt

The Yale YRD256-CBA-619 Assure Lock SL Smart Deadbolt provides touchscreen entry, Bluetooth connectivity, and remote Wi-Fi access through an included Connect bridge. This Satin Nickel model uses a key-free design with no mechanical cylinder. Enter a four- to eight-digit code, use a compatible smartphone, or manage access remotely through the app.

Designed to replace an existing deadbolt, this touchscreen lock suits homeowners who want to manage entry without distributing physical keys. Use a key-free deadbolt for front-door access, a connected lock for scheduled guest entry, or app control for checking whether you locked up. Share permanent, scheduled, or temporary permissions and revoke them as needed. The backlit keypad provides access when your phone is unavailable.

The Connected by August configuration combines local Bluetooth communication with a Connect Wi-Fi Bridge for remote functions. Enable automatic unlocking for arrival with a compatible phone and automatic relocking after entry. Four AA alkaline batteries power the lock, while exterior contacts accept temporary power from a 9V battery if those batteries run down. Yale specifies ANSI/BHMA Grade 2 performance and adjustable backset compatibility for suitable residential doors.

Key Features

• Key-Free Touchscreen: Enter a four- to eight-digit code without carrying a mechanical key or using a phone.

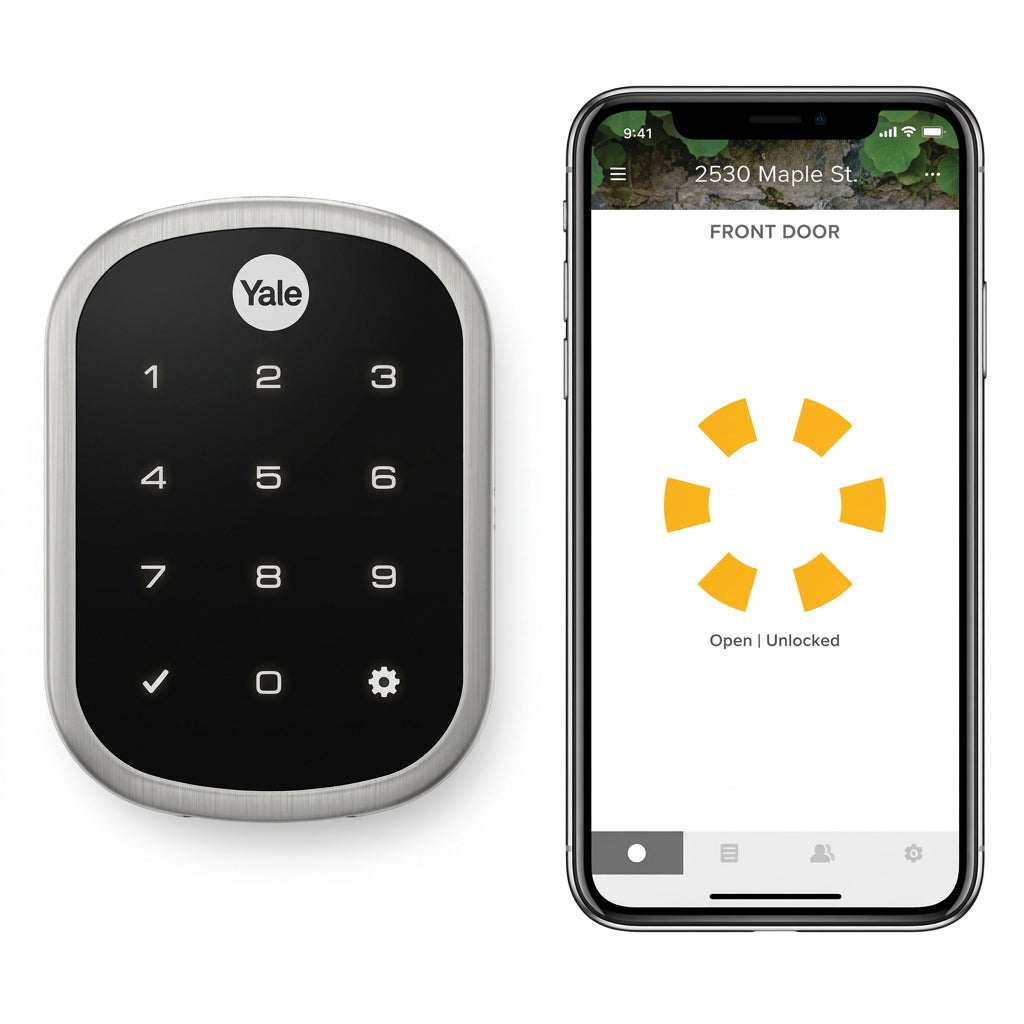

• Remote Access With Included Bridge: The Connect Wi-Fi Bridge enables app-based locking, unlocking, access sharing, and activity review.
• Flexible Guest Permissions: Assign permanent, scheduled, or temporary access and revoke permissions when they are no longer required.
• Automatic Locking Functions: Configure Auto-Unlock and automatic relocking to simplify everyday entry and departure.
• Emergency Battery Contacts: Apply a 9V battery to the exterior terminals to temporarily power the keypad when the internal batteries are depleted.
• Existing Deadbolt Replacement: Install on a compatible prepared door using a Phillips screwdriver.
• Configurable Lock Settings: Adjust privacy mode, relocking, and tamper-alarm options through the lock menu.
• Satin Nickel Finish: Coordinate the slim exterior touchscreen with matching residential door hardware.

Technical Specifications

• Brand: Yale
• Product Series: Assure Lock SL
• Model: YRD256-CBA-619
• Product Type: Key-free touchscreen smart deadbolt
• Finish: Satin Nickel
• Connectivity Configuration: Connected by August
• Wireless Connections: Bluetooth; remote Wi-Fi access through included Connect bridge
• App Functions: Remote lock/unlock, access sharing, status checking, and activity review
• Touchscreen: Backlit
• Entry Code Length: 4-8 digits
• Access Permissions: Permanent, scheduled, or temporary
• Automatic Functions: Auto-Unlock and configurable automatic relocking
• Mechanical Key Cylinder: None

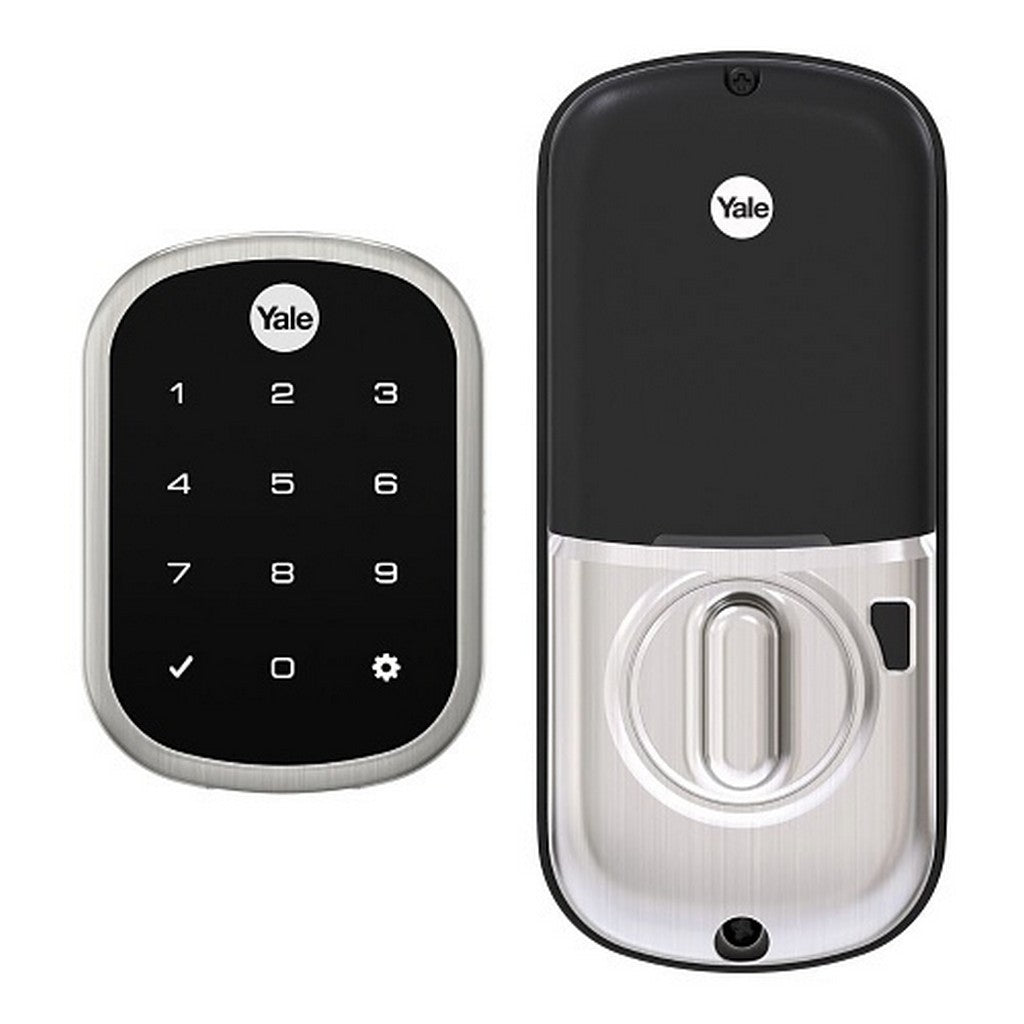

• Interior Operation: Manual thumbturn
• Power Source: 4 AA alkaline batteries, included
• Emergency Power: External 9V battery contacts
• Indicators: Low battery and code-lockout status
• Configurable Settings: Automatic relocking, privacy mode, and tamper alarms
• Setup Assistance: Spoken setup and menu guidance

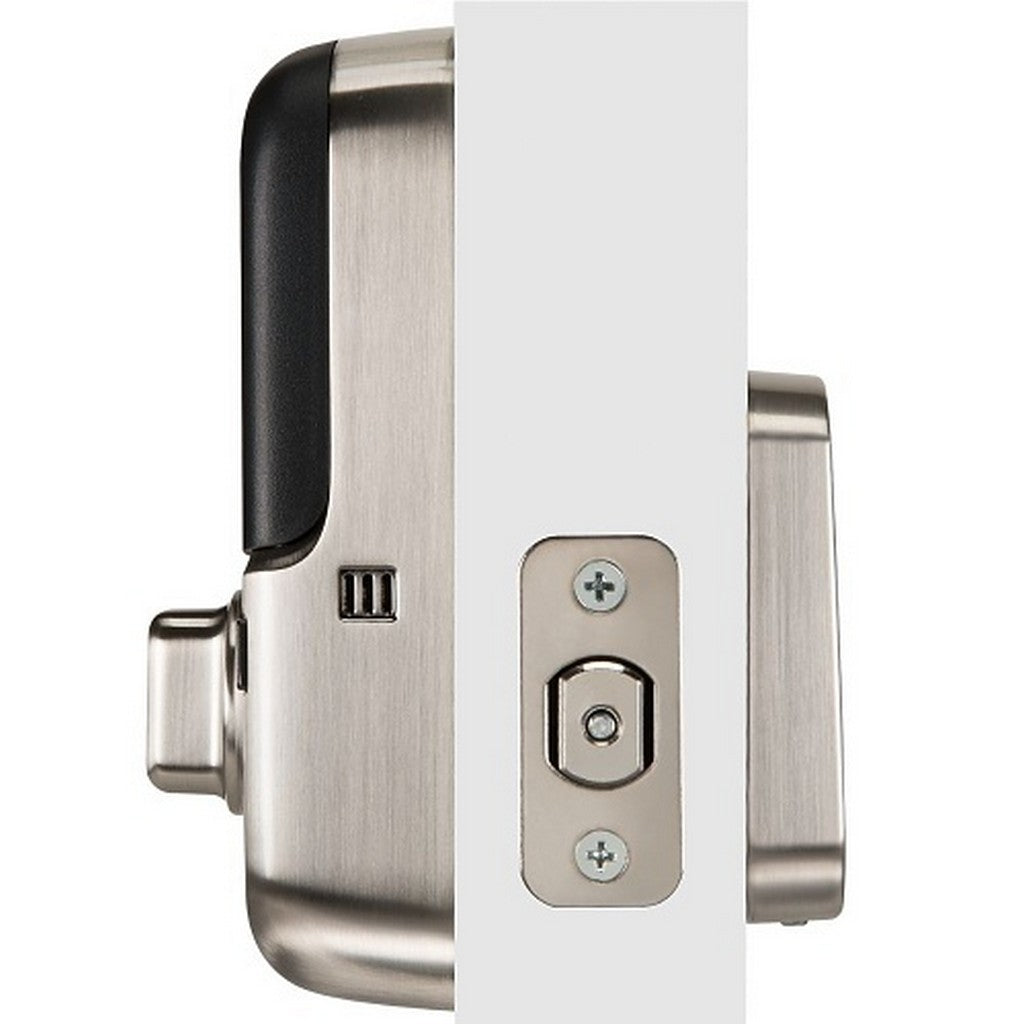

• Deadbolt: Motorized, tapered design
• Compatible Door Thickness: Nominal 1-3/8 to 2-1/4 inches
• Backset: Nominal 2-3/8 or 2-3/4 inches
• Face Bore: Nominal 2-1/8 inches
• Edge Bore: 1 inch
• Handing: Self-handing; configure while unlocked
• Latch Front: Round corner
• Strike: Round corner; nominal 2-1/4 x 1 inch
• Manufacturer-Listed Grade: ANSI/BHMA Grade 2, A156.36
• Exterior Operating Temperature: -22 to 140°F
• Interior Operating Temperature: 5 to 158°F

What's In the Box

• 1 x Yale Assure Lock SL YRD256-CBA-619
• 1 x Connect Wi-Fi Bridge
• 4 x AA alkaline batteries
• Adjustable deadbolt and strike plate
• Mounting plate and installation hardware
• Installation guide and door template
