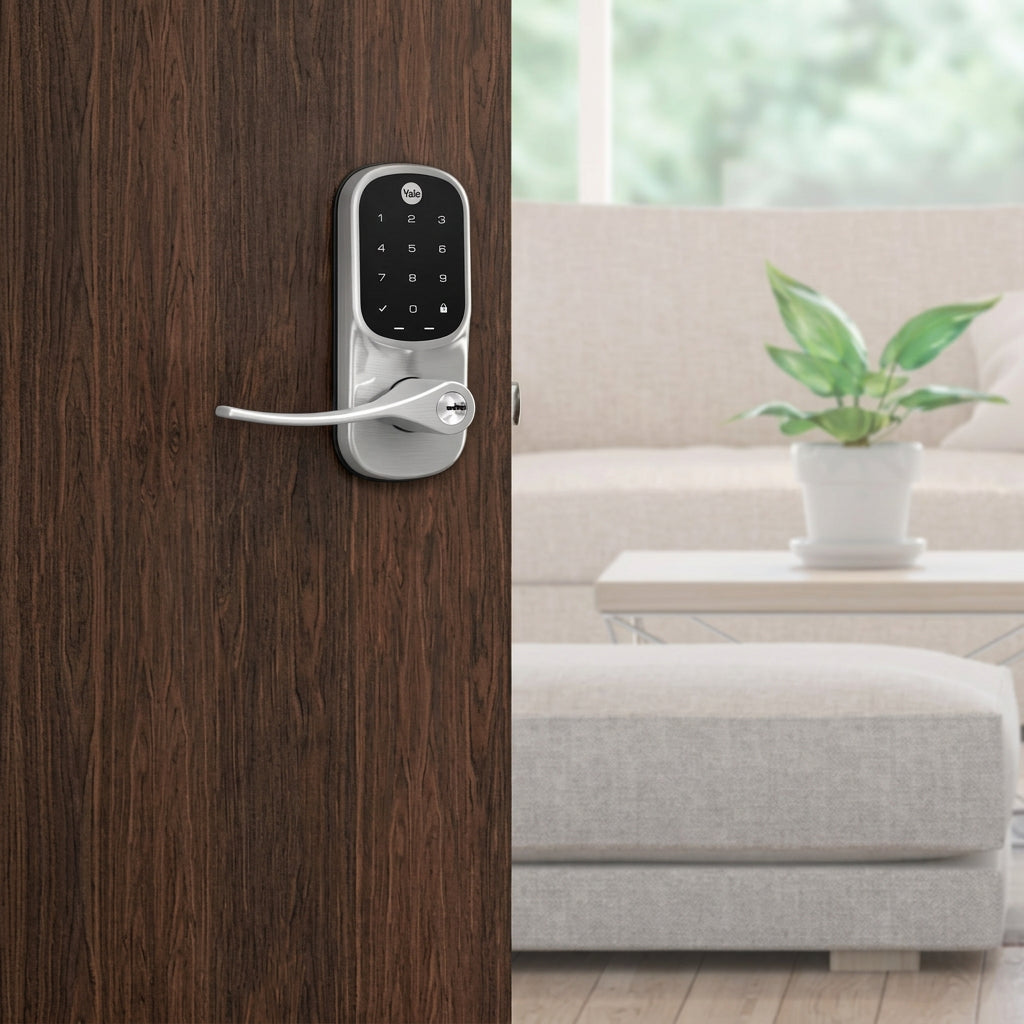

Yale YRL226-WF1-619 Assure Wi-Fi Touchscreen Lever Lock, Satin Nickel

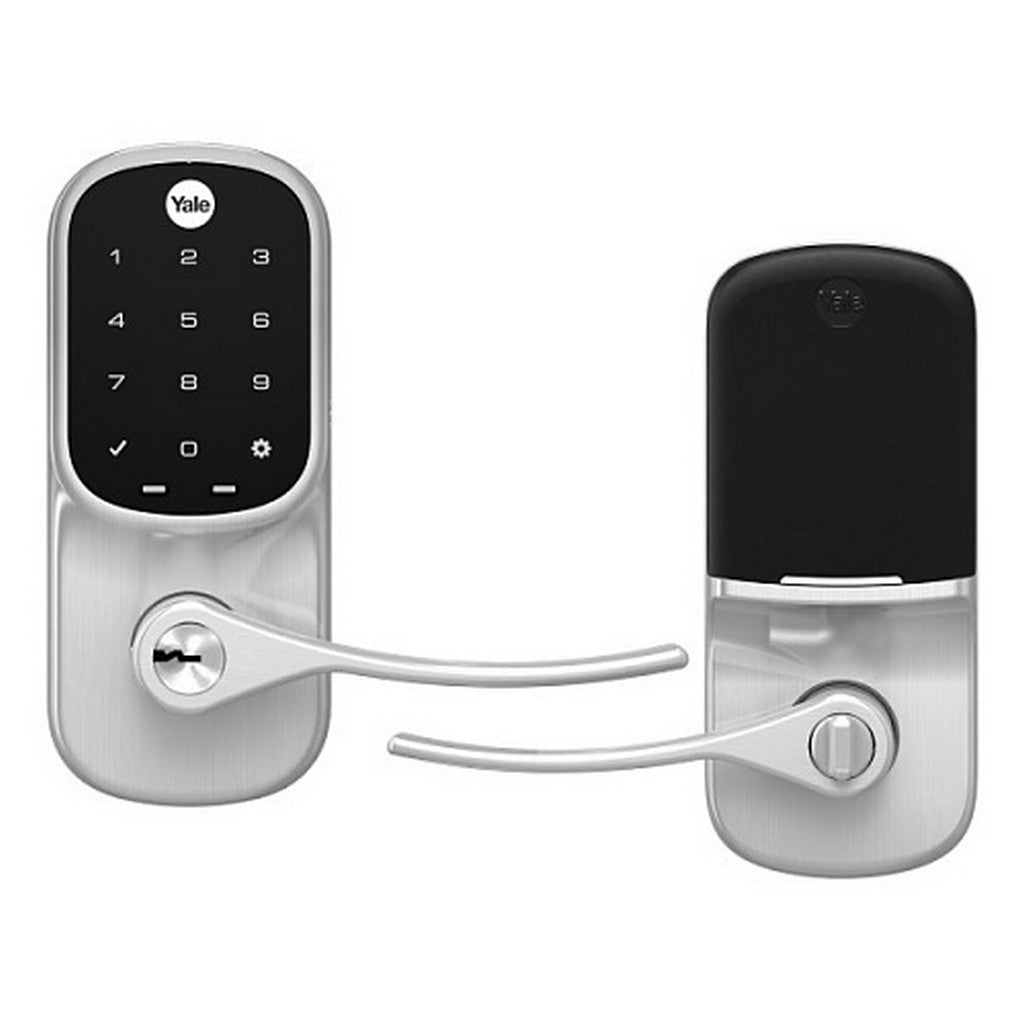

Yale YRL226-WF1-619 Assure Wi-Fi Touchscreen Lever Lock

The Yale YRL226-WF1-619 Assure Wi-Fi Touchscreen Lever Lock replaces a compatible single-hole door knob or lever with touchscreen and app-controlled access. This Satin Nickel model includes Wi-Fi connectivity, Bluetooth, and a physical backup key. Use the Yale Access app to operate the lock remotely, manage guest access, and review entry activity.

Designed for doors without a separate deadbolt, the Assure Lever suits side entrances, garage-entry doors, basements, and home offices. Choose a touchscreen smart lock for single-hole doors when you want keypad access alongside smartphone control. A Wi-Fi lever lock with guest codes also helps manage access for household members and visitors. Create permanent, scheduled, or temporary permissions, then revoke access when it is no longer needed.

The backlit touchscreen provides entry when you leave your phone behind. Enable Auto-Unlock for arrival with a compatible phone and Auto-Relock for automatic locking after entry. Included DoorSense hardware supports door-position awareness. Adjustable backset compatibility and installation with a screwdriver simplify replacement on suitable doors. Yale specifies ANSI/BHMA Grade 2 performance, while the Satin Nickel finish coordinates with matching door hardware throughout the home.

Key Features

• Touchscreen Entry: Unlock with an entry code on the backlit keypad when you do not want to use a phone or key.
• Remote Wi-Fi Control: Lock, unlock, check status, and review access activity through the Yale Access app without an additional hub.
• Flexible Guest Permissions: Share app access or assign unique codes with permanent, scheduled, or temporary availability.
• Automatic Arrival Access: Auto-Unlock can open the lock as you arrive with your compatible smartphone.
• Automatic Relocking: Enable Auto-Relock to reduce the need to lock the door manually after entering.
• Single-Hole Door Replacement: Replace a compatible knob or lever on doors without a separate deadbolt.
• Physical Key Backup: The keyed cylinder provides another entry method, with one key included.
• Satin Nickel Finish: Match contemporary door hardware while adding connected access control.

Technical Specifications

• Brand: Yale
• Product Series: Assure Lever
• Model: YRL226-WF1-619
• Product Type: Wi-Fi touchscreen smart lever lock
• Finish: Satin Nickel
• Wireless Connectivity: Wi-Fi and Bluetooth
• Control App: Yale Access
• Mobile Platform Compatibility: iOS and Android
• Entry Methods: Touchscreen code, compatible smartphone, physical key
• Remote Functions: Lock/unlock, status checking, access sharing, activity review
• Access Scheduling: Permanent, scheduled, or temporary permissions
• Automatic Functions: Auto-Unlock and configurable Auto-Relock
• Door Monitoring: DoorSense included
• Additional Hub: Not required for the advertised Wi-Fi app functions
• Door Application: Single-hole doors without a separate deadbolt
• Compatible Door Thickness: 1.4-1.8 inches; nominal 1-3/8 to 1-3/4 inches
• Backset: Nominal 2-3/8 or 2-3/4 inches
• Face Bore: Nominal 2-1/8 inches
• Edge Bore: 1 inch
• Handing: Self-handing; configure while unlocked
• Latch Front: Round corner
• Strike: Round corner; nominal 1-1/8 x 2-3/4 inches
• Cylinder: 5-pin
• Keyway: KW-1
• Keys Included: 1
• Battery Chemistry: Alkaline
• Manufacturer-Listed Grade: ANSI/BHMA Grade 2
• Exterior Operating Temperature: -22 to 140°F
• Interior Operating Temperature: 5 to 158°F
• Published Dimensions: 2.3 x 2.6 x 6.1 inches
• Published Weight: 7 lb
• Finish And Mechanical Warranty: Limited lifetime

What's In the Box

• 1 x Yale Assure Lever
• 1 x Yale Wi-Fi Smart Module
• 1 x DoorSense
• 1 x latch
• 1 x strike plate
• Mounting hardware
• 1 x installation manual
• 1 x key
